3" bore x 16" stroke tie rod hydraulic cylinder

Name: 3" bore x 16" stroke tie rod hydraulic cylinder
SKU: TRC 3x16
Availability: OutOfStock
Rating: 4.80 (6 reviews)

$227.00

Pay in 4 interest-free payments of $56.75

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: TRC 3x16

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Eagle part number	Cross part number
TRC 3x16	218339	211352	F300160ABAAA07B	HTR3016-ORB-P	316DB

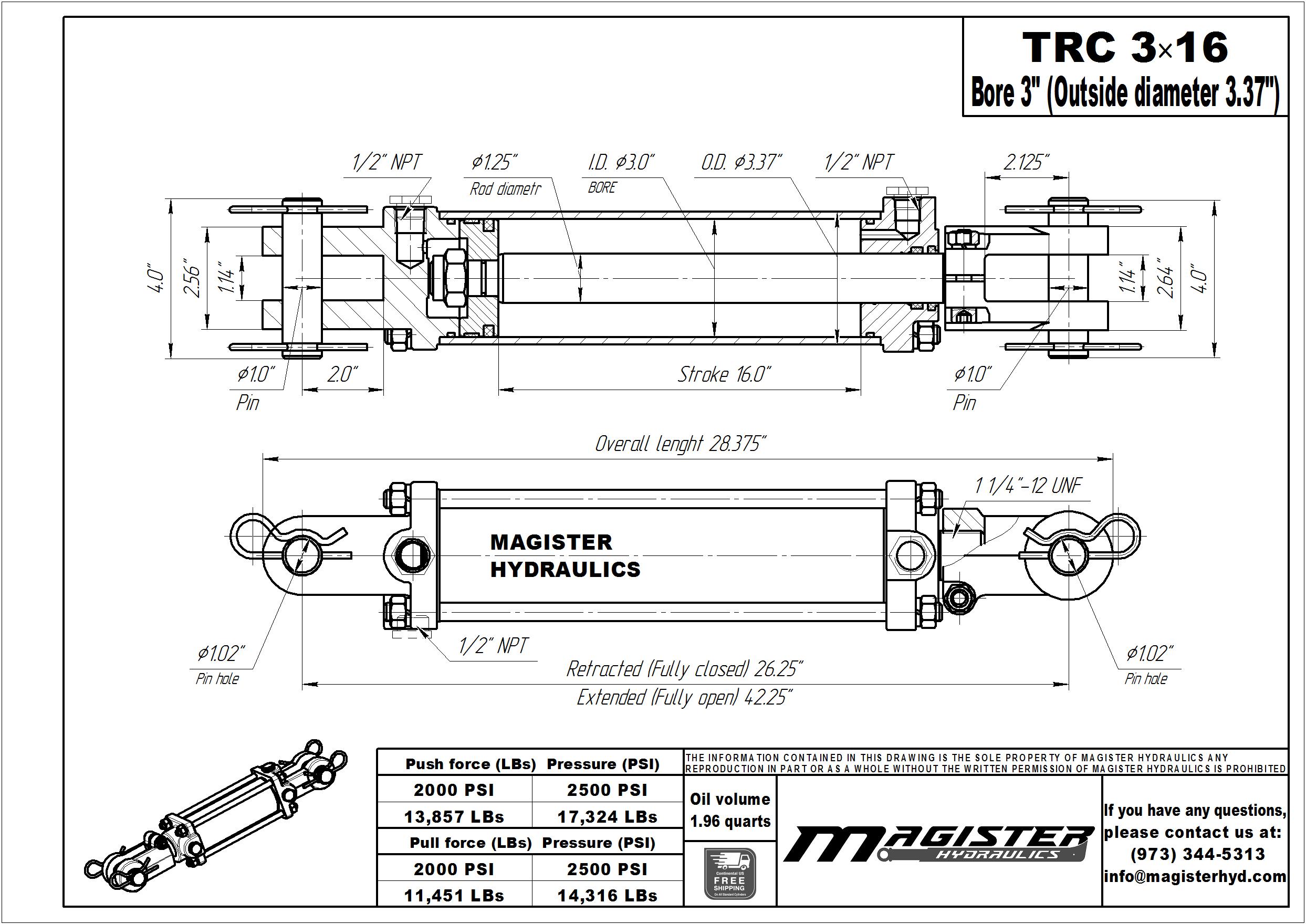

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	3 in
Outer Dia. (⌀) :	3.37 in
Stroke :	16 in
Rod Dia. (⌀) :	1.25 in
Port Size :	1/2" NPT
Pin Dia. (⌀) :	1 in

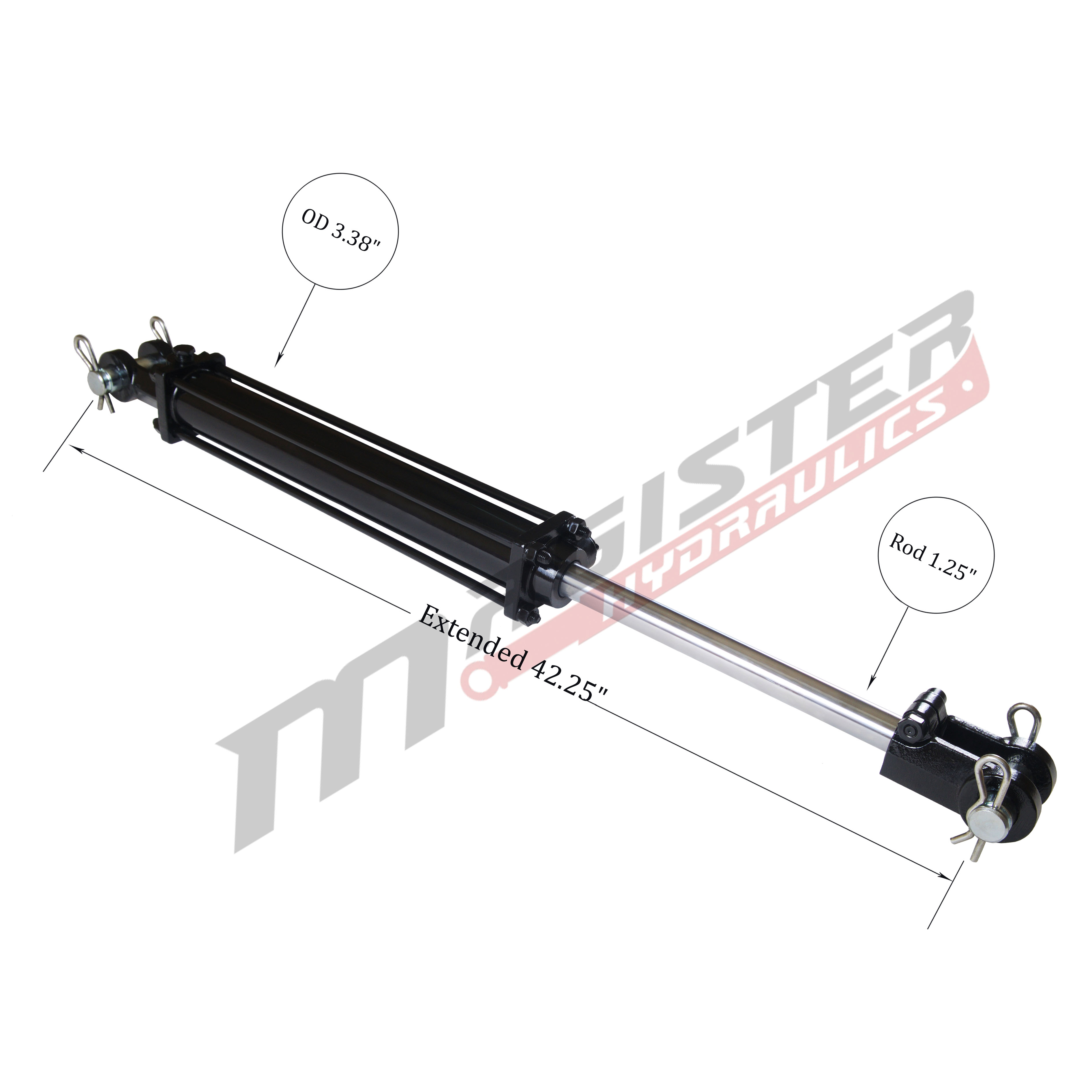

Extended :	42.25 in

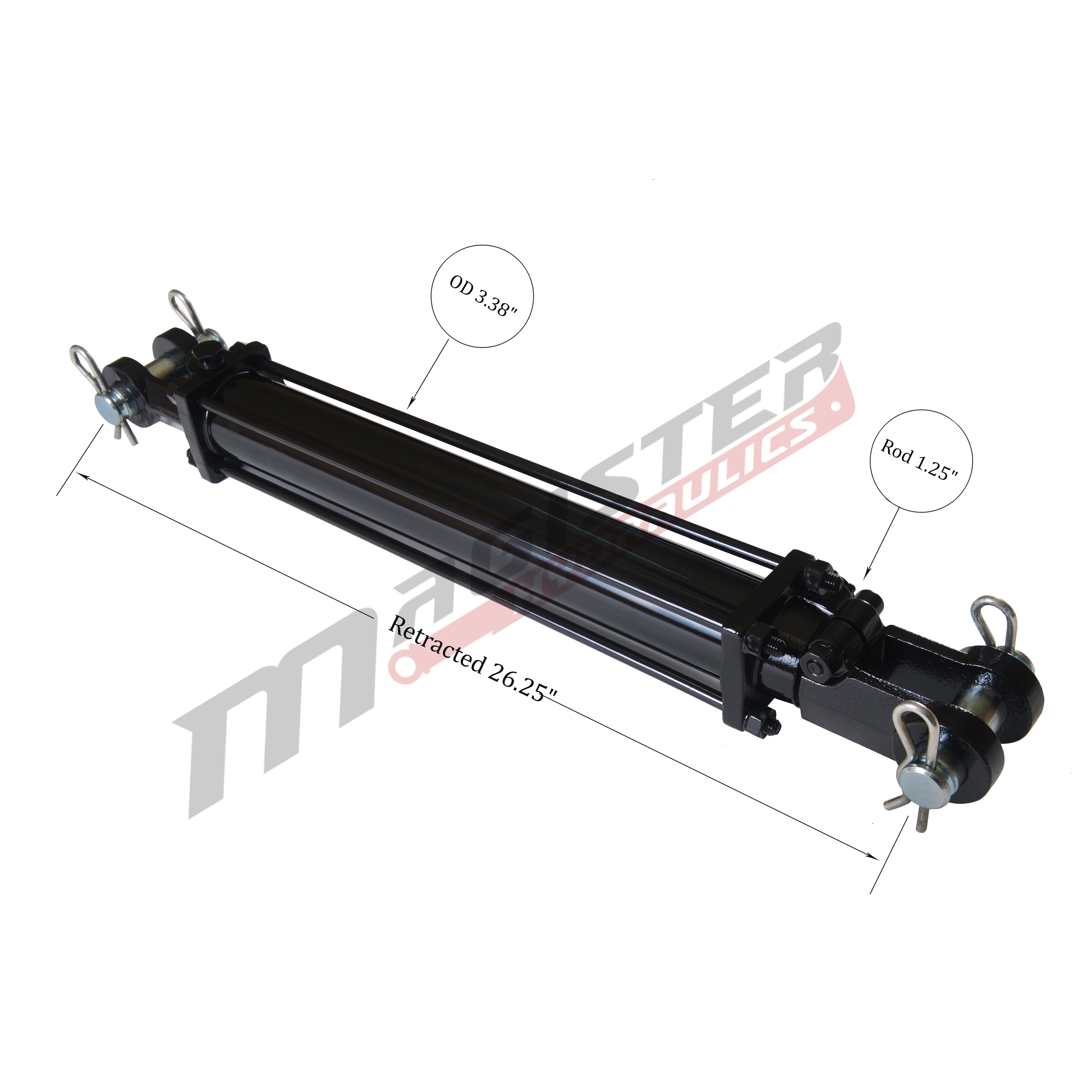

Retracted :	26.25 in
Overall length :	28.37 in
Pressure :	2500 PSI
Column Load :	17,670 LBs
Oil Volume :	1.96 QTs
Brand :	Magister Hydraulics
Design :	Tie Rod
Rod Type :	Chrome Plated
Rod End :	Clevis
Action :	Double Acting
Weight :	37 LBs
GTIN :	854335007698

SKU: TRC 3x16 Categories: 3" Bore Tie Rod, Hydraulic Cylinders Brand: Magister Hydraulics

Volume discounts

4+ PRICE EA -5%

$215.65

8+ PRICE EA -10%

$204.30

Possible Alternatives: WBC 3x16 WCL 3x16

Out of stock

Notify me when the product is in stock:

Enter your email address to join the waitlist for this product

Description

Designed for Maximum Performance and Durability, the heavy-duty Tie-Rod Hydraulic Cylinder is engineered to withstand the toughest jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Tie-Rod Double Acting Hydraulic Ram features a 3 inch bore and 16 inch stroke, built with a durable tie-rod design for superior strength and reliability. This construction ensures easy maintenance and long-lasting performance, making it an affordable and high-quality alternative to OEM hydraulic rams. The tie-rod cylinders are ideal for a wide range of low-pressure agriculture and construction applications, including waste management, recycling, mobile, transportation, insudstial, and material handling.

Key Features:

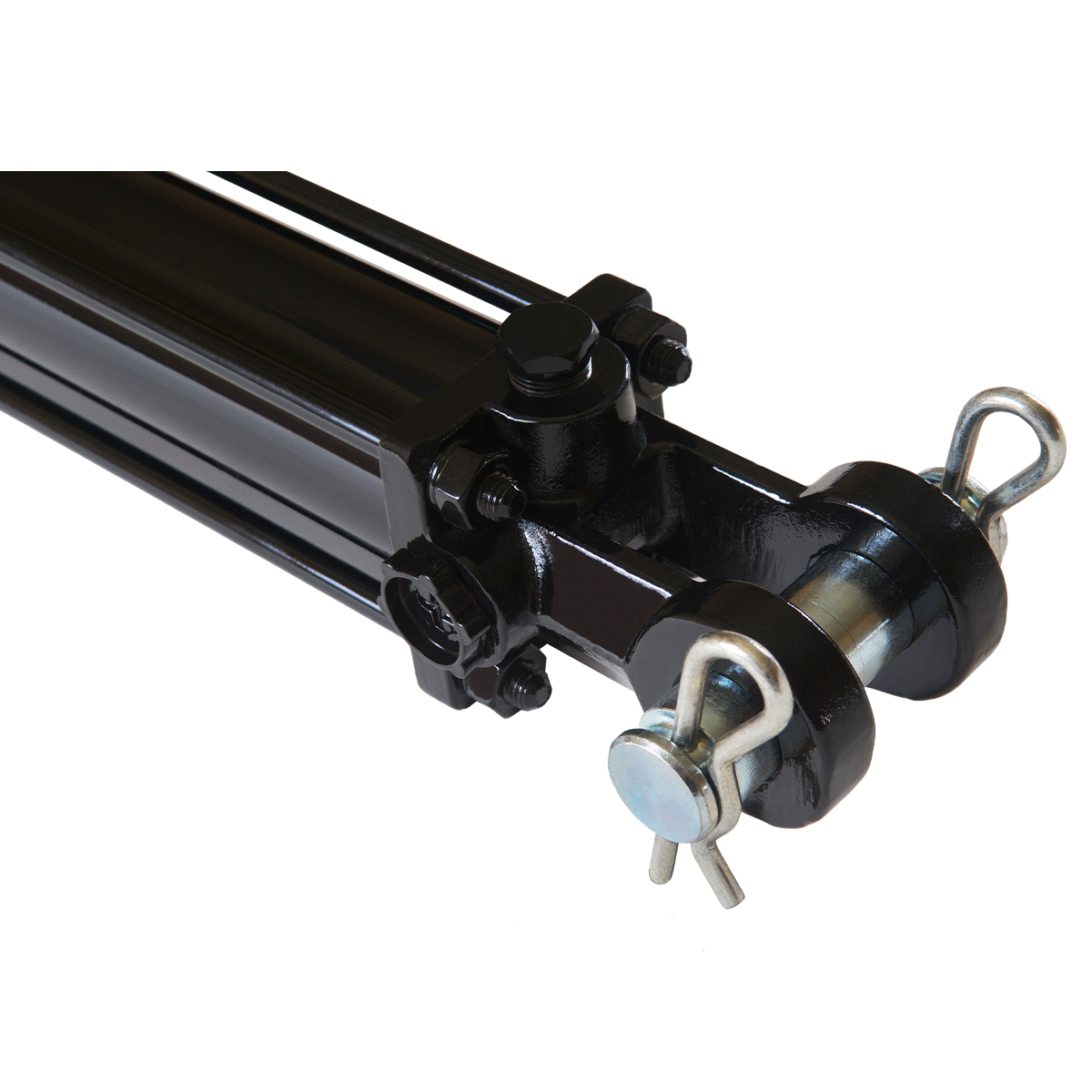

High load capacity: Cast iron clevis end, ⌀ 3.37″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045) with screw-on clevis on the rod end, and top-quality piston seals make it capable of handling heavy loads with a 16″ stroke.
Wide Range Hydraulic Applications:Manufacturing and automation, agriculture and farming equipment, construction, material handling, mining, automotive industry, industrial machinery, due to their versatility, durability, and cost-effectiveness of this tie-rod cylinder.
Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
High-Quality Construction: Designed with heavy-duty steel end caps, precision-machined tie rods, and honed steel tubing, ensuring long-lasting performance and easy maintenance.
Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
Easy Maintenance: The bolted-together design allows for quick disassembly, making it simple to replace seals and components, extending the cylinder’s service life.
2-year warranty
Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
Made in Europe.

Before purchase, please take the proper measurements:

The diameter of the bore (please specify inside or outside measurement).
The diameter of the rod and pin holes.
The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
The width on each mounting end of the cylinder where the pins slide through.
