3" bore x 24" stroke tie rod hydraulic cylinder

(1 customer review)

$176.00

TRC 3x24
Bore :
3"
OD :
3.37"
Stroke :
24"
Rod :
1.25"
Port Size :
1/2" NPT
Pin :
1"

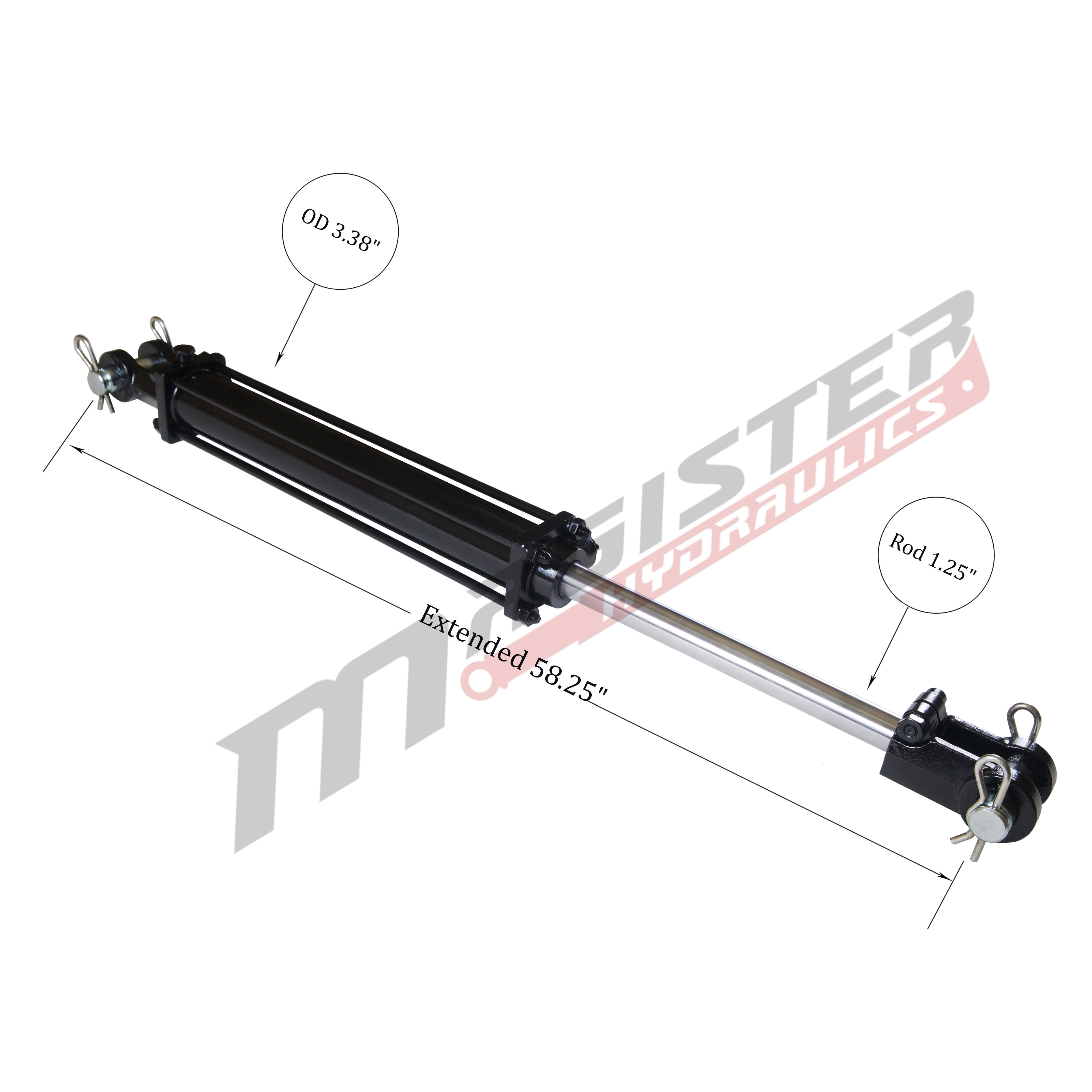

Extended :
58.25"

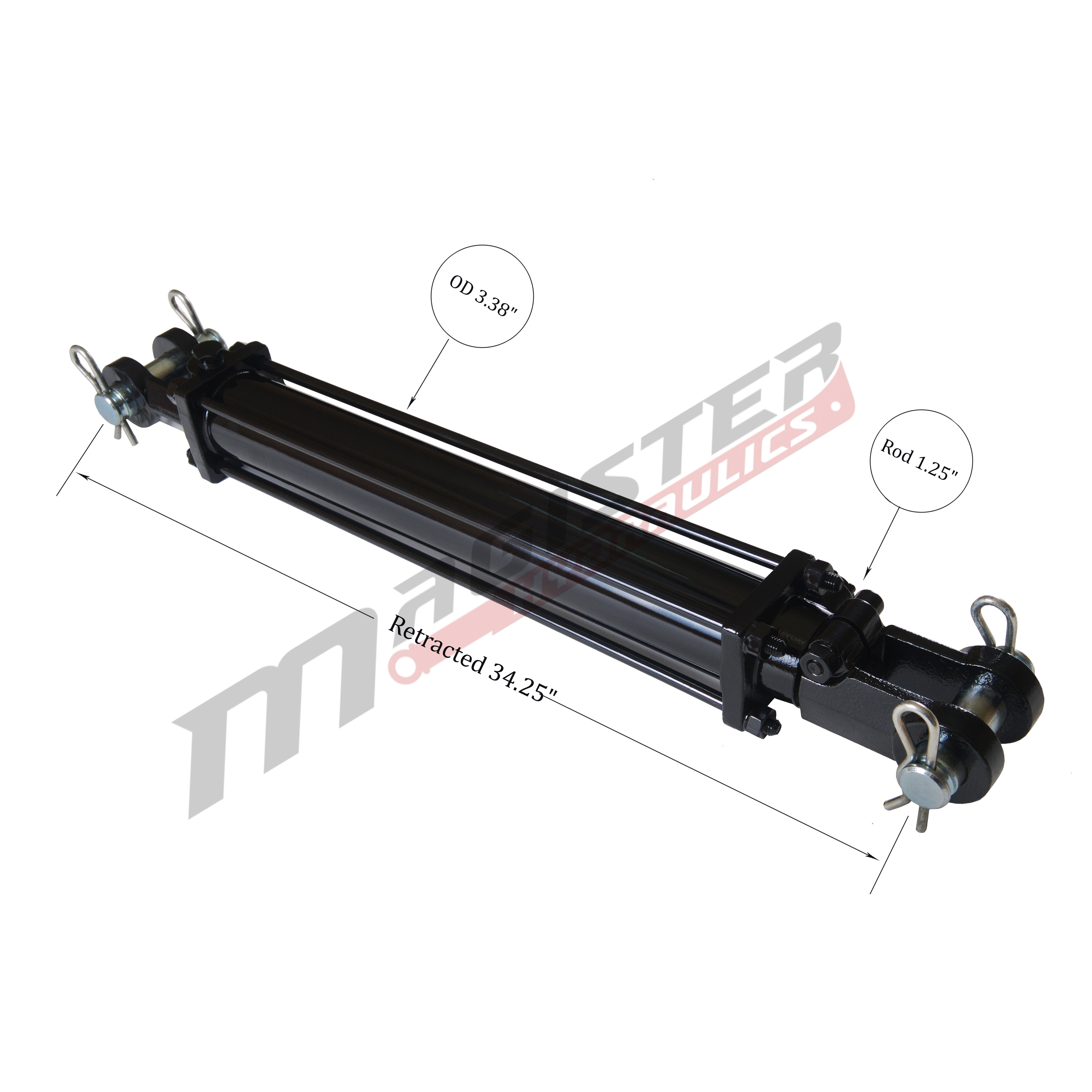

Retracted :
34.25"
Overall length :
36.37"
Pressure :
2500 PSI
Column Load (LBs) :
8,050
Oil Volume (quarts) :
2.94
Brand :
Magister Hydraulics
GTIN :
854335007735
1+ PRICE EA
$176.00
4+ PRICE EA -5%
$167.20
10+ PRICE EA -10%
$158.40
Out of stock

Out of stock

DESCRIPTION

  • 3″ bore x 24″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
