2" bore x 20" stroke tie rod hydraulic cylinder


Pay in 4 interest-free payments of $43.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 2x20
Bore :2 inch
OD :2.37"
Stroke :20” Stroke Hydraulic Cylinders
Rod :1.125"
Port Size :3/8" NPT
Pin :1"

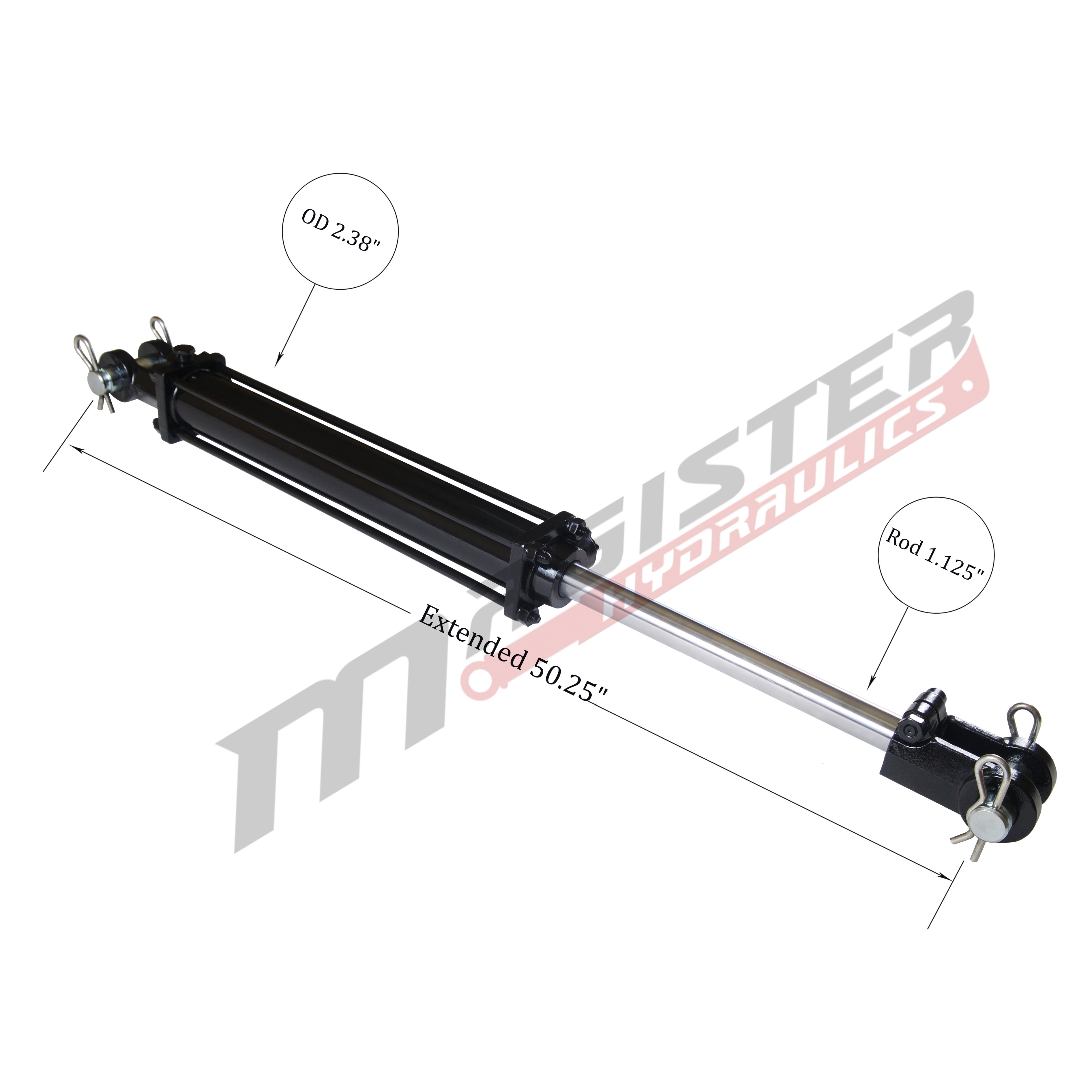

Extended :50.25"

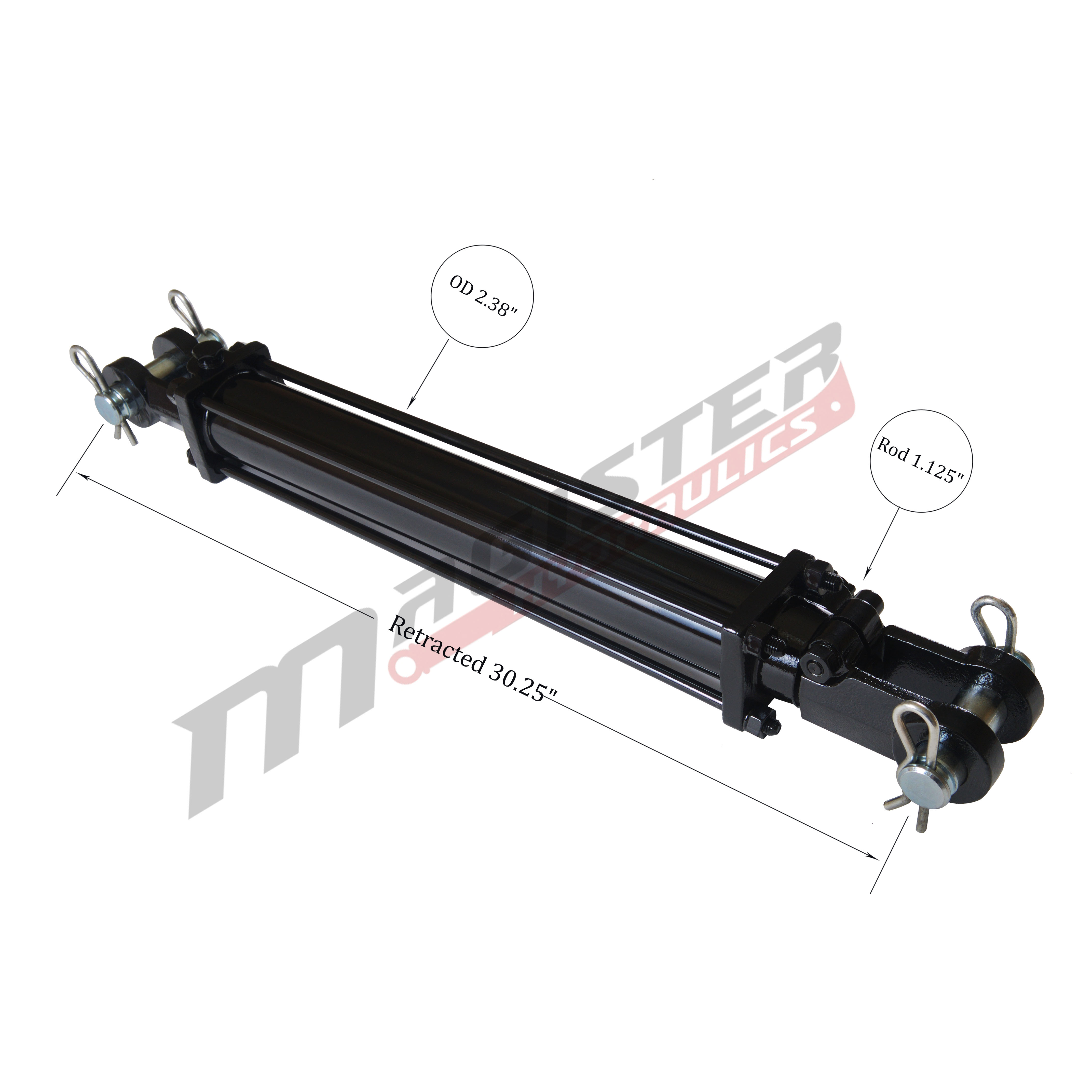

Retracted :30.25"
Overall length :32.25"
Pressure :2500 PSI
Column Load (LBs) :7,850
Oil Volume (quarts) :1.09
Brand :Magister Hydraulics
GTIN :854335007483
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

72 in stock

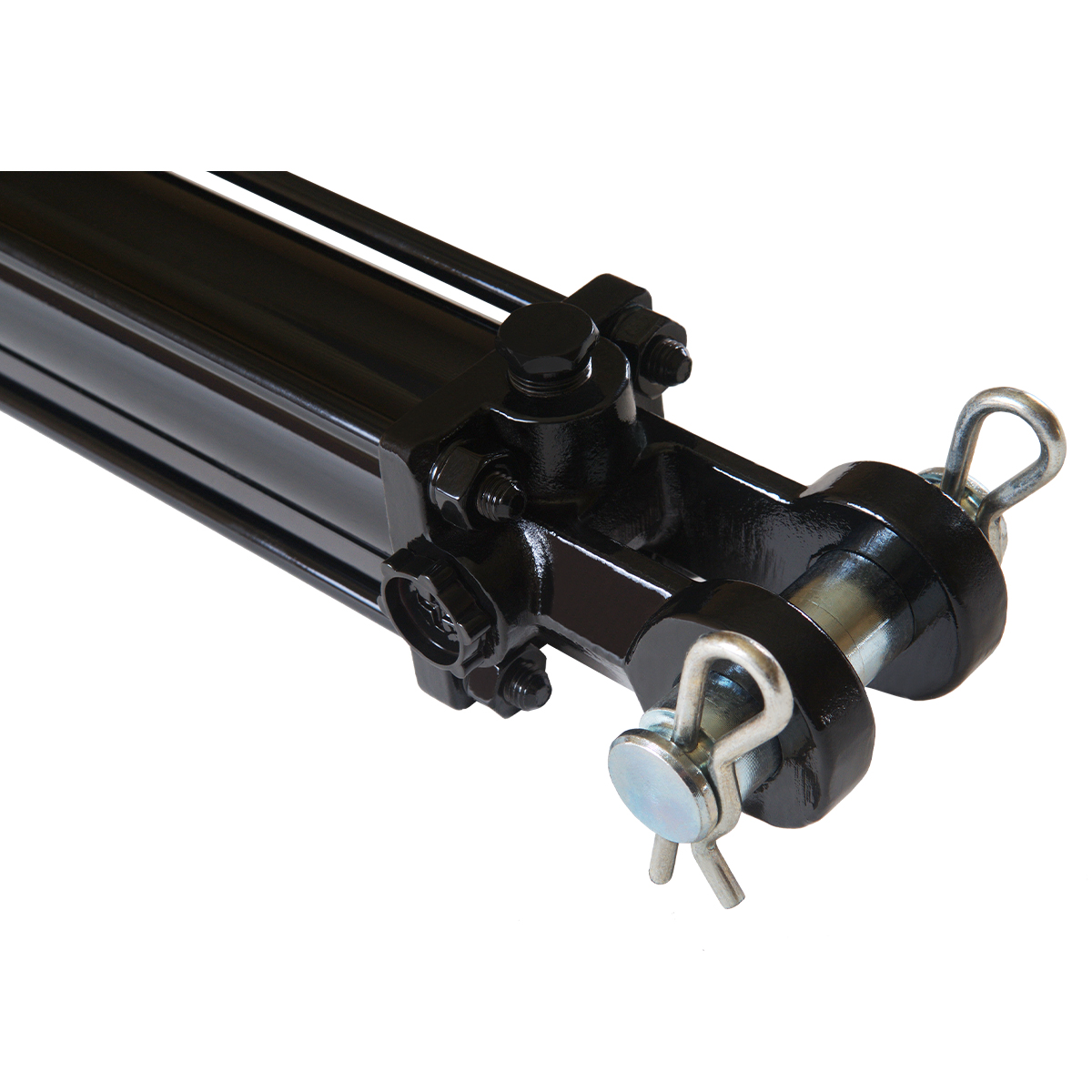

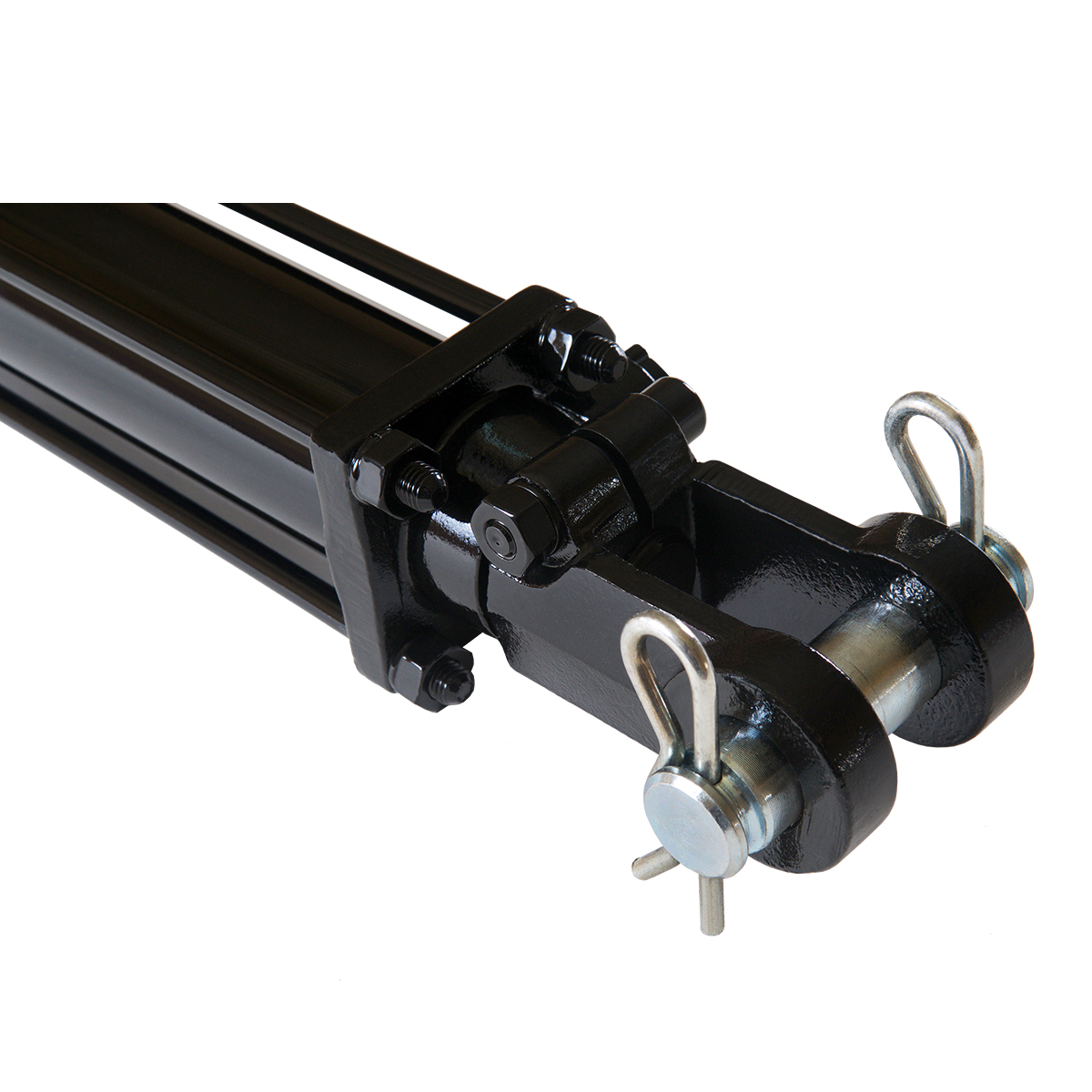

  • 2″ bore x 20″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
