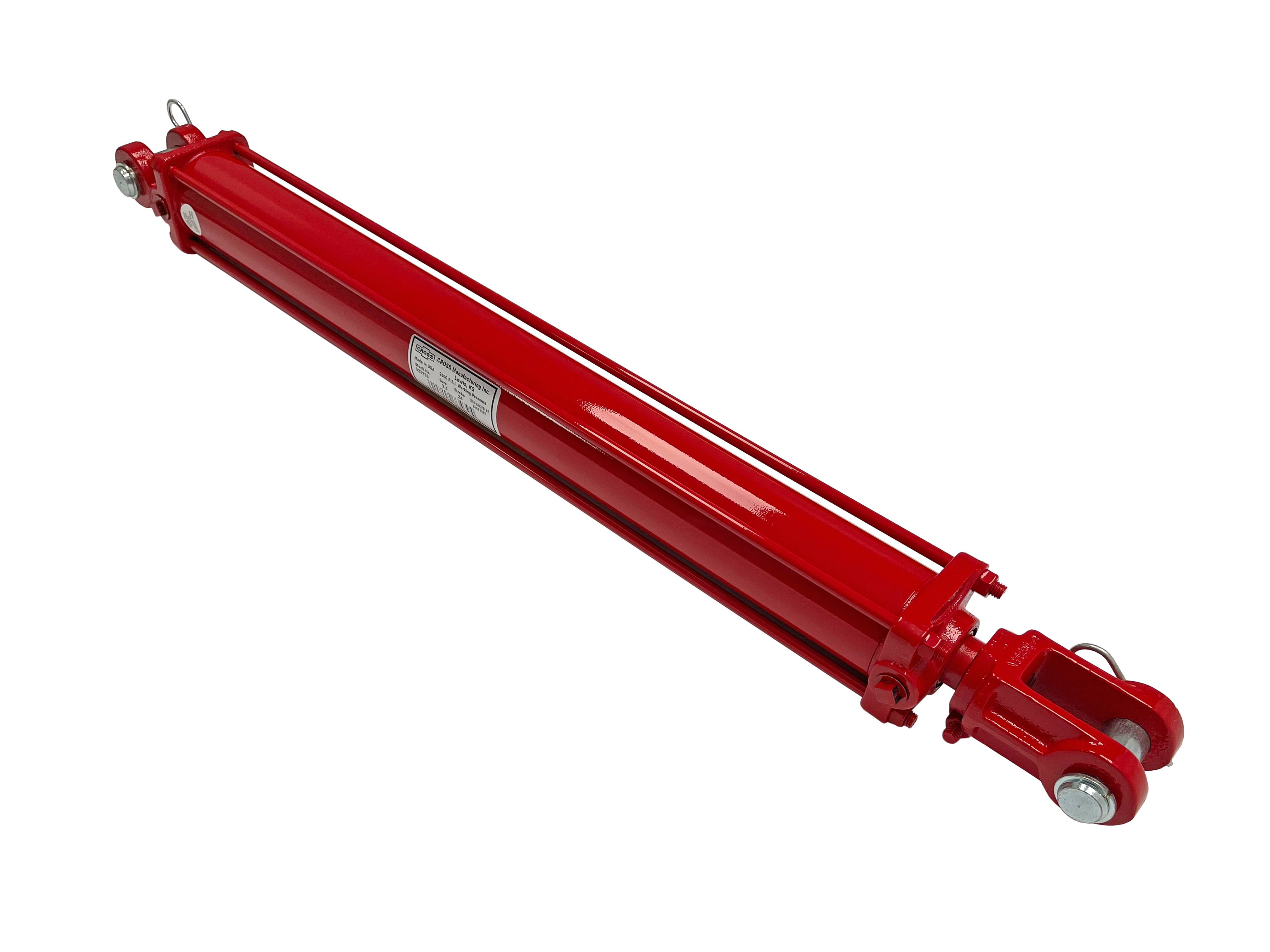

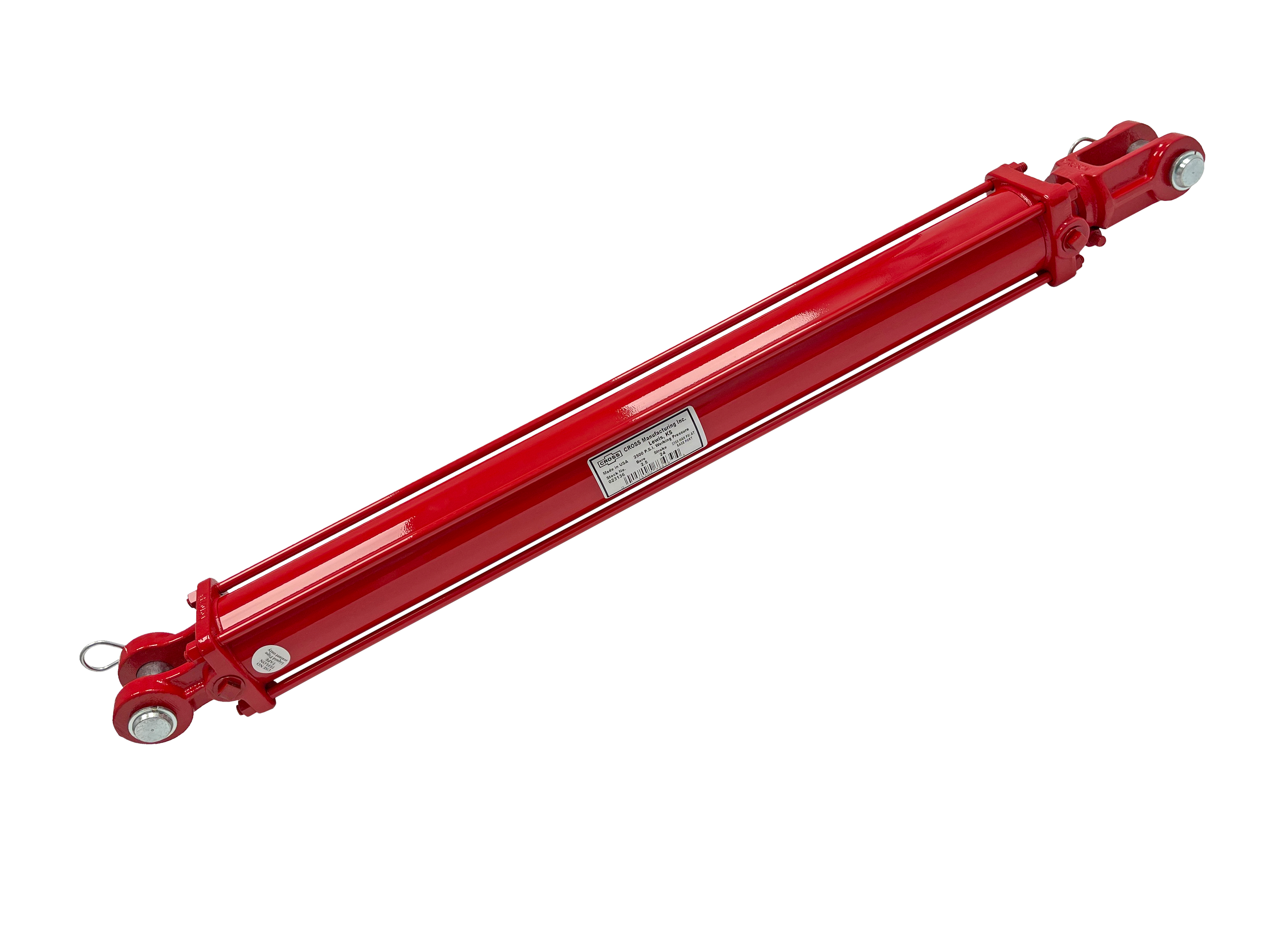

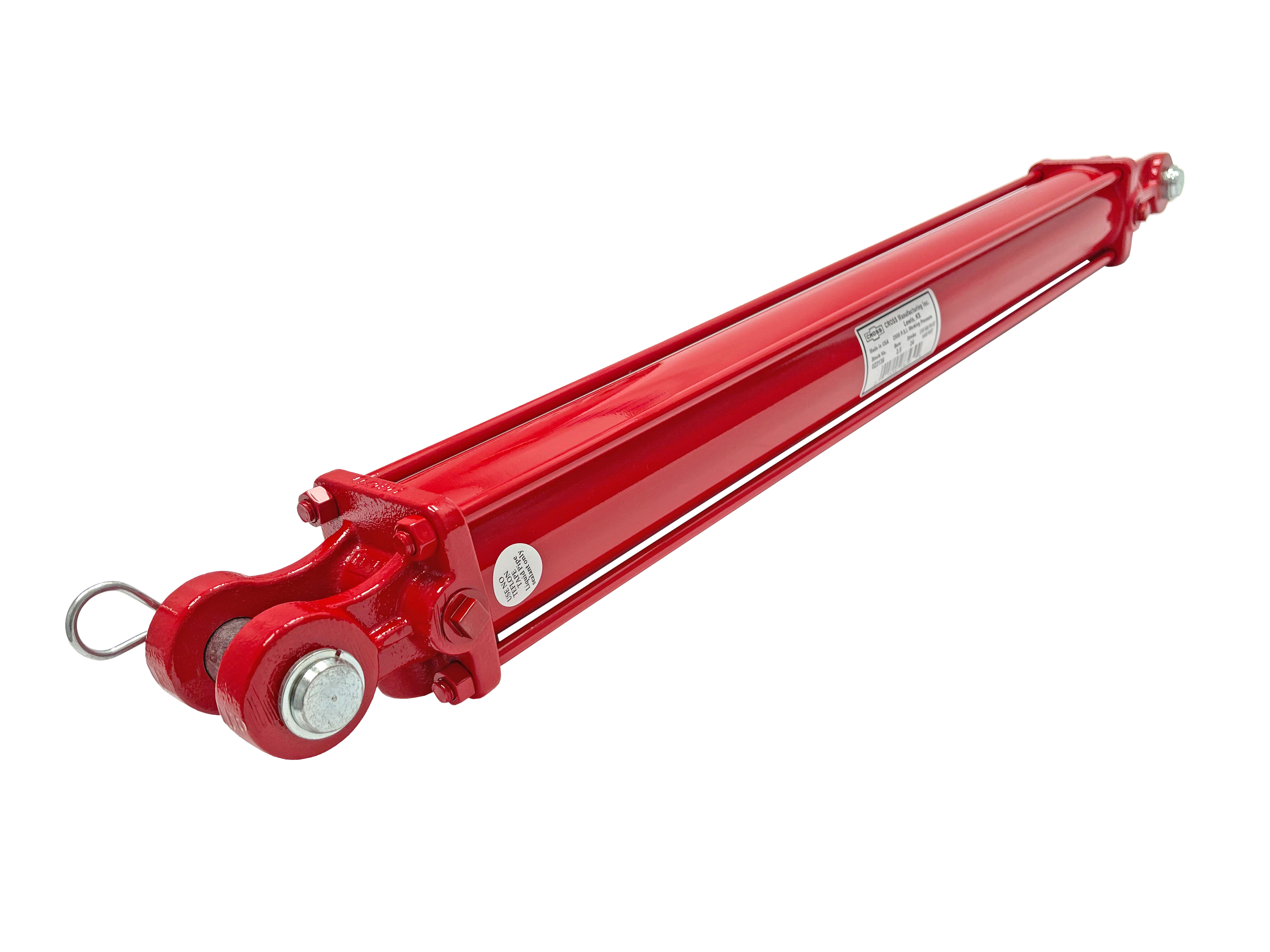

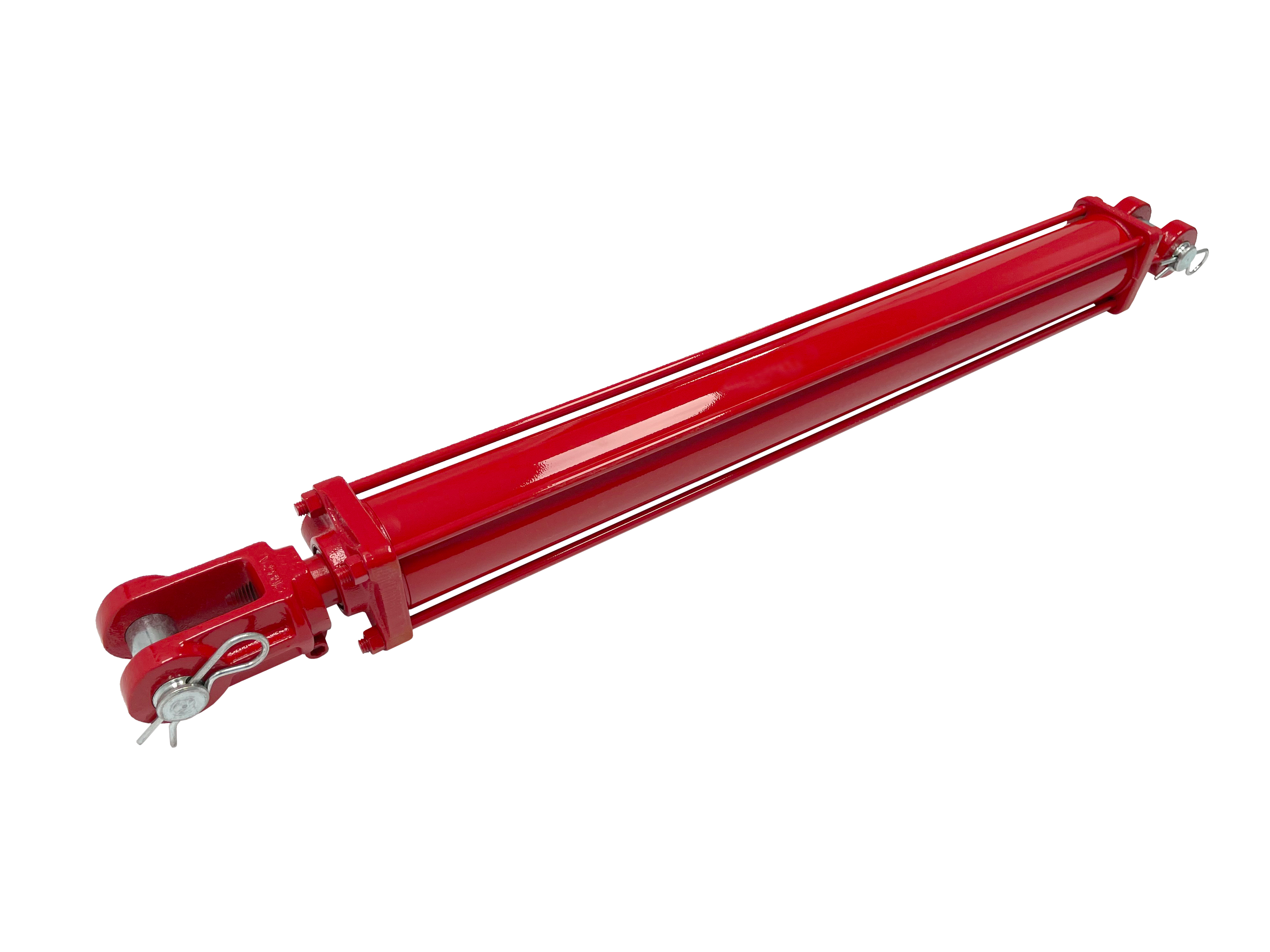

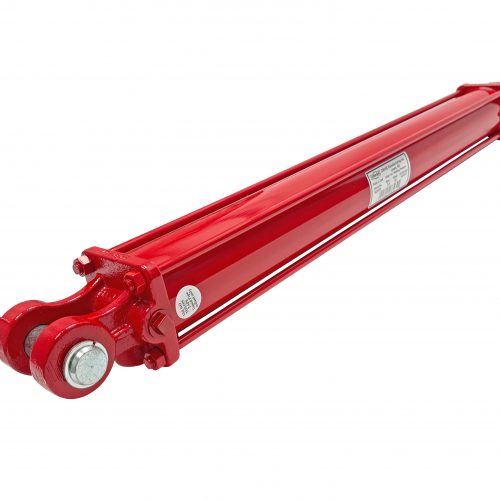

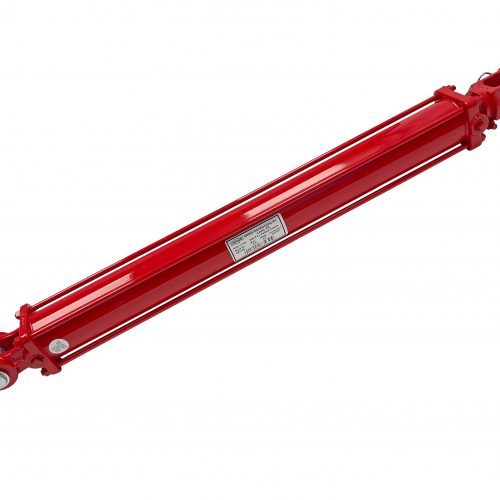

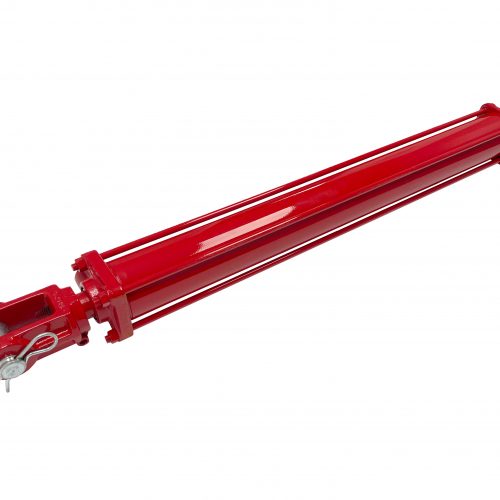

2" bore x 48" stroke CROSS tie rod hydraulic cylinder

$592.74

Pay in 4 interest-free payments of $148.19
SKU: 248DB
Bore : 2 in
Outer Dia. (⌀) : 2.875 in
Stroke : 48 in
Rod Dia. (⌀) : 1.125 in
Port Size : 3/8" NPT
Pin Dia. (⌀) : 1 in
Extended : 106.25 in
Retracted : 58.25 in
Overall length : 60.25 in
Pressure : 2500 PSI
Oil Volume : 2.63 QTs
Brand : CROSS MANUFACTURING
Design : Tie Rod
Rod Type : Hardened chrome plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 59 LBs
    GTIN : 15202733038
    SKU: 248DB Categories: ,
    In stock

    Description

    • 2″ bore x 48″ stroke the CROSS series DB tie rod hydraulic cylinder 2500 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 steel alloy rods, quality seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by gray iron or aluminum alloy with 70 durometer Buna N piston o-rings with polyurethane back-ups, double lipped u-cup rod seals. NPTF ports in line with pins. Excellent replacement for farming equipment and others. Made in the USA.

    Free Ground Continental US Shipping

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
