2 bore x 18 stroke hydraulic cylinder, tie rod double acting cylinder | Magister Hydraulics

2" bore x 18" stroke tie rod hydraulic cylinder

$165.00

Pay in 4 interest-free payments of $41.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 2x18

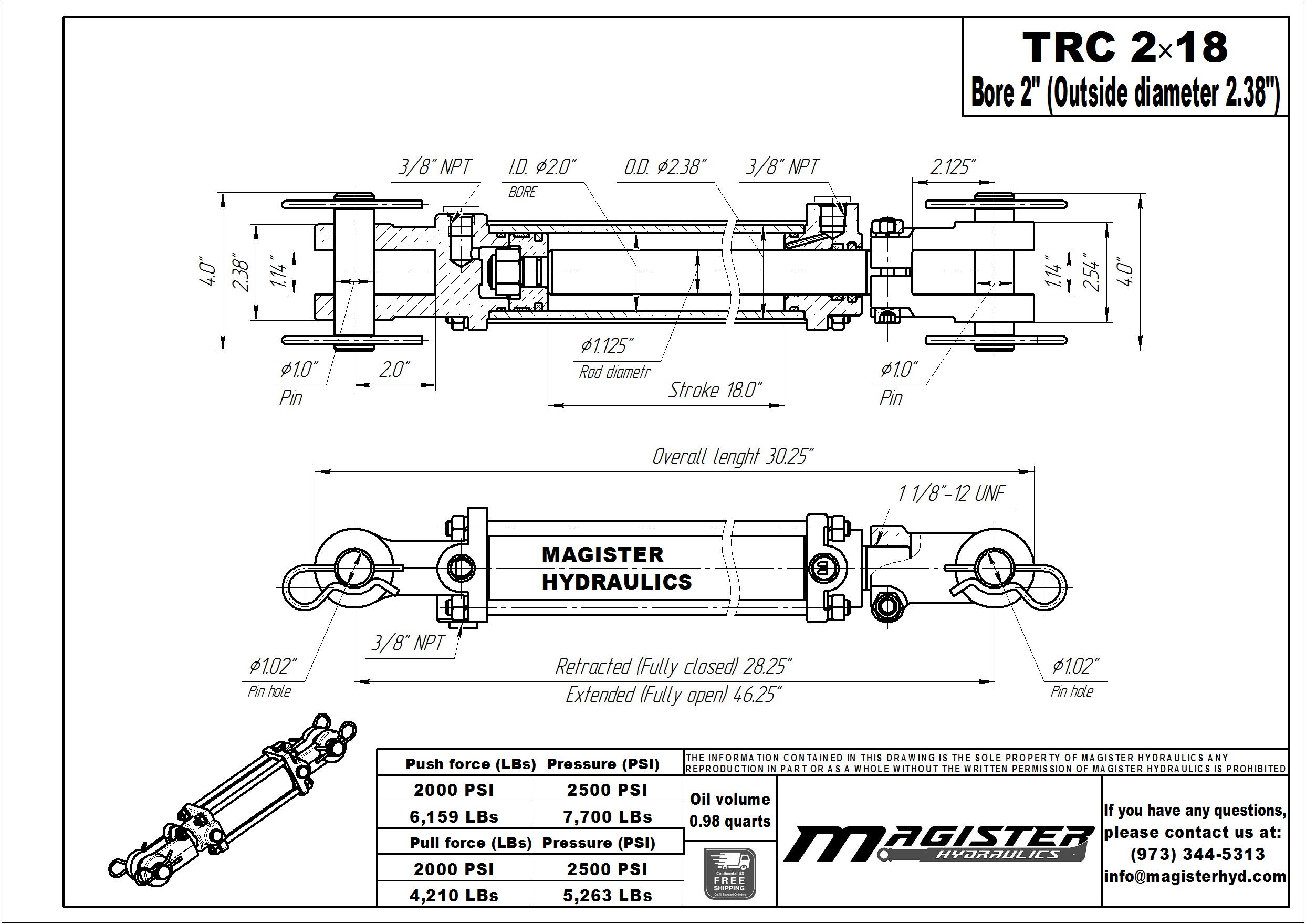

Bore : 2 in
Outer Dia. (⌀) : 2.37 in
Stroke : 18 in
Rod Dia. (⌀) : 1.125 in
Port Size : 3/8" NPT
Pin Dia. (⌀) : 1 in

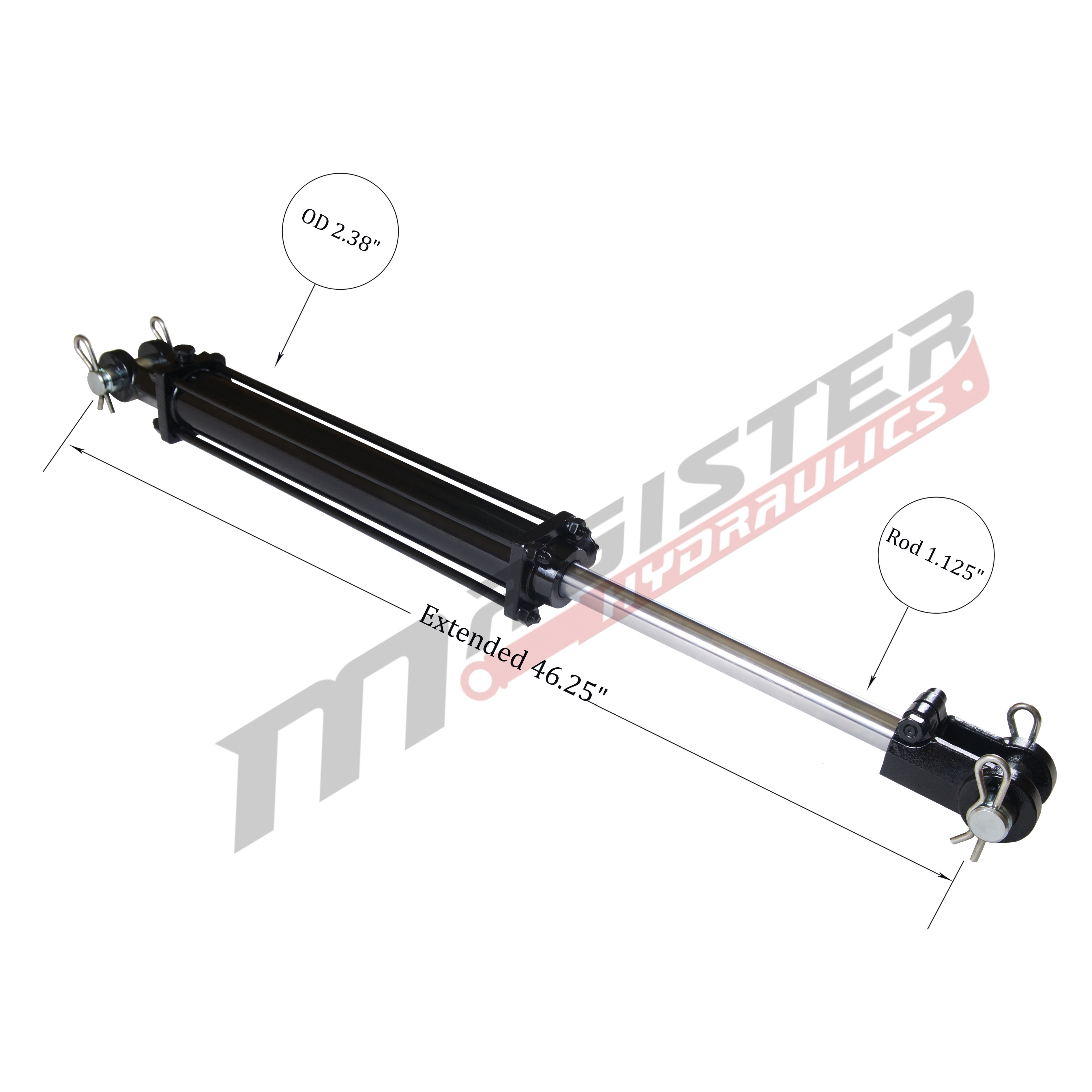

Extended : 46.25 in

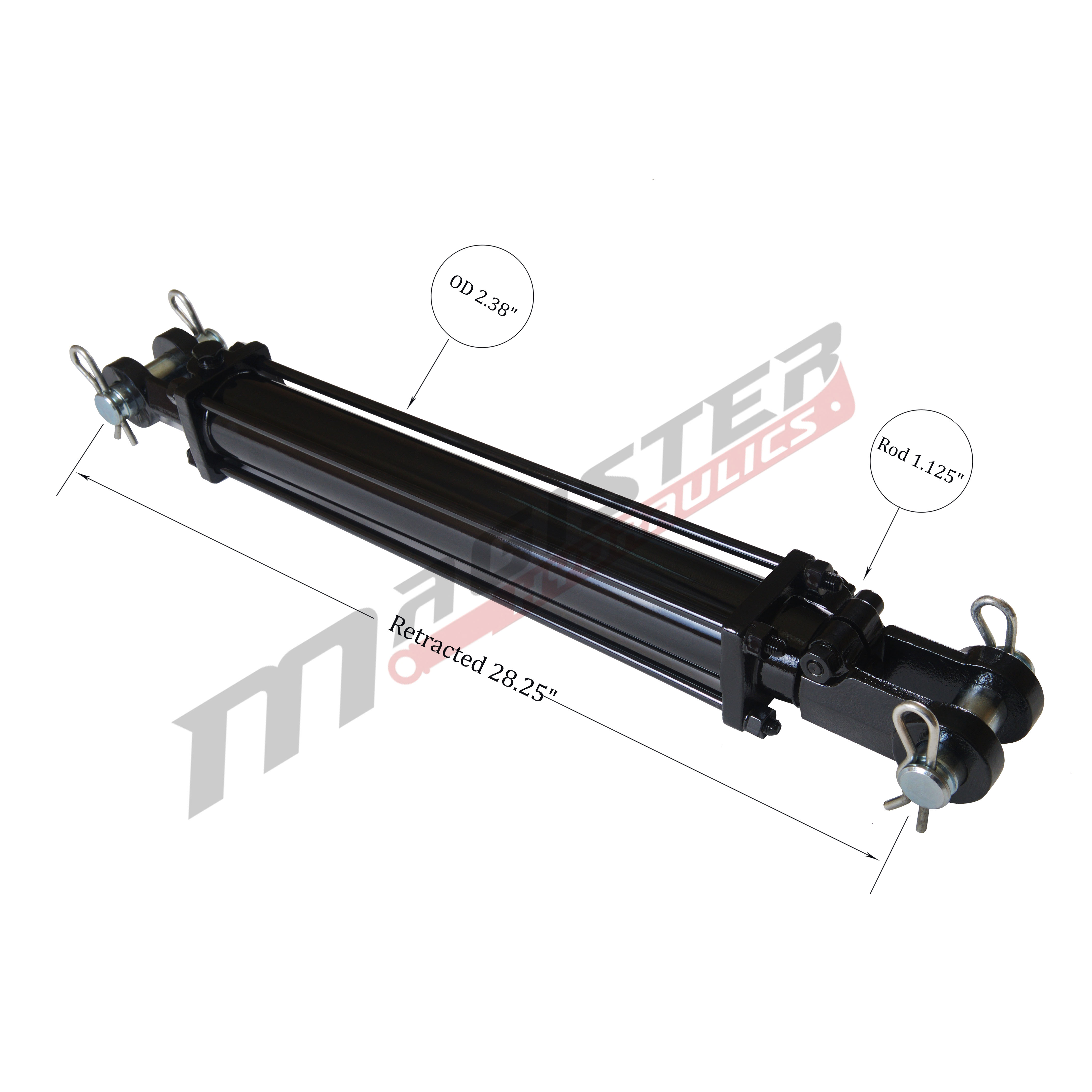

Retracted : 28.25 in
Overall length : 30.25 in
Pressure : 2500 PSI
Column Load : 7,850 LBs
Oil Volume : 0.98 QTs
Brand : Magister Hydraulics
Design : Tie Rod
Rod Type : Chrome Plated

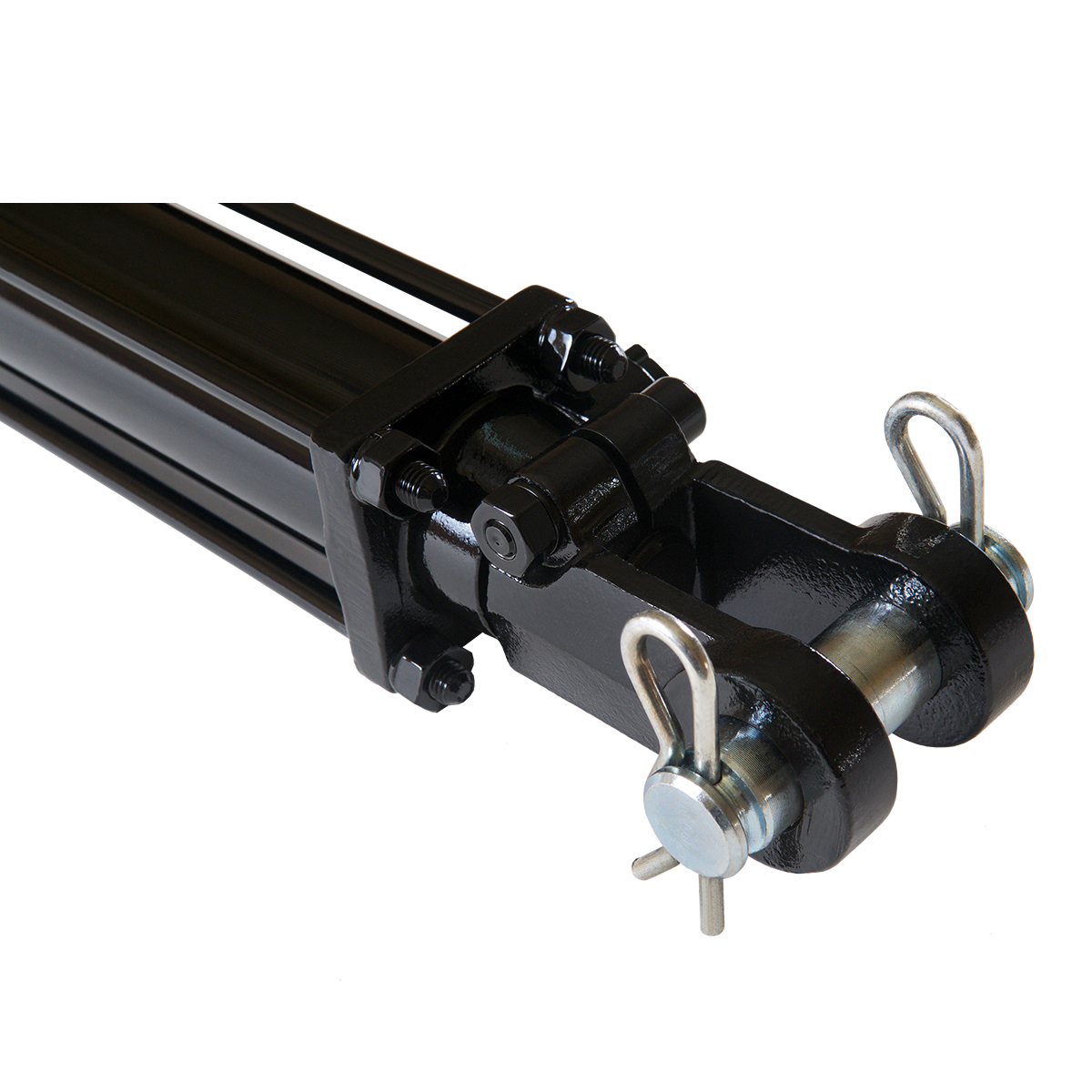

Rod End : Clevis
Action : Double Acting
Weight : 27 LBs
GTIN : 854335007476

Volume discounts

1+ PRICE EA
$165.00
4+ PRICE EA -5%
$156.75
8+ PRICE EA -10%
$148.50
In stock

6 in stock

Description

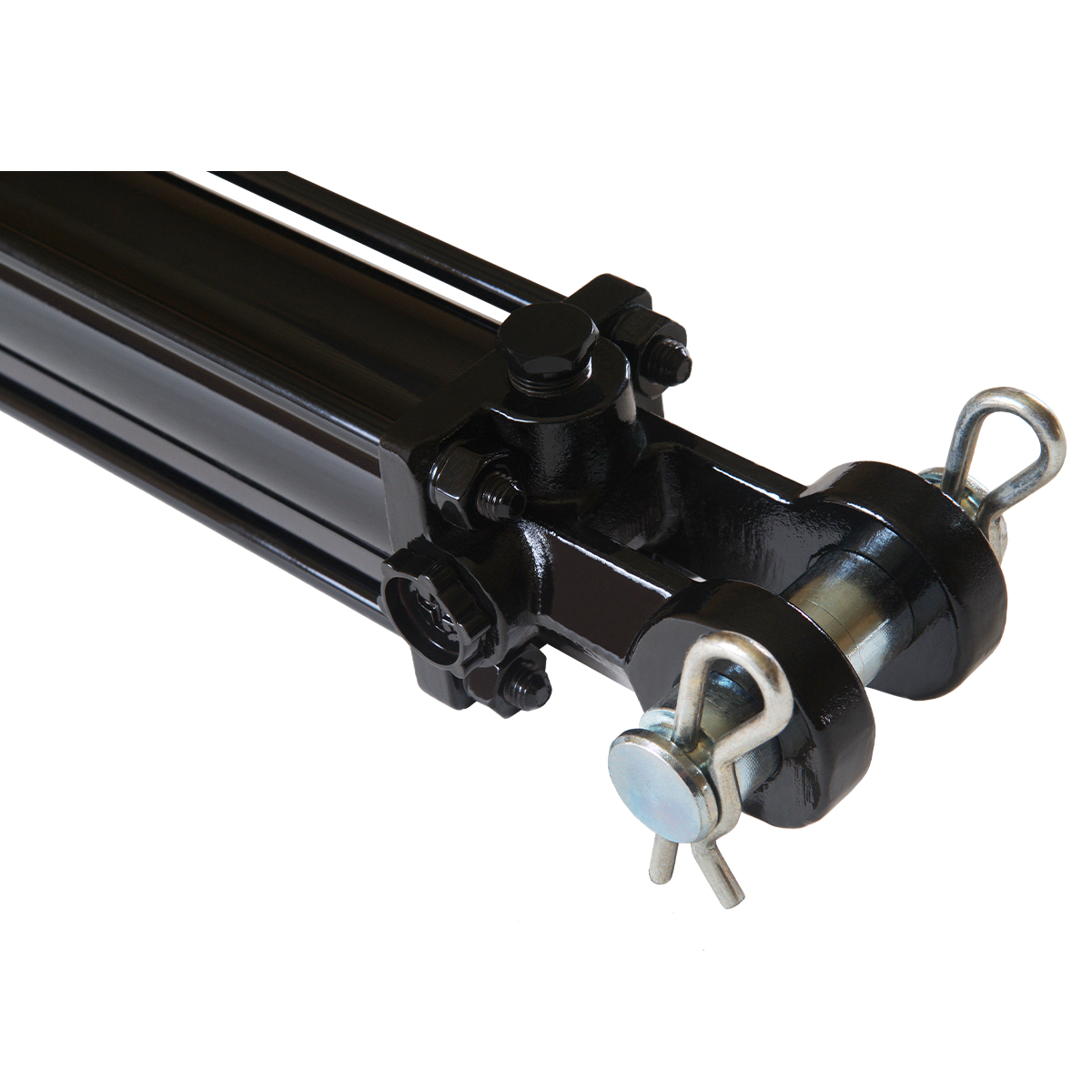

  • 2″ bore x 18″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
