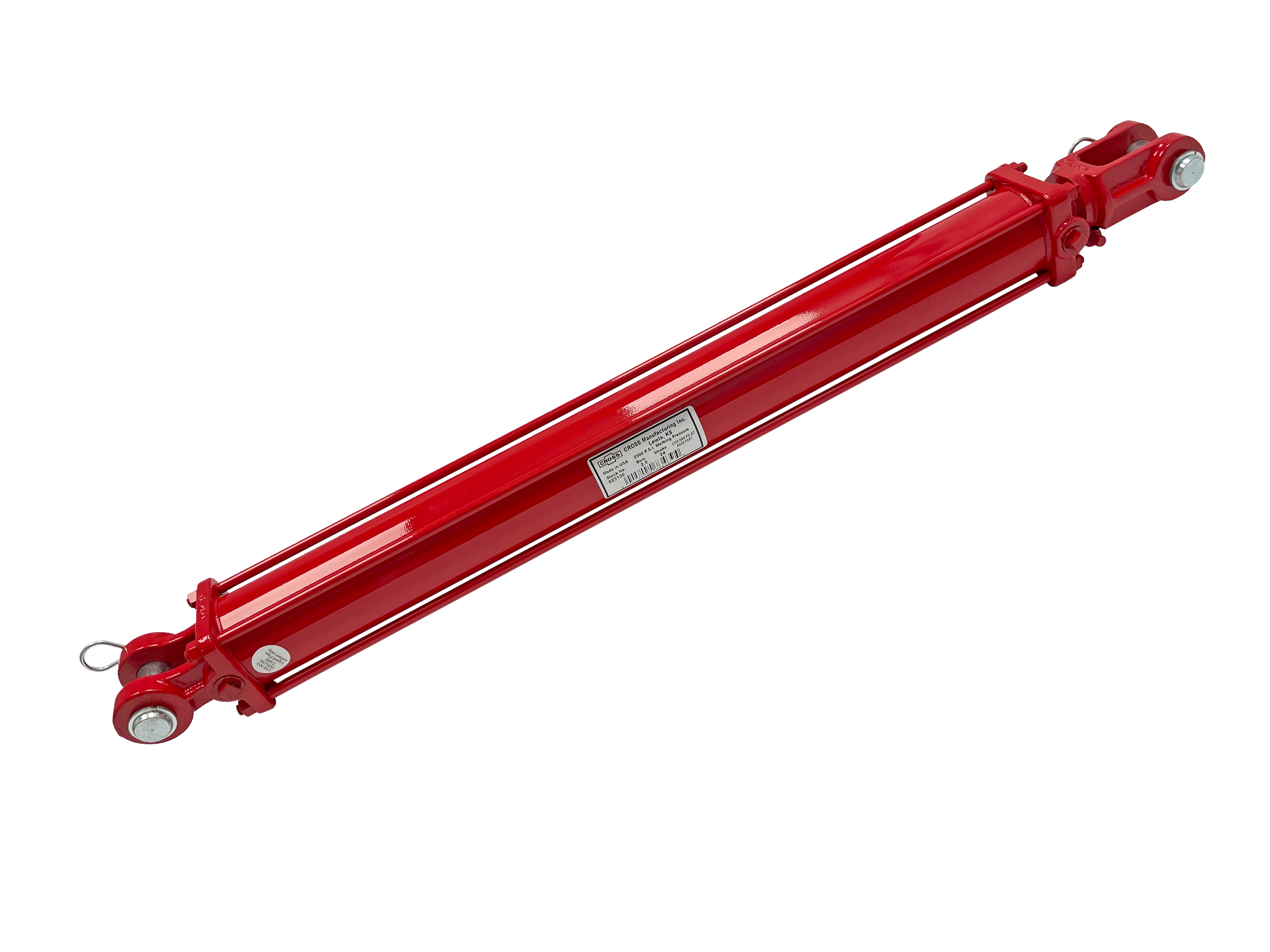

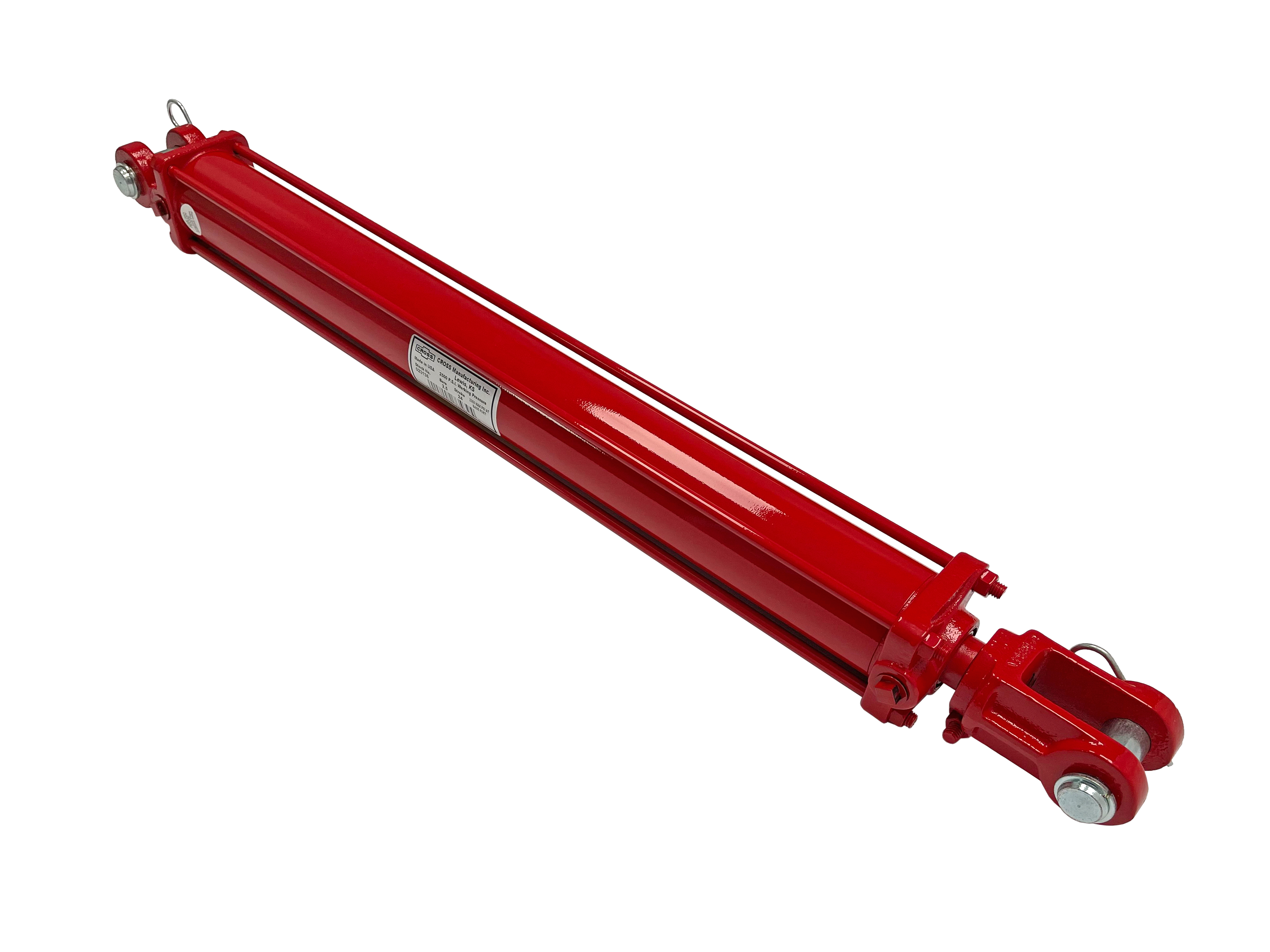

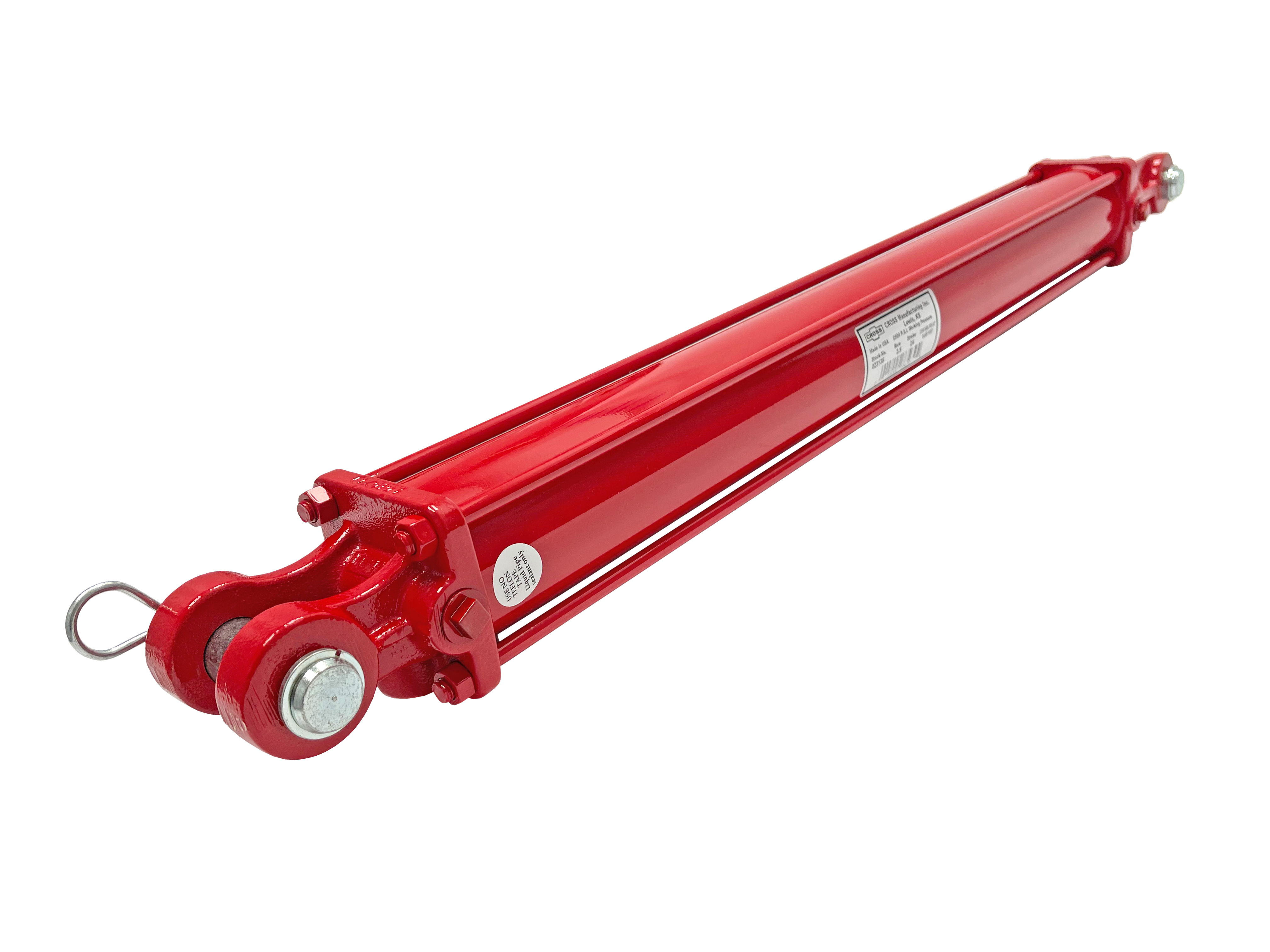

3" bore x 36" stroke CROSS tie rod hydraulic cylinder DB

SKU: 336DB

$606.79

In Stock
Pay in 4 interest-free payments of $151.70
View cart
US Customer Support

  • 3″ bore x 36″ stroke the CROSS series DB tie rod hydraulic cylinder 2500 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 steel alloy rods, quality seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by gray iron or aluminum alloy with 70 durometer Buna N piston o-rings with polyurethane back-ups, double lipped u-cup rod seals. NPTF ports in line with pins. Excellent replacement for farming equipment and others. Made in the USA.

Free Ground Continental US Shipping

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313

View Full Specifications

Specifications

3" bore x 36" stroke CROSS tie rod hydraulic cylinder DB
SKU: 336DB
Bore 3 in Outer Dia. (⌀) 3.75 in
Stroke 36 in Rod Dia. (⌀) 1.5 in
Port Size 1/2" NPT Pin Dia. (⌀) 1 in
Extended 82.25 in Retracted 46.25 in
Overall length 48.25 in Pressure 2500 PSI
Oil Volume 4.34 QTs Brand CROSS MANUFACTURING
Design Tie Rod Rod Type Hardened chrome plated
Rod End Clevis Action Double Acting
Weight 64 LBs GTIN 15202733038
