On sale!

3 bore x 24 stroke hydraulic cylinder, tie rod double acting cylinder | Magister Hydraulics

3" bore x 36" stroke tie rod hydraulic cylinder

Name: 3" bore x 36" stroke tie rod hydraulic cylinder
SKU: TRC 3x36
Availability: OutOfStock
Rating: 4.75 (5 reviews)

$311.00

Pay in 4 interest-free payments of $77.75

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: TRC 3x36

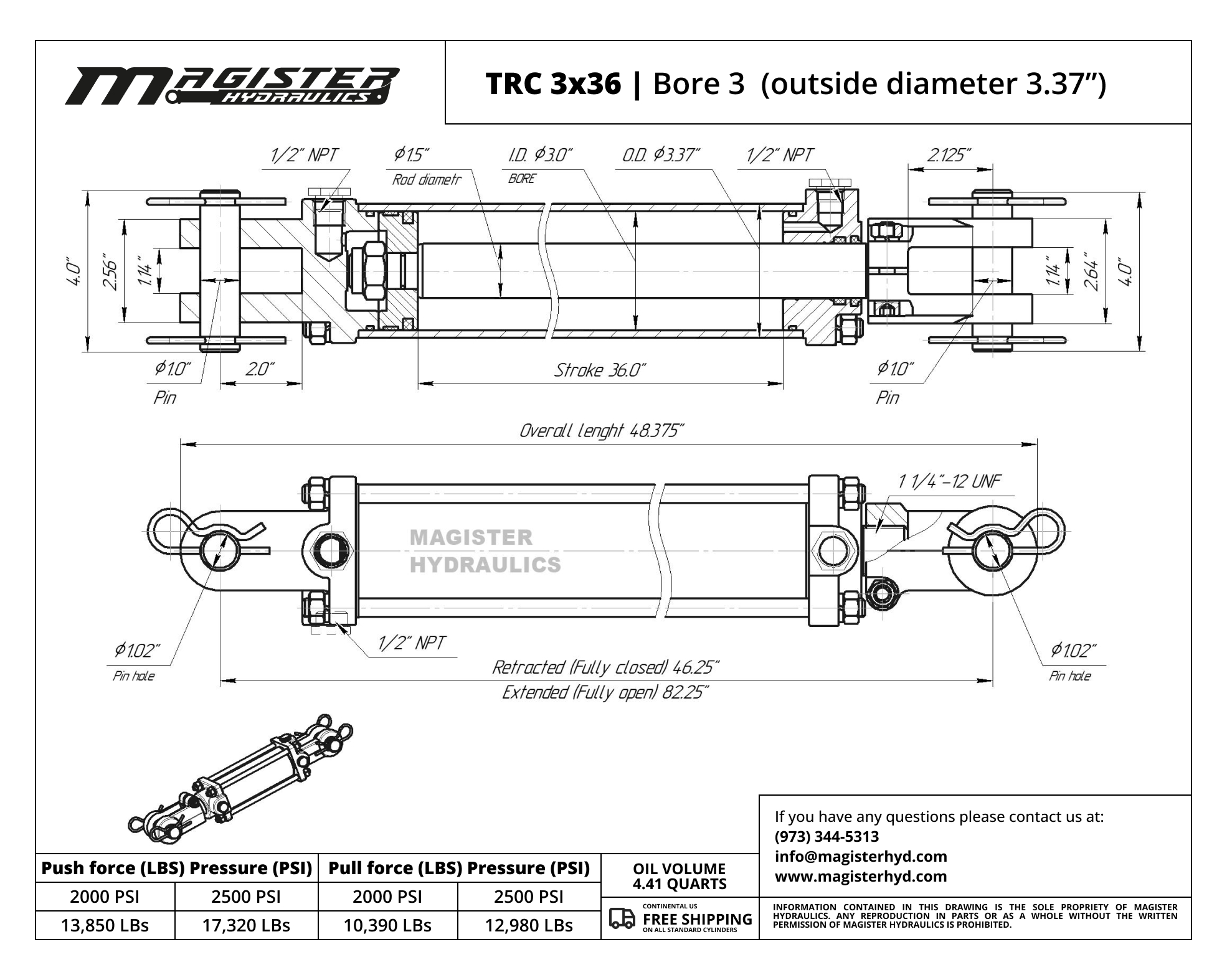

Bore :	3 in
Outer Dia. (⌀) :	3.37 in
Stroke :	36 in
Rod Dia. (⌀) :	1.5 in
Port Size :	1/2" NPT
Pin Dia. (⌀) :	1 in

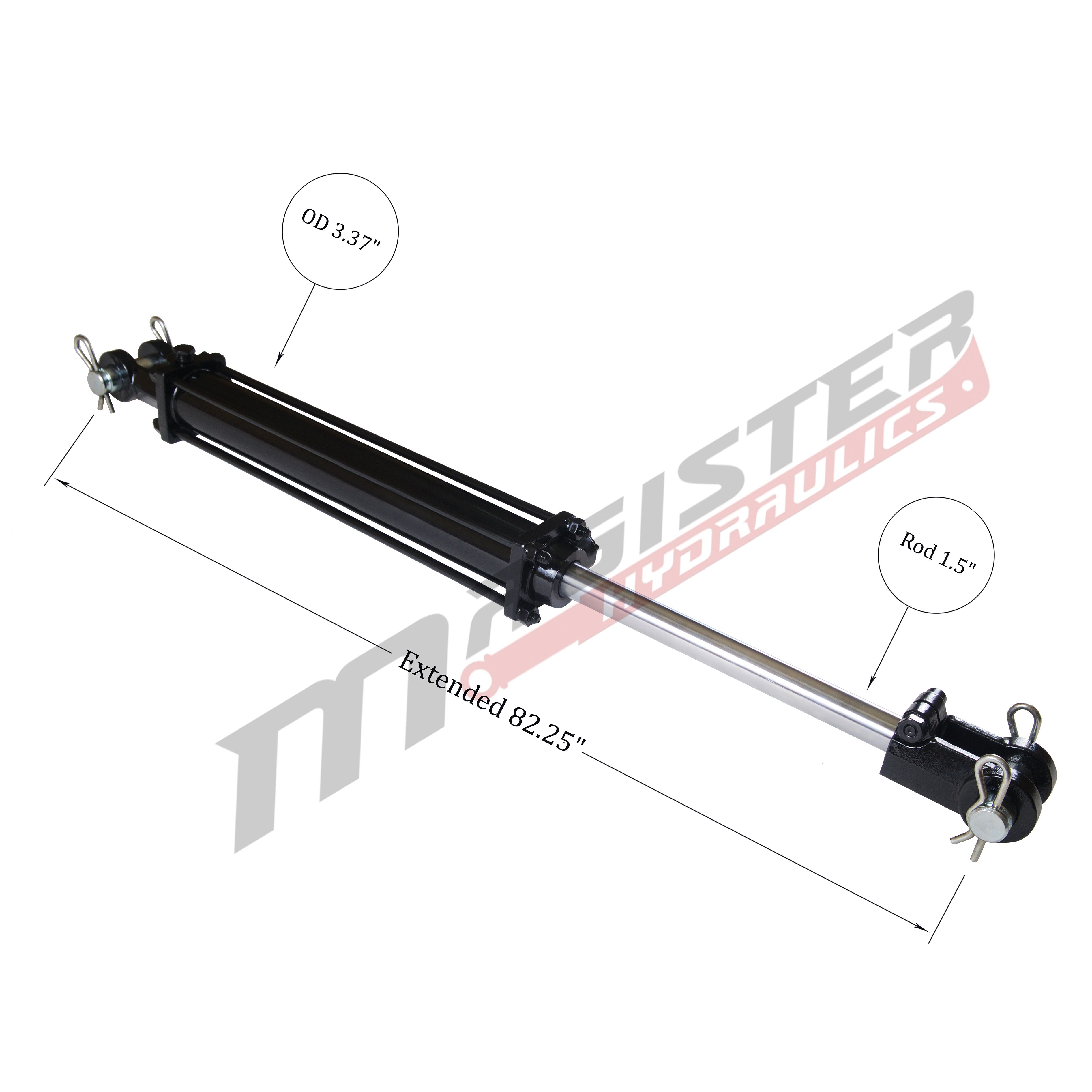

Extended :	82.25 in

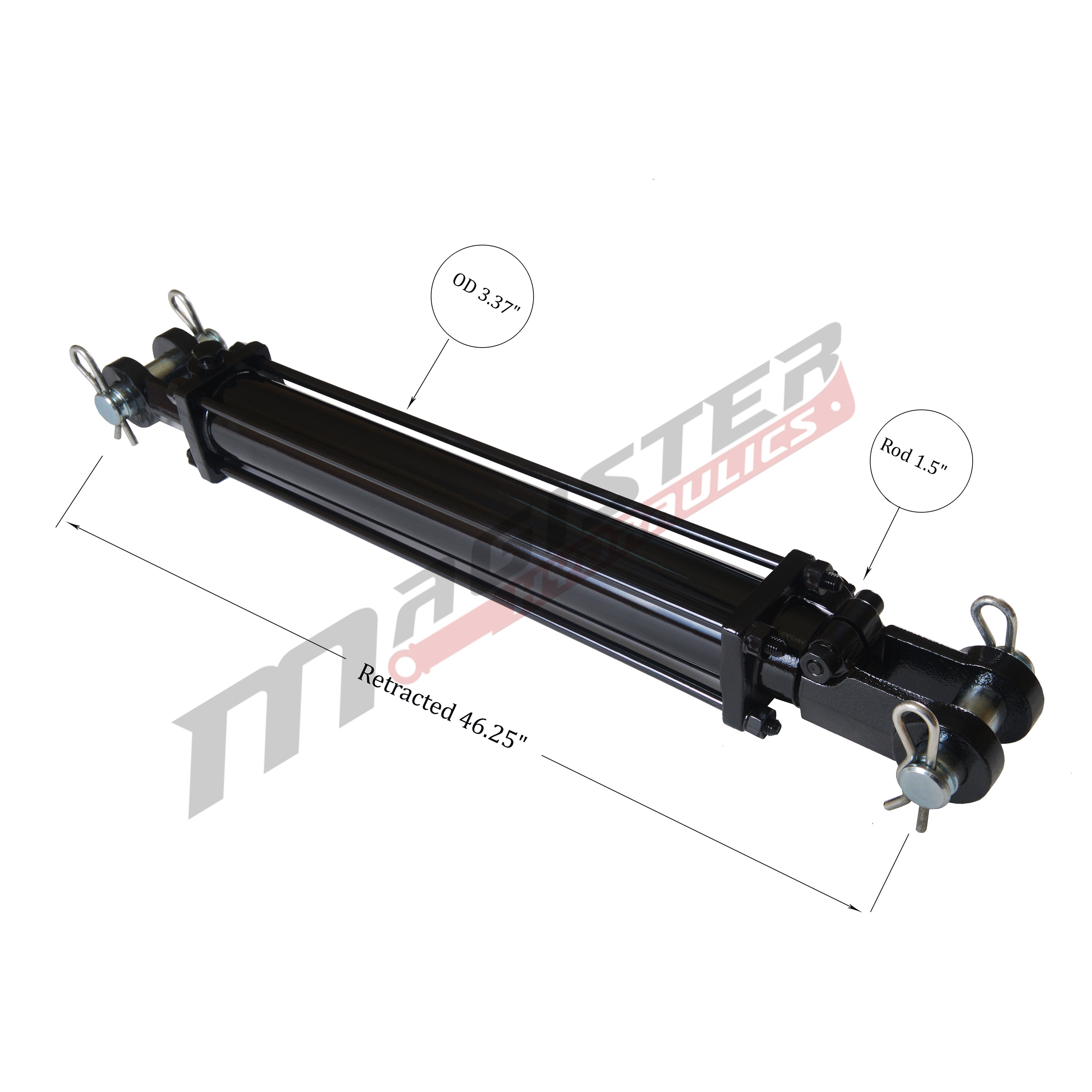

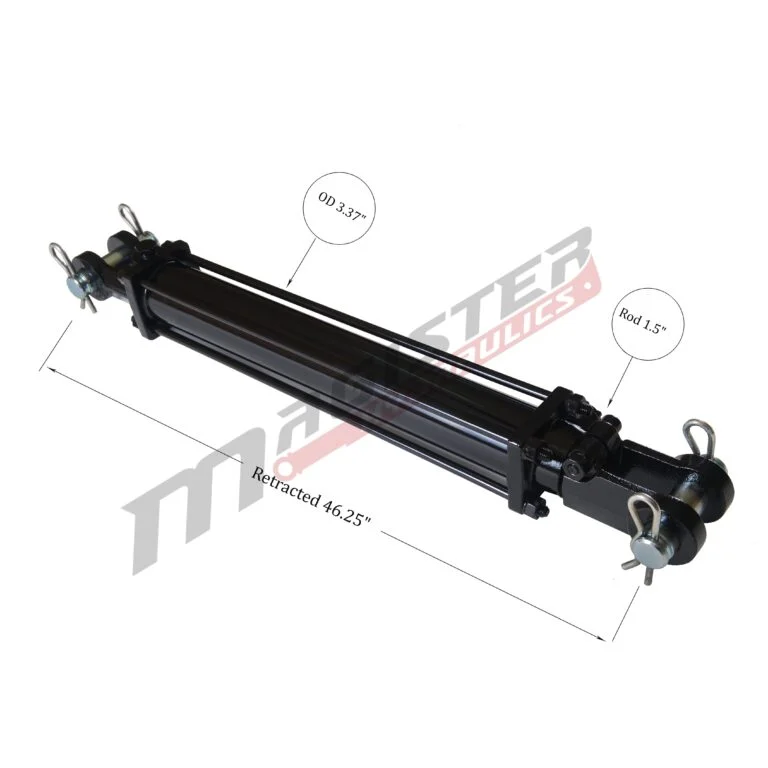

Retracted :	46.25 in
Overall length :	48.375 in
Pressure :	2500 PSI
Column Load :	8,200 LBs
Oil Volume :	4.41 QTs
Brand :	Magister Hydraulics
Design :	Tie Rod
Rod Type :	Chrome Plated
Rod End :	Clevis
Action :	Double Acting
Weight :	60 LBs
GTIN :	850054386410

SKU: TRC 3x36 Categories: 3" Bore Tie Rod, Hydraulic Cylinders, Tie Rod Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$295.45

8+ PRICE EA -10%

$279.90

Possible Alternatives: WBC 3x24

Out of stock

Notify me when the product is in stock:

Enter your email address to join the waitlist for this product

Description

3″ bore x 36″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
Applications: Tie-rod double acting hydraulic cylinder
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
