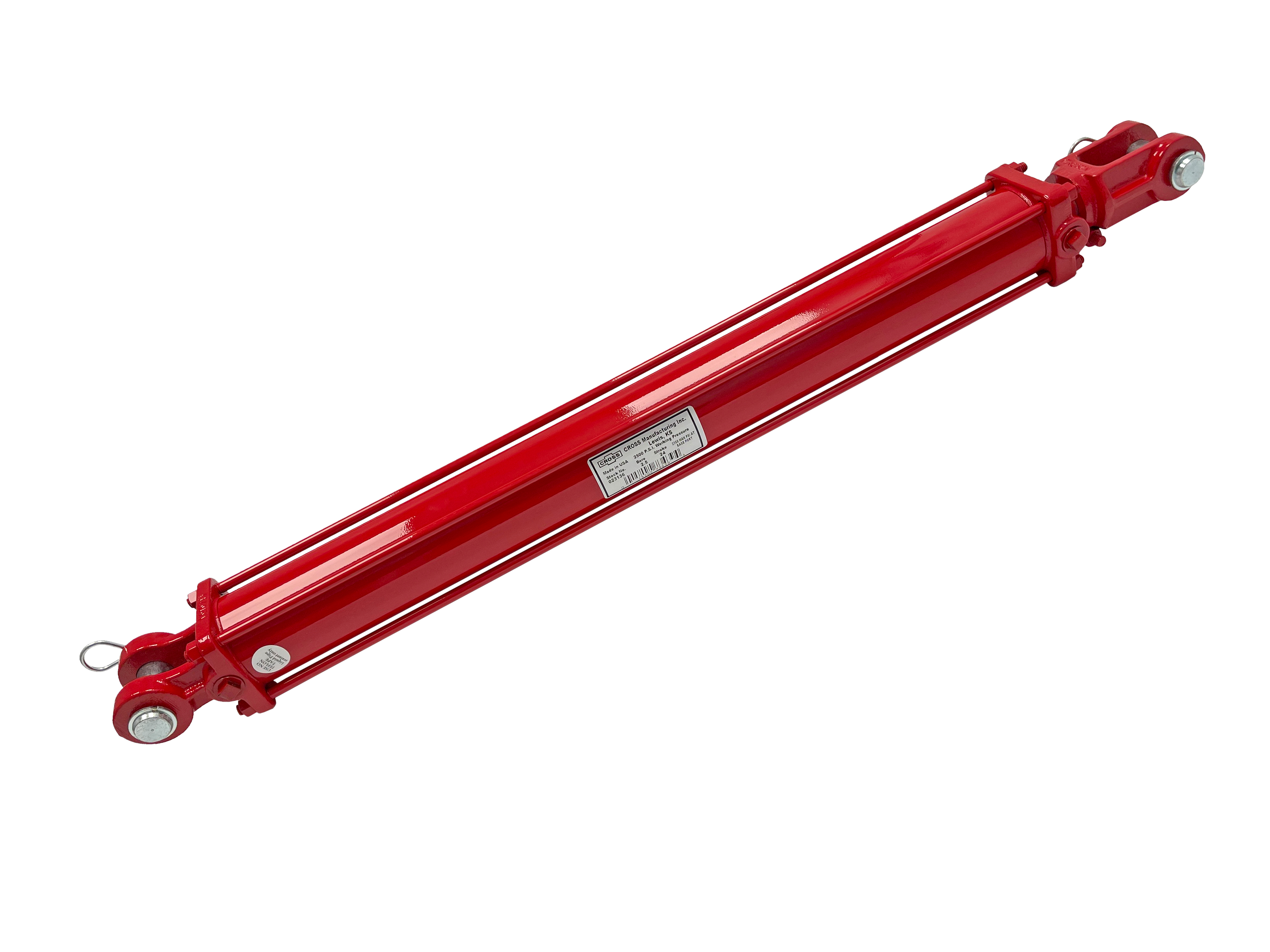

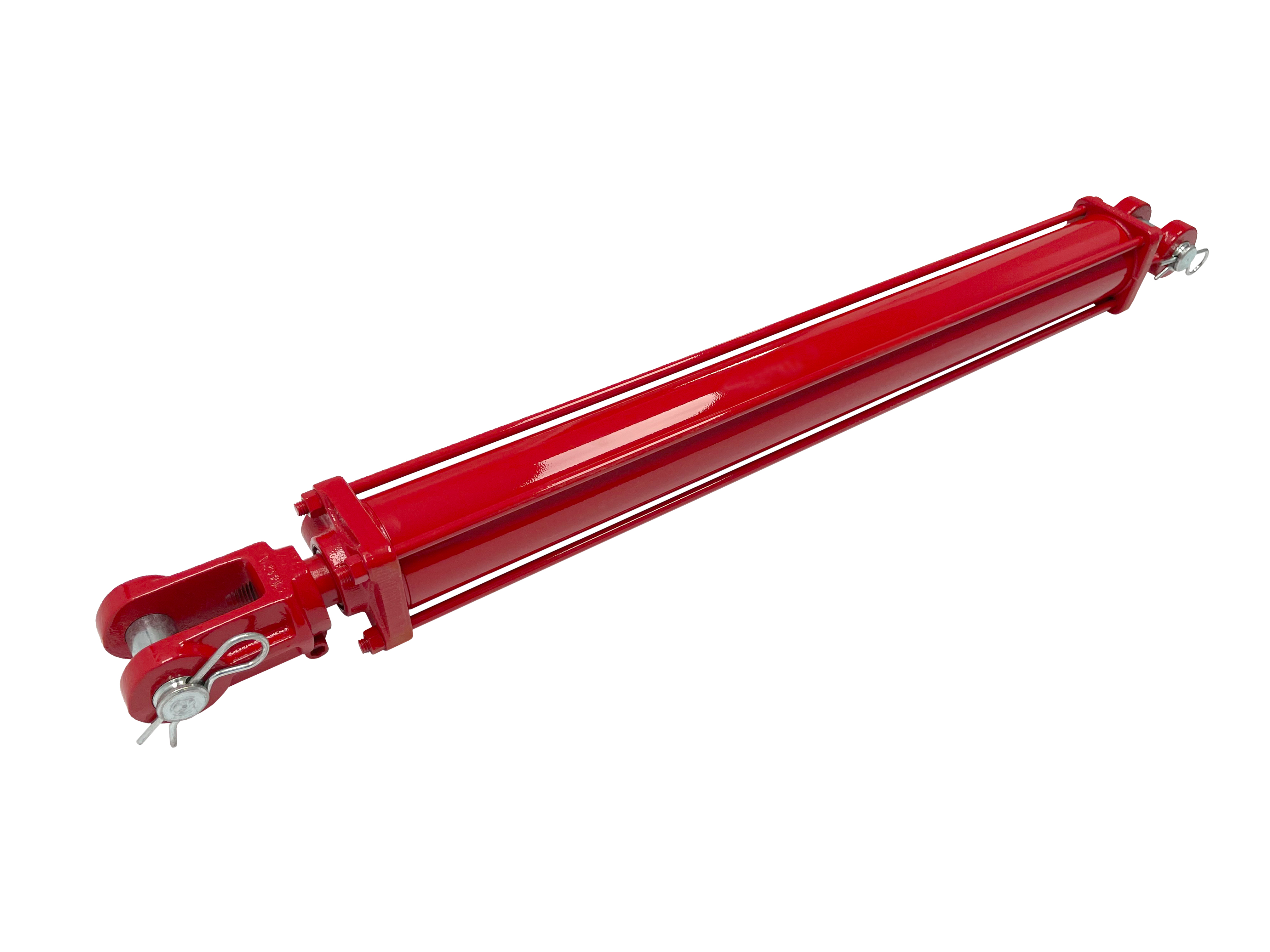

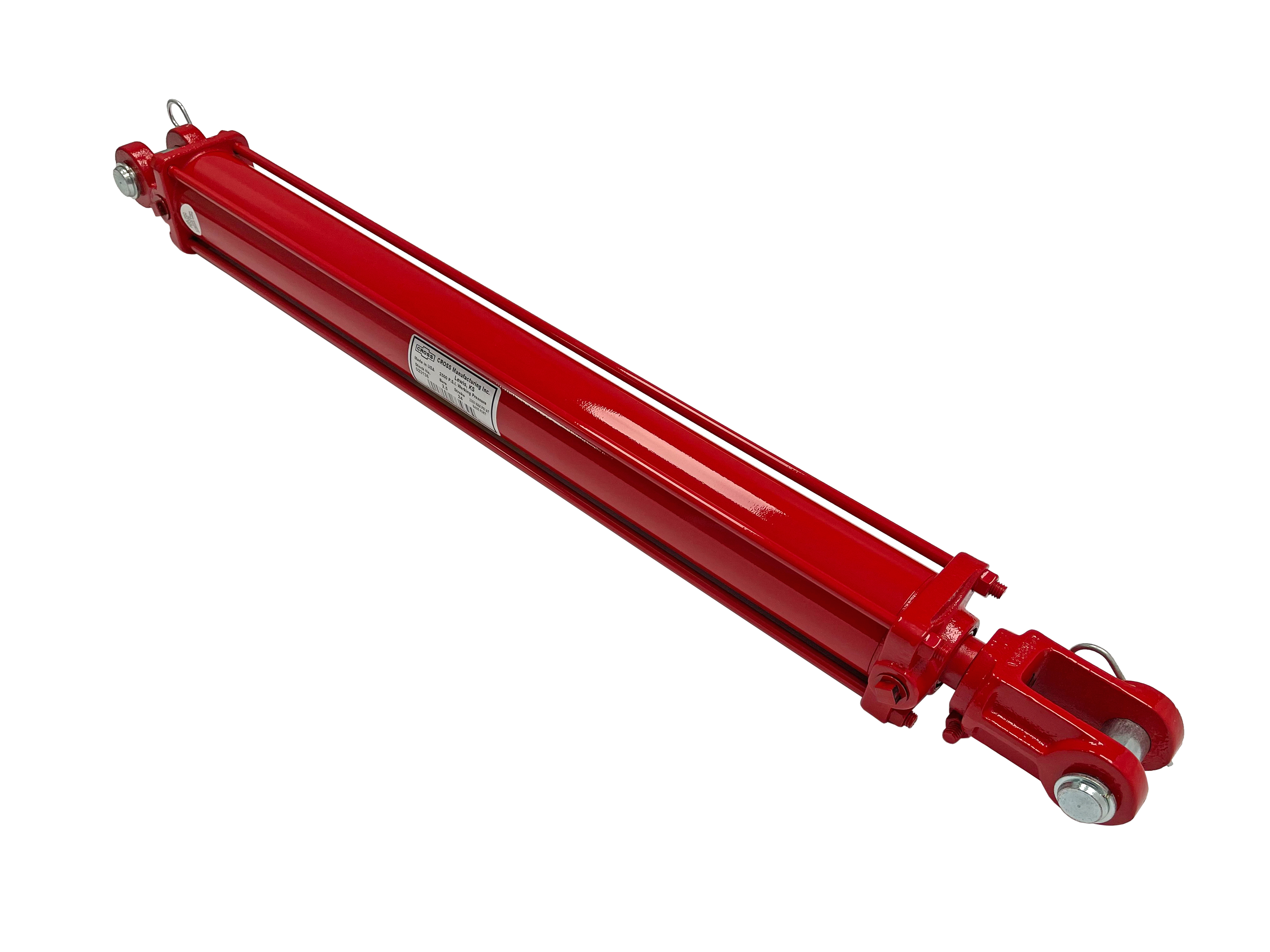

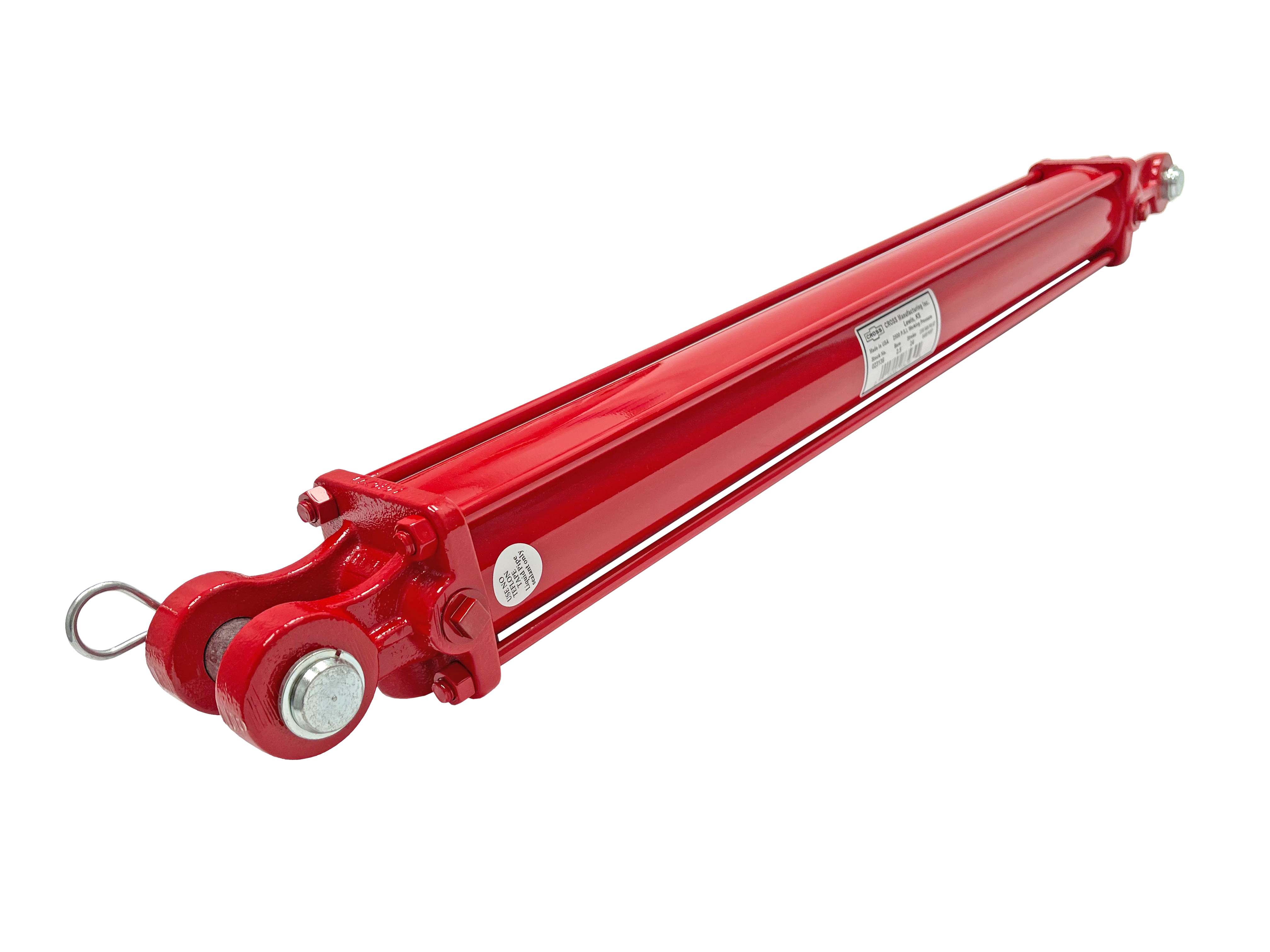

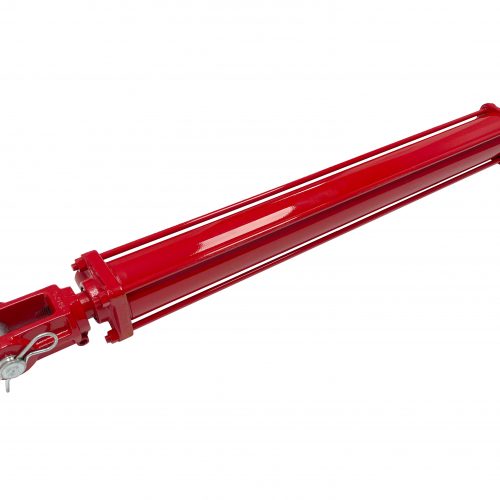

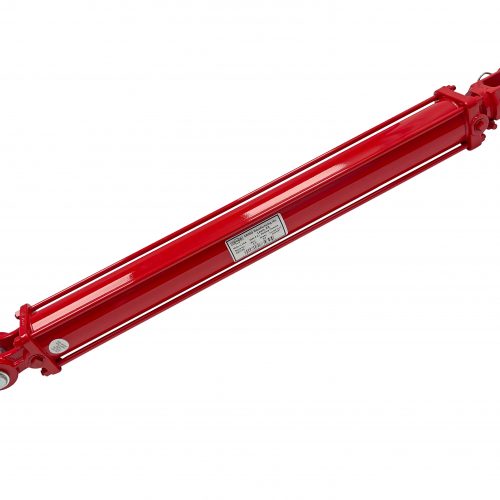

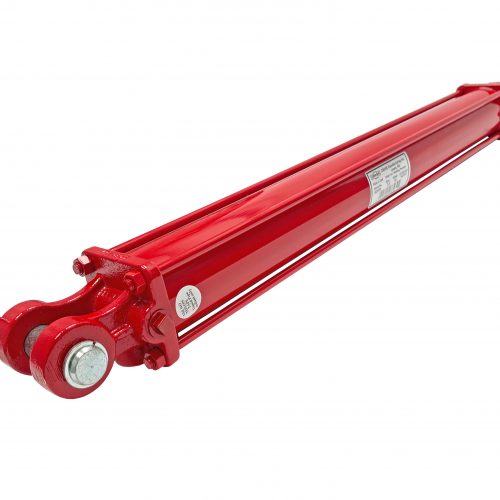

3 bore x 60 stroke CROSS hydraulic cylinder, tie rod double acting cylinder DB series | CROSS MANUFACTURING

3" bore x 60" stroke CROSS tie rod hydraulic cylinder DB

Name: 3" bore x 60" stroke CROSS tie rod hydraulic cylinder DB
Brand: Magister Hydraulics
SKU: 360DB
Price: 925.15 USD
Availability: InStock
Rating: 5 (10 reviews)

$925.15

SKU: 360DB

Bore :	3” Bore Hydraulic Cylinders
OD :	3.75"
Stroke :	60 inch
Rod :	1.5"
Port Size :	1/2" NPT
Pin :	1"
Extended :	130.25"
Retracted :	70.25"
Overall length :	72.25"
Pressure :	2500 PSI
Oil Volume (quarts) :	7.22
Brand :	CROSS MANUFACTURING
GTIN :	00015202733038

SKU: 360DB Categories: 3" Bore Tie Rod, Hydraulic Cylinders

In stock

DESCRIPTION

3″ bore x 60″ stroke the CROSS series DB tie rod hydraulic cylinder 2500 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 stell alloy rods, quality seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by gray iron or aluminum alloy with 70 durometer Buna N piston o-rings with polyurethane back-ups, double lipped u-cup rod seals. NPTF ports in line with pins. Excellent replacement for farming equipment and others. Made in the USA.
FREE SHIPPING
