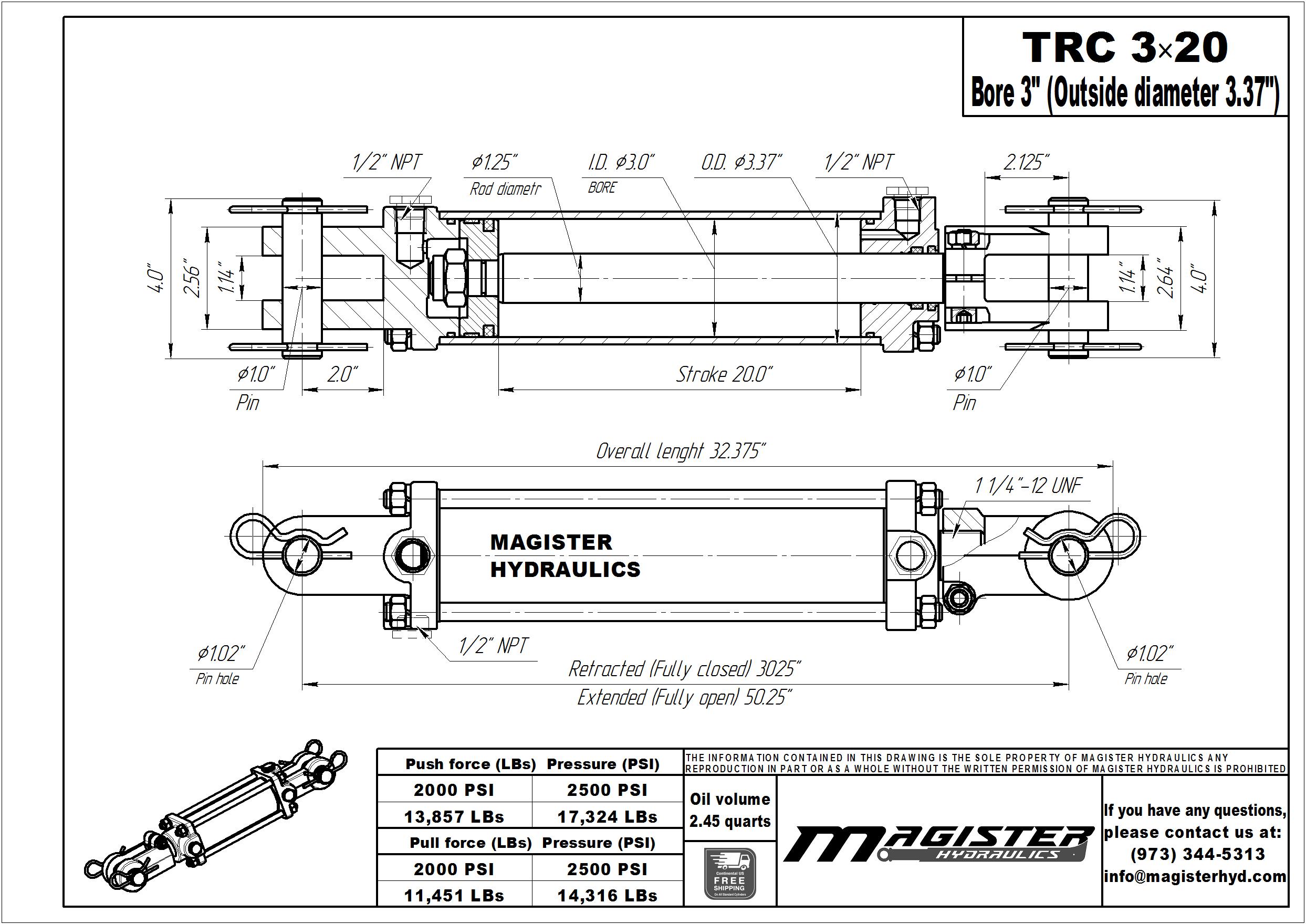

3" bore x 20" stroke tie rod hydraulic cylinder


Pay in 4 interest-free payments of $58.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 3x20
Bore : 3 in
Rod Dia. (⌀) : 1.25 in
Port Size : 1/2" NPT
Pin Dia. (⌀) : 1 in
Extended : 50.25 in
Retracted : 30.25 in
Overall length : 32.37 in
Pressure : 2500 PSI
Column Load : 10,870 LBs
Oil Volume : 2.45 QTs
Brand : Magister Hydraulics
Design : Tie Rod
Rod Type : Chrome Plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 42 LBs
    GTIN : 854335007728
    SKU: TRC 3x20 Categories: ,

    Volume discounts

    1+ PRICE EA
    4+ PRICE EA -5%
    8+ PRICE EA -10%
    In stock

    30 in stock


    • 3″ bore x 20″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
    • Applications: Tie-rod double acting hydraulic cylinder
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
