3 bore x 8 stroke hydraulic cylinder, tie rod double acting cylinder | Magister Hydraulics

3" bore x 8" stroke tie rod hydraulic cylinder

$183.00

Pay in 4 interest-free payments of $45.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 3x8

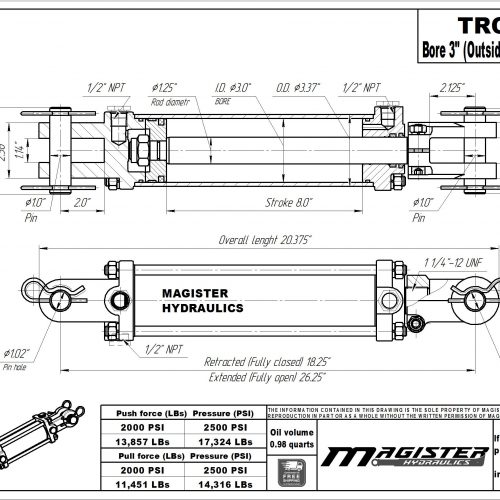

Bore :3” Bore Hydraulic Cylinders
OD :3.37"
Stroke :8” Stroke Hydraulic Cylinders
Rod :1.25"
Port Size :1/2" NPT
Pin :1"

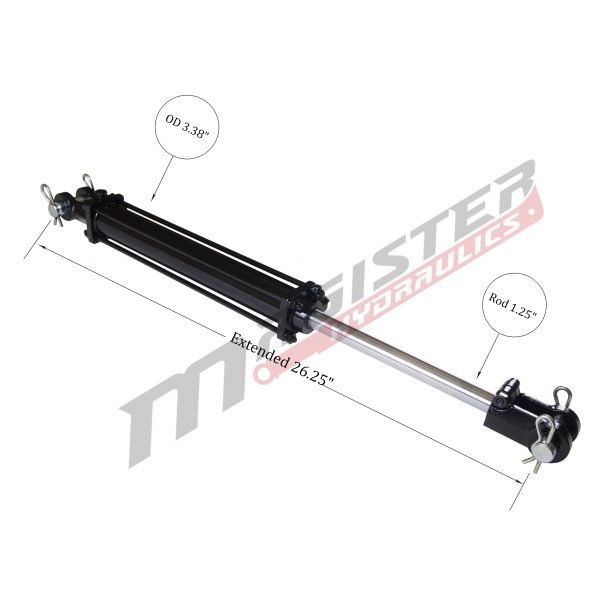

Extended :26.25"

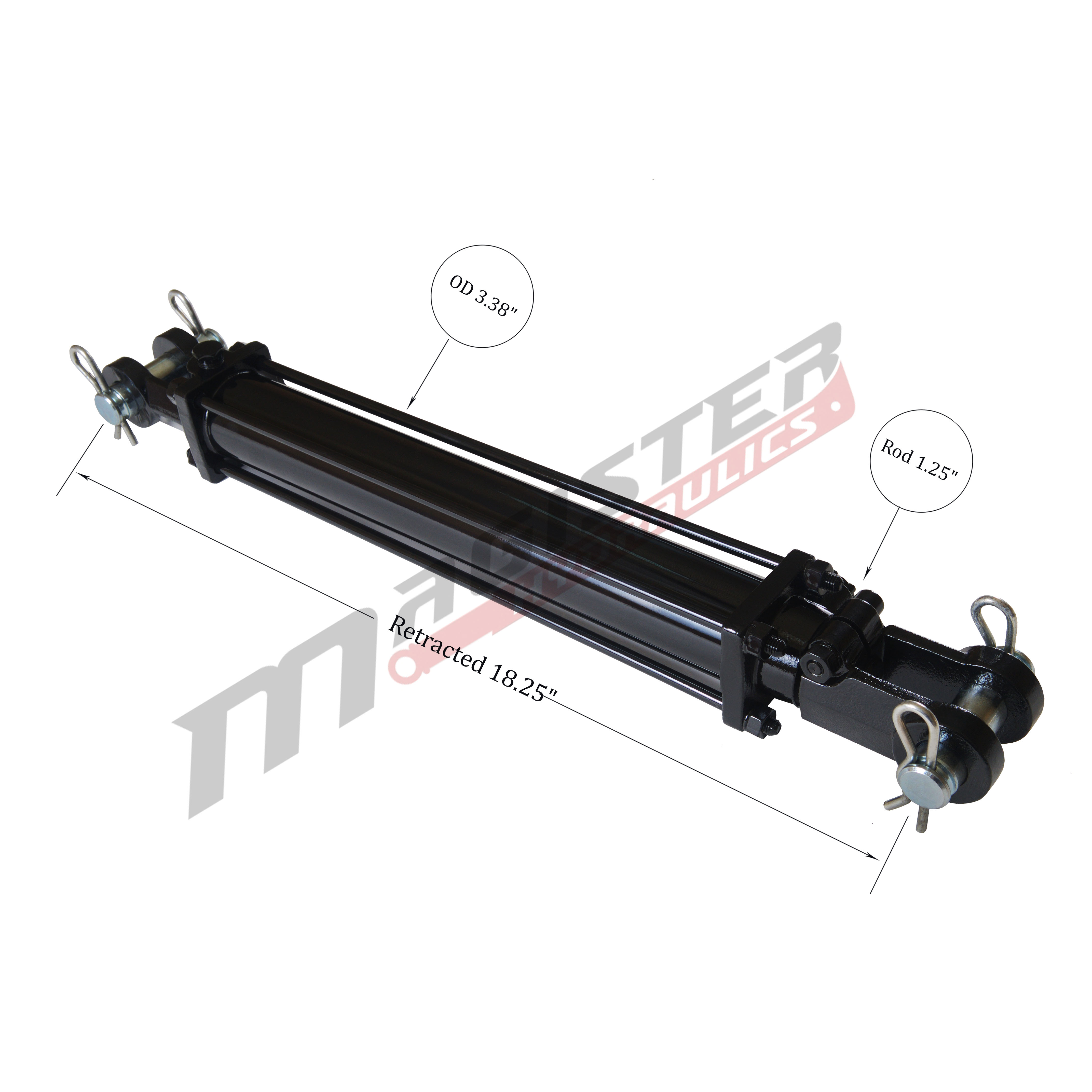

Retracted :18.25"
Overall length :20.37"
Pressure :2500 PSI
Column Load (LBs) :17,670
Oil Volume (quarts) :0.98
Brand :Magister Hydraulics
GTIN :854335007650
SKU: TRC 3x8 Categories: ,
1+ PRICE EA
$183.00
4+ PRICE EA -3%
$177.51
8+ PRICE EA -6%
$172.02
In stock

96 in stock

DESCRIPTION

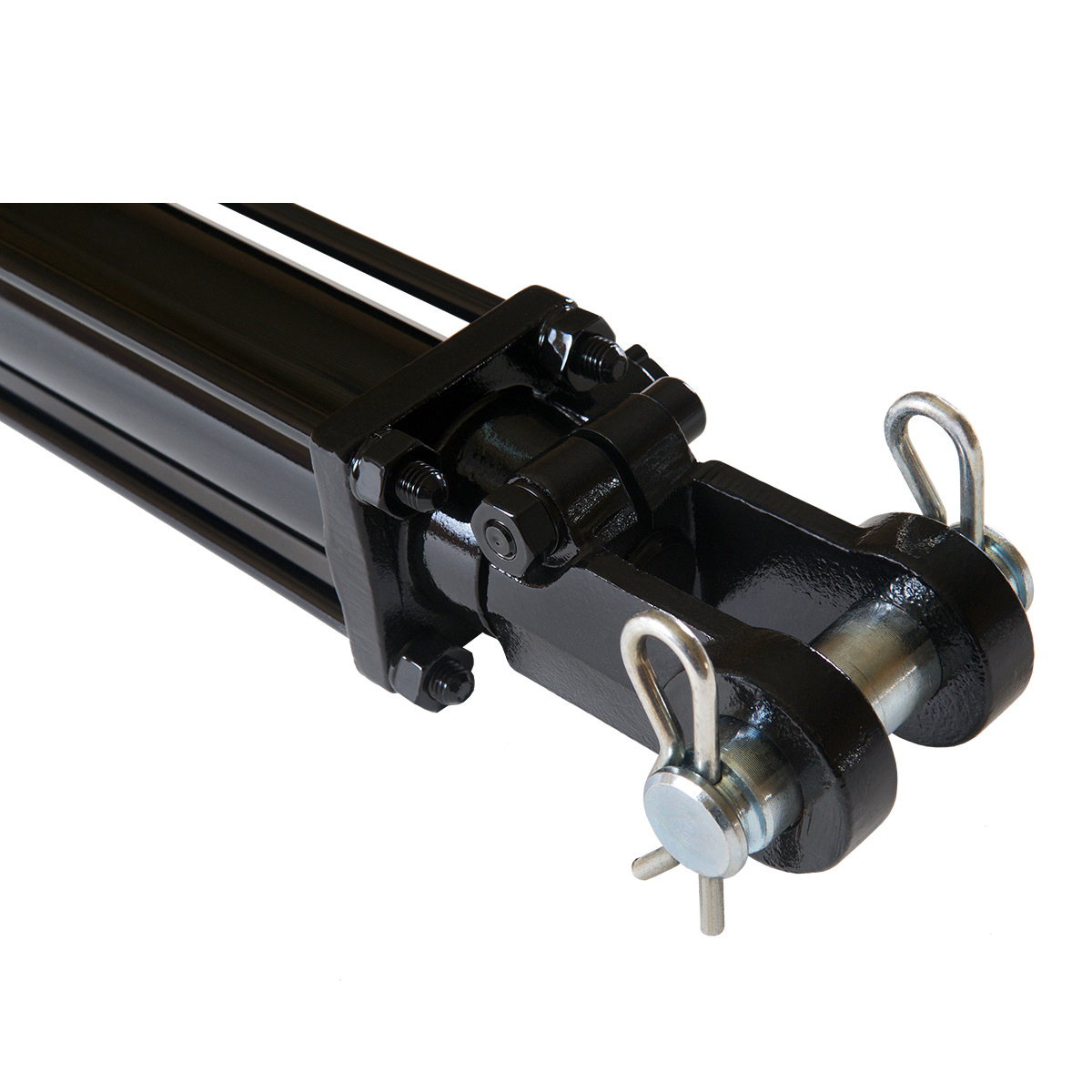

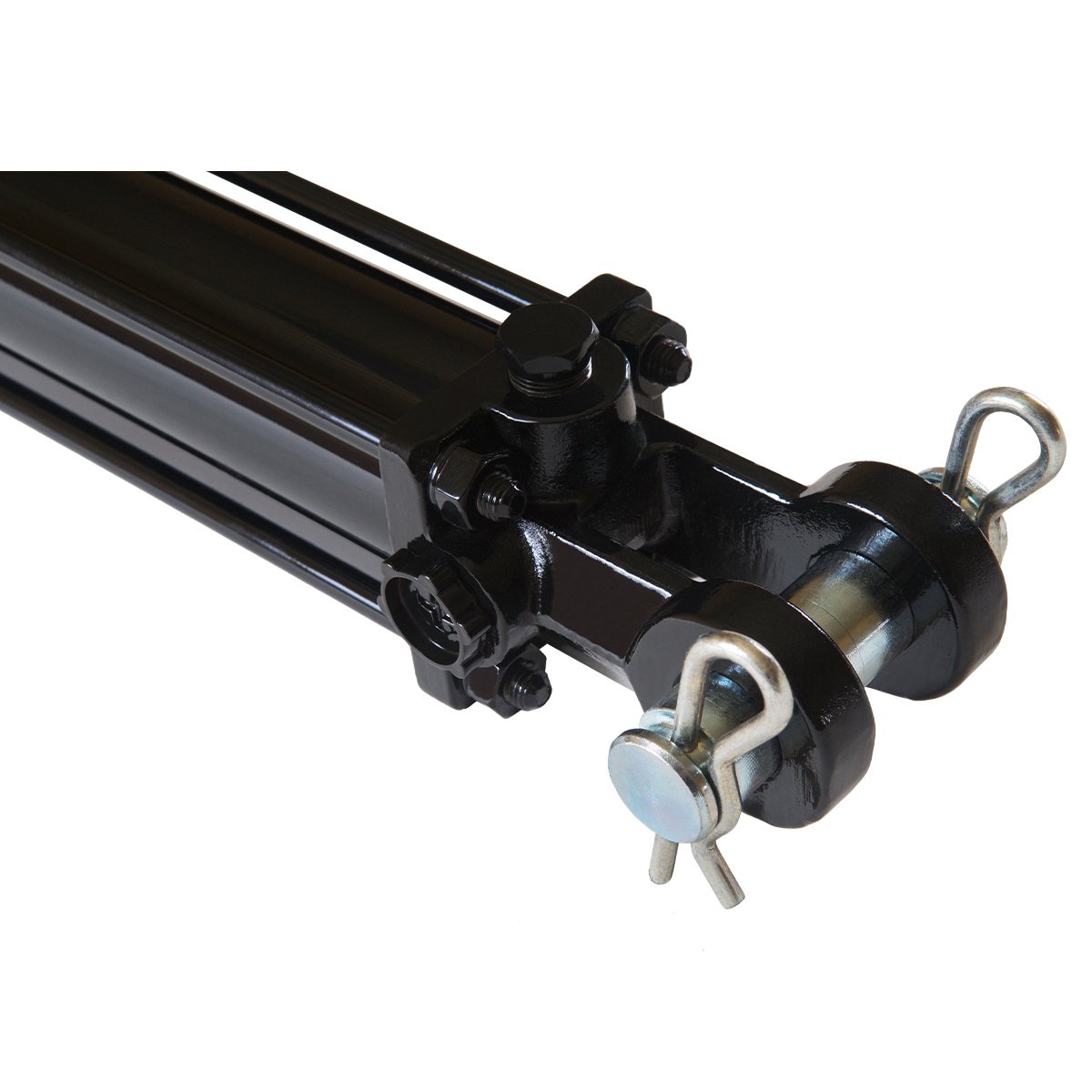

  • 3″ bore x 8″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
