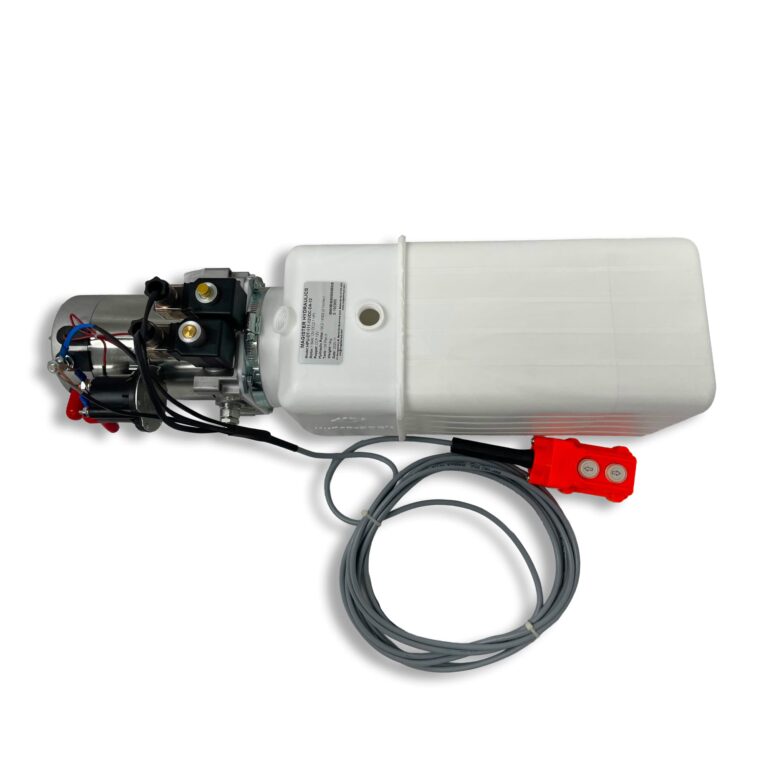

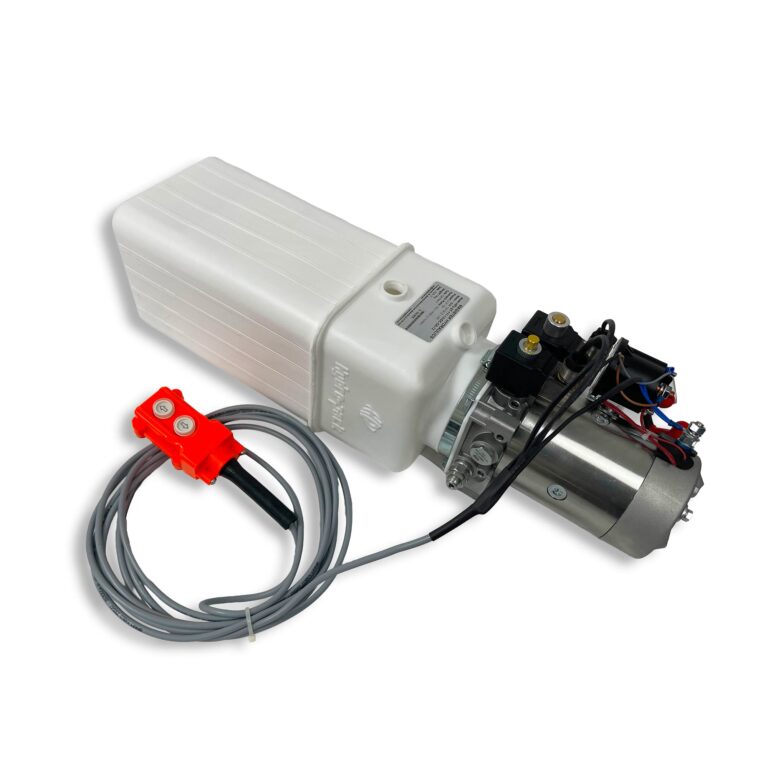

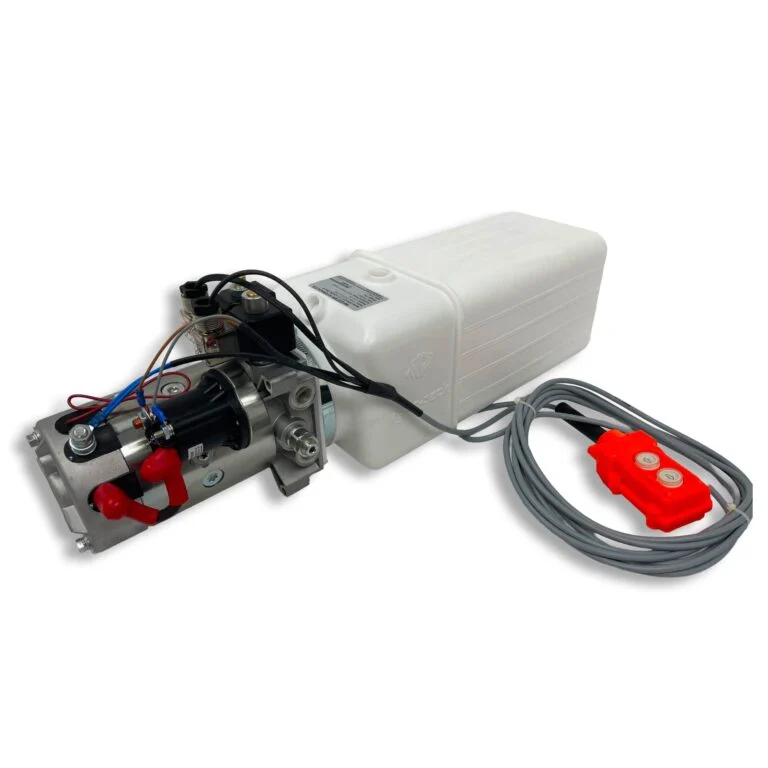

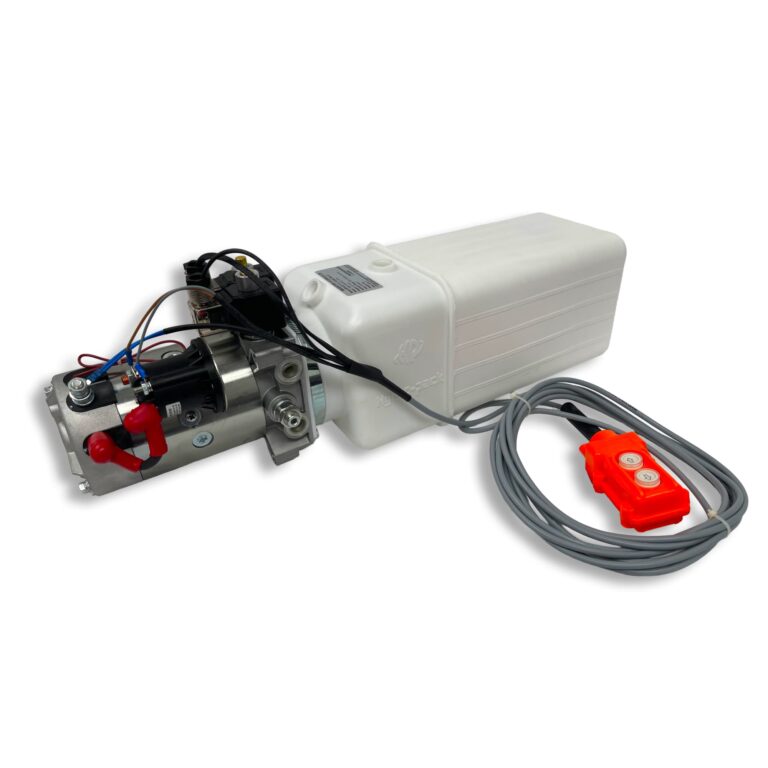

12 Volt DC Double Acting Dump Trailer Hydraulic Pump 12 QTs Plastic Reservoir
$449.00
Pay in 4 interest-free payments of $112.25| Action : | Double Acting | Pressure : | 2100 PSI | Flow : | 1.25 GPM | Relief Valve : | 2500 PSI | MAX RPM : | 2500 | Voltage : | 12 V | Pump Displacement : | 0.13 ci/rev | Current : | Direct | Capacity : | 12 QTs | Motor Power : | 1.6 kW | Tank Material : | Plastic | Mounting : | Horizontal | Port Size : | SAE 6 | Weight : | 32 LBs | Brand : | Hydro-Pack | Remote Control : | Included |
|---|---|
| GTIN : | 850081310532 |
Volume discounts
48 in stock
Description
Upgrade your dump trailer with this high-performance, double-acting hydraulic power unit, designed for maximum reliability and versatility. Perfectly suited for a range of popular dump trailer brands including Big Tex, Griffin, MAXX-D, PJ, Lamar, and Belmont.
Key Features
- Double-Acting Operation: Delivers both power-up and power-down functions for smooth, controlled lifting and lowering.
- Compact & Efficient Design: Space-saving unit equipped with a durable, 12-quart oil reservoir, ideal for most dump trailers and lift applications.
- Reliable Performance: Motor 1.6kW high-efficiency motor operates on 12V DC directly from a standard battery.
- Flow Rate: Delivers 1.25 GPM at 2500 PSI for fast and consistent hydraulic response.
- Adjustable Pressure Relief Valve: Factory set at 2500 PSI with easy adjustment to suit your needs.
- User-Friendly Operation: Includes a wired remote control for convenient, safe operation from the ground.
- Premium Build Quality: Manufactured in Europe. Built for heavy-duty commercial use; engineered for long service life.
1-Year Warranty
Applications
- Dump trailers (compatible with Big Tex, PJ, MAXX-D, Griffin, Lamar, Belmont and more)
- Utility lifts
- Scissor hoists
- Other hydraulic equipment needing double-acting power
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Made in Europe.
