2" bore x 30" stroke cross tube hydraulic cylinder
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2x30

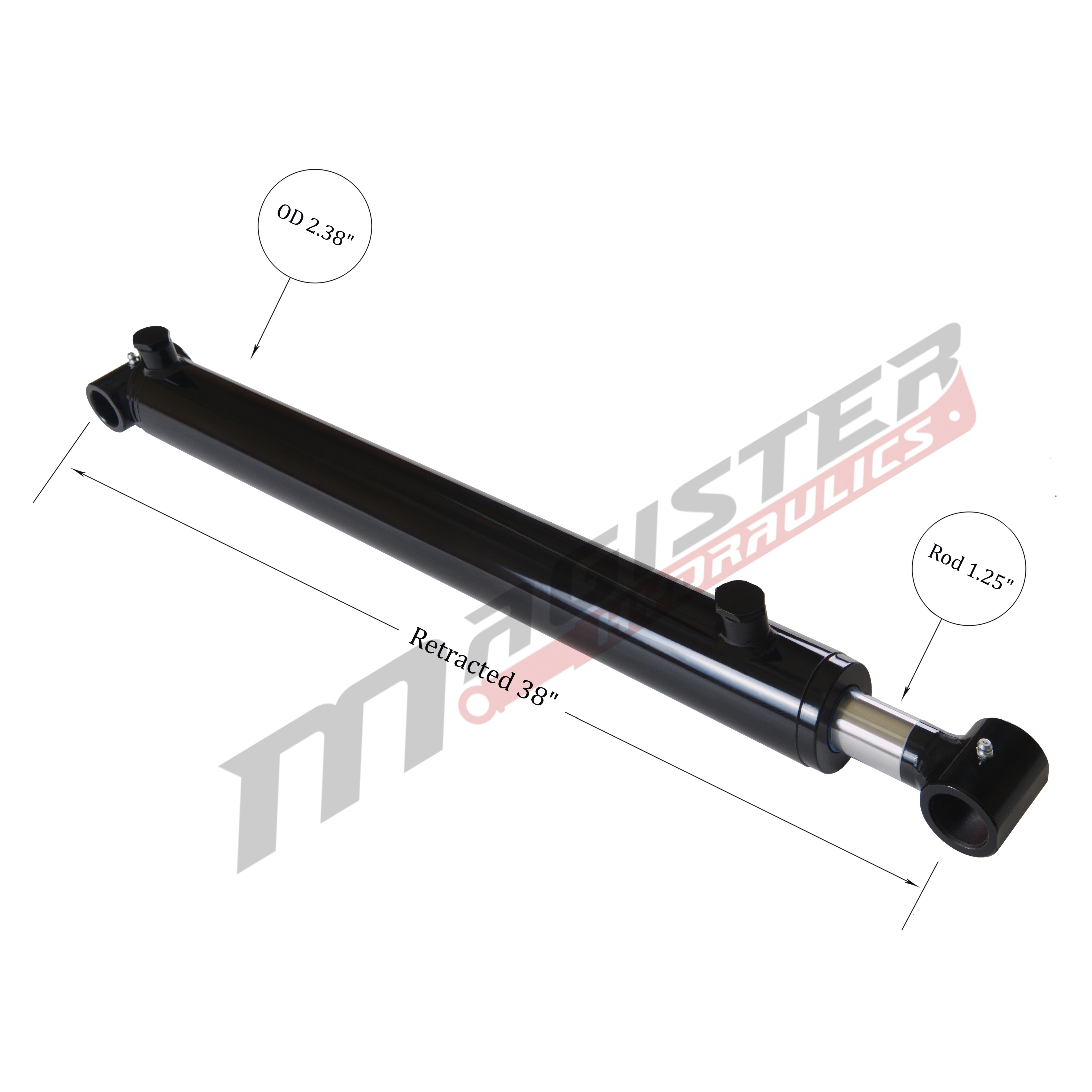

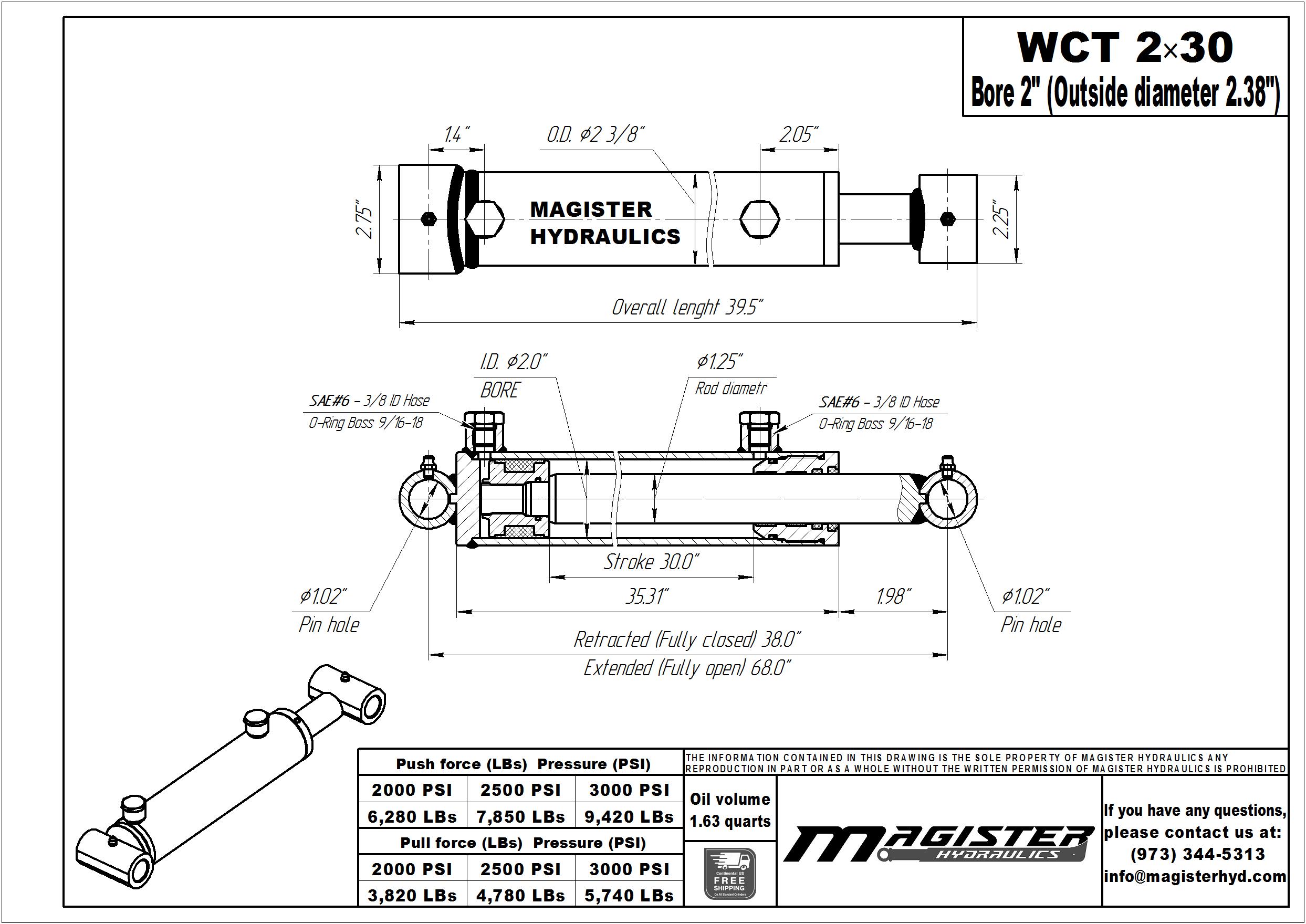

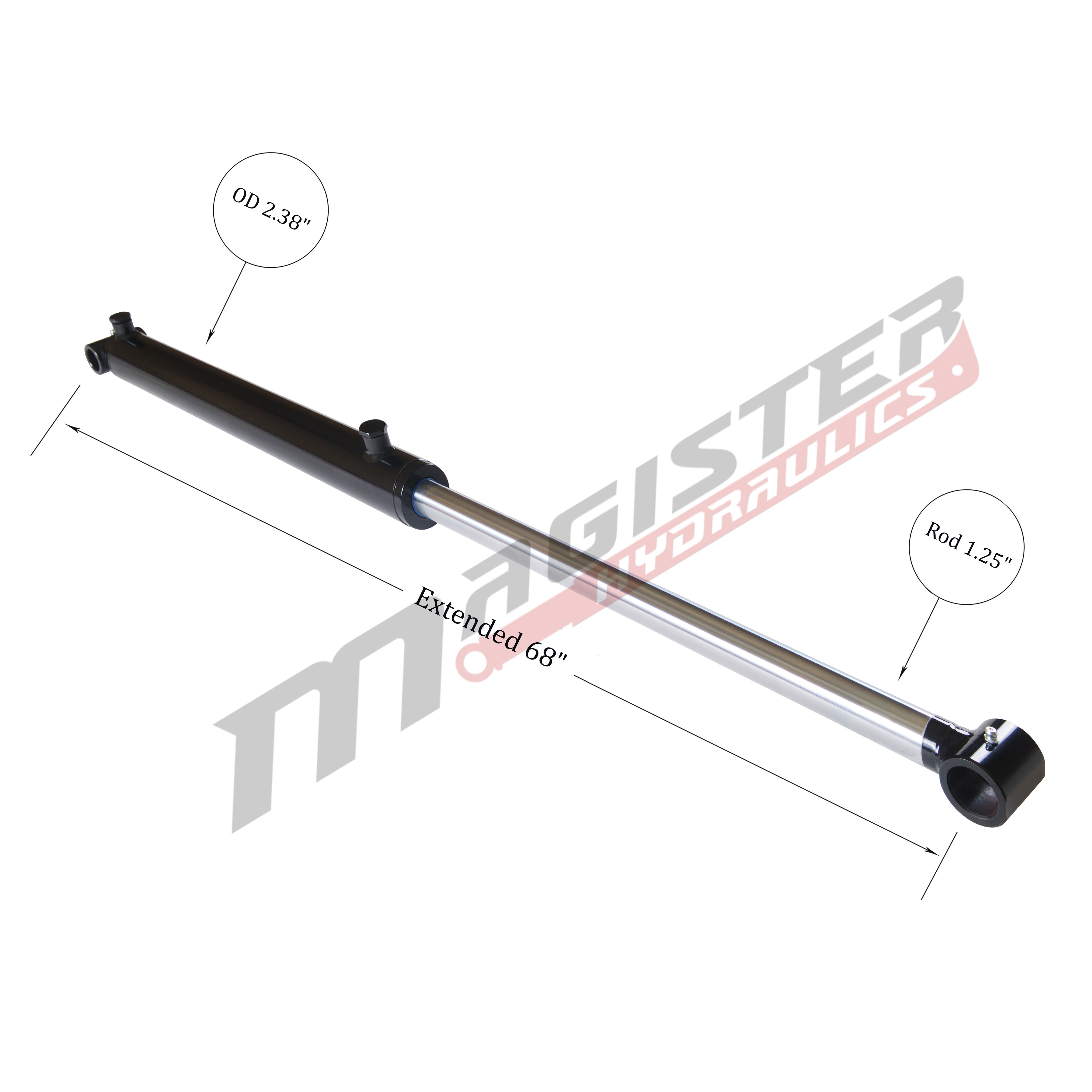

|Bore :||2 inch||OD :||2.38"||Stroke :||30” Stroke Hydraulic Cylinders||Rod :||1.25"||Port Size :||SAE 6||Pin :||1"||Extended :||68"||Retracted :||38"||Overall length :||39.5"||Pressure :||3500 PSI||Column Load (LBs) :||5,700||Oil Volume (quarts) :||1.63||Brand :||Magister Hydraulics|
1+ PRICE EA
4+ PRICE EA -5%
10+ PRICE EA -10%
63 in stock

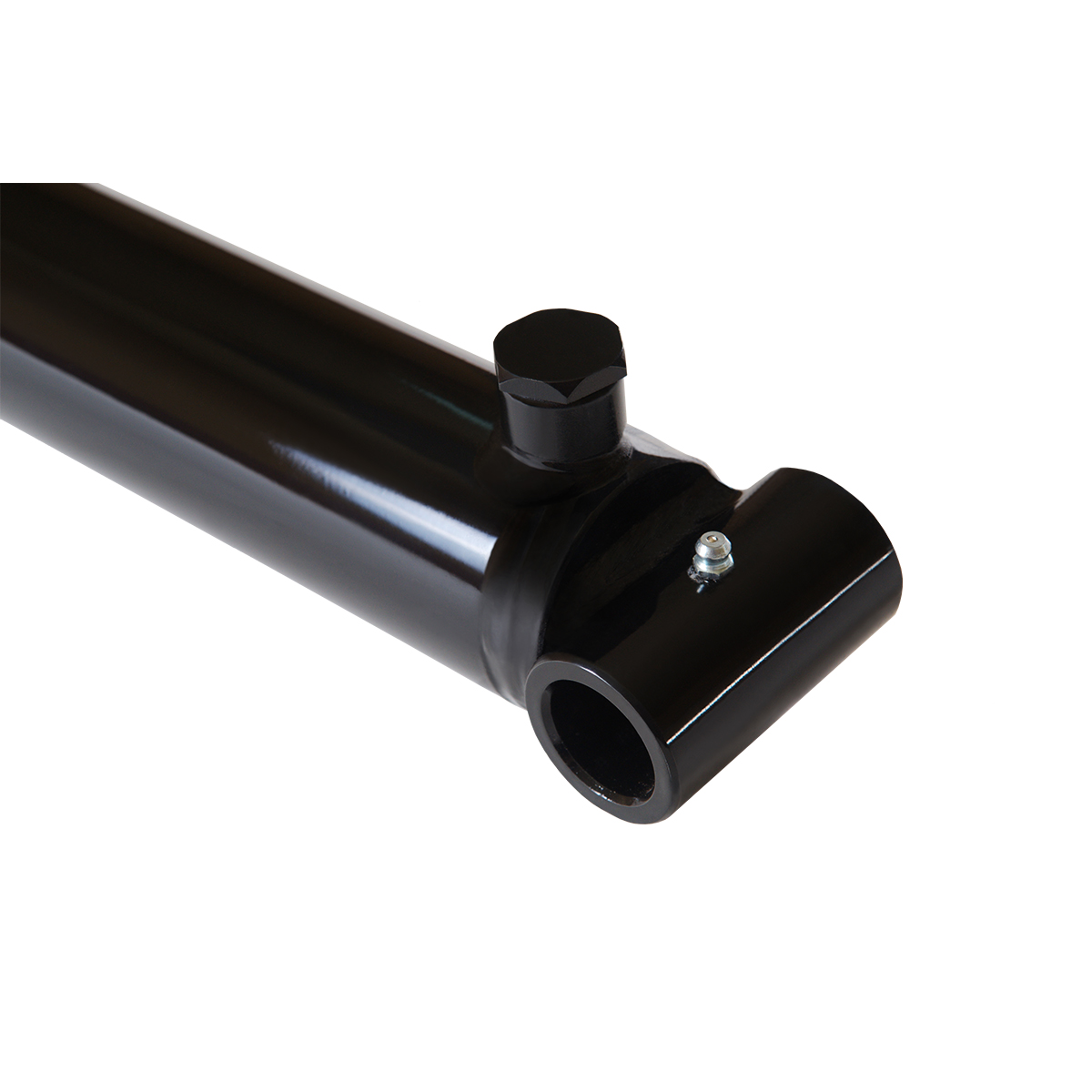

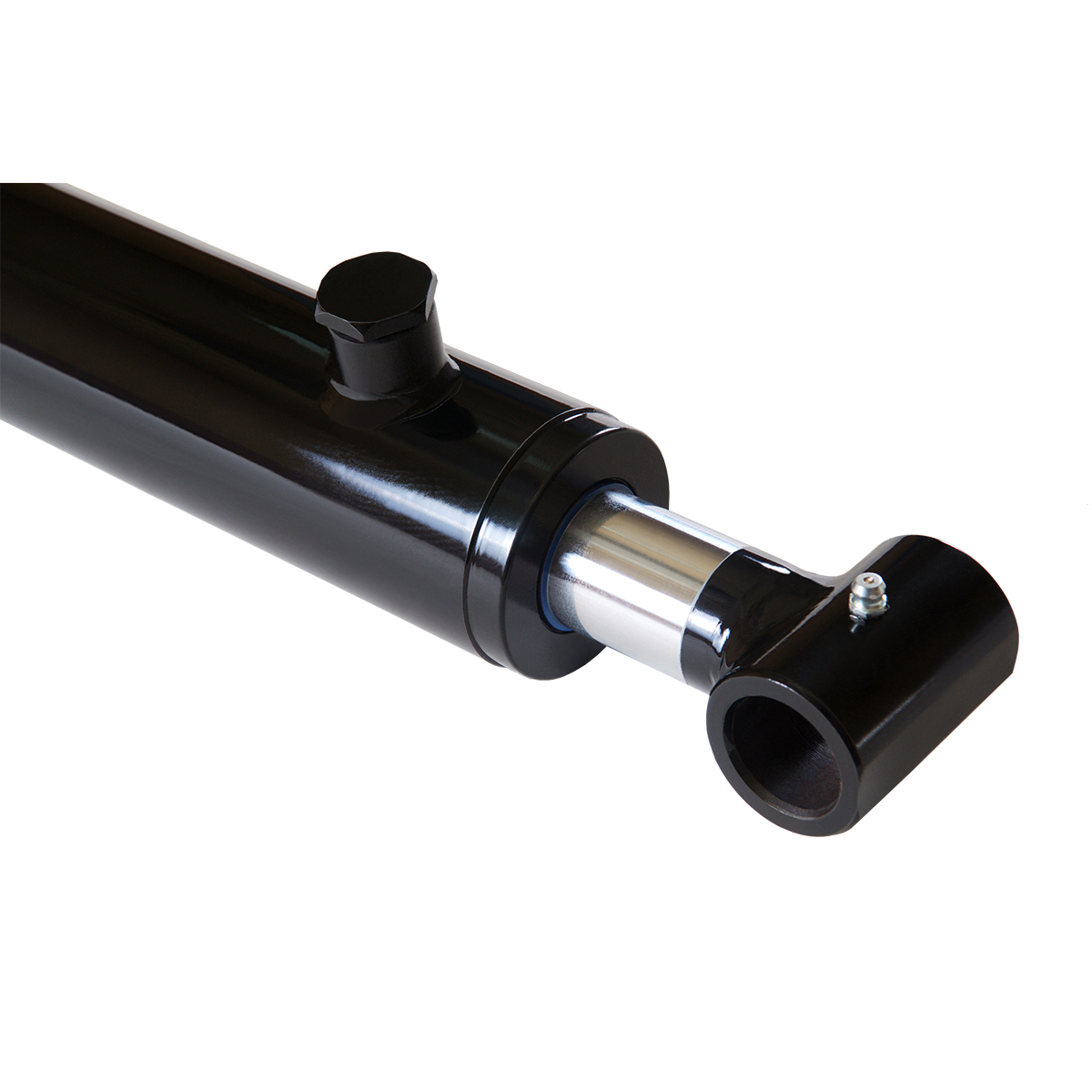

- 2″ bore x 30″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
