2 bore x 32 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics
On sale!
Zoom

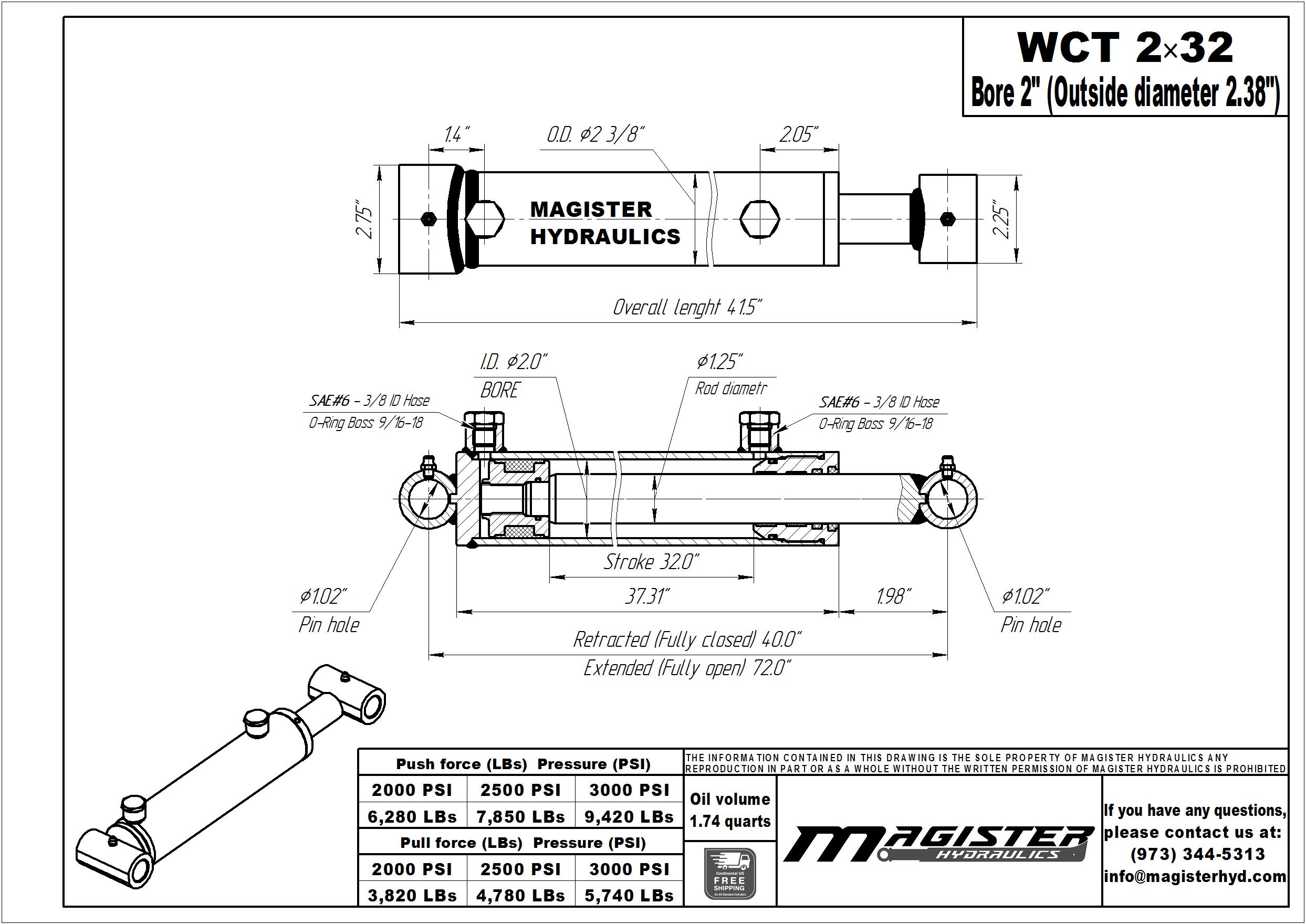

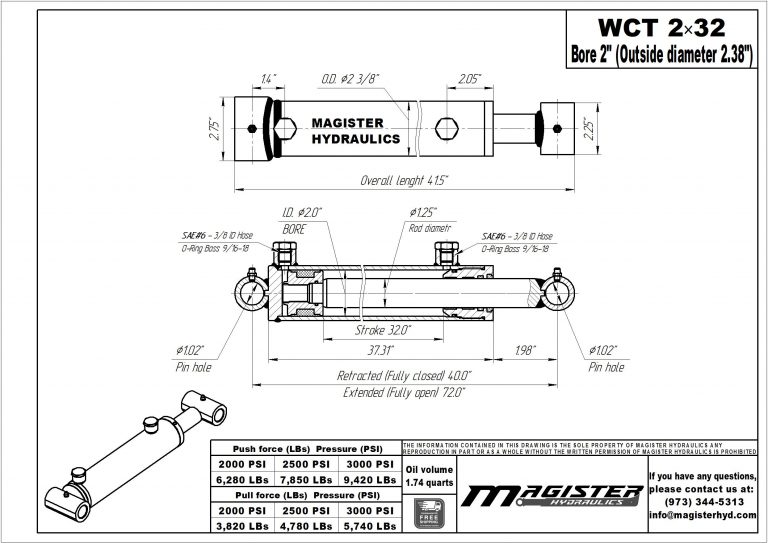

2" bore x 32" stroke cross tube hydraulic cylinder

$263.00

Pay in 4 interest-free payments of $65.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2x32
Bore : 2 in
Outer Dia. (⌀) : 2.38 in
Stroke : 32 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : 1 in

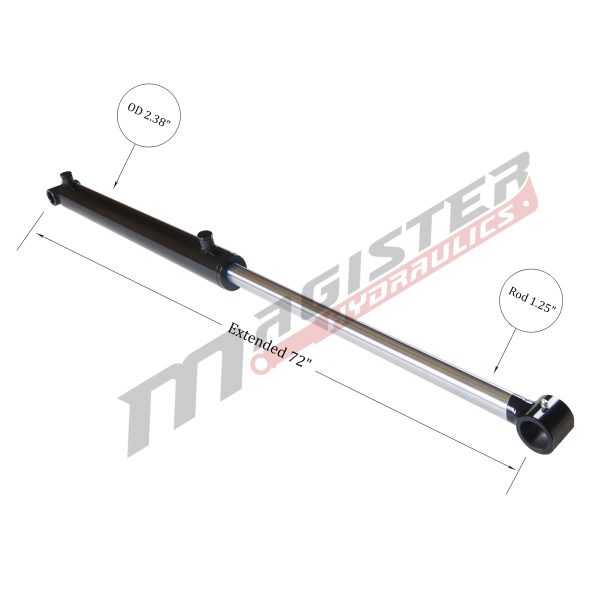

Extended : 72 in

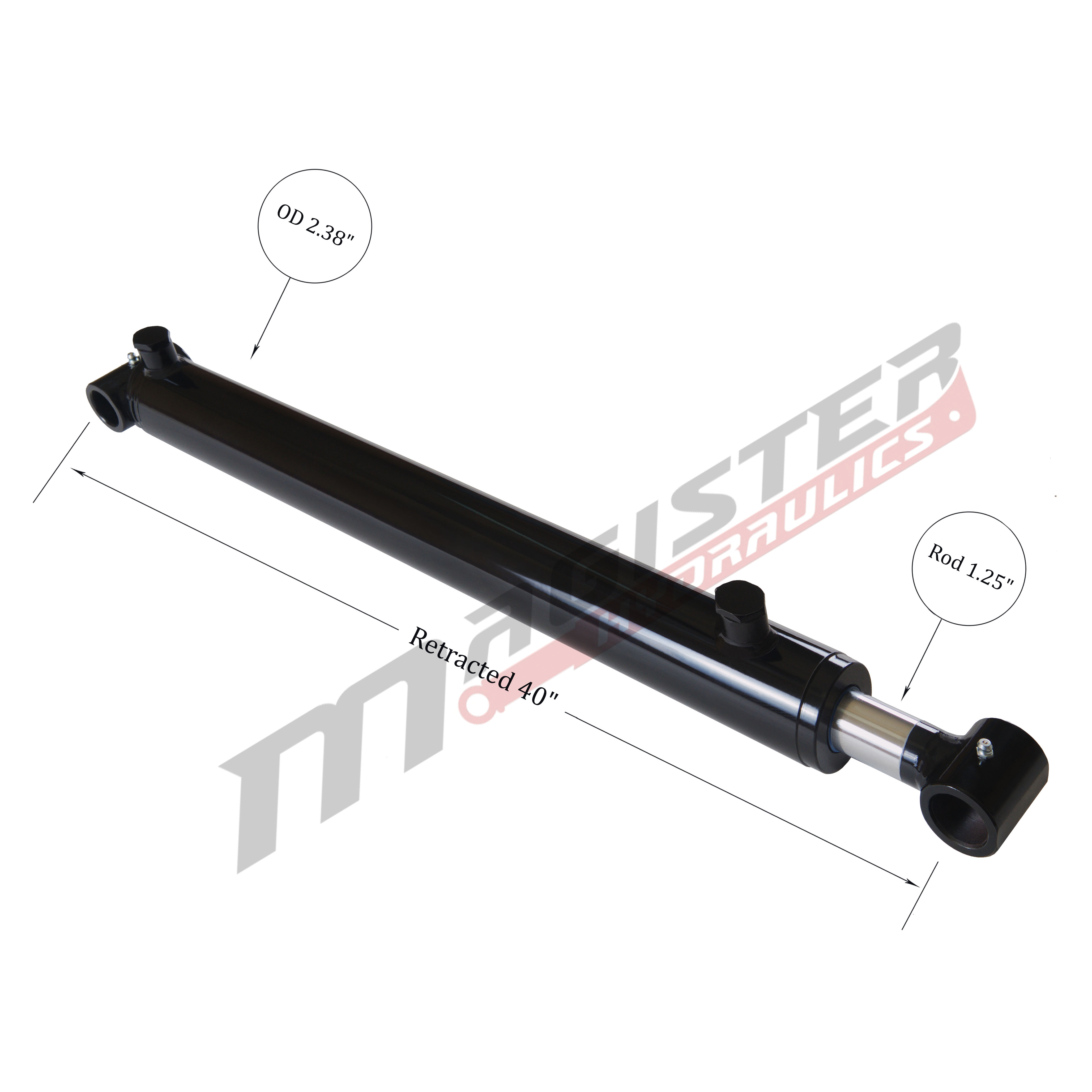

Retracted : 40 in
Overall length : 41.5 in
Pressure : 3500 PSI
Column Load : 5,200 LBs
Oil Volume : 1.74 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated

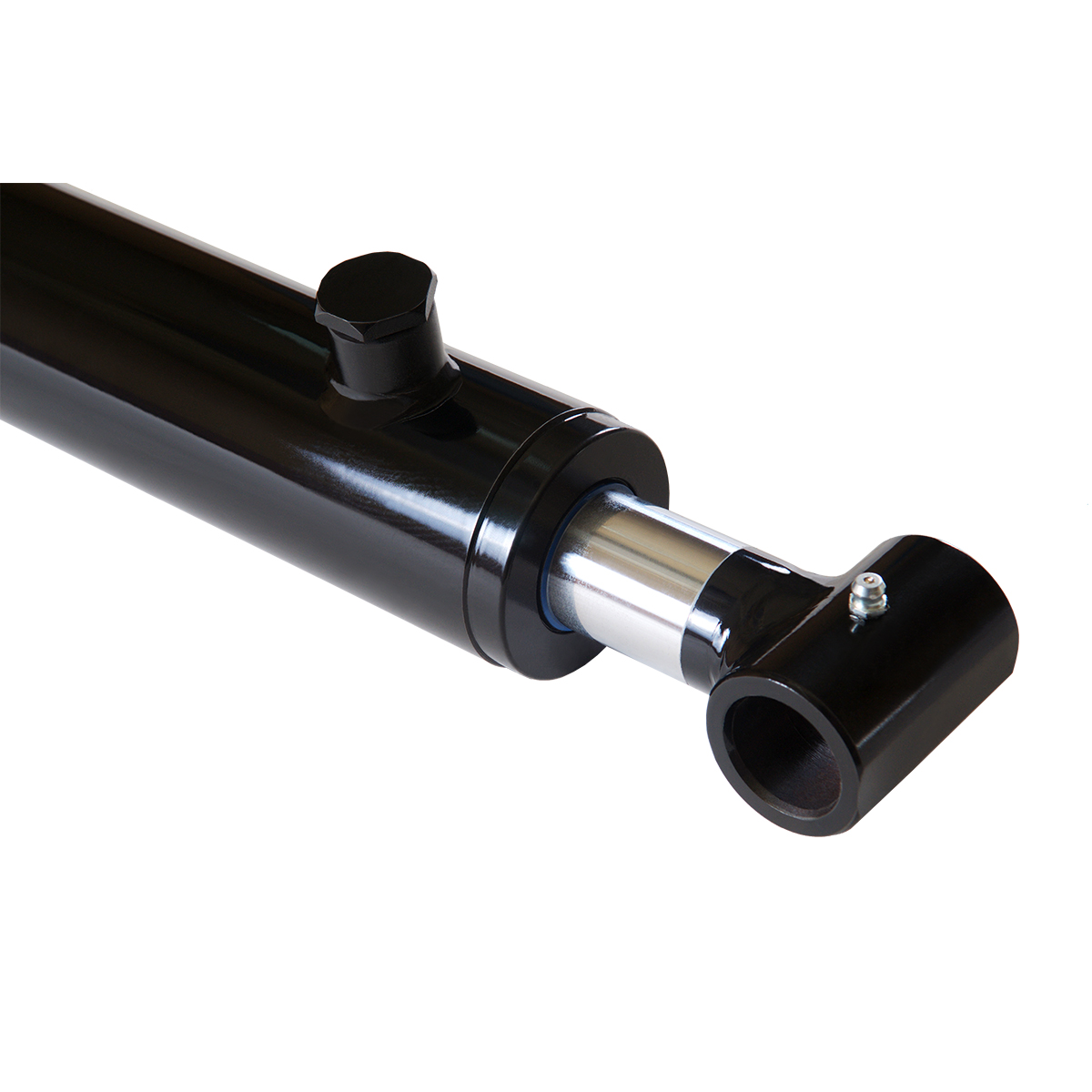

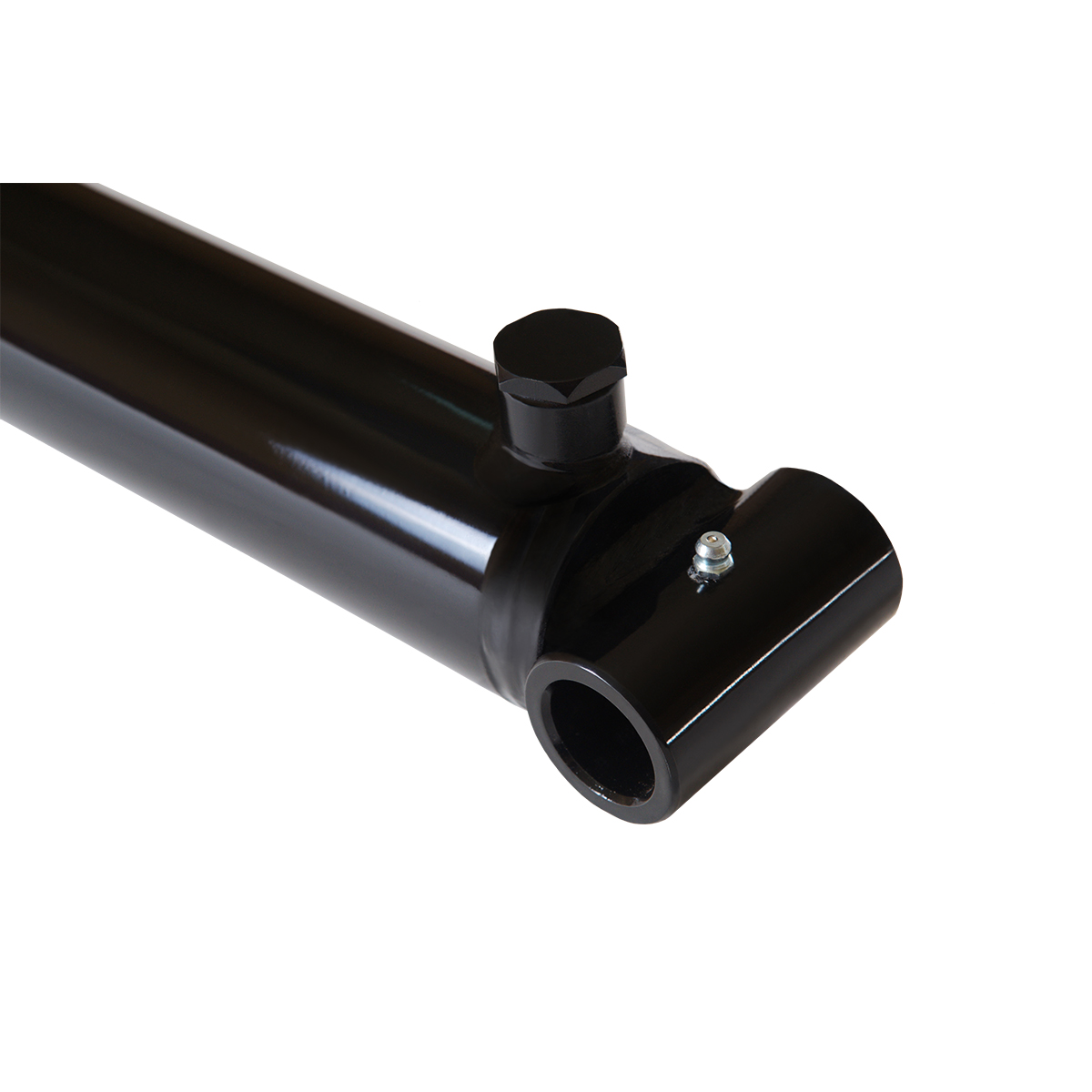

Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 31 LBs
    GTIN : 857743006802

    Volume discounts

    1+ PRICE EA
    $263.00
    4+ PRICE EA -5%
    $249.85
    8+ PRICE EA -10%
    $236.70
    In stock

    48 in stock

    Description

    • 2″ bore x 32″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
