2 bore x 30 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics

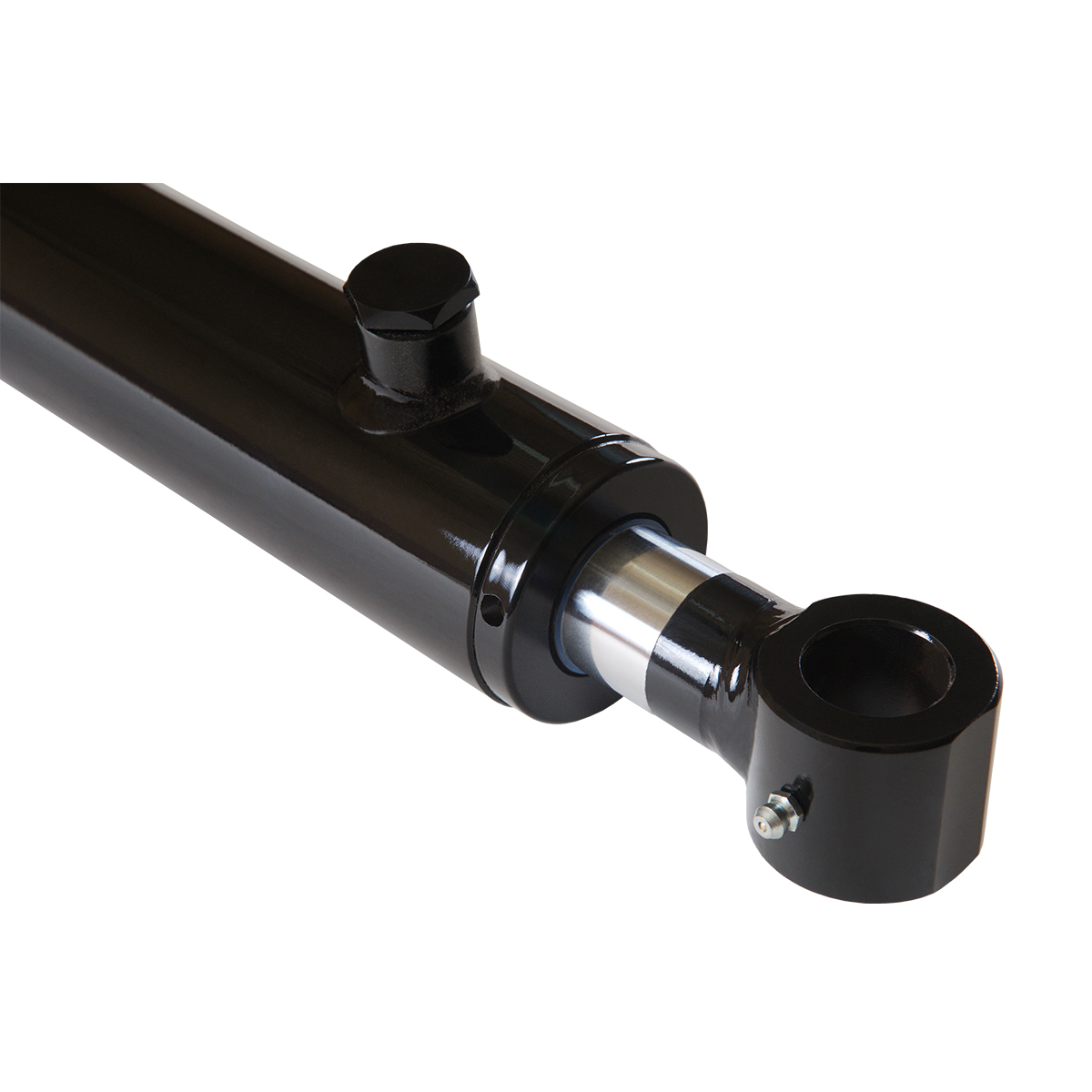

2" bore x 30" stroke tang hydraulic cylinder


Pay in 4 interest-free payments of $65.25
* Wholesale Discount is available for this product if you purchase 4 or more products.

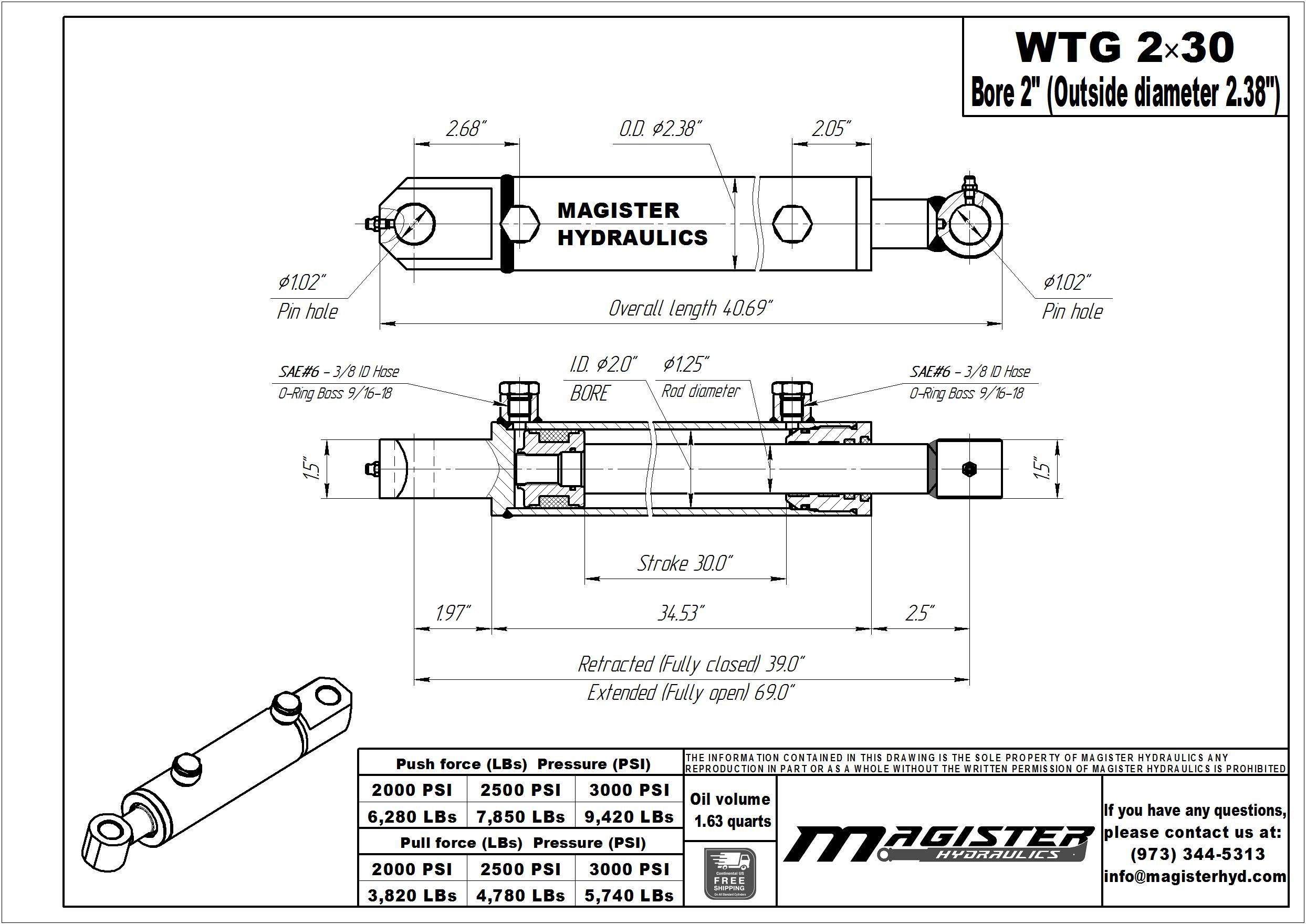

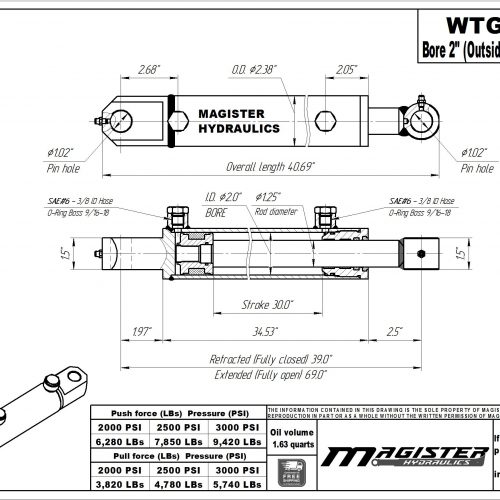

SKU: WTG 2x30
Bore :2 inch
OD :2.38"
Stroke :30"
Rod :1.25"
Port Size :SAE 6
Pin :1"

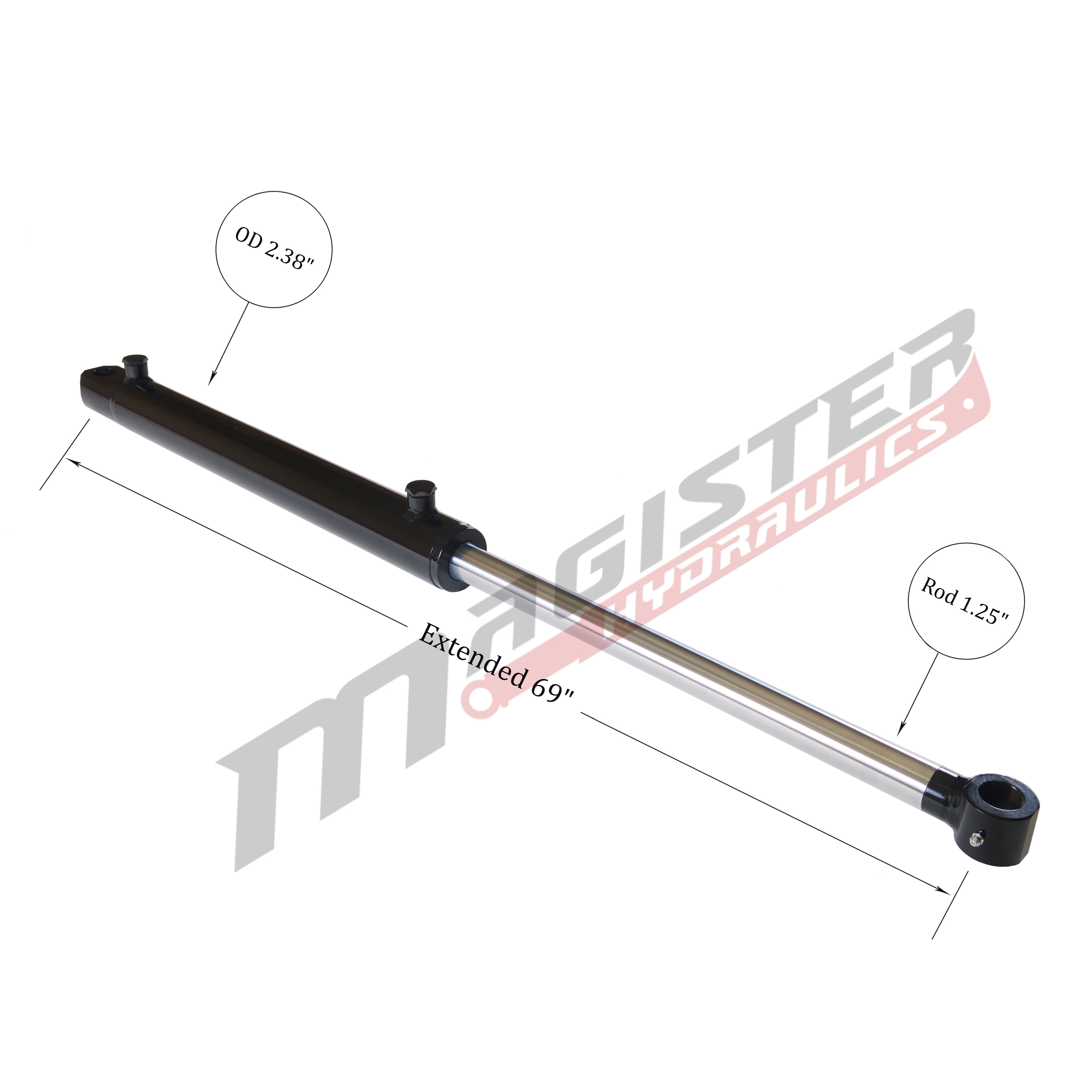

Extended :69"

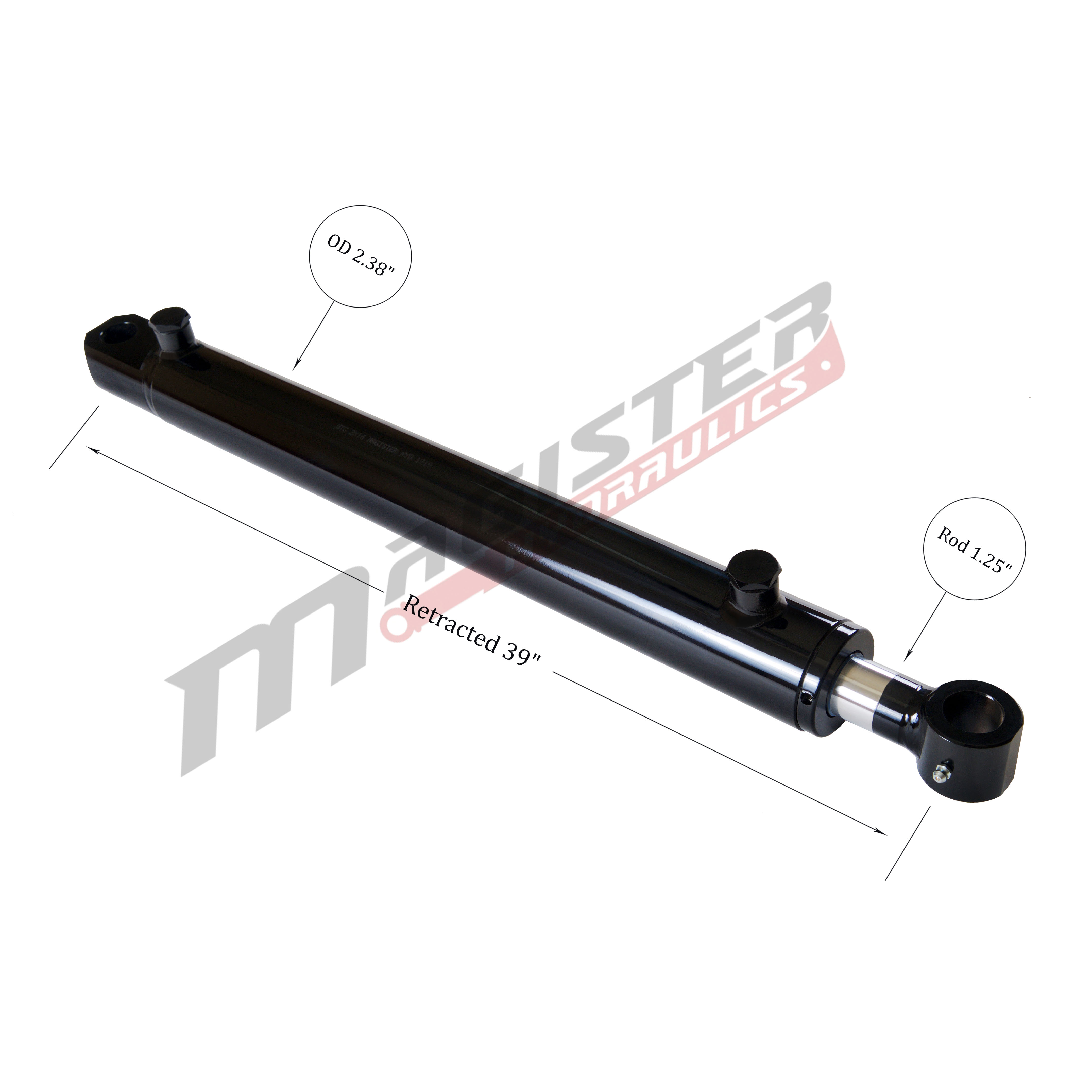

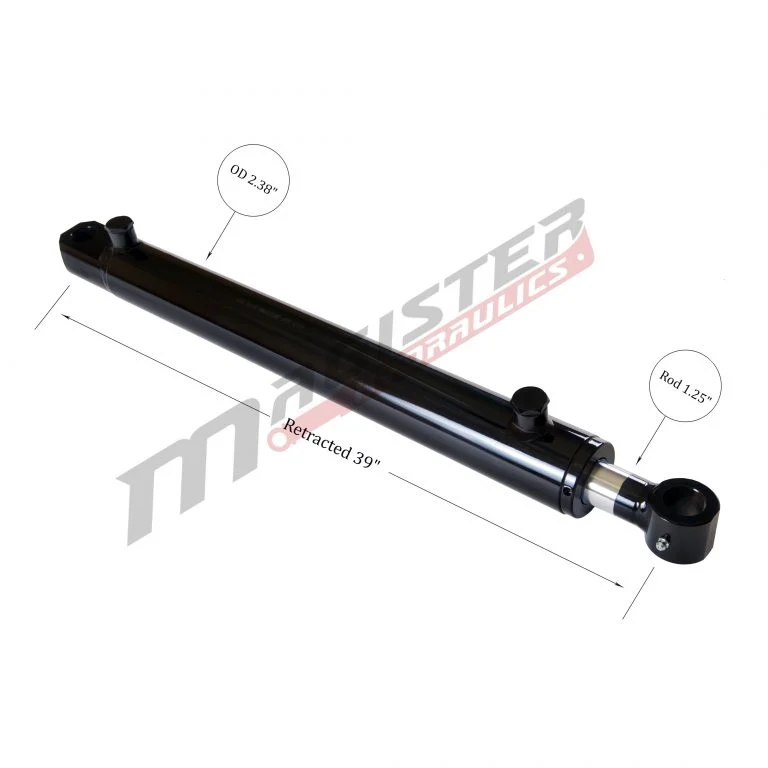

Retracted :39"
Overall length :40.69
Pressure :3500 PSI
Column Load (LBs) :5,700
Oil Volume (quarts) :1.6
Brand :Magister Hydraulics
GTIN :850016509161
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

51 in stock

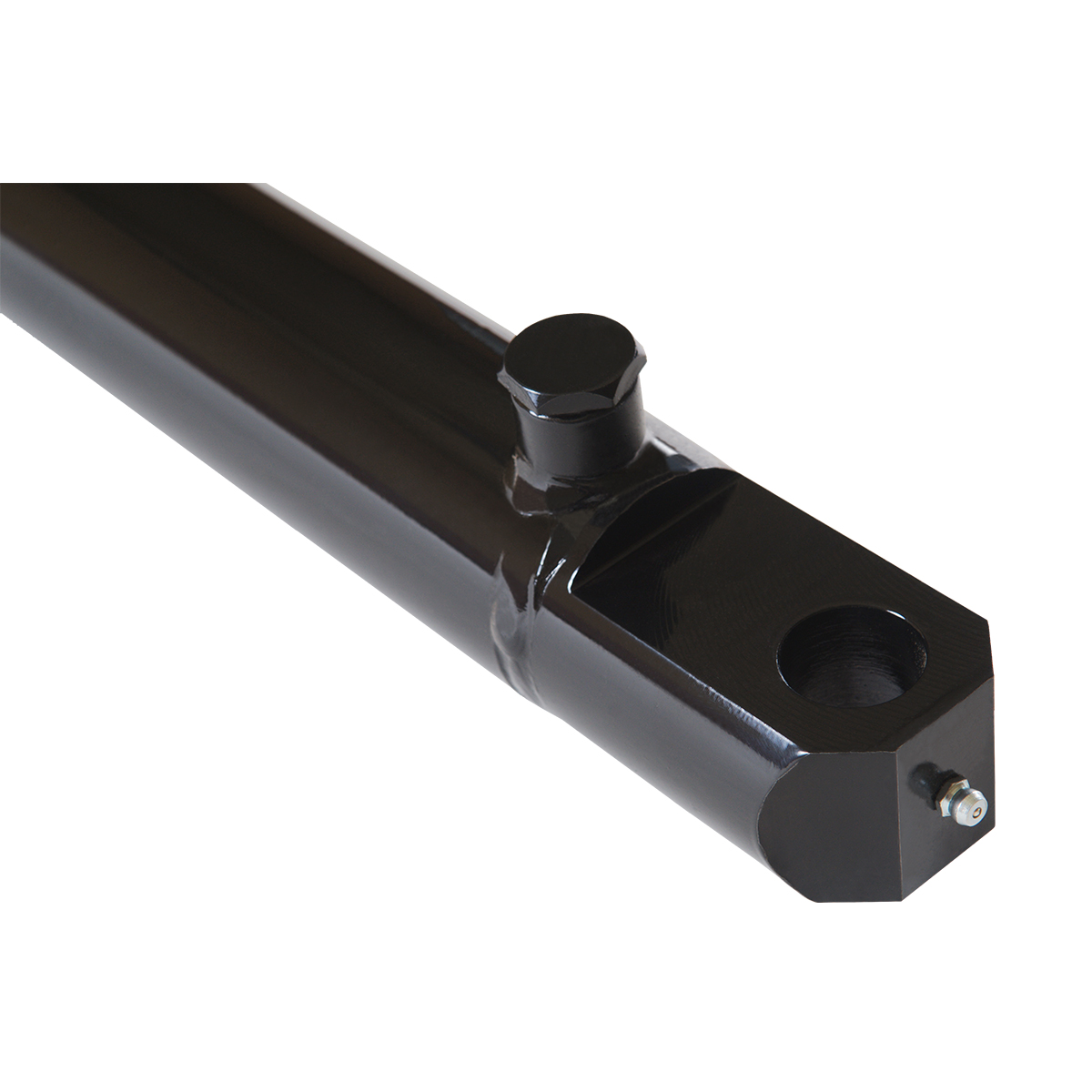

  • 2″ bore x 30″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
