2" bore x 24" stroke tang hydraulic cylinder

$240.00

Pay in 4 interest-free payments of $60.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 2x24
Bore : 2 in
Outer Dia. (⌀) : 2.38 in
Stroke : 24 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : 1 in

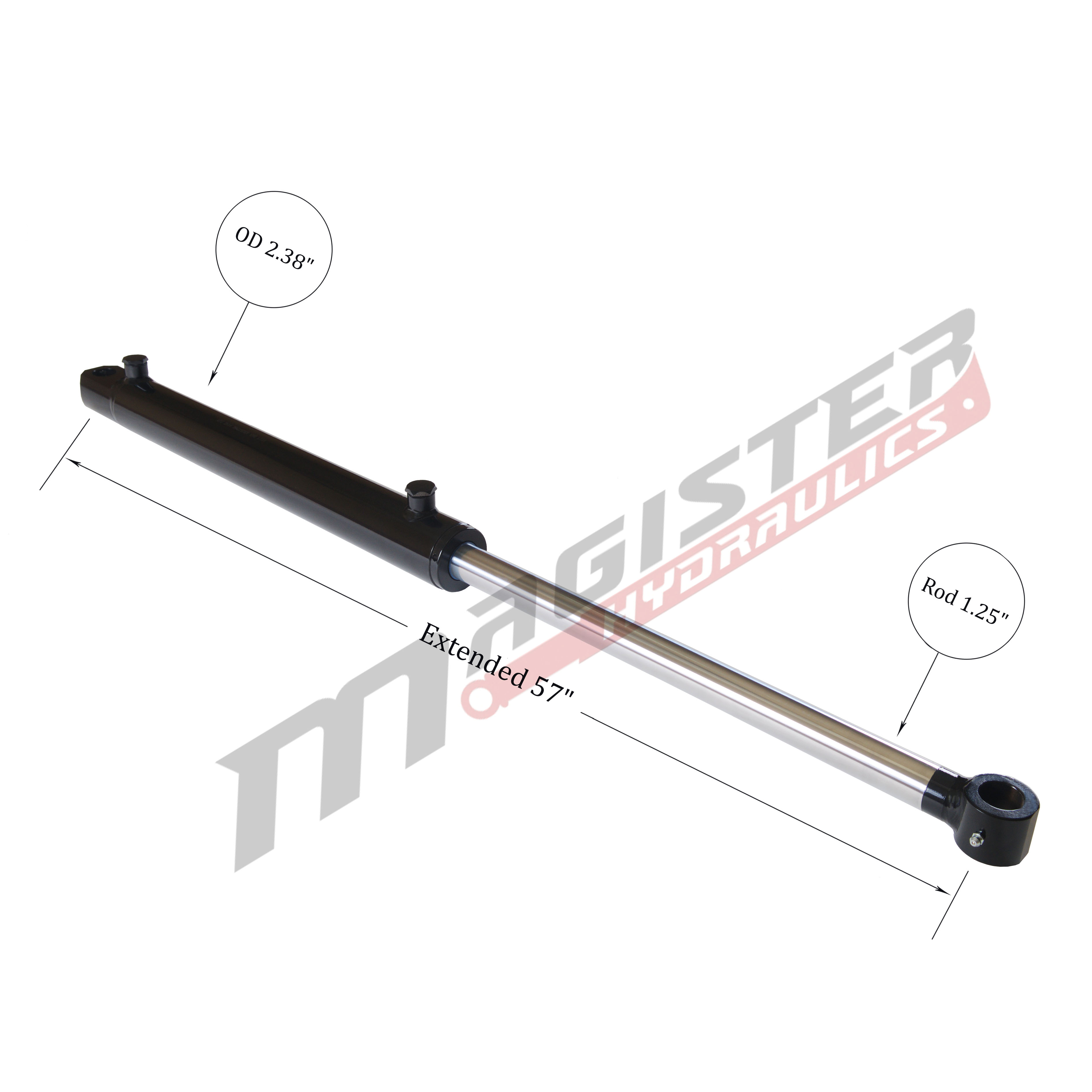

Extended : 57 in

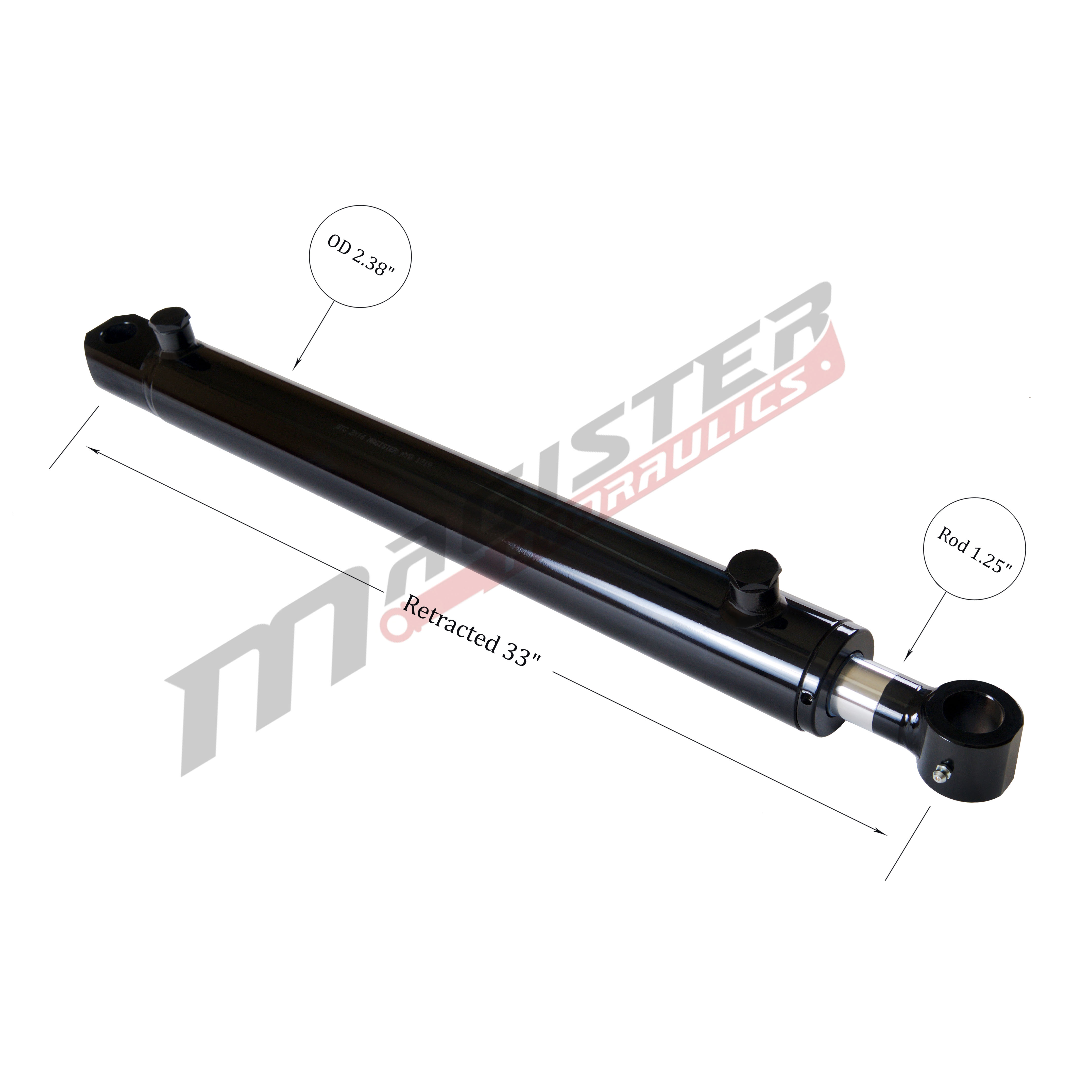

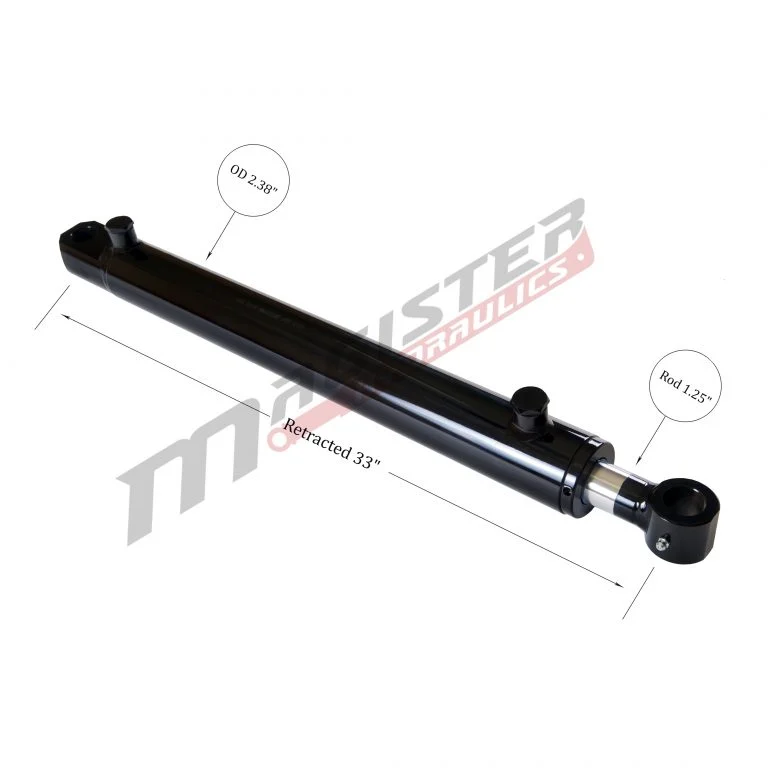

Retracted : 33 in
Overall length : 34.69 in
Pressure : 3500 PSI
Column Load : 8,400 LBs
Oil Volume : 1.3 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Narrow Tube
Action :
  • Double Acting
  • Weight : 26 LBs
    GTIN : 854335007230

    Volume discounts

    1+ PRICE EA
    $240.00
    4+ PRICE EA -5%
    $228.00
    8+ PRICE EA -10%
    $216.00
    In stock

    72 in stock

    Description

    • 2″ bore x 24″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

    973-344-5313
