2" bore x 14" stroke tang hydraulic cylinder
Original price was: $226.00.$192.10Current price is: $192.10.
In Stock
Pay in 4 interest-free payments of $48.0395 in stock
Free Shipping
Designed for maximum performance and durability, the heavy-duty welded Tang Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, construction equipment. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 2-inch bore and 14-inch stroke with tang and narrow tube ends with 3500 PSI. Due to their construction, these rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The Tang cylinders are perfect for any types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
Key Features:

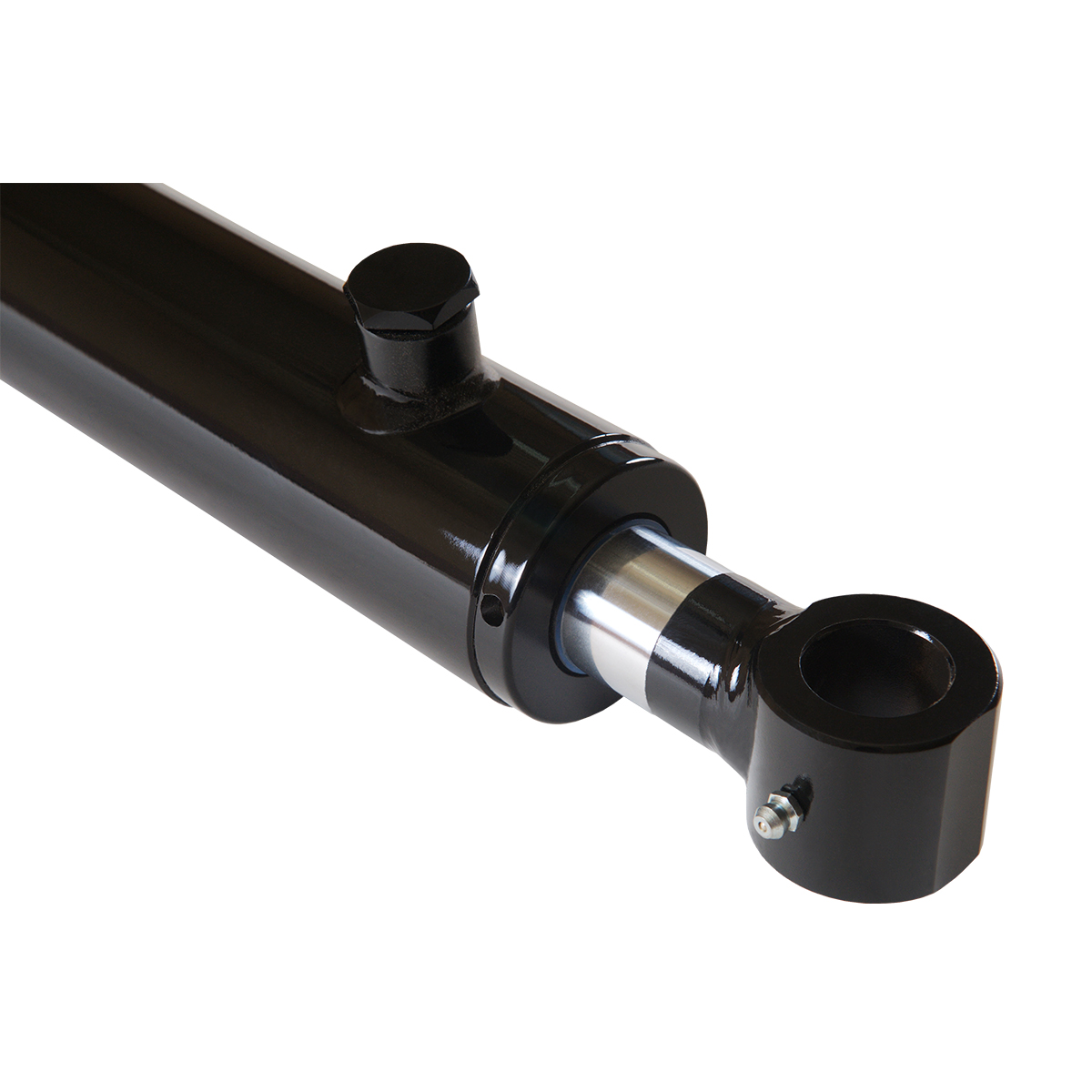

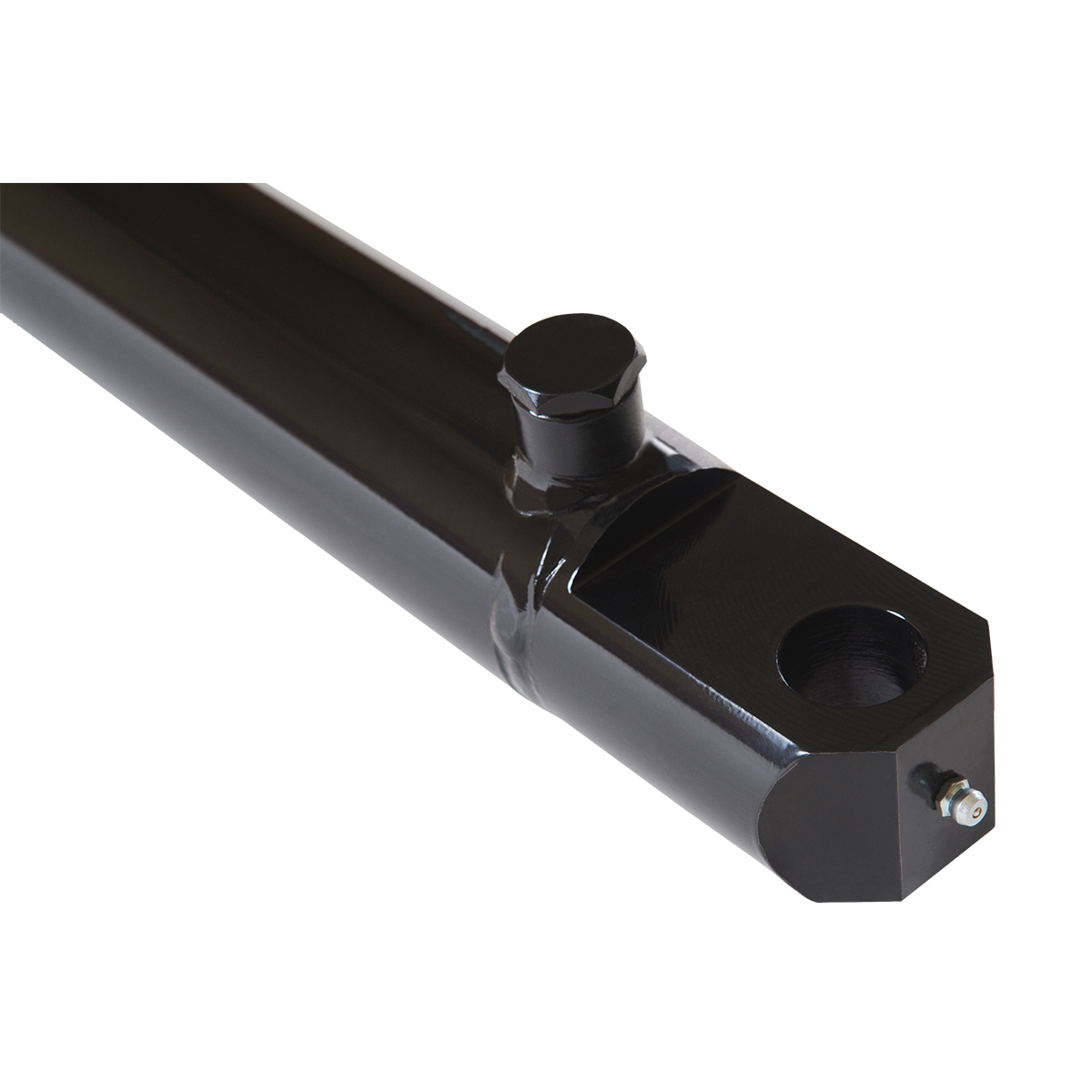

- Extreme load capacity: Welded tang base end, ⌀ 2.38″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045) with welded narrow tube end, and top-quality piston seals make it capable of handling heavy loads with a 14″ stroke.
- Wide Range Hydraulic Applications:Waste, recycling, construction, transportation, agriculture, material handling, ensuring reliable operation in harsh environments thanks to the usage of this tang cylinder.
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
- Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
- 2-year warranty
- Same Day Free Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
- Made in Europe.
Before purchase, please take the proper measurements:
- The diameter of the bore (please specify inside or outside measurement).
- The diameter of the rod and pin holes.
- The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
- The width on each mounting end of the cylinder where the pins slide through.
Frequently bought together

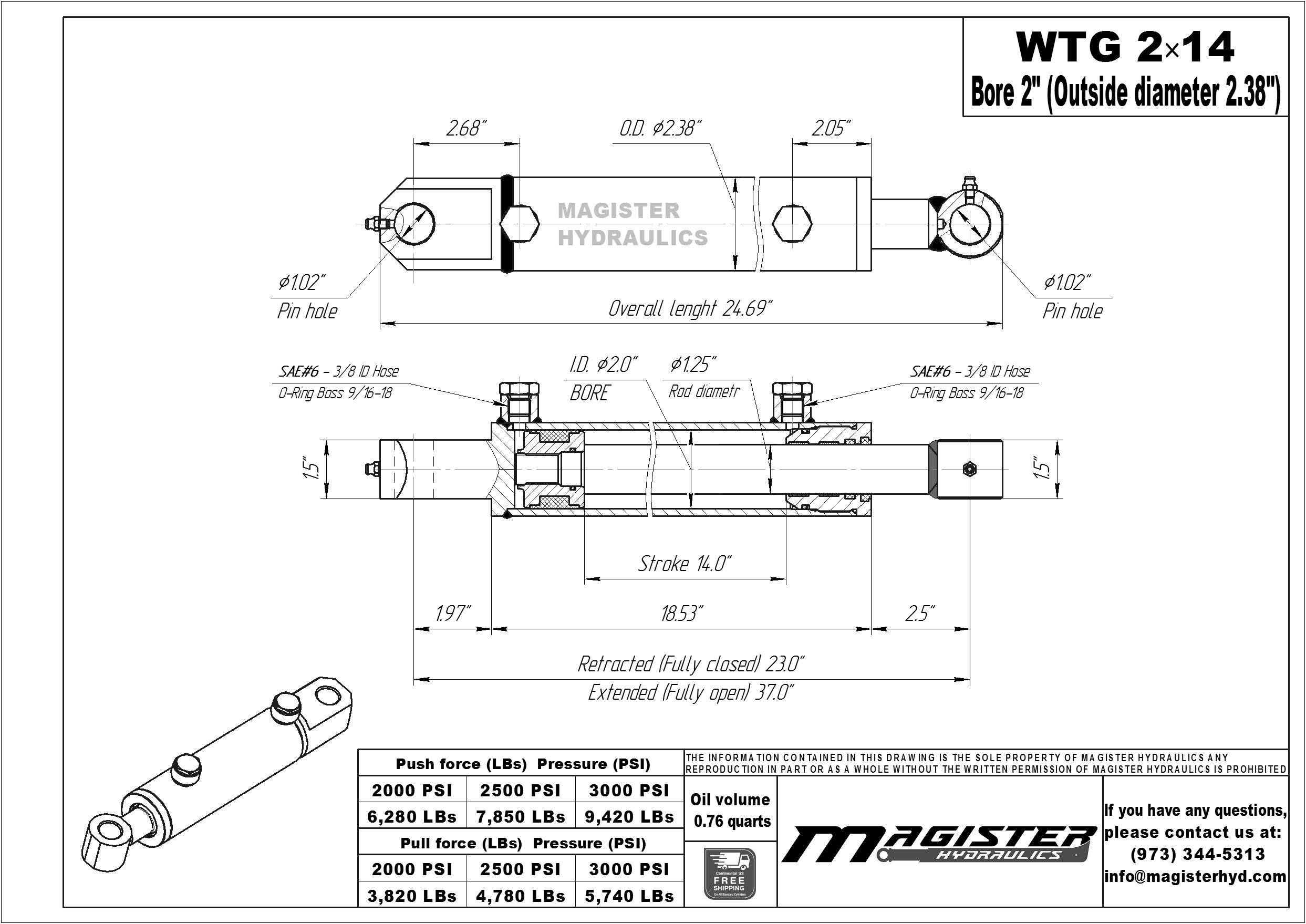

Specifications
| Bore | 2 in | Outer Dia. (⌀) | 2.38 in |
|---|---|---|---|
| Stroke | 14 in | Rod Dia. (⌀) | 1.25 in |
| Port Size | SAE 6 | Pin Dia. (⌀) | 1 in |

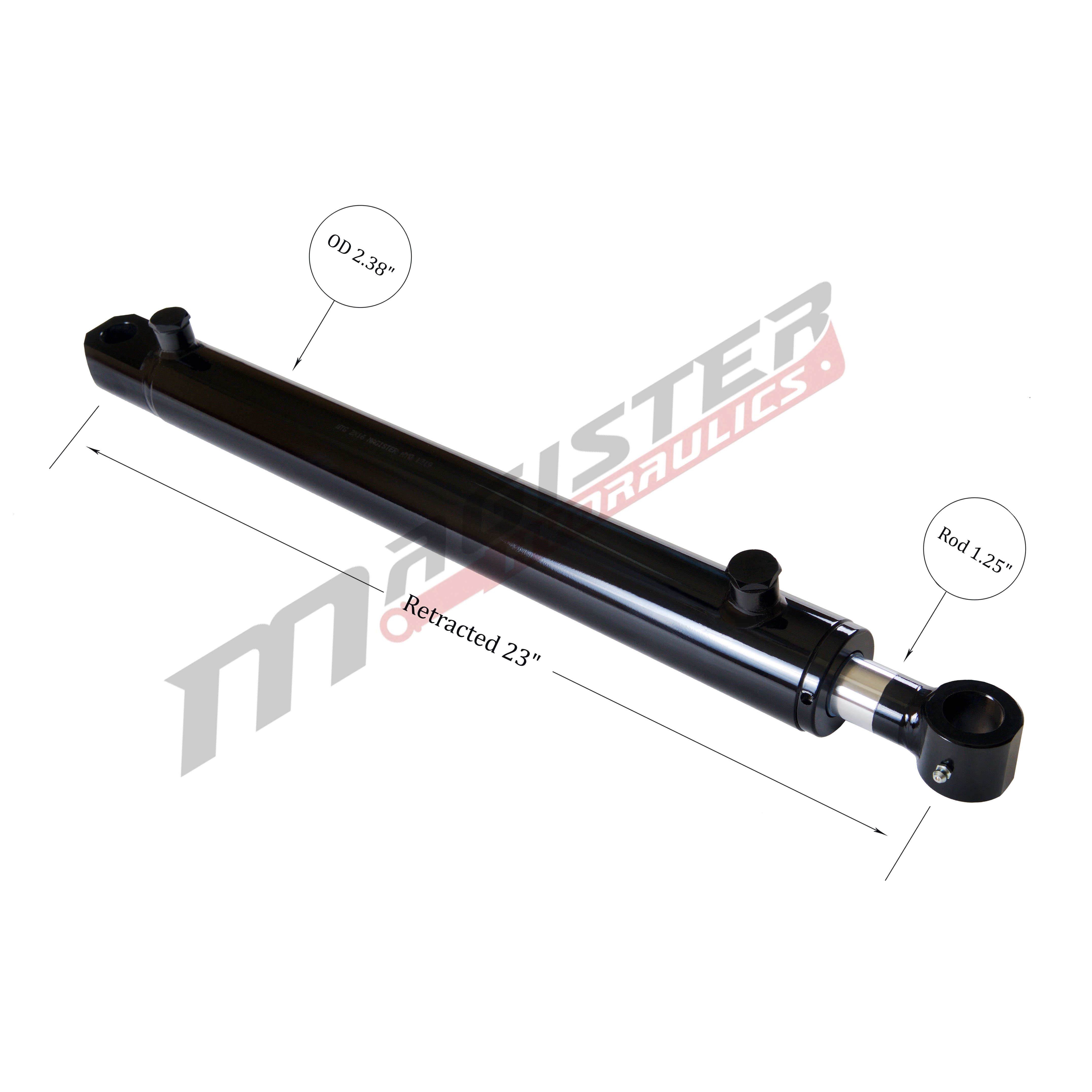

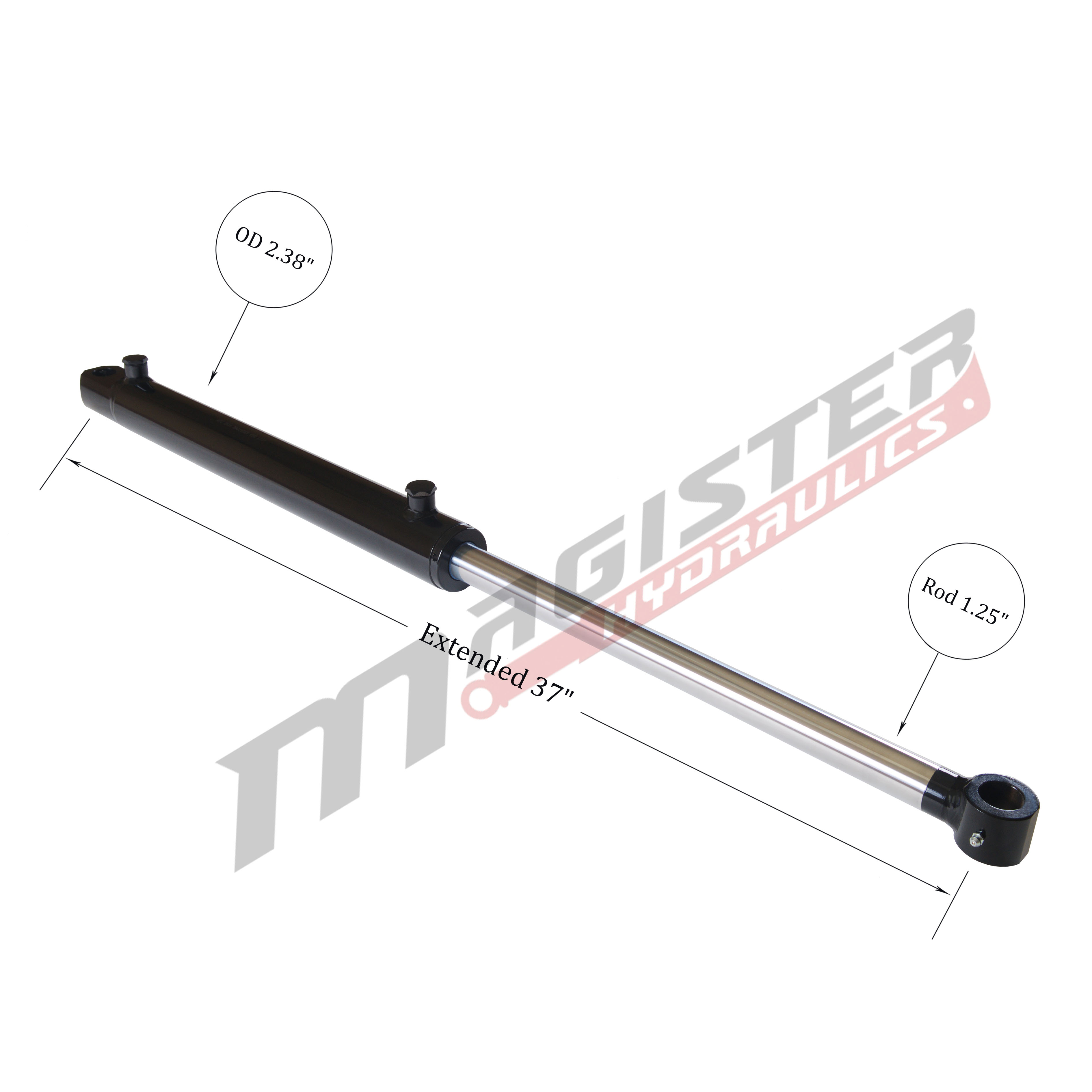

| Extended | 37 in | Retracted | 23 in |
| Overall length | 24.69 in | Pressure | 3500 PSI |
| Column Load | 9,400 LBs | Oil Volume | 0.76 QTs |
| Brand | Magister Hydraulics | Design | Welded |
| Rod Type | Chrome Plated | Rod End | Narrow Tube |
| Action | Double Acting | Weight | 19 LBs |
