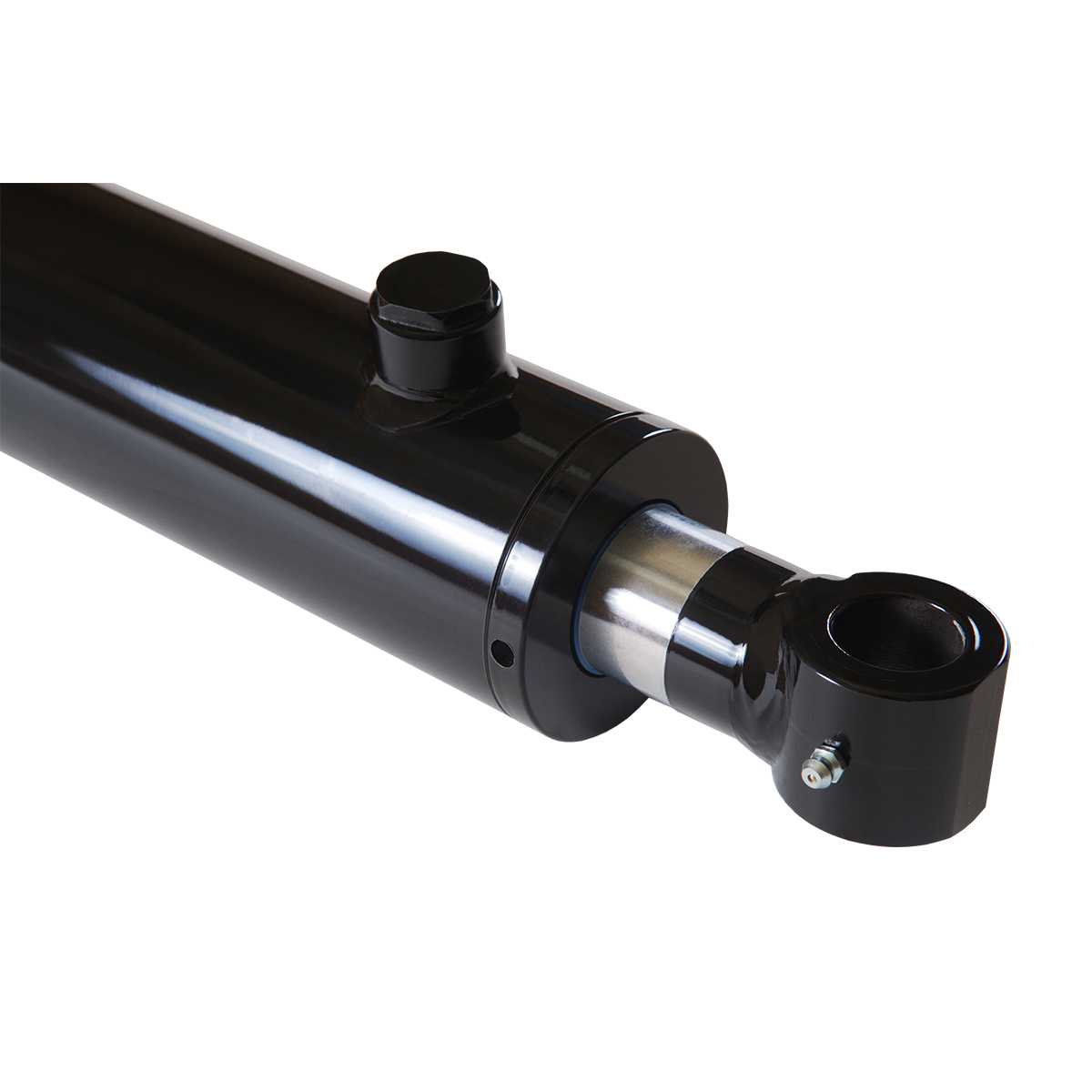

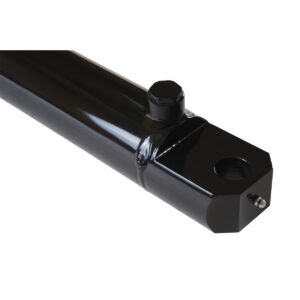

2.5" bore x 24" stroke tang hydraulic cylinder
$271.00
Pay in 4 interest-free payments of $67.75SKU: WTG 2.5x24

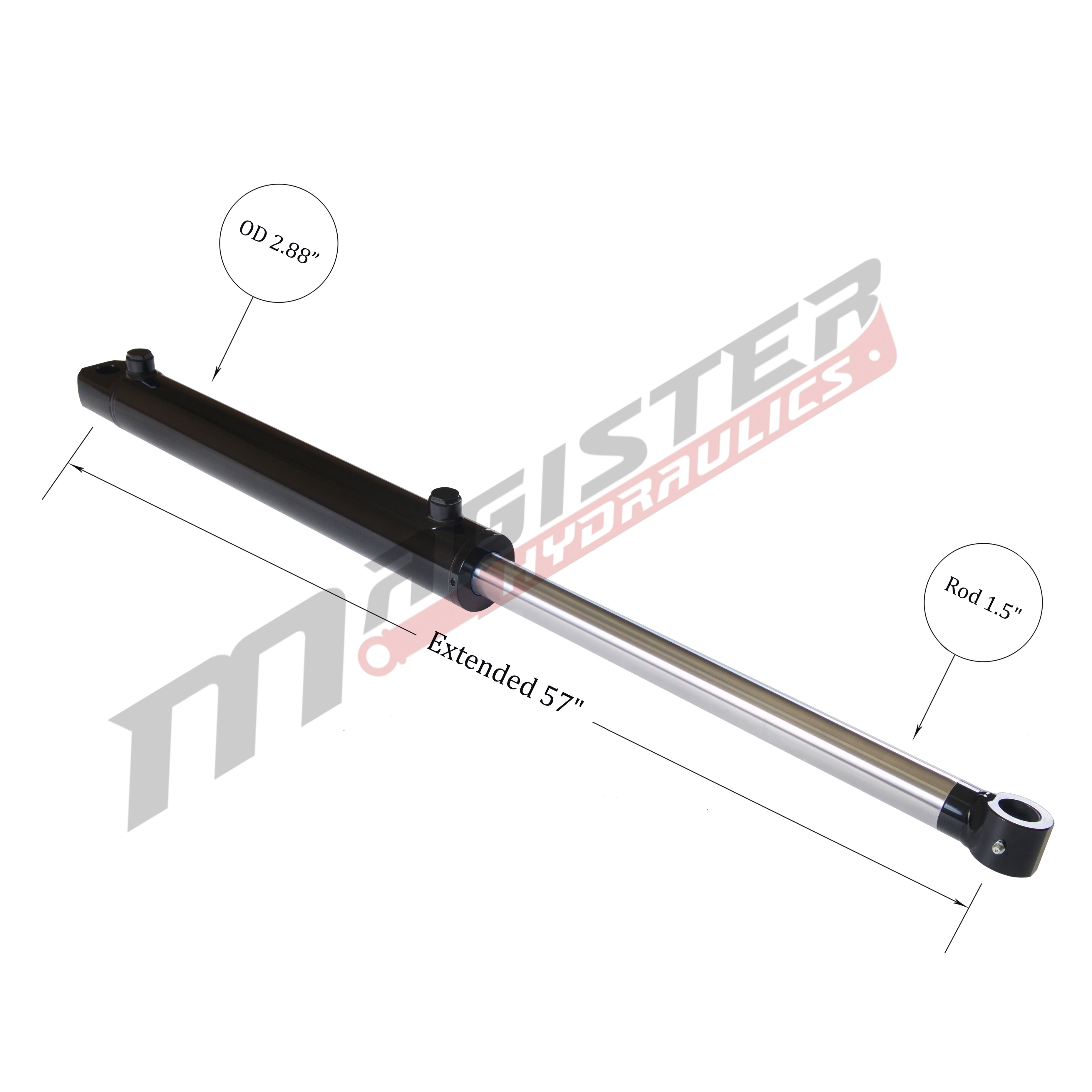

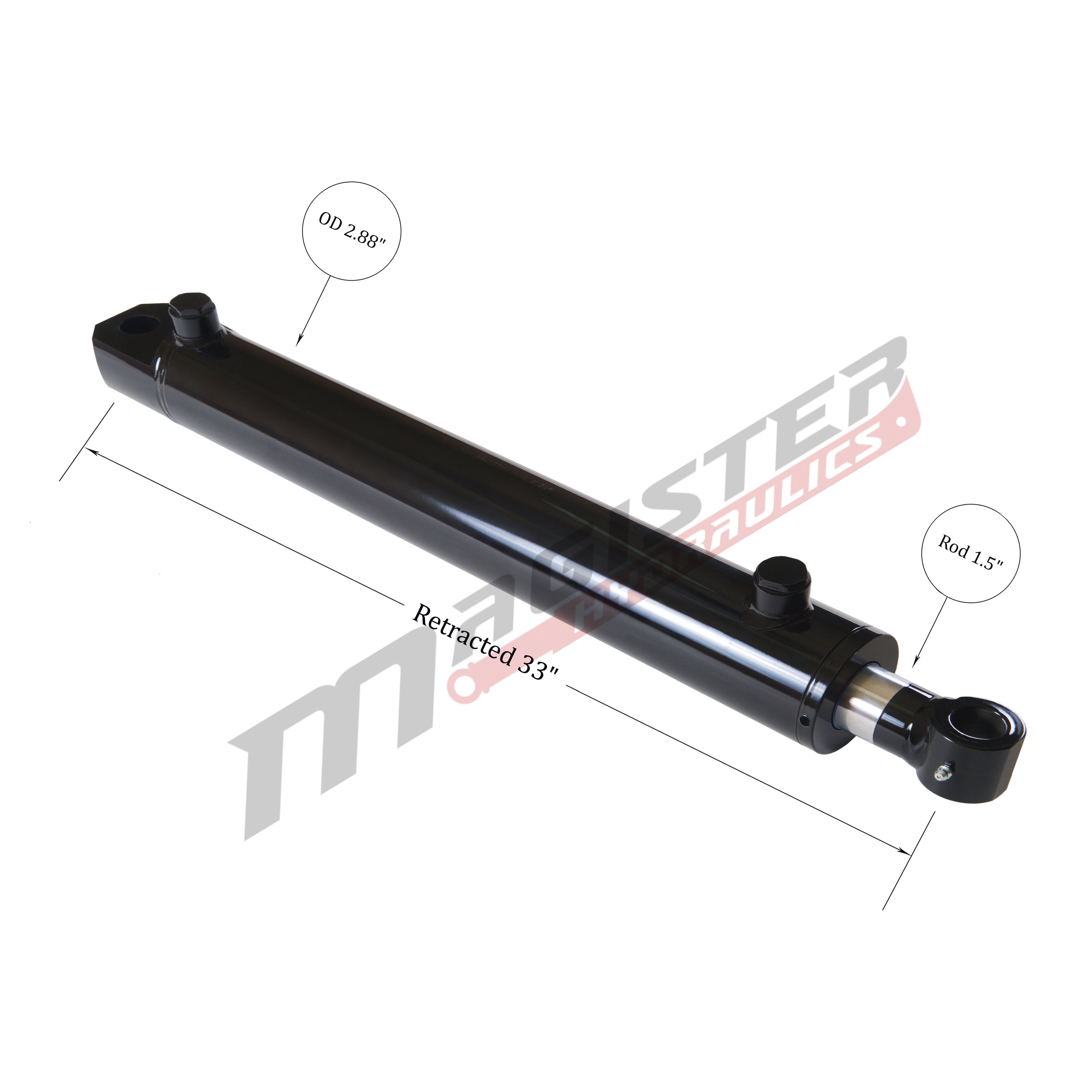

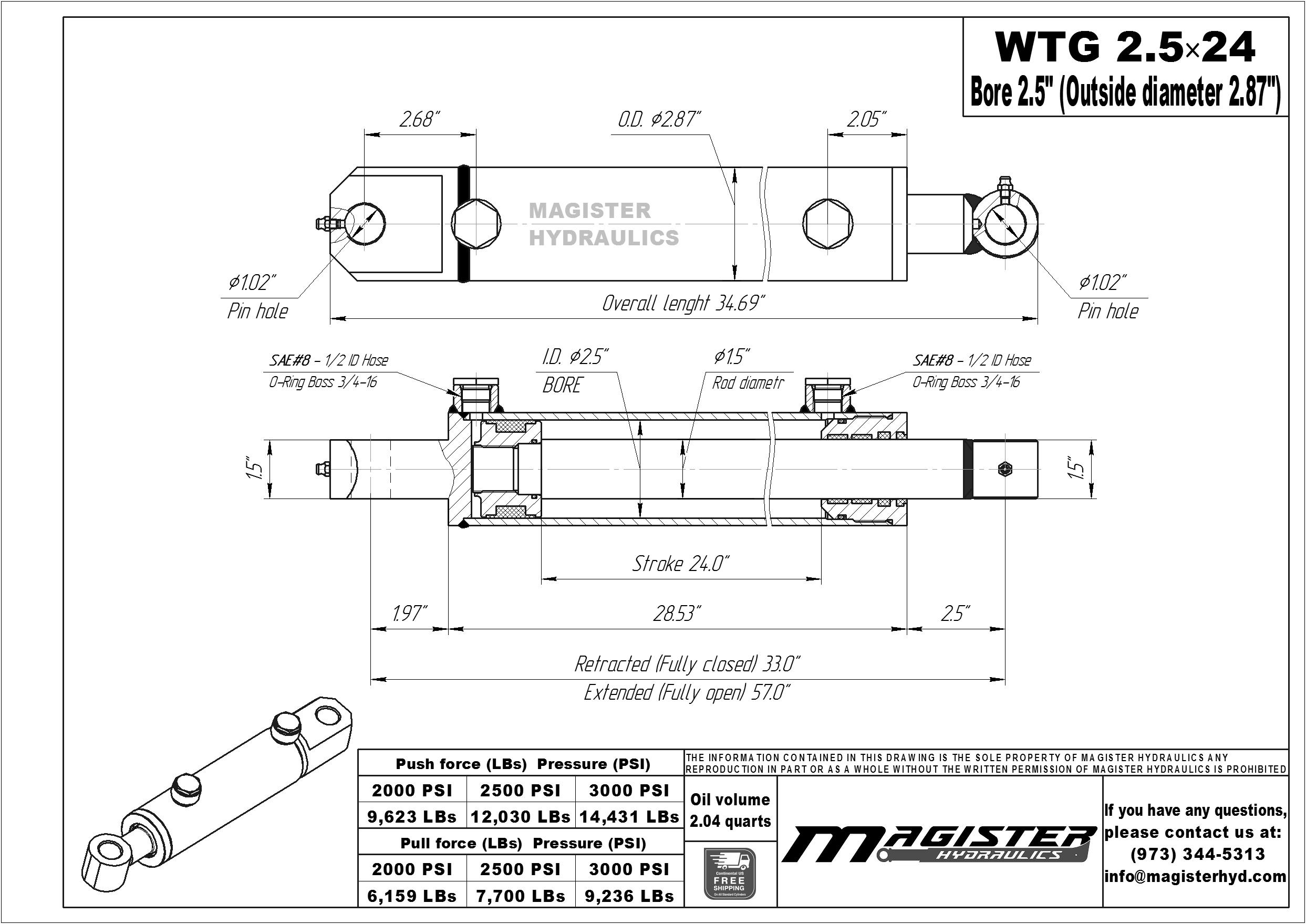

| Bore : | 2.5 in | Outer Dia. (⌀) : | 2.87 in | Stroke : | 24 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 57 in | Retracted : | 33 in | Overall length : | 34.69 in | Pressure : | 3500 PSI | Column Load : | 14,700 LBs | Oil Volume : | 2.04 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Narrow Tube | Action : | Weight : | 35 LBs |
|---|---|
| GTIN : | 854335007315 |
Volume discounts
4+ PRICE EA -5%
$257.45
8+ PRICE EA -10%
$243.90
In stock
78 in stock
Description
- 2.5″ bore x 24″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
Anthony Kimmell
I bought a pair of these to replace the bent, leaky bucket cylinders on my Ford 420 loader tractor. I had to fab up some spacers for the mounting pins with some 1/4″ wall pipe. Then got new hydraulic hoses made up since the old cylinders used SAE 10 ports and the new ones were SAE 8. I could have used reducer fittings, but the old hoses were pretty cracked/rotted and needed replaced anyway. Got it all together and it works just like new. Way cheaper than getting the old cylinders rebuilt! I’ll definitely use you guys again when it’s time to replace the two lift cylinders on this thing! The free shipping was also very fast. Ordered them Sunday night and they were on my doorstep Wednesday afternoon. Thanks again!
Larry Hatfield
Purchased (2) 2.5″ bore x 24″ stroke tang hydraulic cylinder for bucket pivoting on my JD 5320 tractor. The cylinders worked great and at a price much, much less than if I got cylinders from my JD dealer. Needed to purchase (2) hose adapter and make mounting spacers and every thing else worked great. Save $1400.00 by using Magister Hydraulic Cylinders.
Magister Hydraulics
Larry, thank you for your feedback. Let us know if you need any help.
bkm1931
A+
