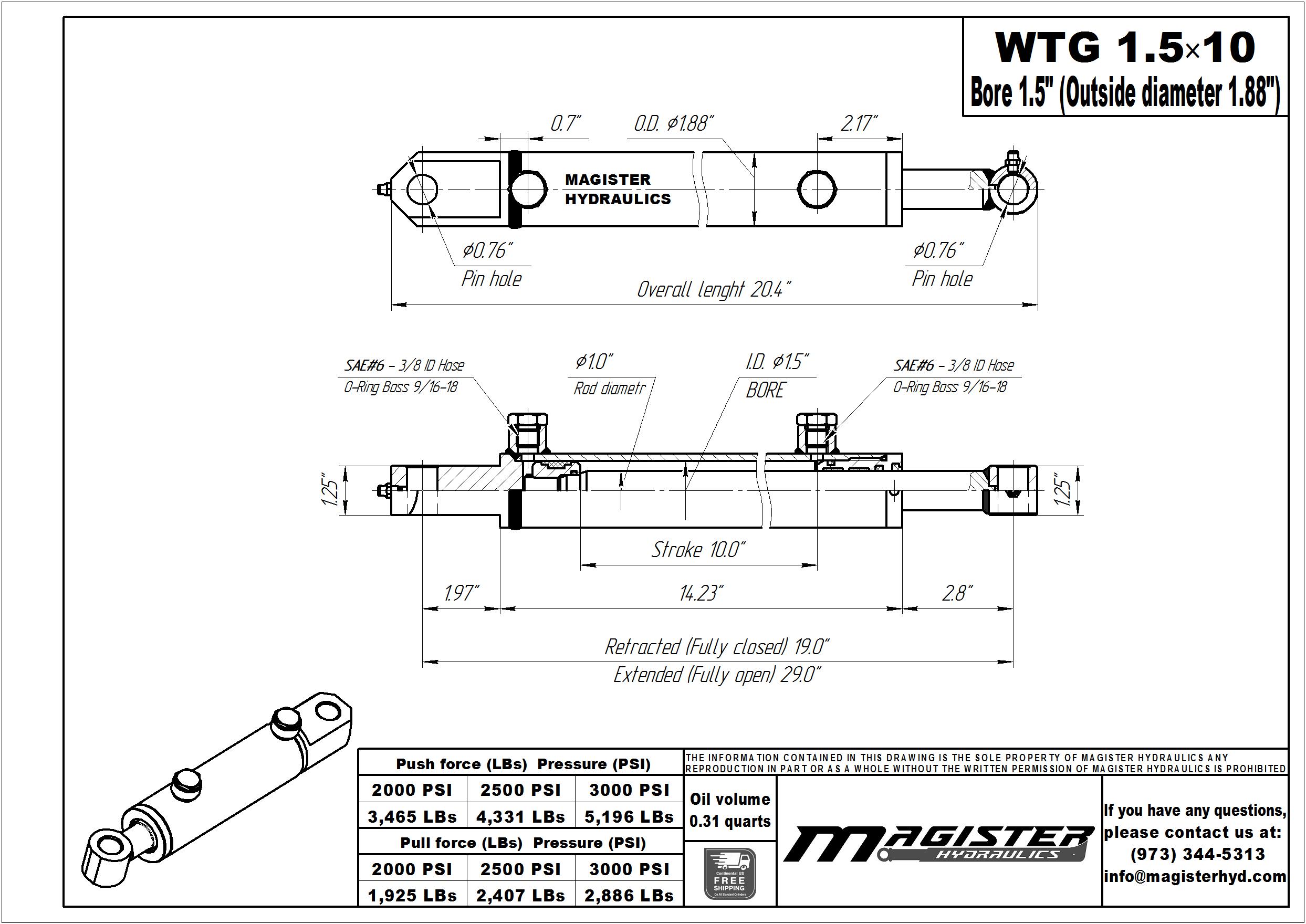

1.5" bore x 10" stroke tang hydraulic cylinder

Original price was: $163.00.Current price is: $138.55.

Pay in 4 interest-free payments of $34.64
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 1.5x10
Bore : 1.5 in
Outer Dia. (⌀) : 1.88 in
Stroke : 10 in
Rod Dia. (⌀) : 1 in
Port Size : SAE 6
Pin Dia. (⌀) : 0.75 in

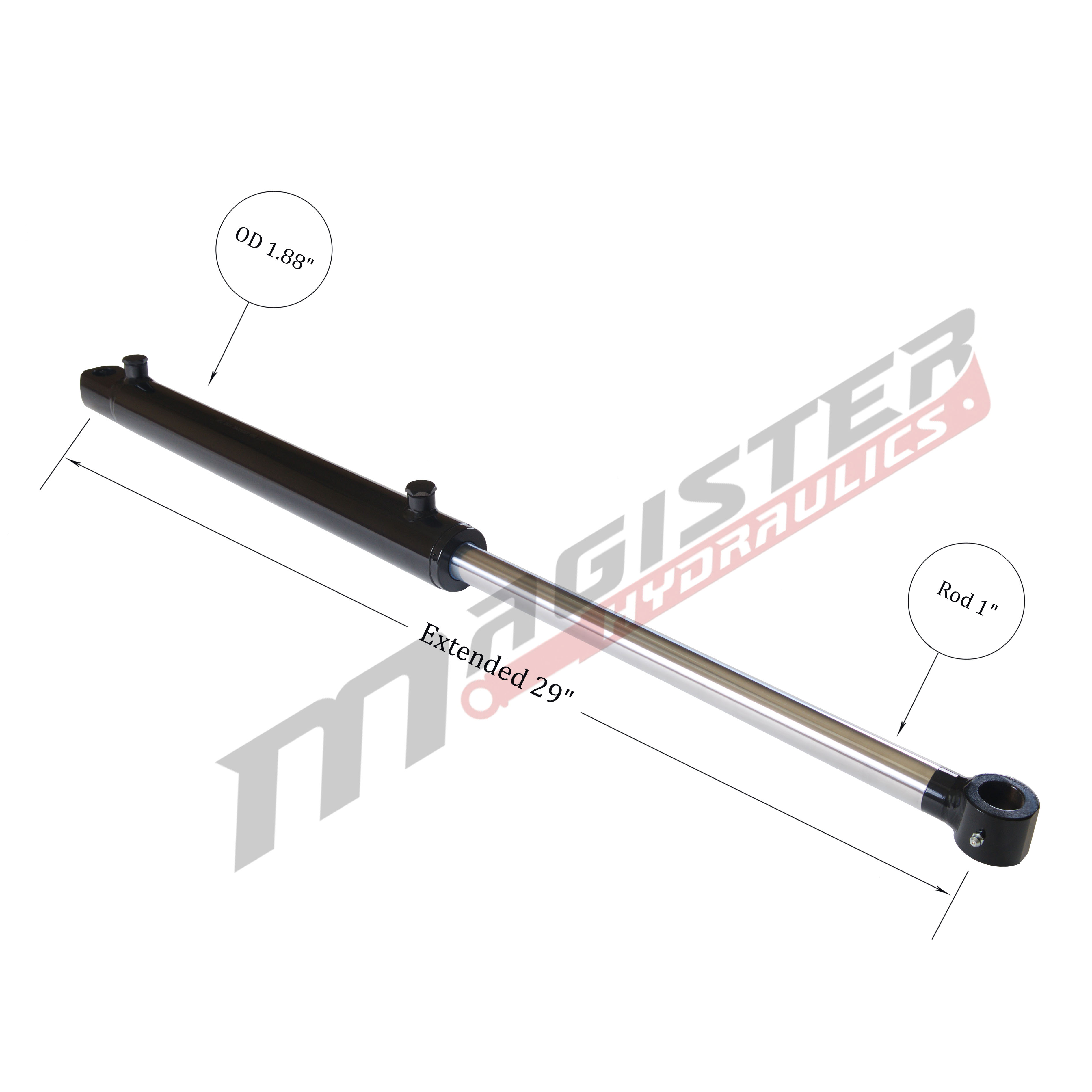

Extended : 29 in

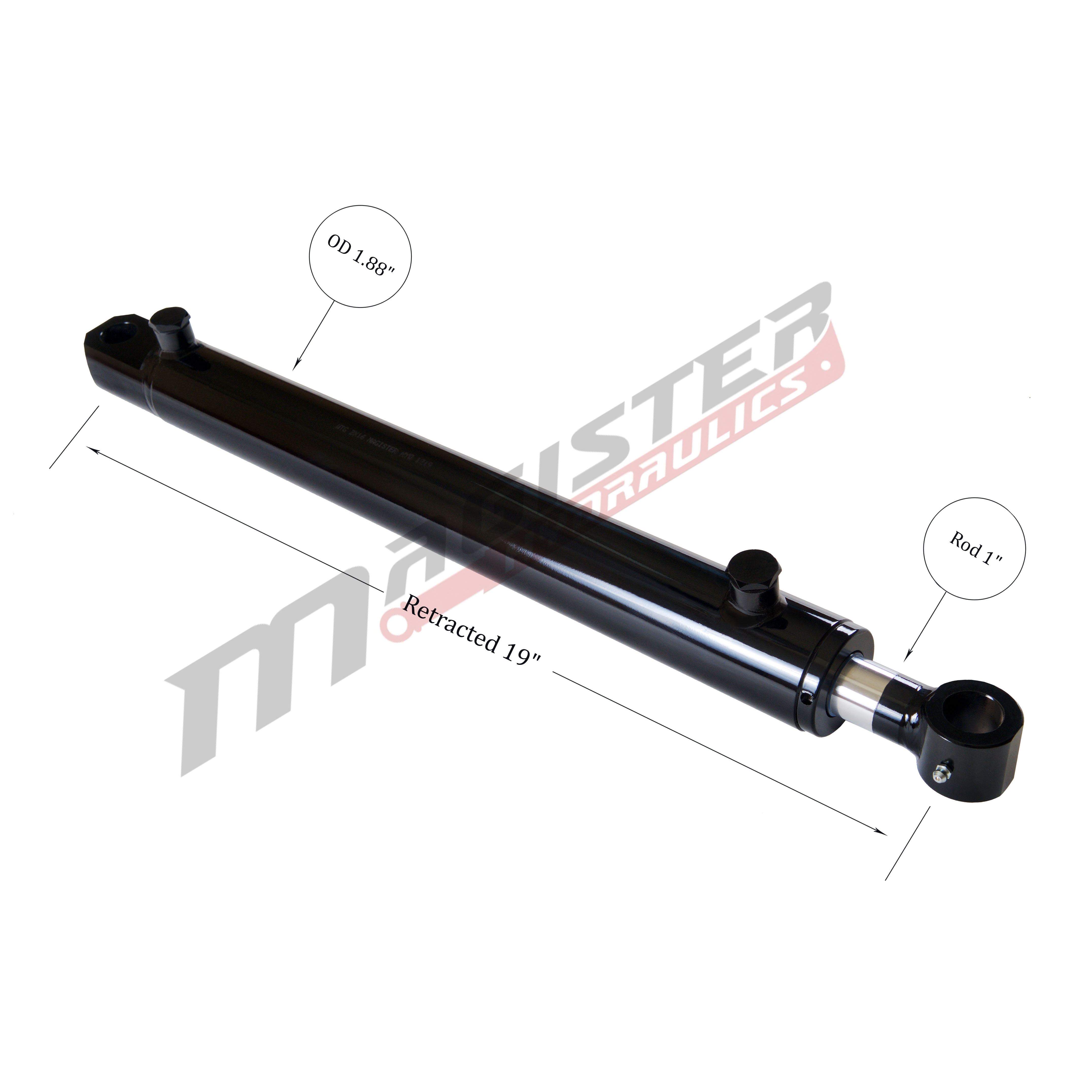

Retracted : 19 in
Overall length : 20.4 in
Pressure : 3500 PSI
Column Load : 5,300 LBs
Oil Volume : 0.31 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Narrow Tube
Action :
  • Double Acting
  • Weight : 11 LBs
    GTIN : 850016509048

    Volume discounts

    1+ PRICE EA
    $138.55
    4+ PRICE EA -5%
    $131.62
    8+ PRICE EA -10%
    $124.70
    In stock

    42 in stock

    Description

    • 1.5″ bore x 10″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
