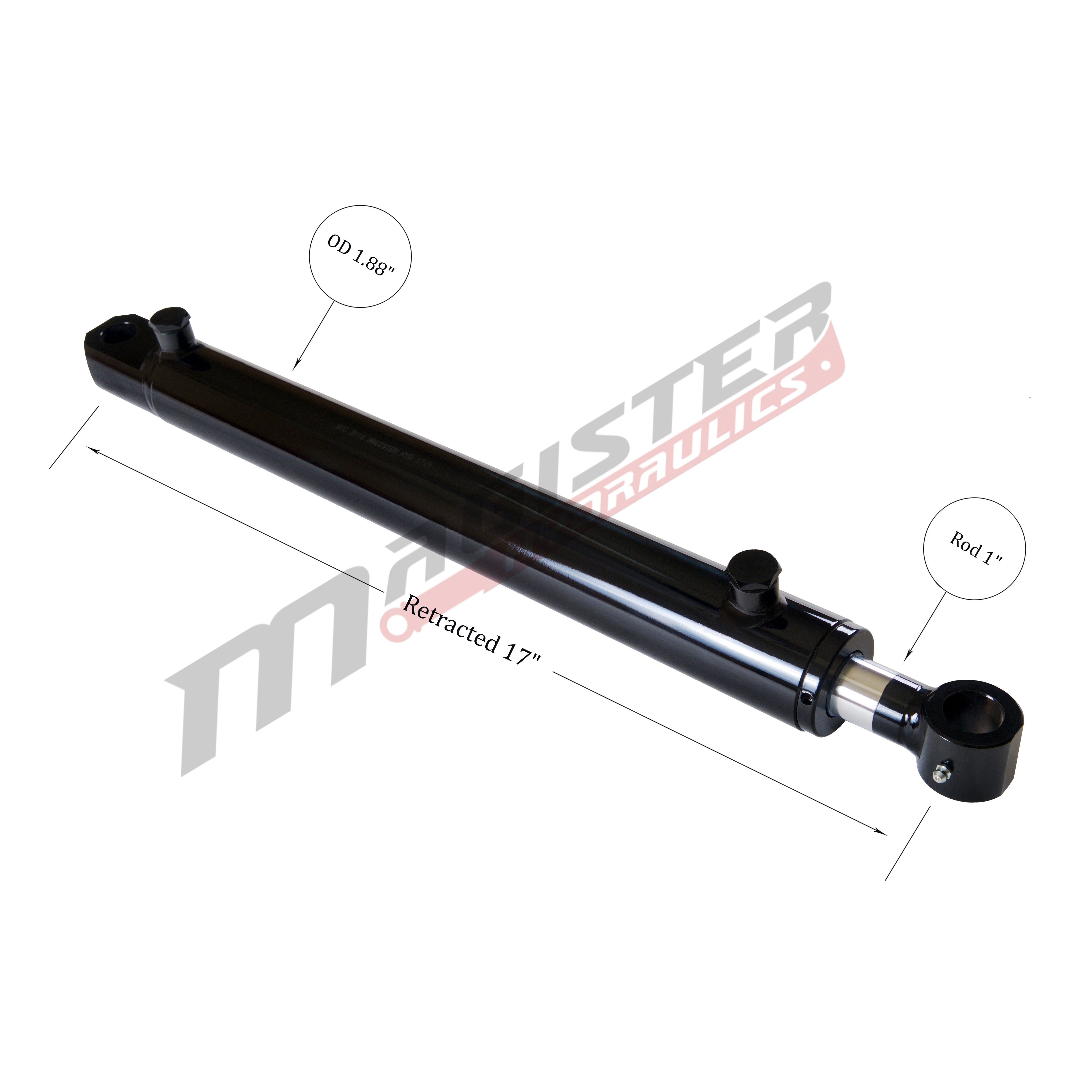

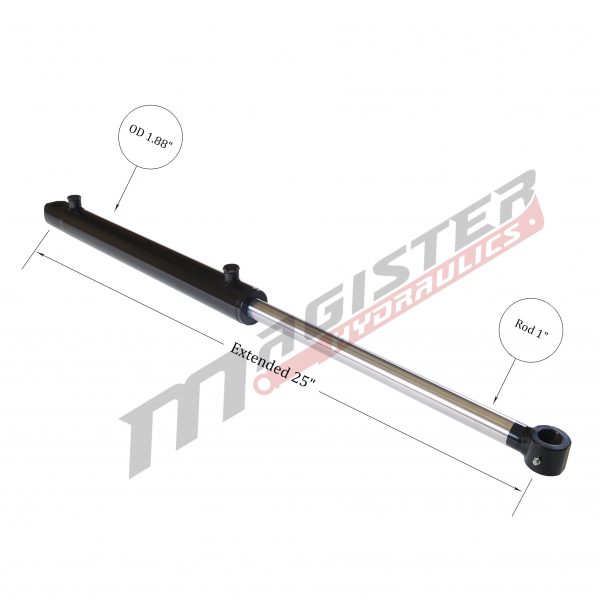

1.5" bore x 8" stroke tang hydraulic cylinder
$156.00
Pay in 4 interest-free payments of $39.00SKU: WTG 1.5x8

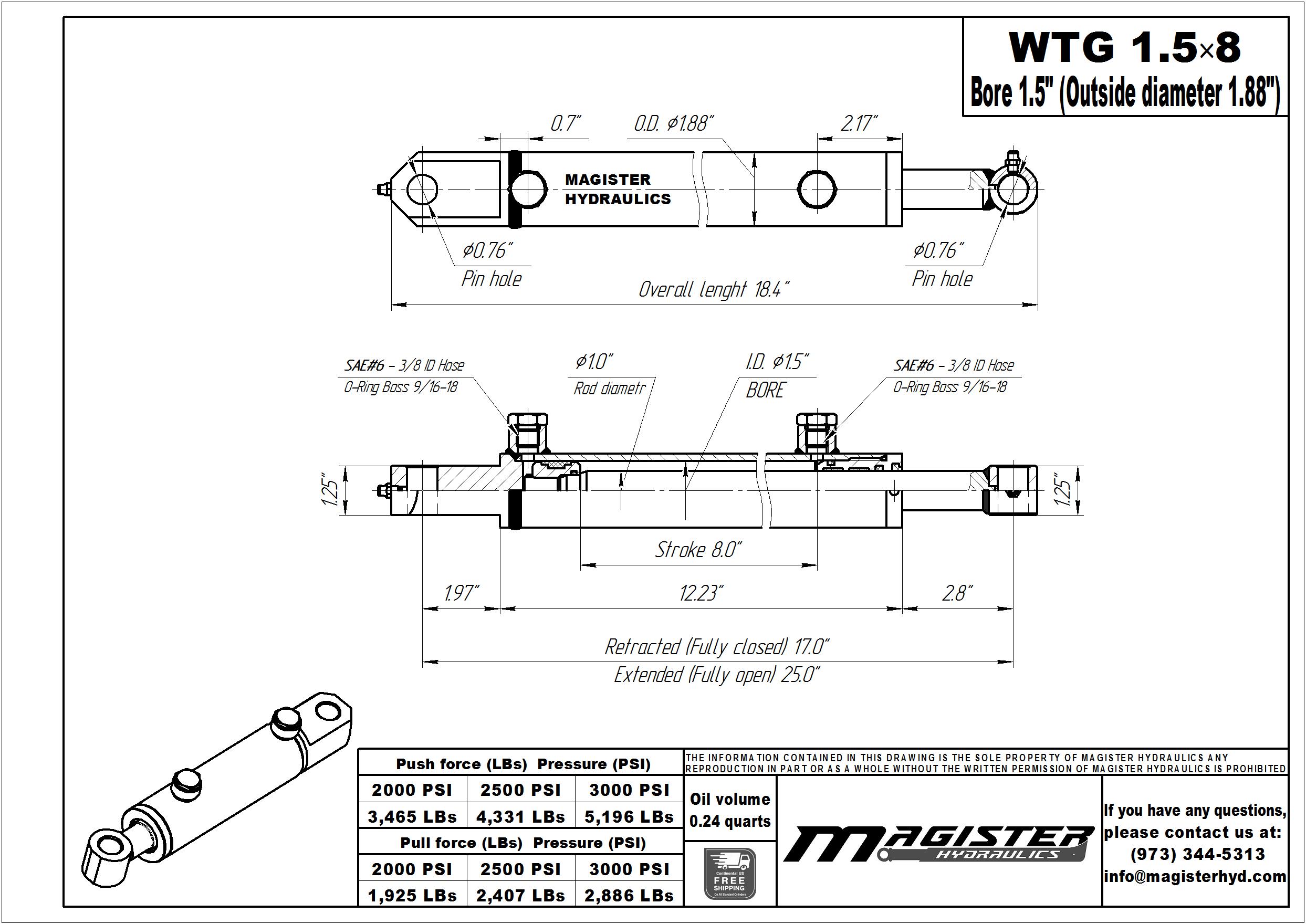

| Bore : | 1.5 in | Outer Dia. (⌀) : | 1.88 in | Stroke : | 8 in | Rod Dia. (⌀) : | 1 in | Port Size : | SAE 6 | Pin Dia. (⌀) : | 0.75 in | Extended : | 25 in | Retracted : | 17 in | Overall length : | 18.4 in | Pressure : | 3500 PSI | Column Load : | 5,300 LBs | Oil Volume : | 0.24 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Narrow Tube | Action : | Weight : | 10 LBs |
|---|---|
| GTIN : | 850016509031 |
Volume discounts
4+ PRICE EA -5%
$148.20
8+ PRICE EA -10%
$140.40
In stock
61 in stock
Description

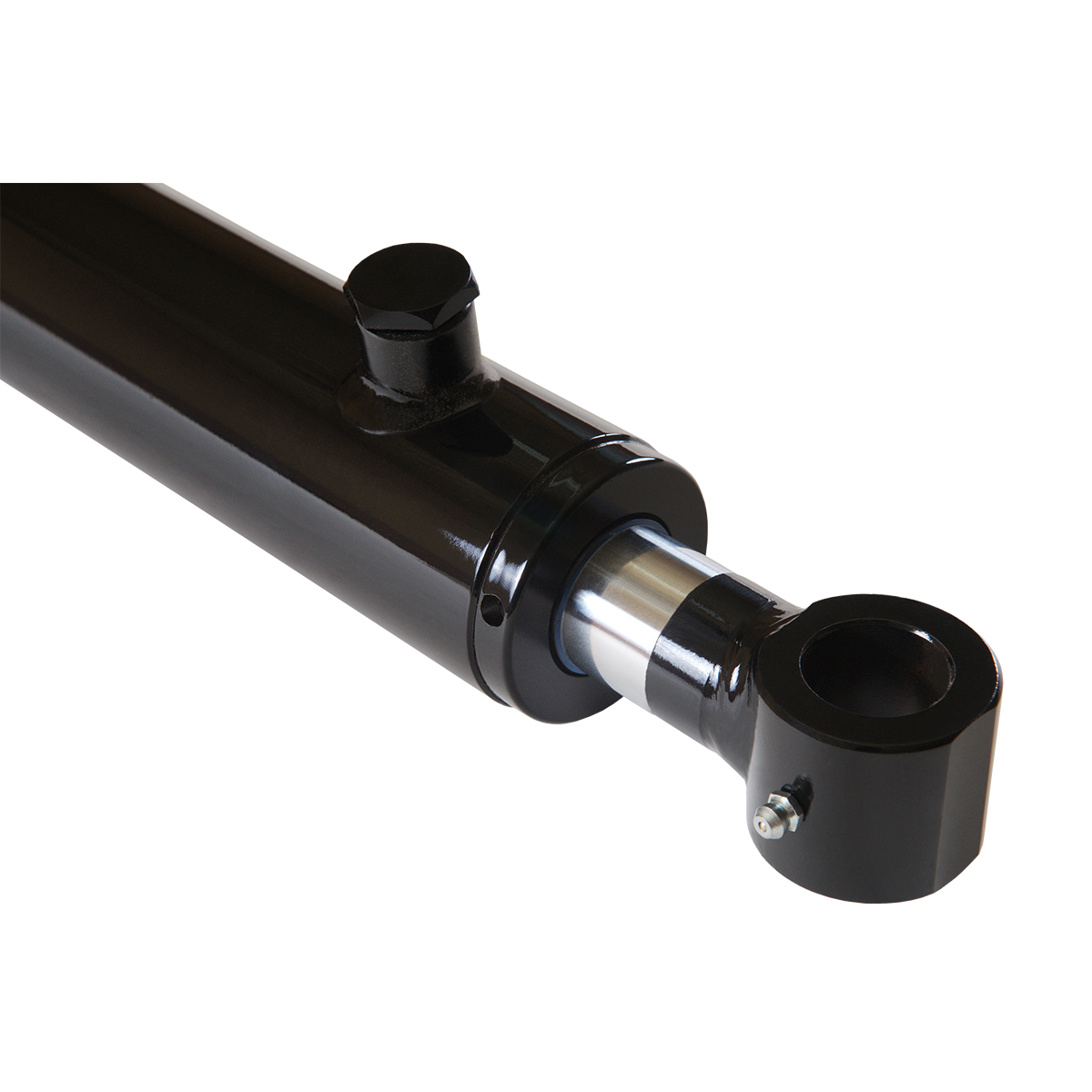

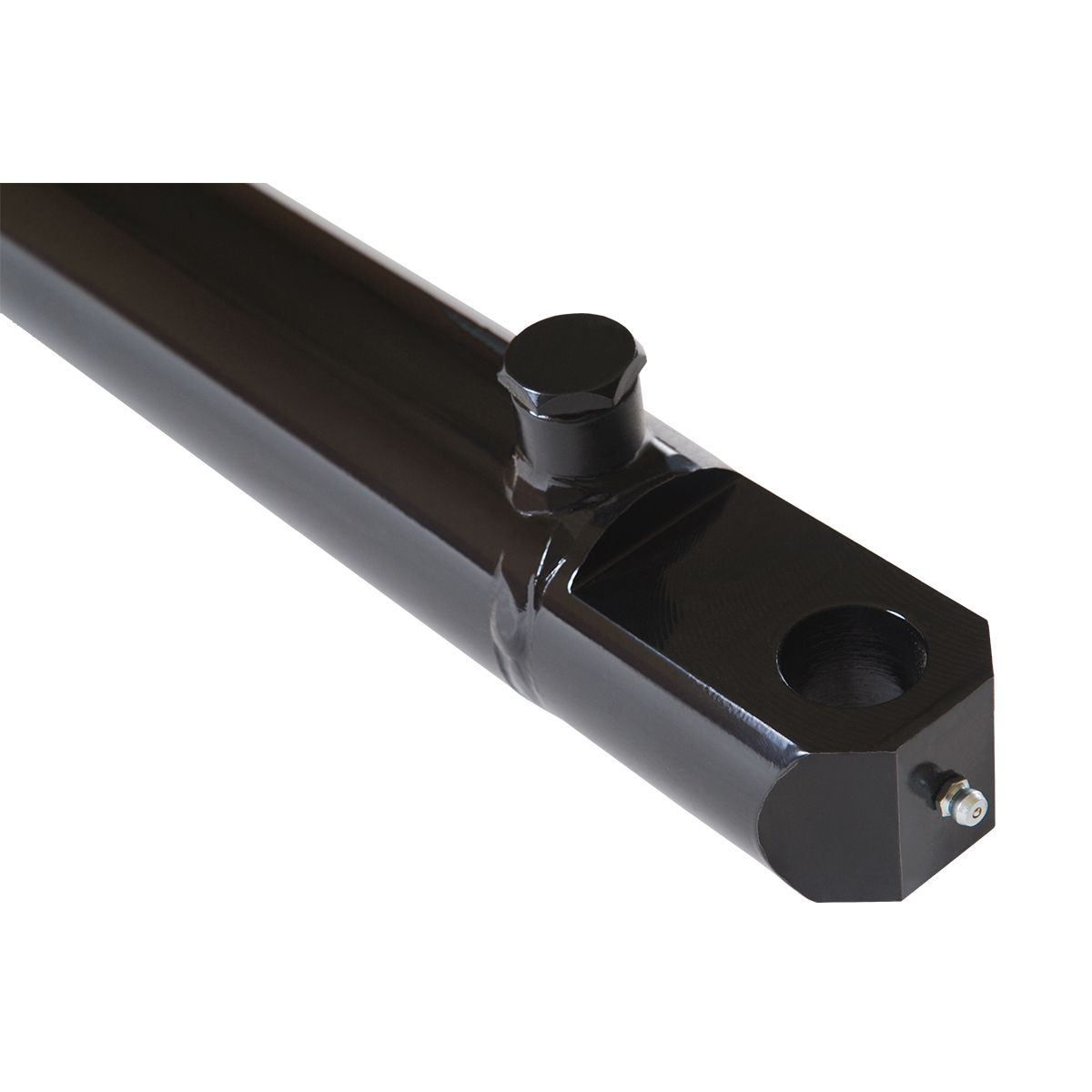

- 1.5″ bore x 8″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
