3 bore x 8 strokes hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics
Sale!

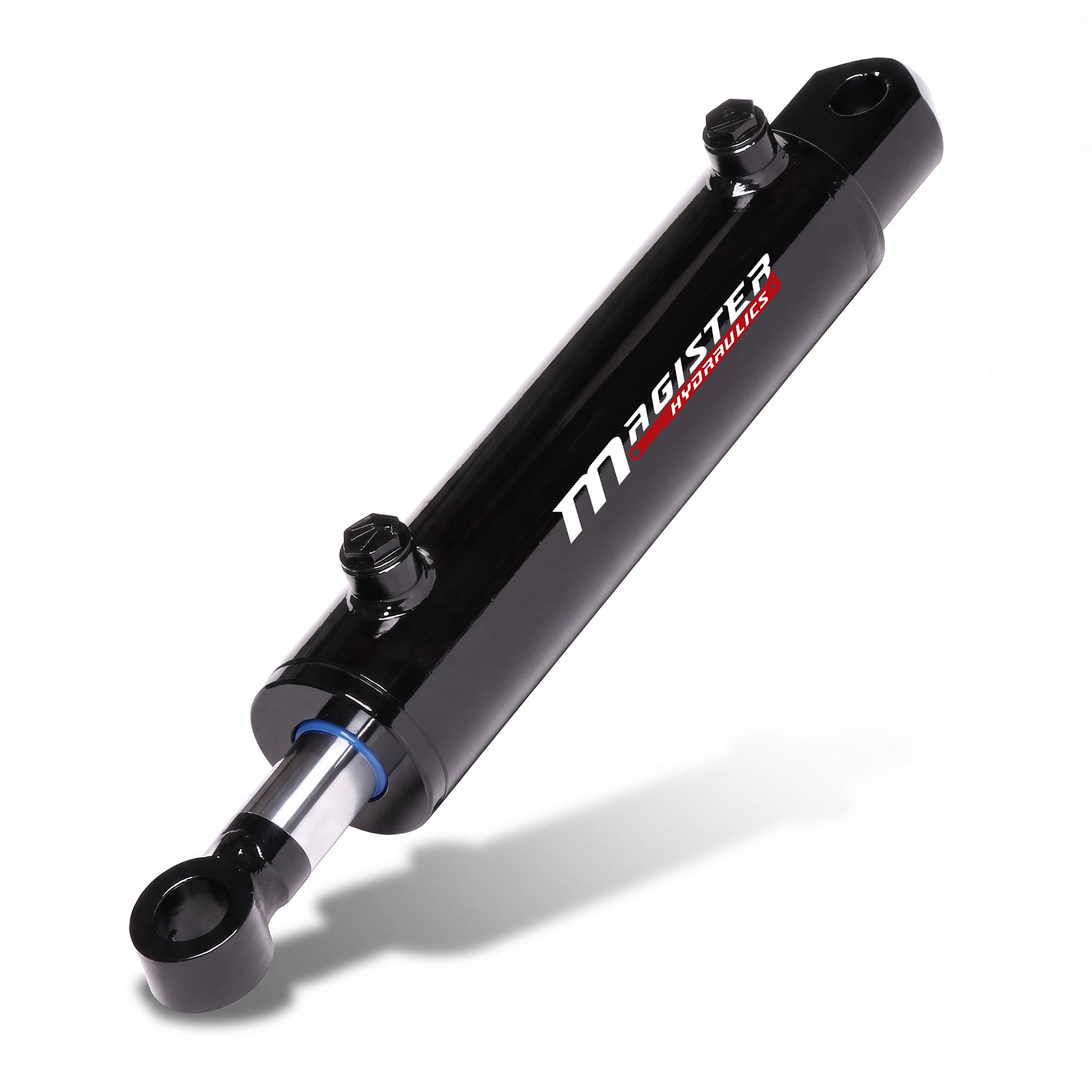

3" bore x 8" stroke tang hydraulic cylinder

$229.50

Pay in 4 interest-free payments of $57.38
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 3X8
Bore : 3"
OD : 3.37"
Stroke : 8"
Rod : 1.5"
Port Size : SAE 8
Pin : 1"

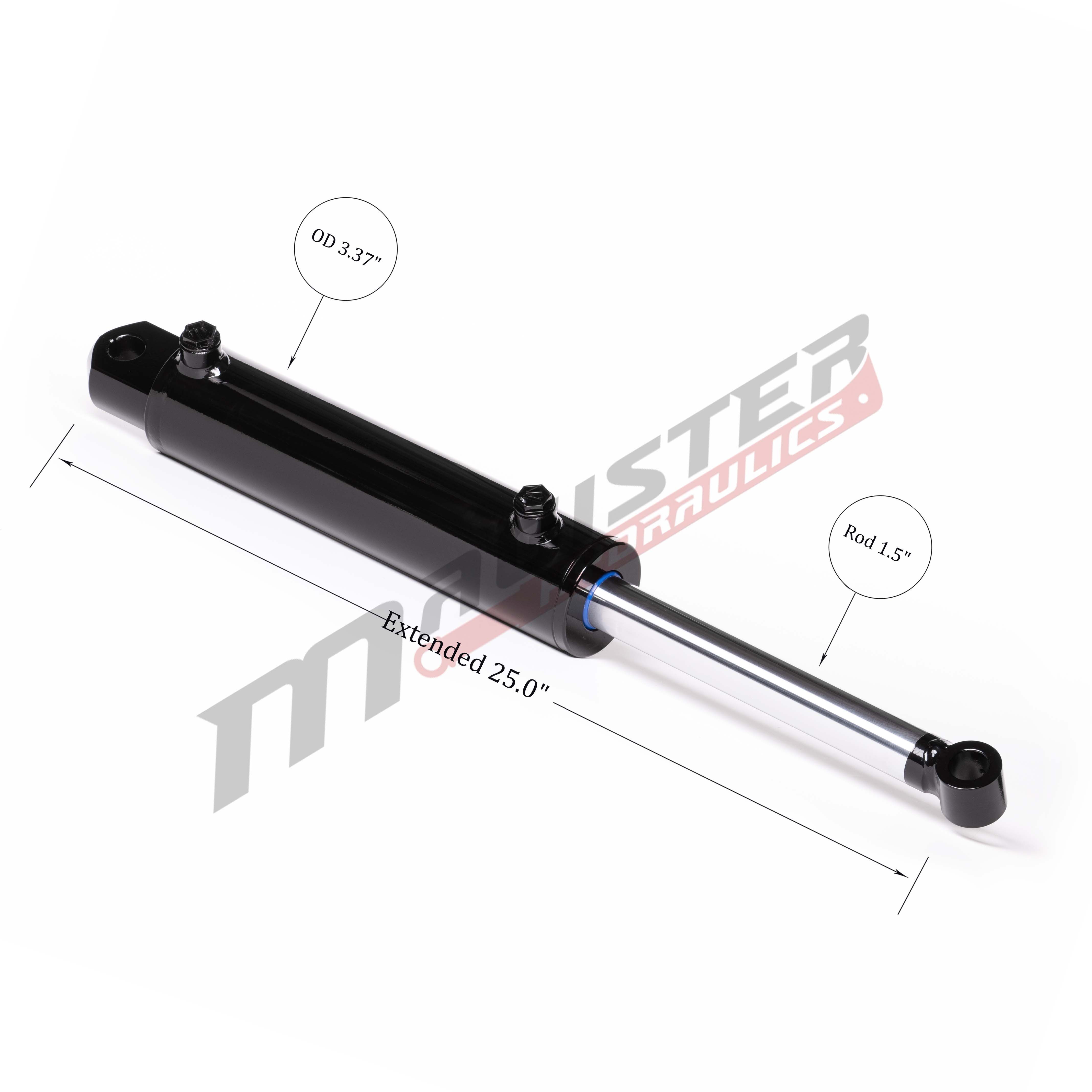

Extended : 25"

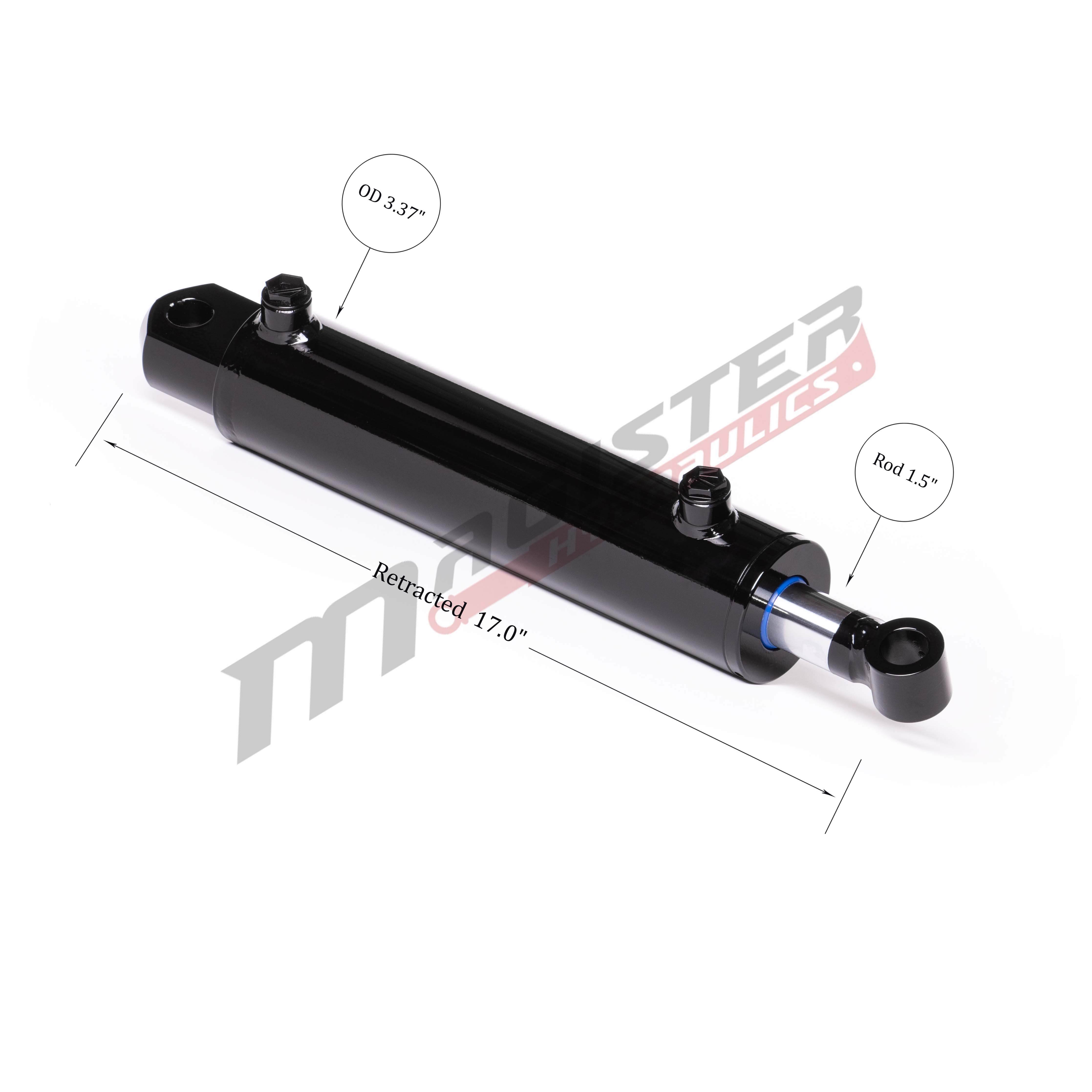

Retracted : 17"
Overall length : 18.81
Pressure : 3500 PSI
Column Load (LBs) : 21,000
Oil Volume (quarts) : 0.98
Brand : Magister Hydraulics
GTIN : 850033934885
1+ PRICE EA
$229.50
4+ PRICE EA -5%
$218.03
8+ PRICE EA -10%
$206.55
In stock

32 in stock

DESCRIPTION

  • 3″ bore x 8″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders are manufactured using steel pistons and steel threaded glands with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod, and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation, and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
