3 bore x 30 strokes hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics
On sale!
WTG 3x30

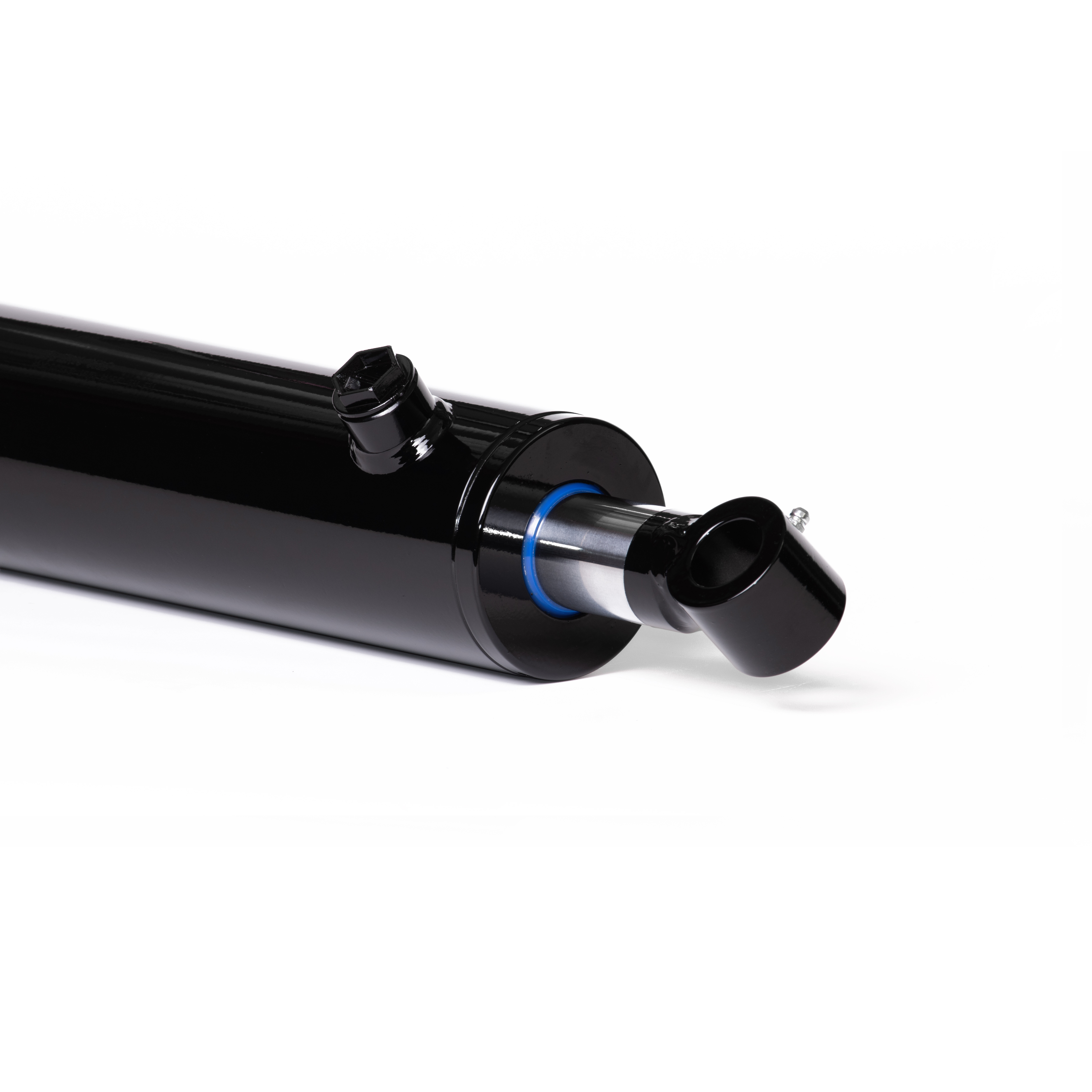

WTG 3_ Rod end

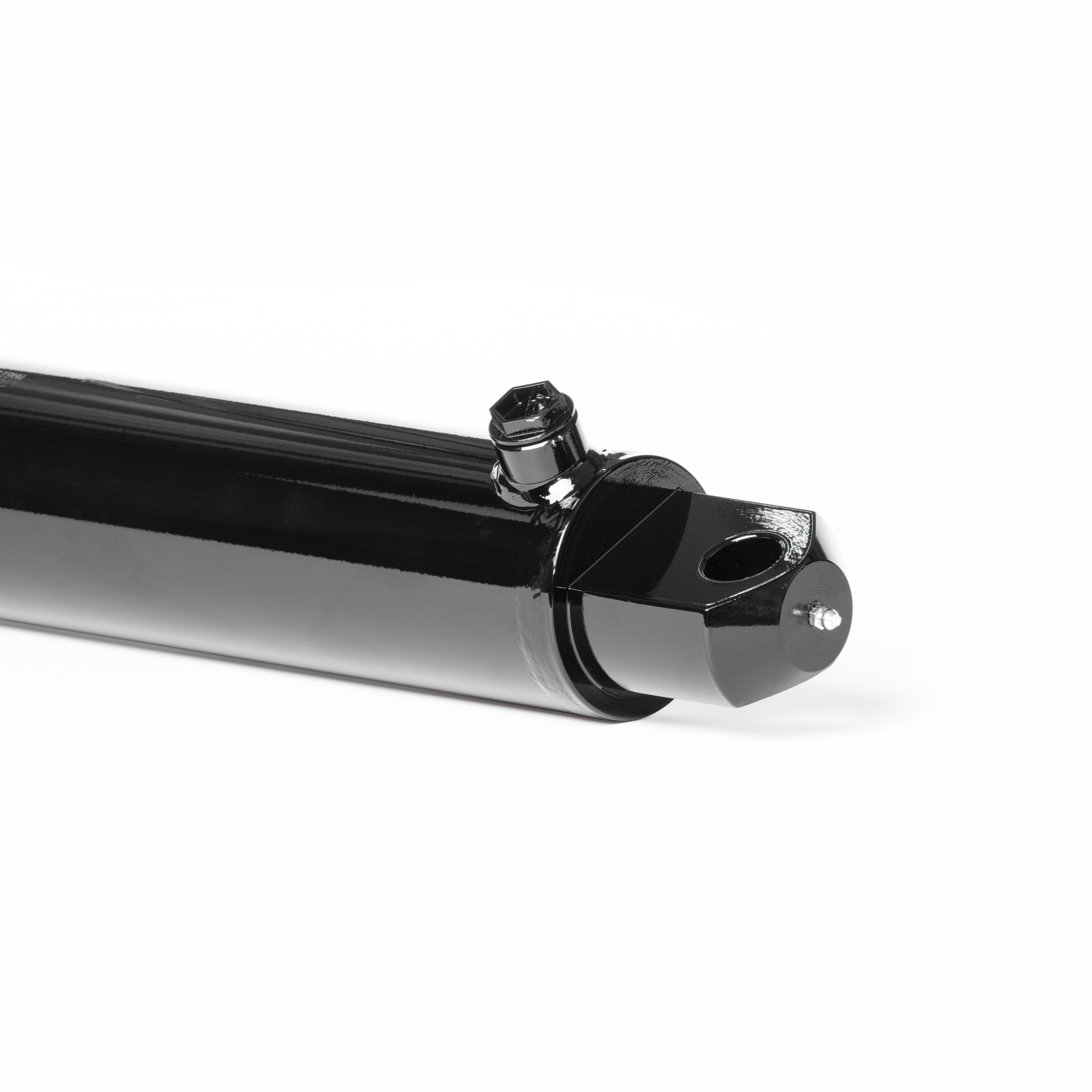

WTG 3_ Welded end

3" bore x 30" stroke tang hydraulic cylinder


Pay in 4 interest-free payments of $90.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
Bore : 3 in
Outer Dia. (⌀) : 3.37 in
Stroke : 30 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

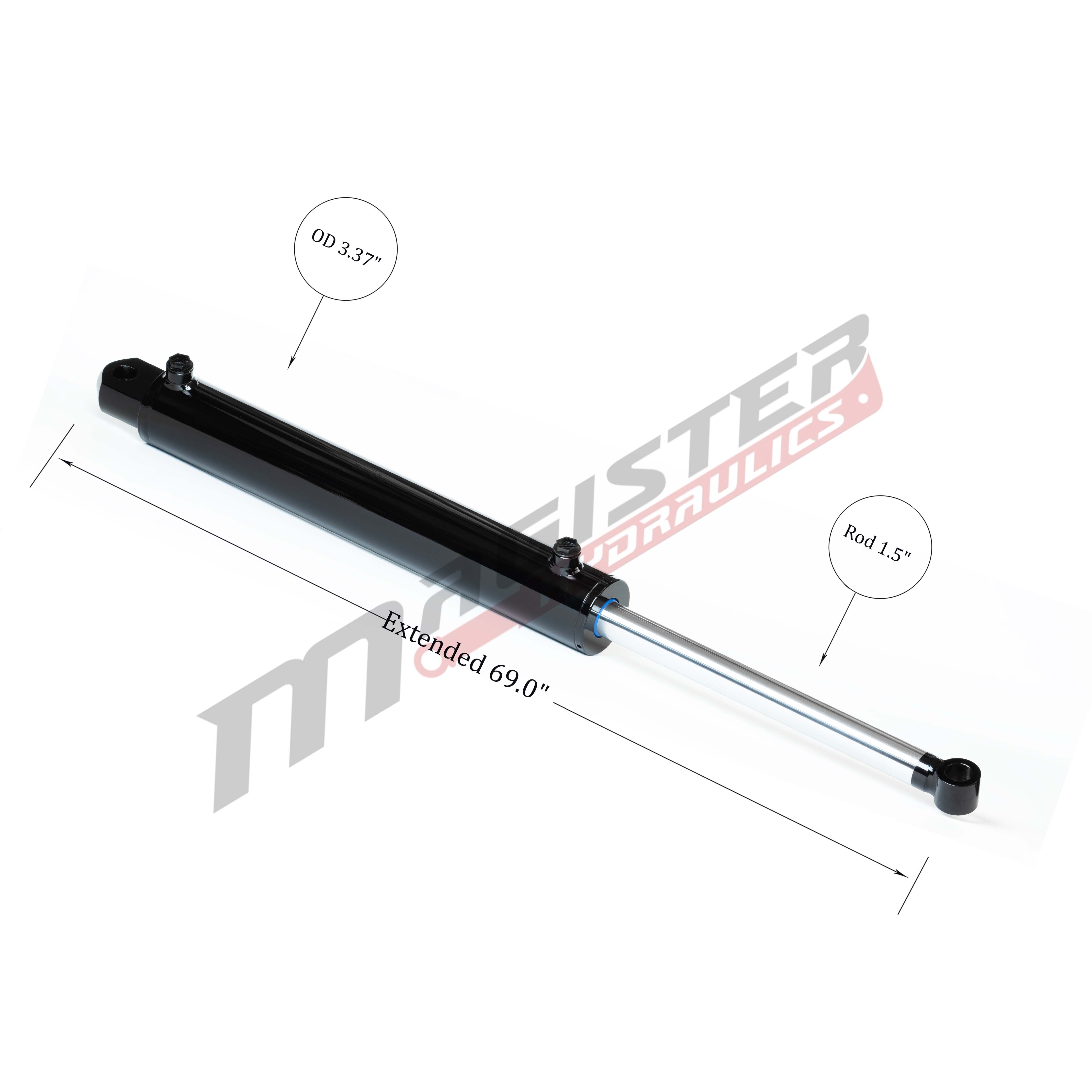

Extended : 69 in

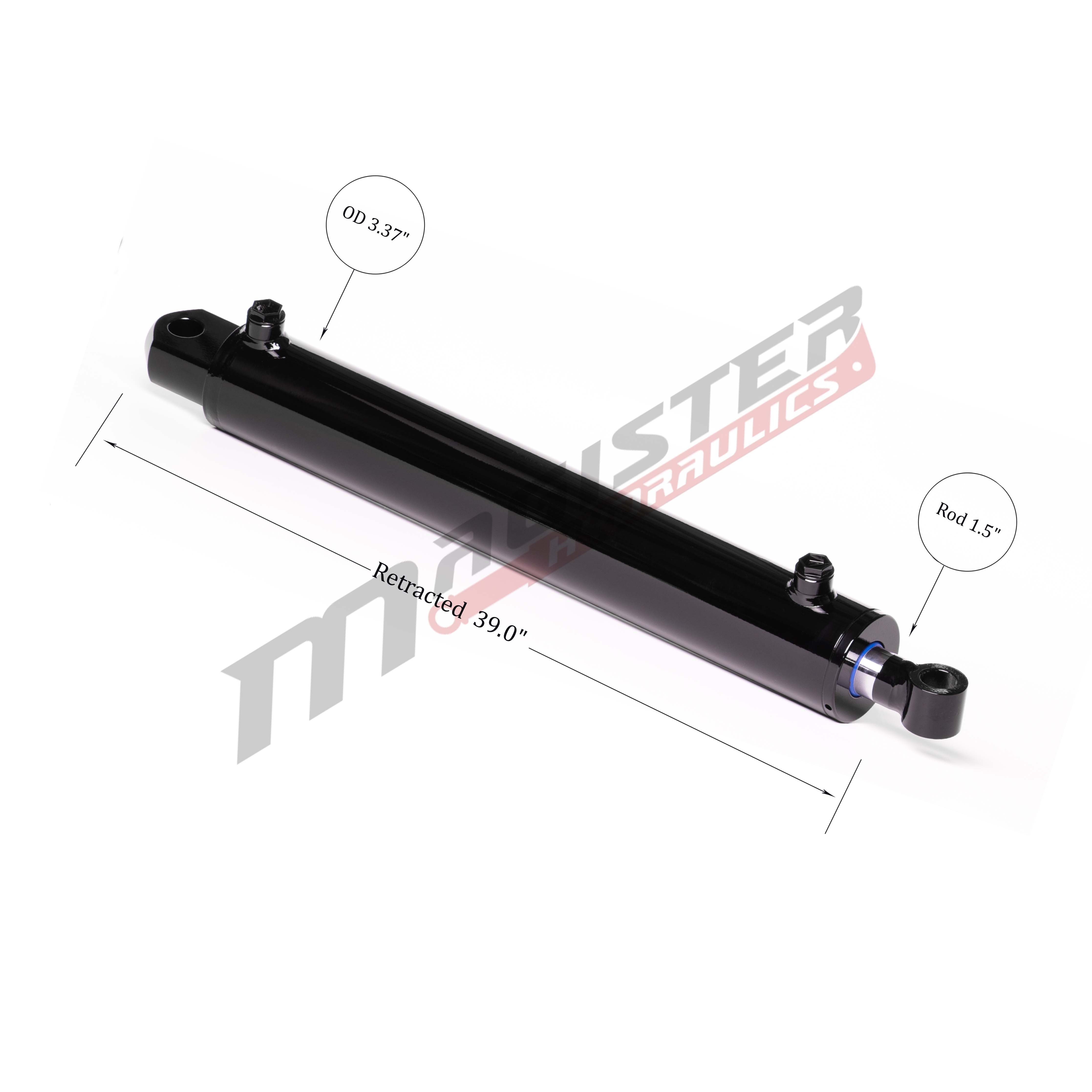

Retracted : 39 in
Overall length : 40.81 in
Pressure : 3500 PSI
Column Load : 21,000 LBs
Oil Volume : 3.67 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Narrow Tube
Action :
  • Double Acting
  • Weight : 47 LBs
    GTIN : 850033934960

    Volume discounts

    1+ PRICE EA
    4+ PRICE EA -5%
    8+ PRICE EA -10%
    In stock

    22 in stock


    • 3″ bore x 30″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders are manufactured using steel pistons and steel threaded glands with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod, and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation, and agriculture.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
