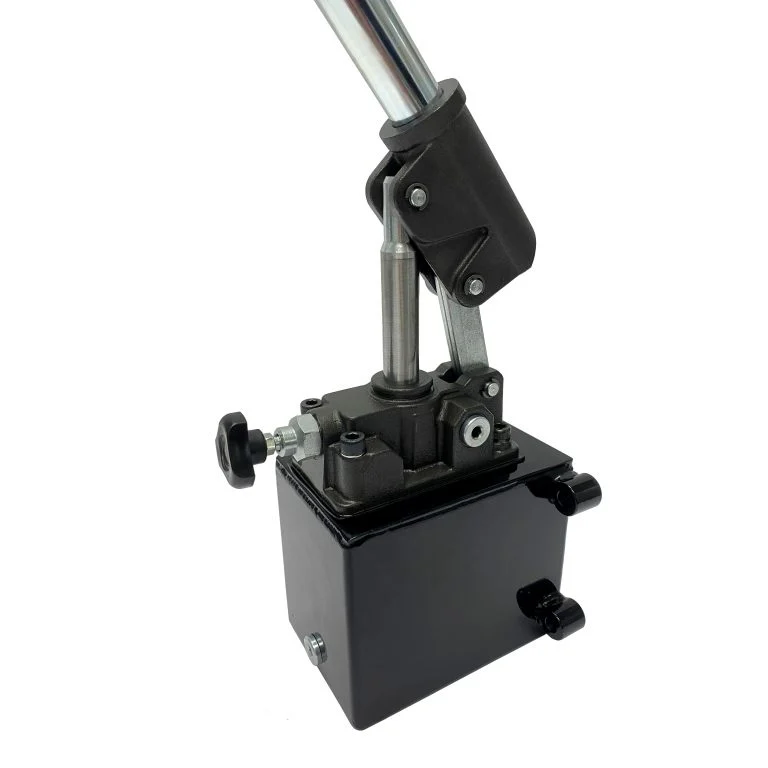

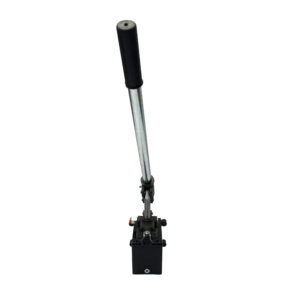

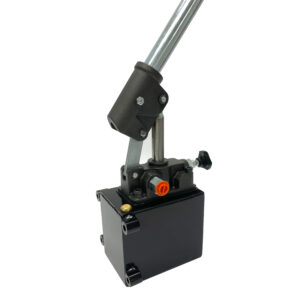

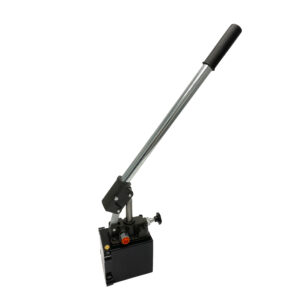

Hydraulic piston hand pump 1.5 CID with release knob for single acting cylinder, 5 Qrt tank
$170.00
Pay in 4 interest-free payments of $42.50SKU: HHP-SA-1.5-05
| CID : | 1.5 | Capacity : | 5 QTs | Action : | Single Acting | Tank Material : | Steel | Pressure : | 3600 PSI | Working Ports : | 3/8" NPTF | Piston Action : | Double function | Brand : | Hydro-Pack | Weight : | 14 LBs |
|---|---|
| GTIN : | 850033934984 |
Volume discounts
5+ PRICE EA -5%
$161.50
10+ PRICE EA -10%
$153.00
In stock
42 in stock
Description
This heavy-duty hydraulic piston hand pump is designed for single-acting cylinders. Compact and portable, it delivers reliable manual hydraulic power for lifting, pressing, testing, and maintenance applications.
Double-Function Pumping (Push & Pull)
The pump generates hydraulic flow on both push and pull strokes of the handle, increasing efficiency and reducing operator fatigue.
Single-Acting Operation
Designed for single-acting cylinders, the pump supplies pressure to extend the cylinder. Retraction occurs by spring return or external load. A built-in release knob allows smooth and controlled pressure release.
Key Specifications
- Type: Piston hand pump with release knob (single-acting system)
- Displacement: 1.5 CID per cycle
- Max Pressure: 3600 PSI
- Reservoir: 5-quart vertical steel tank
- Ports: 3/8″-18 NPT
- Drain Plug: G 1/4″
- Construction: Cast iron monoblock body
- Handle: 21″ steel handle included
- Mounting: Four 0.3″ mounting holes
Same Day Free Shipping.
Made in Europe.
1-Year Warranty.
