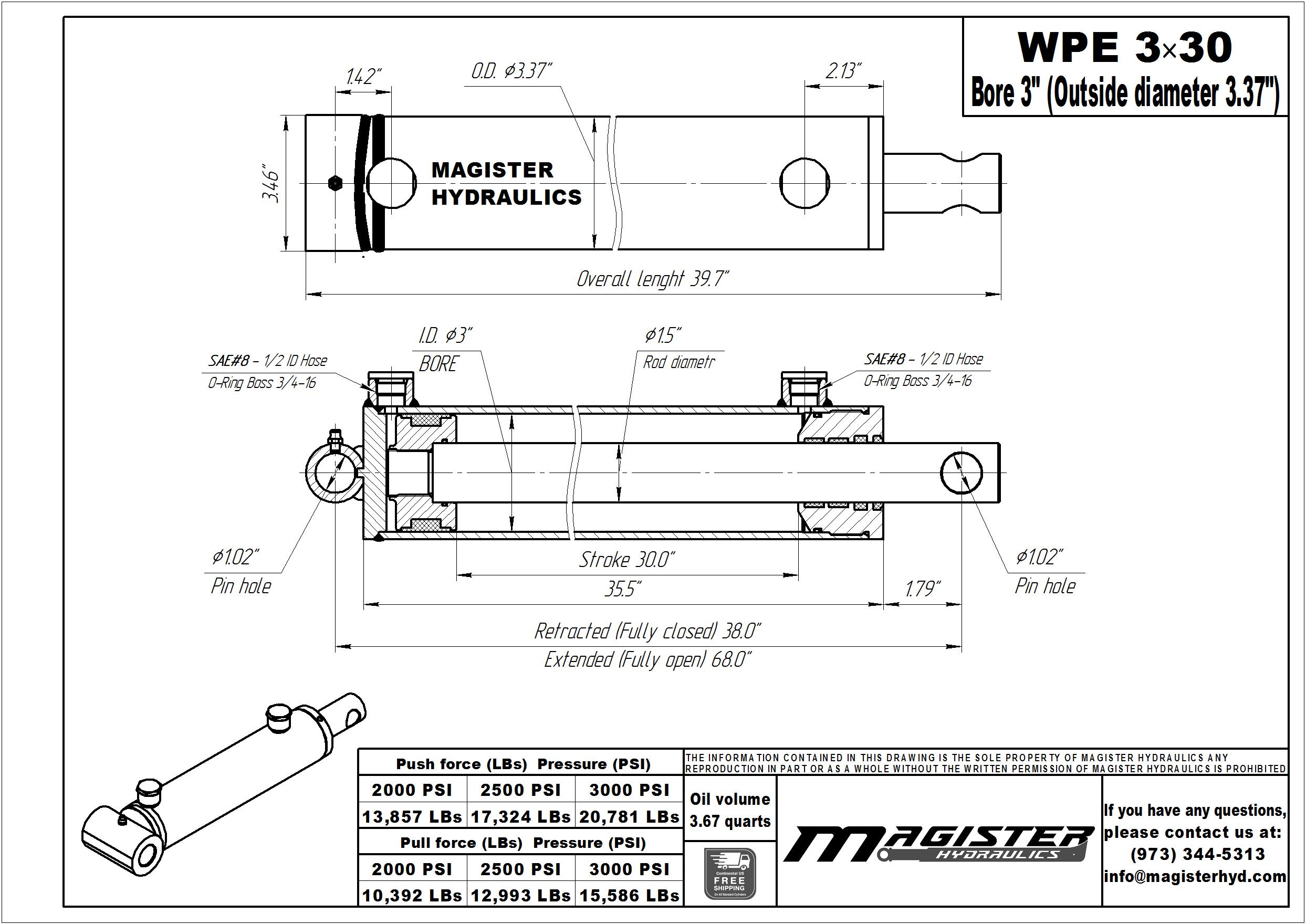

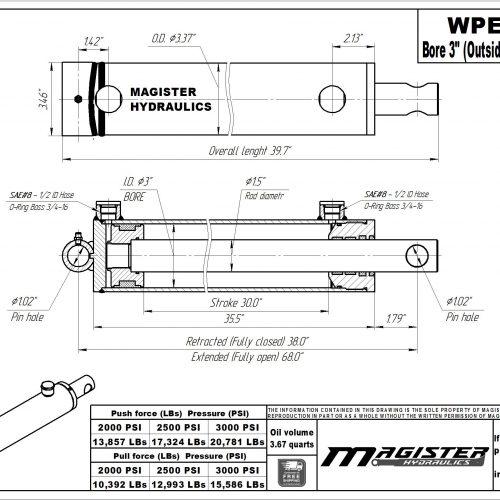

3" bore x 30" stroke pin eye hydraulic cylinder
$320.00
Pay in 4 interest-free payments of $80.00SKU: WPE 3x30

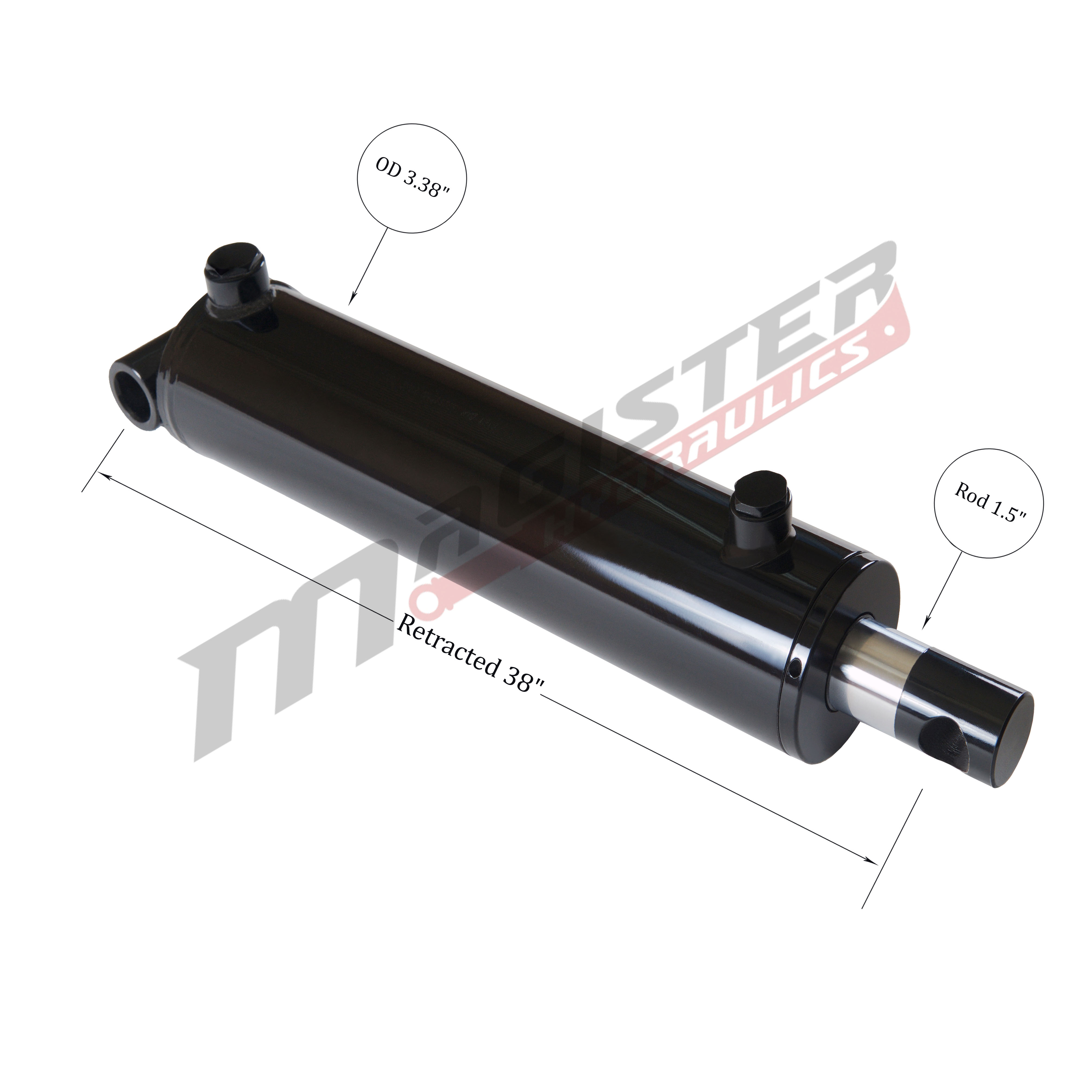

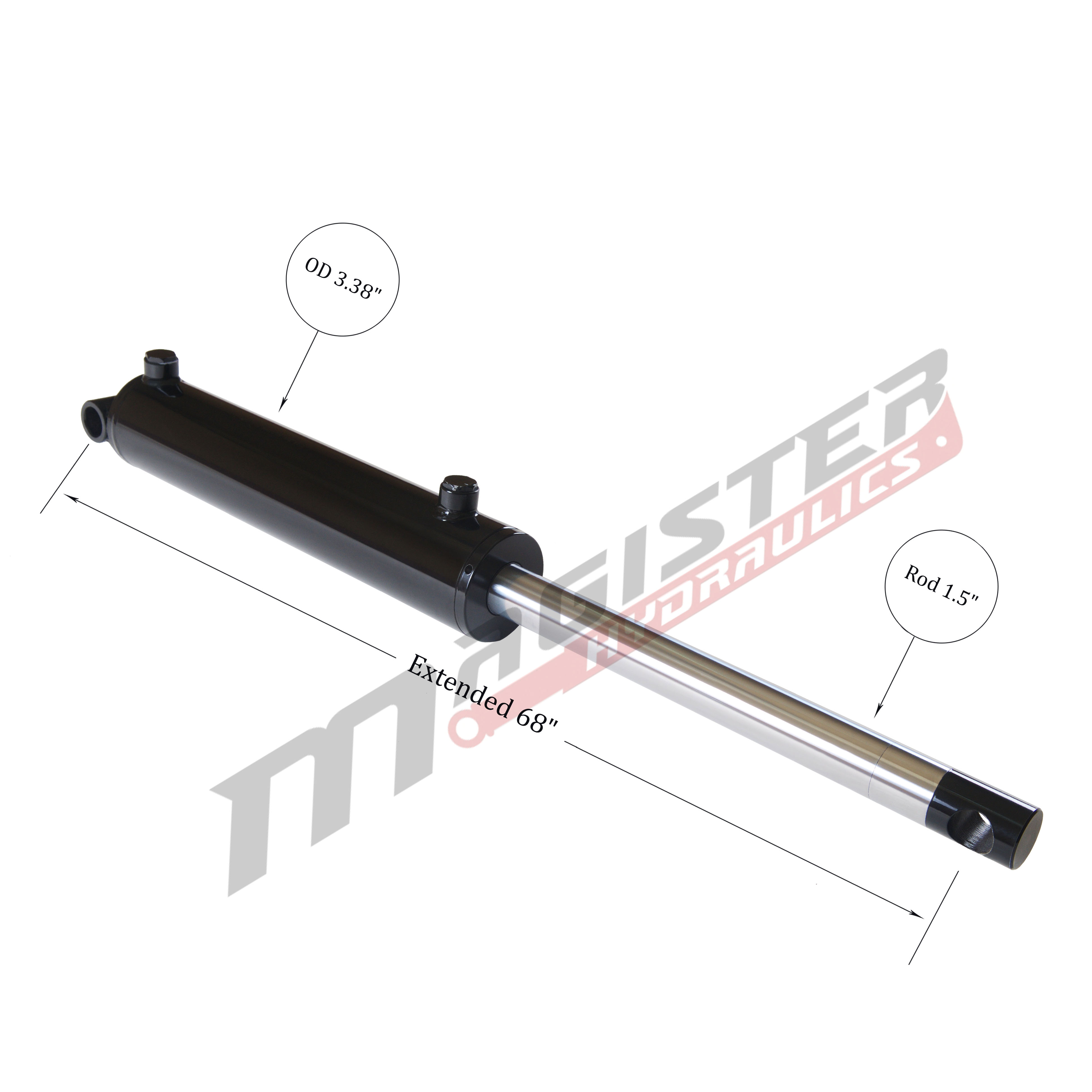

| Bore : | 3 in | Outer Dia. (⌀) : | 3.37 in | Stroke : | 30 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 68 in | Retracted : | 38 in | Overall length : | 39.7 in | Pressure : | 3500 PSI | Column Load : | 12,100 LBs | Oil Volume : | 3.67 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Pin Hole | Action : | Weight : | 45 LBs |
|---|---|
| GTIN : | 857743006598 |
Volume discounts
4+ PRICE EA -5%
$304.00
8+ PRICE EA -10%
$288.00
In stock
21 in stock
Description

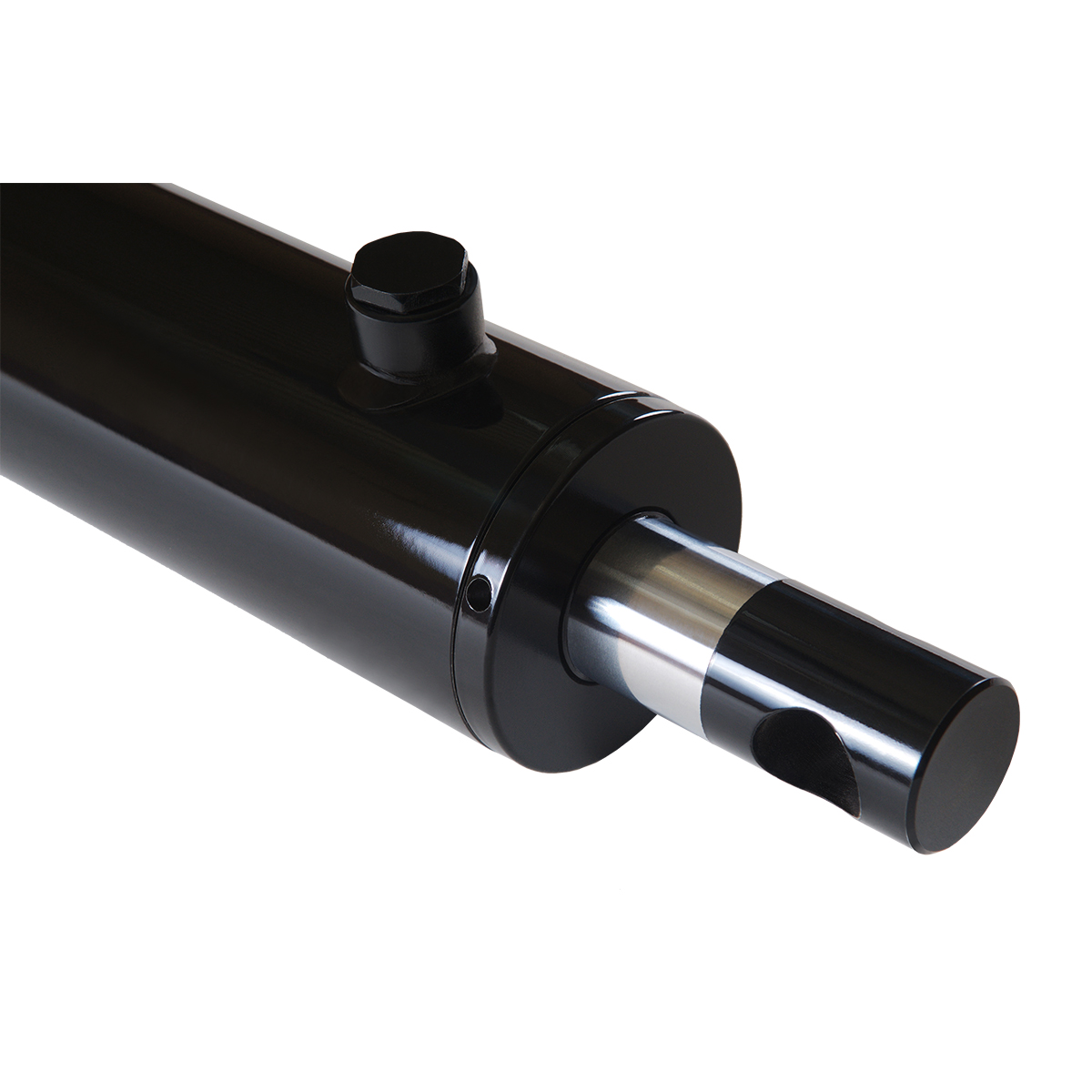

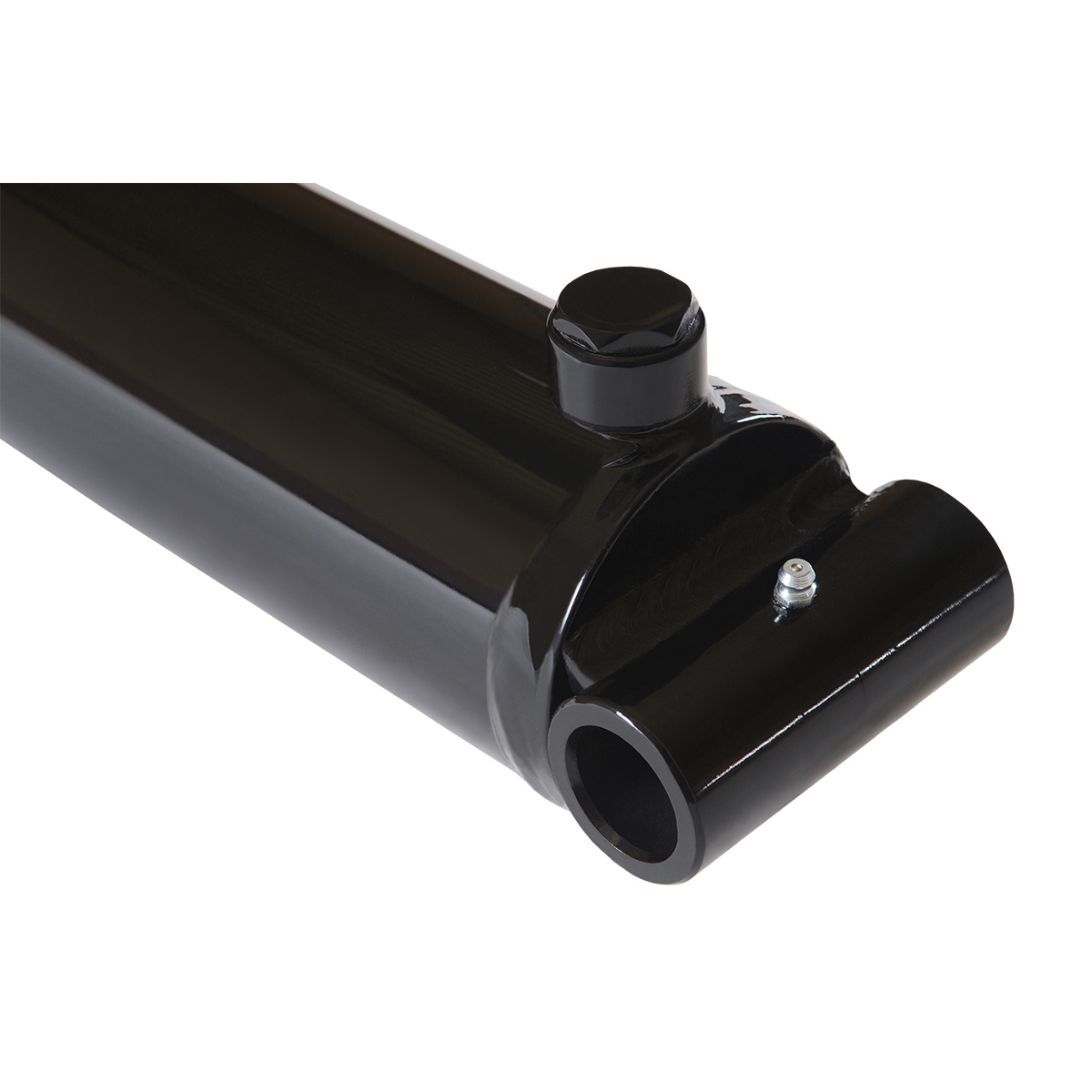

- 3″ bore x 30″ stroke pin eye hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded across steel tube, honed cold-drawn tubing, hard chrome plated rod with pin through hole, and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for construction, material handling and farming equipment.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
