3 bore x 36 stroke hydraulic cylinder, welded pin eye double acting cylinder | Magister Hydraulics

3" bore x 36" stroke pin eye hydraulic cylinder

Name: 3" bore x 36" stroke pin eye hydraulic cylinder
SKU: WPE 3x36
Availability: InStock
Rating: 4.80 (6 reviews)

$349.00

Pay in 4 interest-free payments of $87.25

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WPE 3x36

Product SKU	Chief part number
WPE 3x36	287263

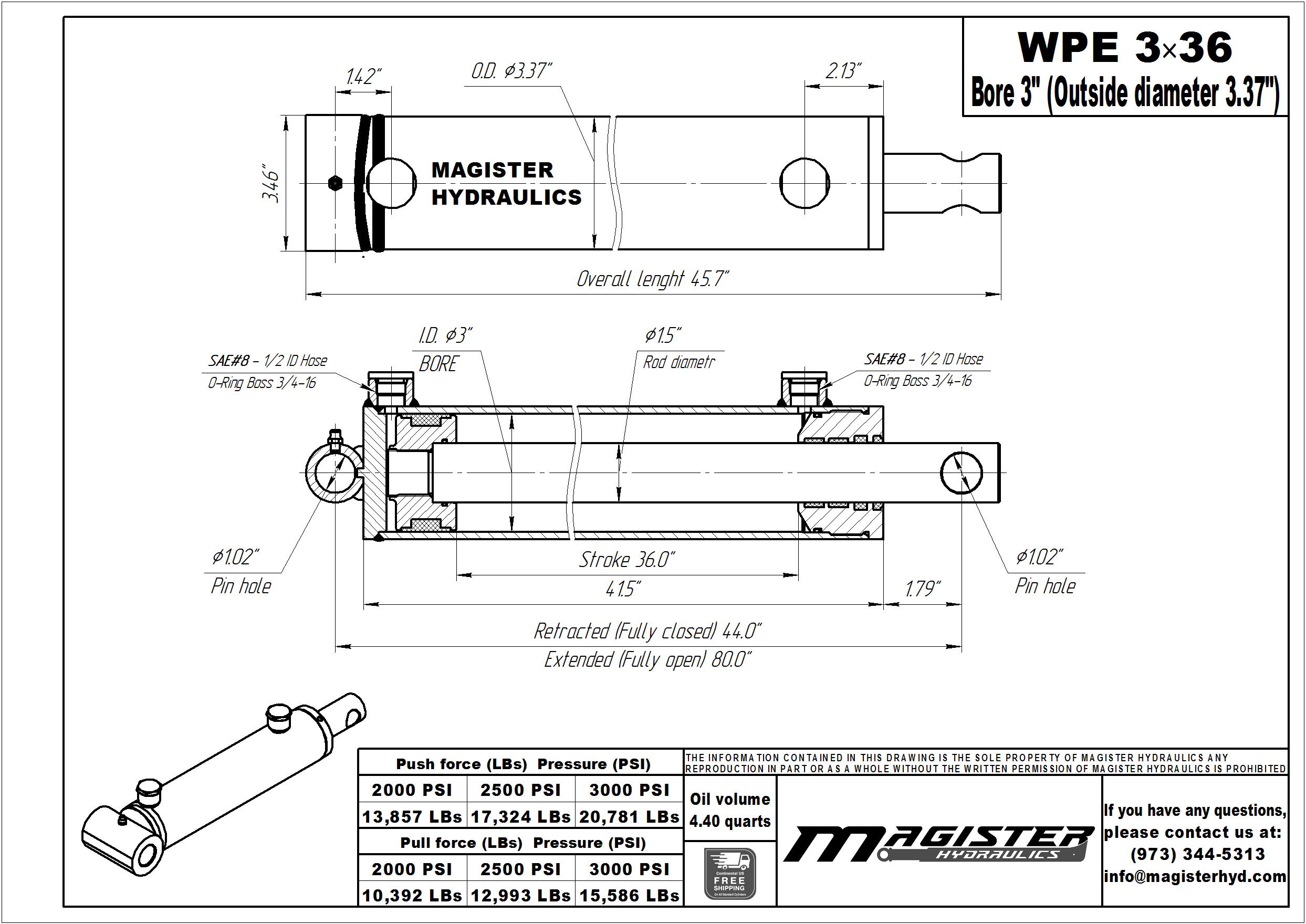

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	3 in
Outer Dia. (⌀) :	3.37 in
Stroke :	36 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

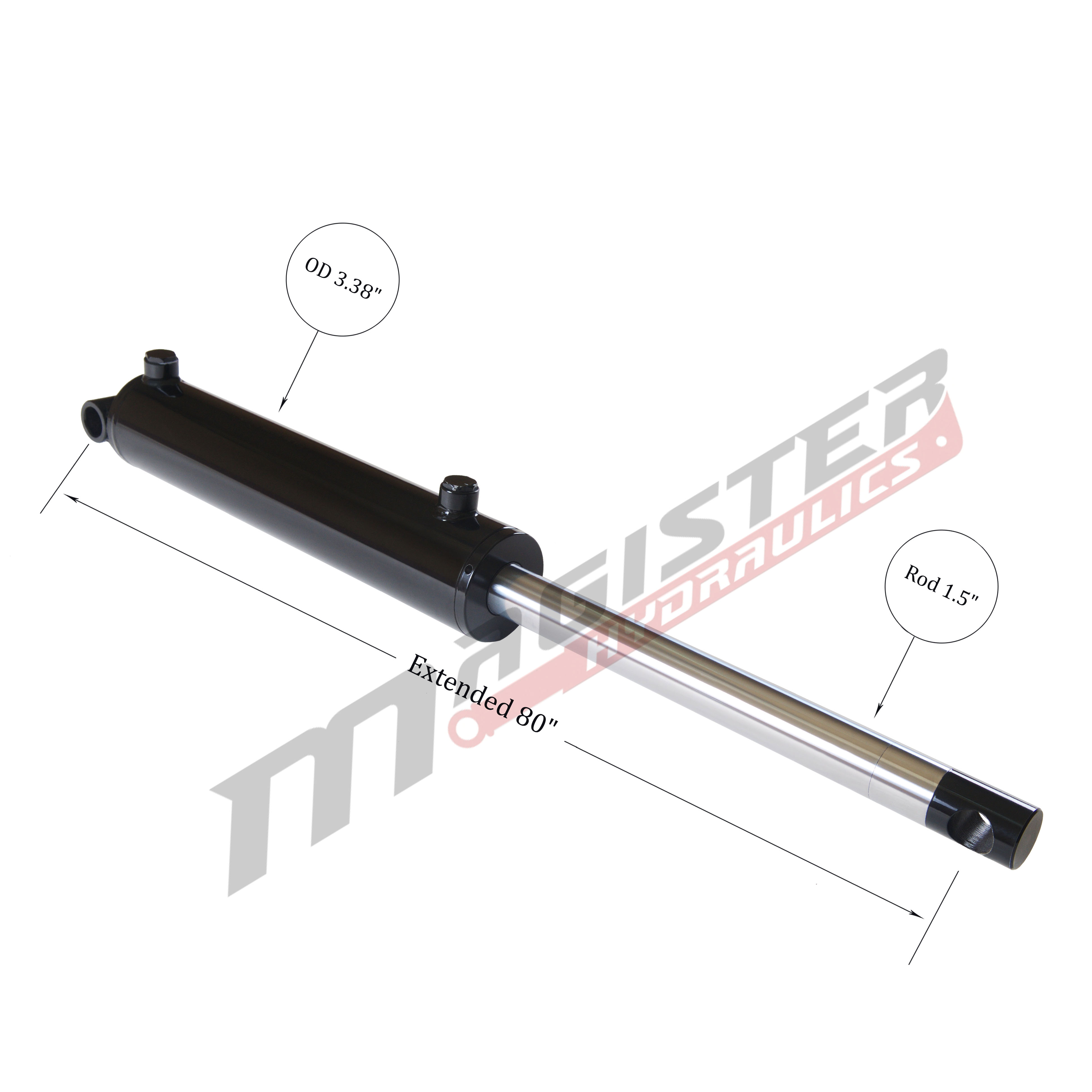

Extended :	80 in

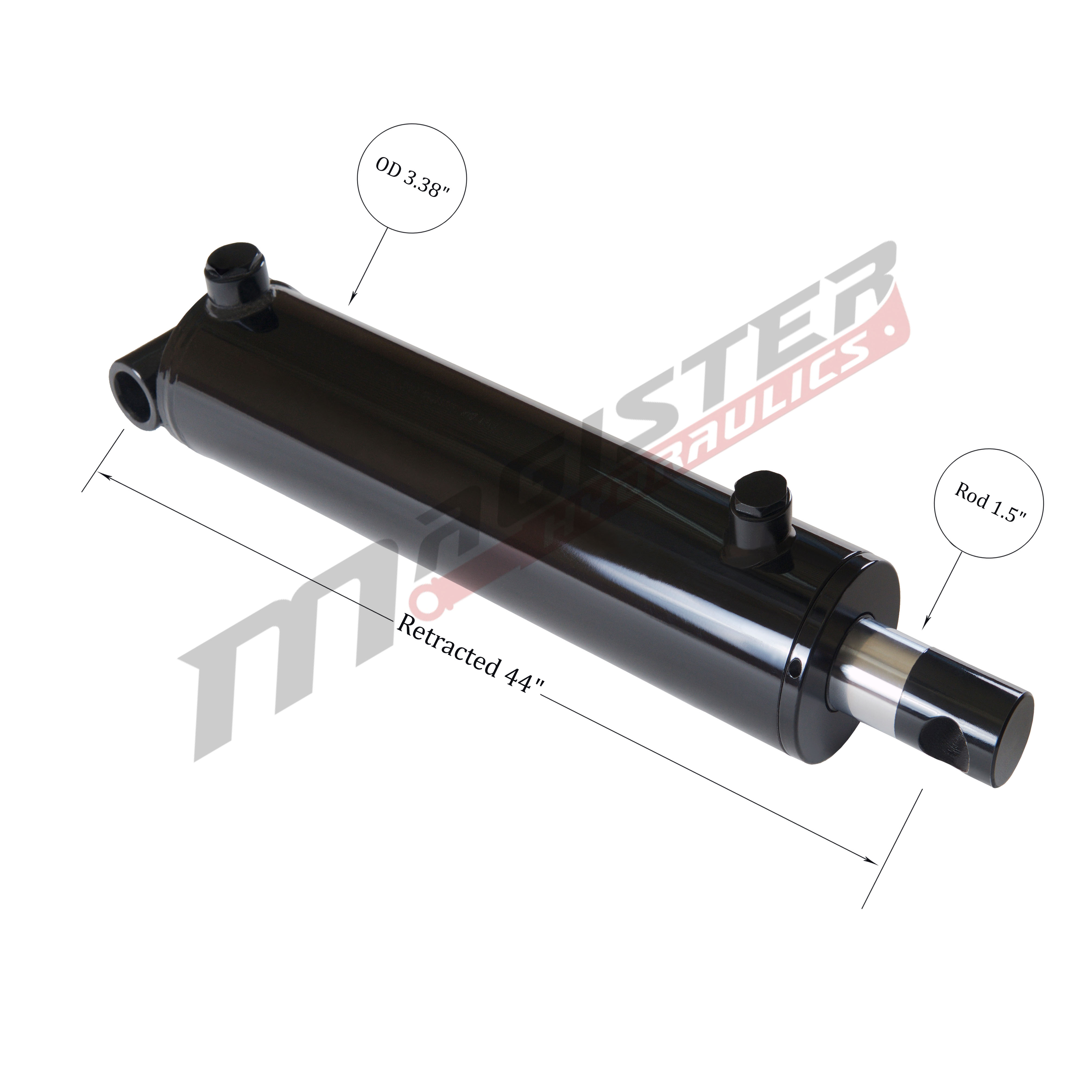

Retracted :	44 in
Overall length :	45.7 in
Pressure :	3500 PSI
Column Load :	8,800 LBs
Oil Volume :	4.4 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Pin Hole
Action :	Double Acting
Weight :	50 LBs
GTIN :	857743006604

SKU: WPE 3x36 Categories: 3" Bore Pin Eye, Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$331.55

8+ PRICE EA -10%

$314.10

In stock

15 in stock

Description

3″ bore x 36″ stroke pin eye hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded across steel tube, honed cold-drawn tubing, hard chrome plated rod with pin through hole, and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for construction, material handling and farming equipment.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
