3" bore x 12" stroke tang hydraulic cylinder
$275.00
Pay in 4 interest-free payments of $68.75SKU: WTG 3X12

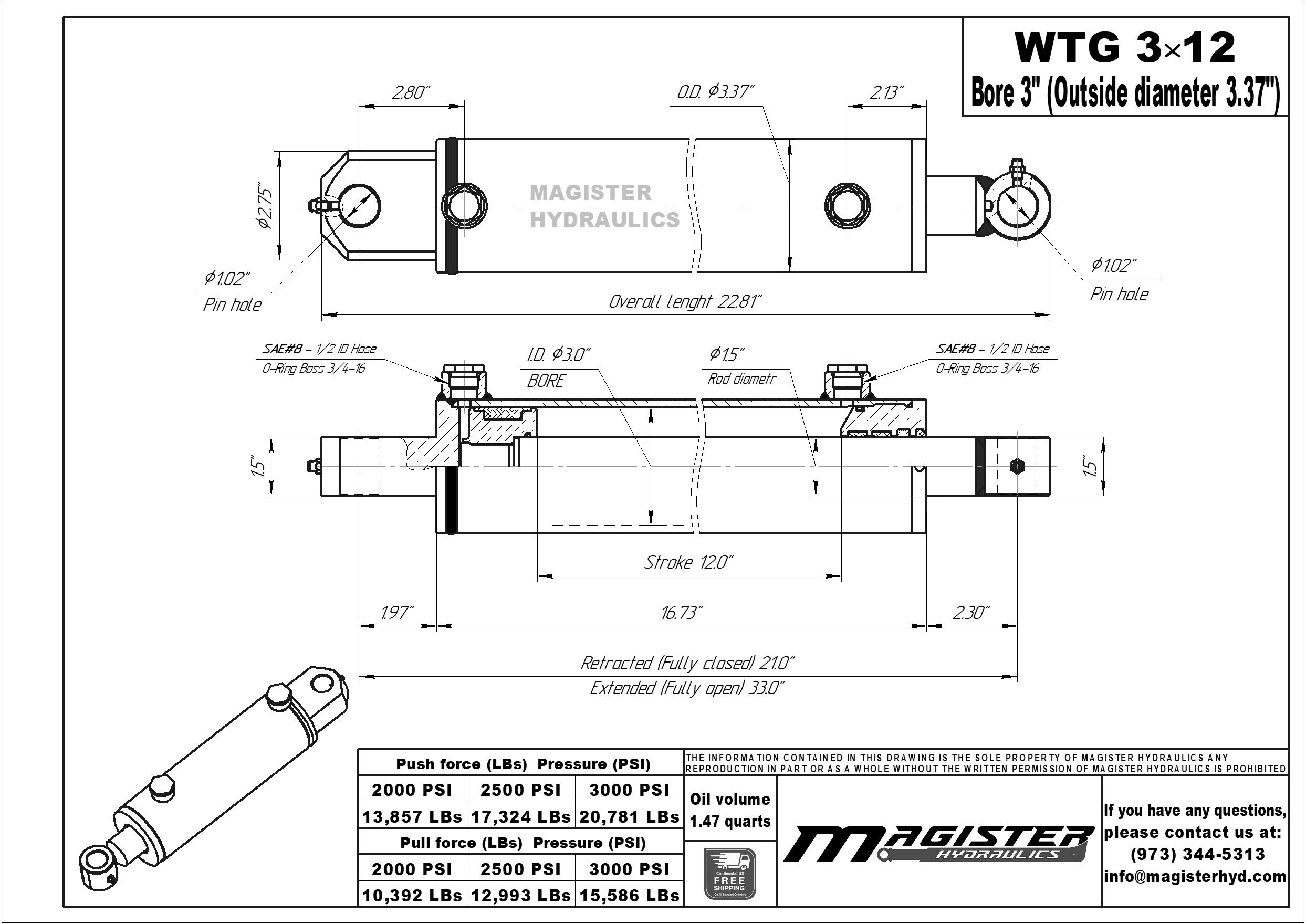

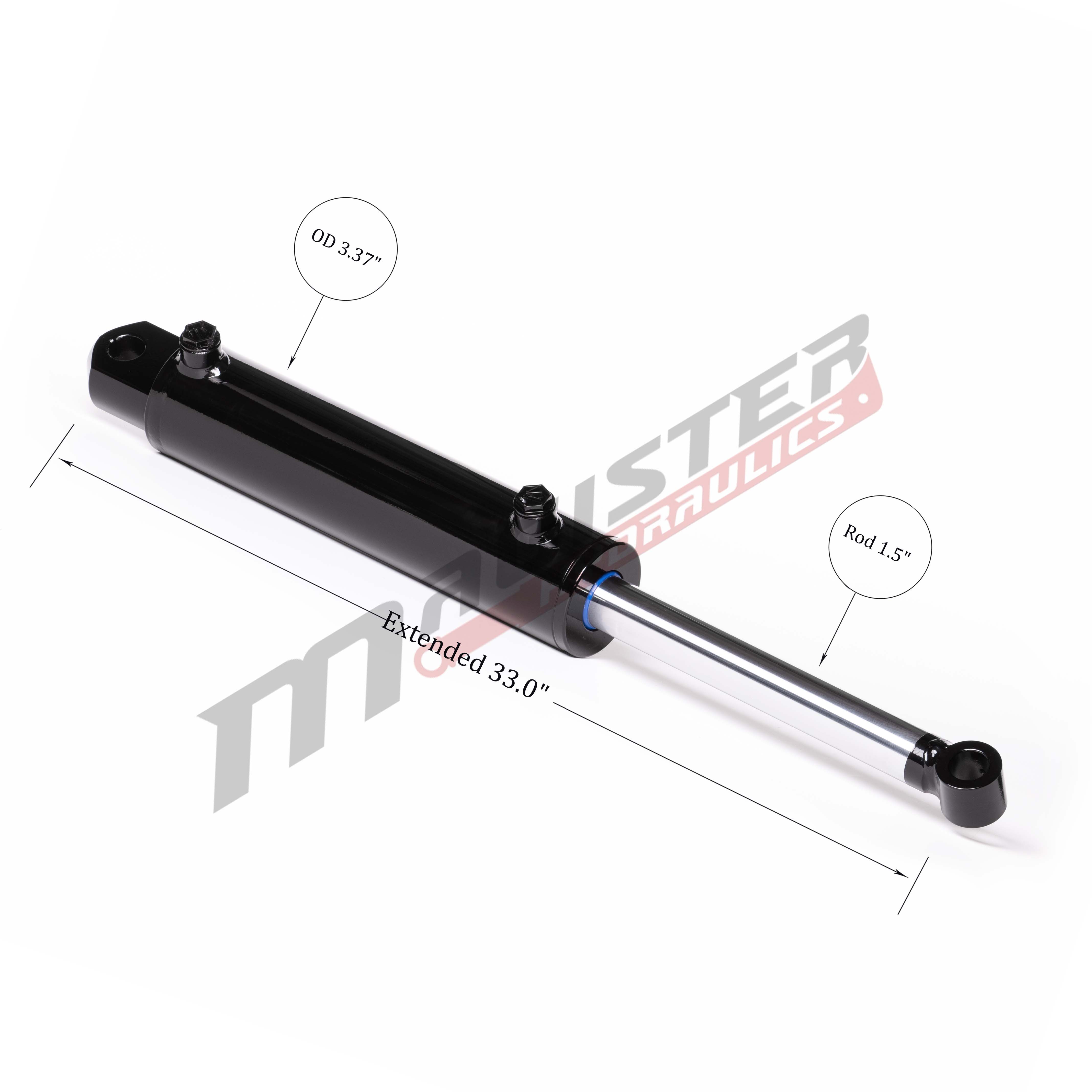

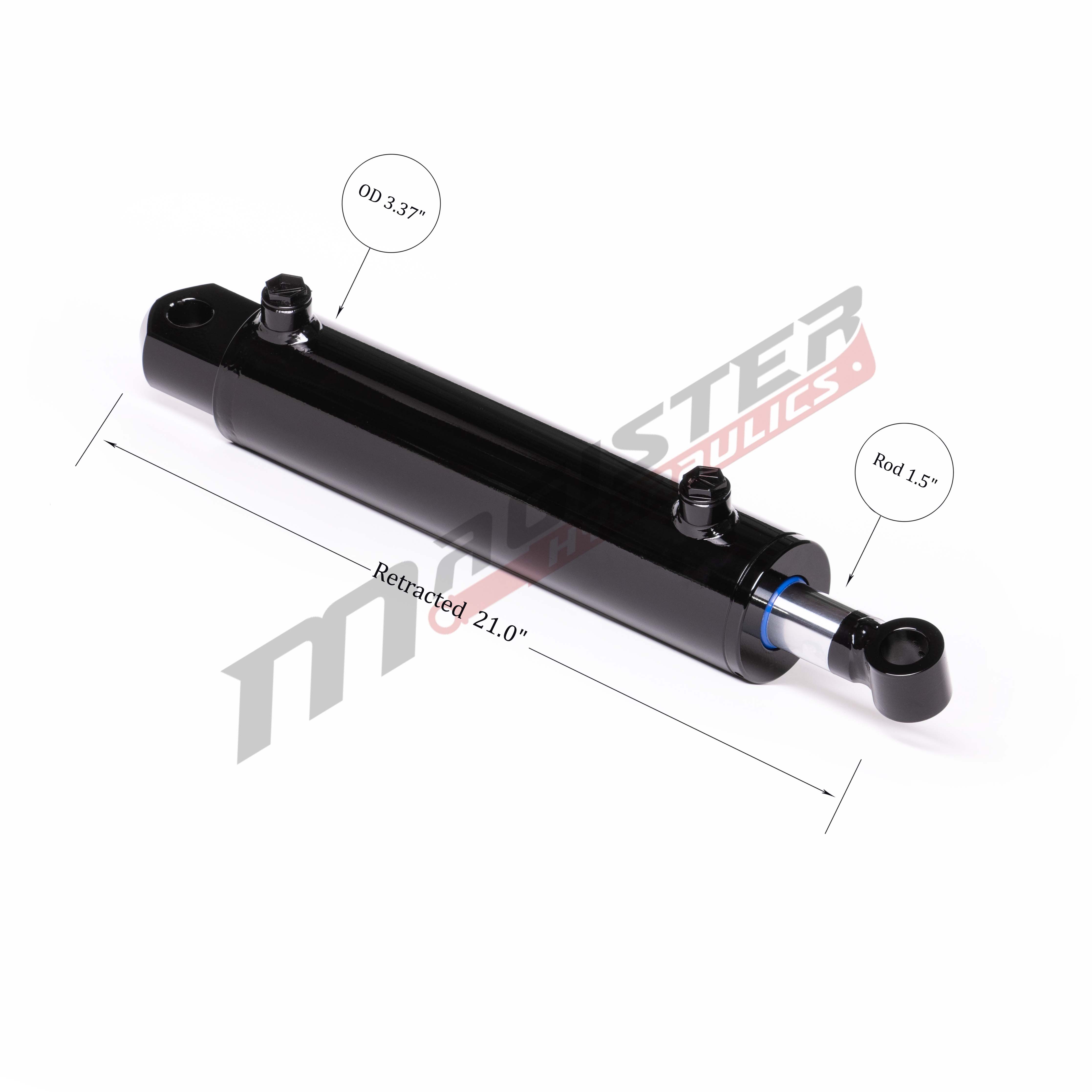

| Bore : | 3 in | Outer Dia. (⌀) : | 3.37 in | Stroke : | 12 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 33 in | Retracted : | 21 in | Overall length : | 22.81 in | Pressure : | 3500 PSI | Column Load : | 21,000 LBs | Oil Volume : | 1.47 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Narrow Tube | Action : | Weight : | 28 LBs |
|---|---|
| GTIN : | 850033934908 |
Volume discounts
4+ PRICE EA -5%
$261.25
8+ PRICE EA -10%
$247.50
In stock
5 in stock
Description
- 3″ bore x 12″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders are manufactured using steel pistons and steel threaded glands with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod, and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation, and agriculture.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
