3 bore x 10 strokes hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics

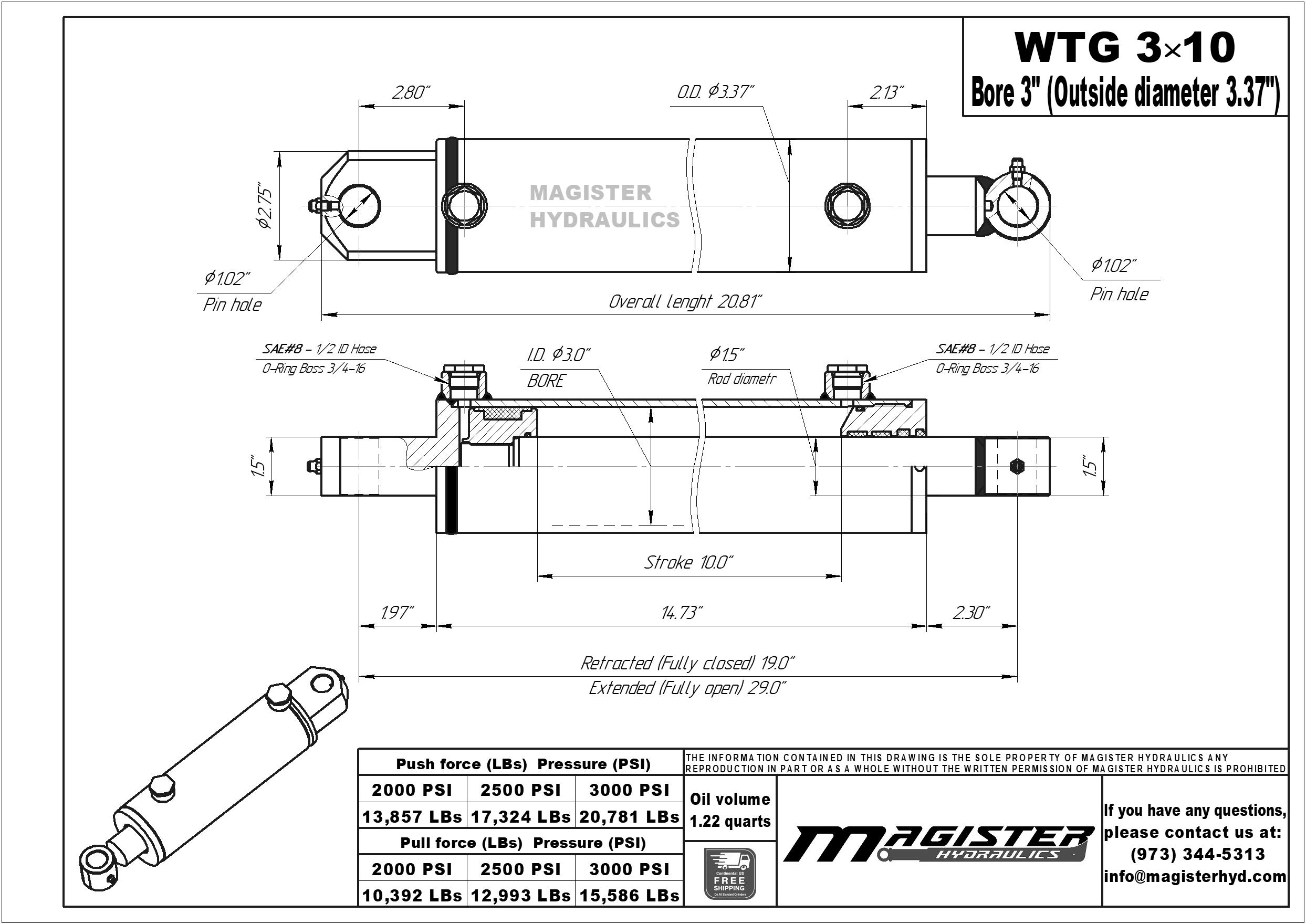

3" bore x 10" stroke tang hydraulic cylinder

$265.00

Pay in 4 interest-free payments of $66.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 3X10
Bore : 3 in
Outer Dia. (⌀) : 3.37 in
Stroke : 10 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

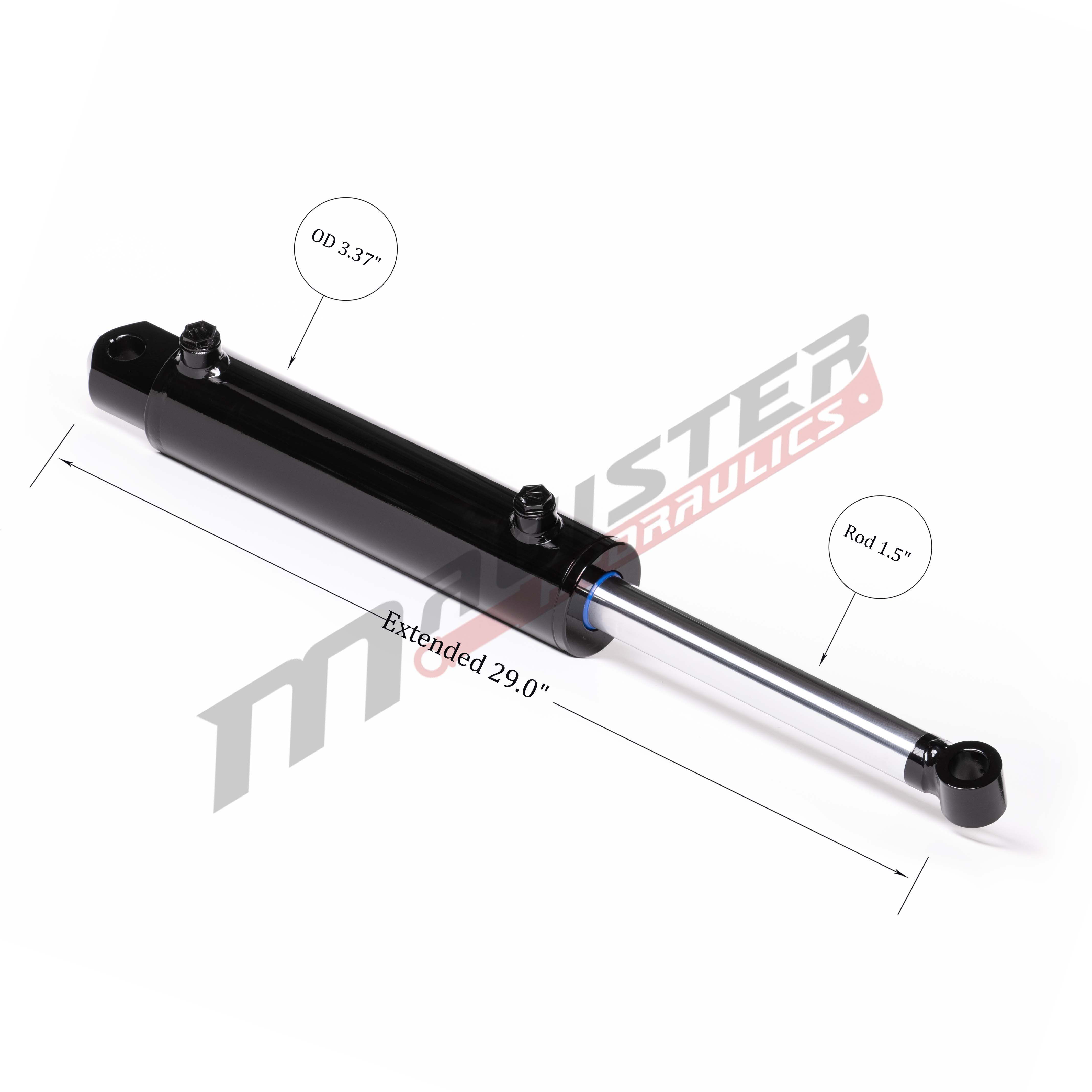

Extended : 29 in

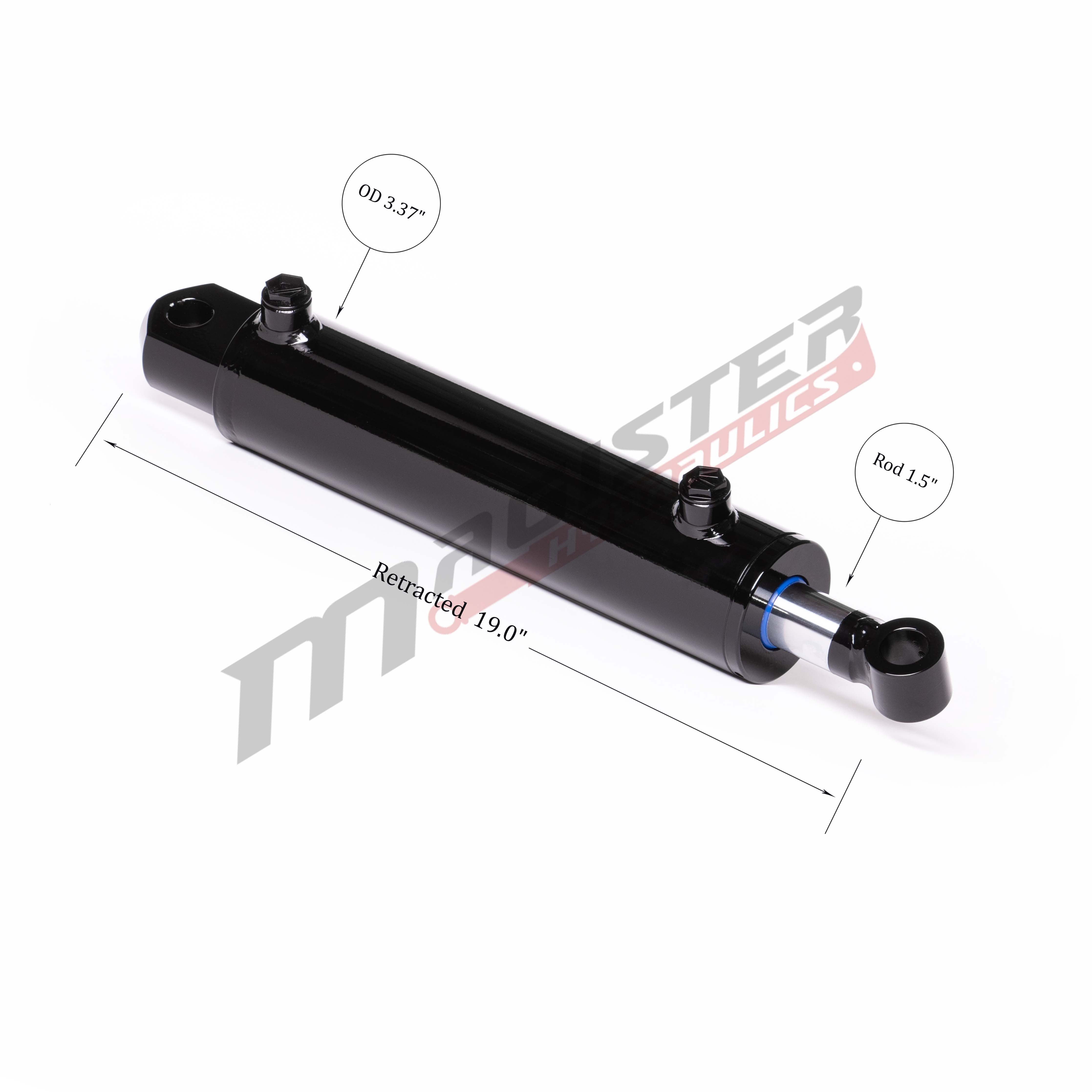

Retracted : 19 in
Overall length : 20.81 in
Pressure : 3500 PSI
Column Load : 21,000 LBs
Oil Volume : 1.22 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Narrow Tube
Action : Double Acting
Weight : 25 LBs
GTIN : 850033934892

Volume discounts

1+ PRICE EA
$265.00
4+ PRICE EA -5%
$251.75
8+ PRICE EA -10%
$238.50
In stock

16 in stock

Description


  • 3″ bore x 10″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders are manufactured using steel pistons and steel threaded glands with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod, and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for such industries as material handling, waste, construction, transportation, and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
