Hydraulic Hose Assembly, 60" Length x 1/4" Diameter, Female JIC Swivel Fittings | Magister Hydraulics

Hydraulic Hose Assembly, 60 inches x 1/4" JIC Fittings


* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: HHA-D04-04-FJS-60
Hose Length : 60
Hose End Fittings : 1/4" Female JIC Swivel
Hose Inside Diameter : 1/4"
Pressure : 4800 PSI
Max Bent Radius : 5.1"
Temperature range (Hydraulic oil) : -40F to + 198F
Temperature range (liquid solutions) : -40F to +158F
Temperature range (Water) : 32F to +158F
Brand : Magister Hydraulics
GTIN : 850033934793

Volume discounts

4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

41 in stock

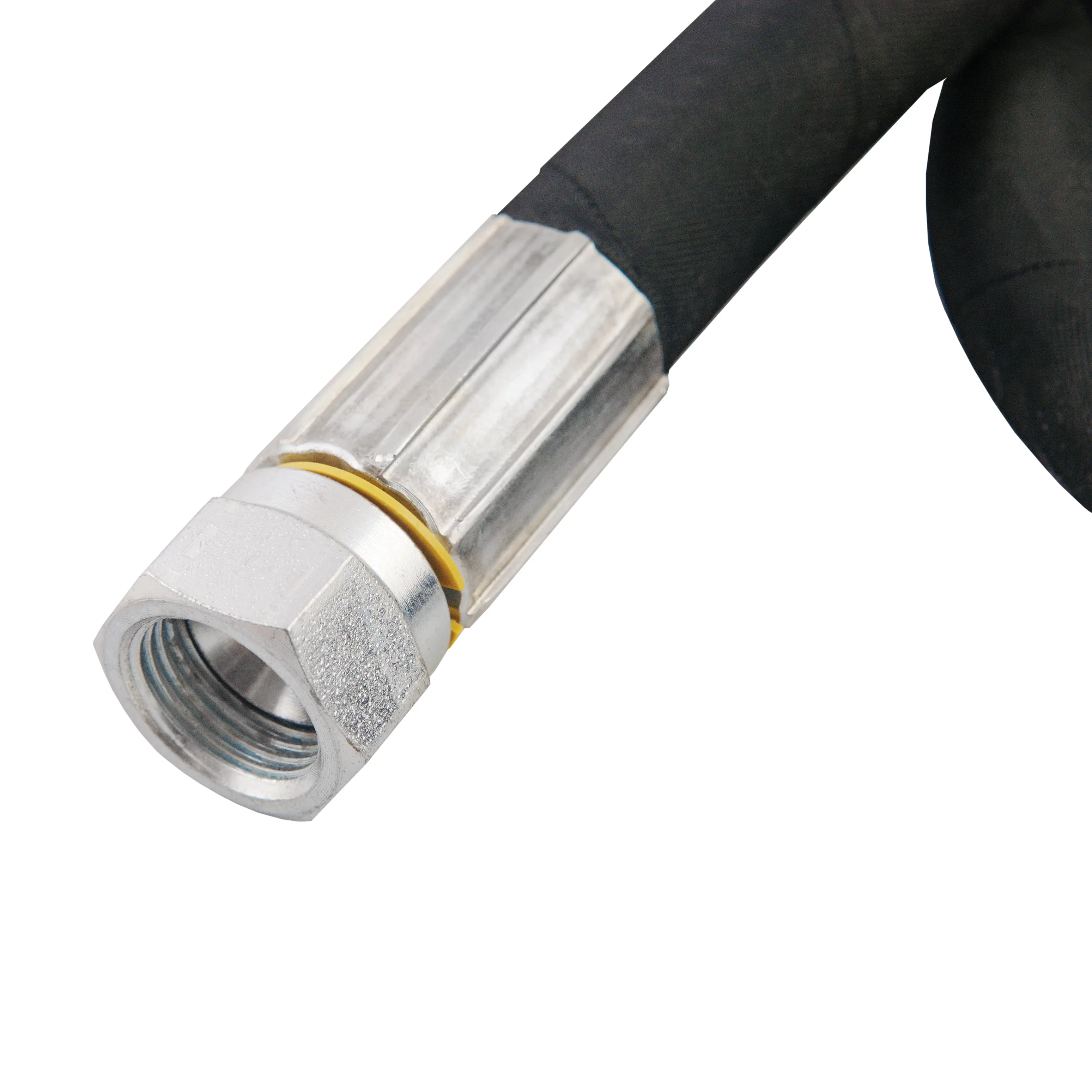

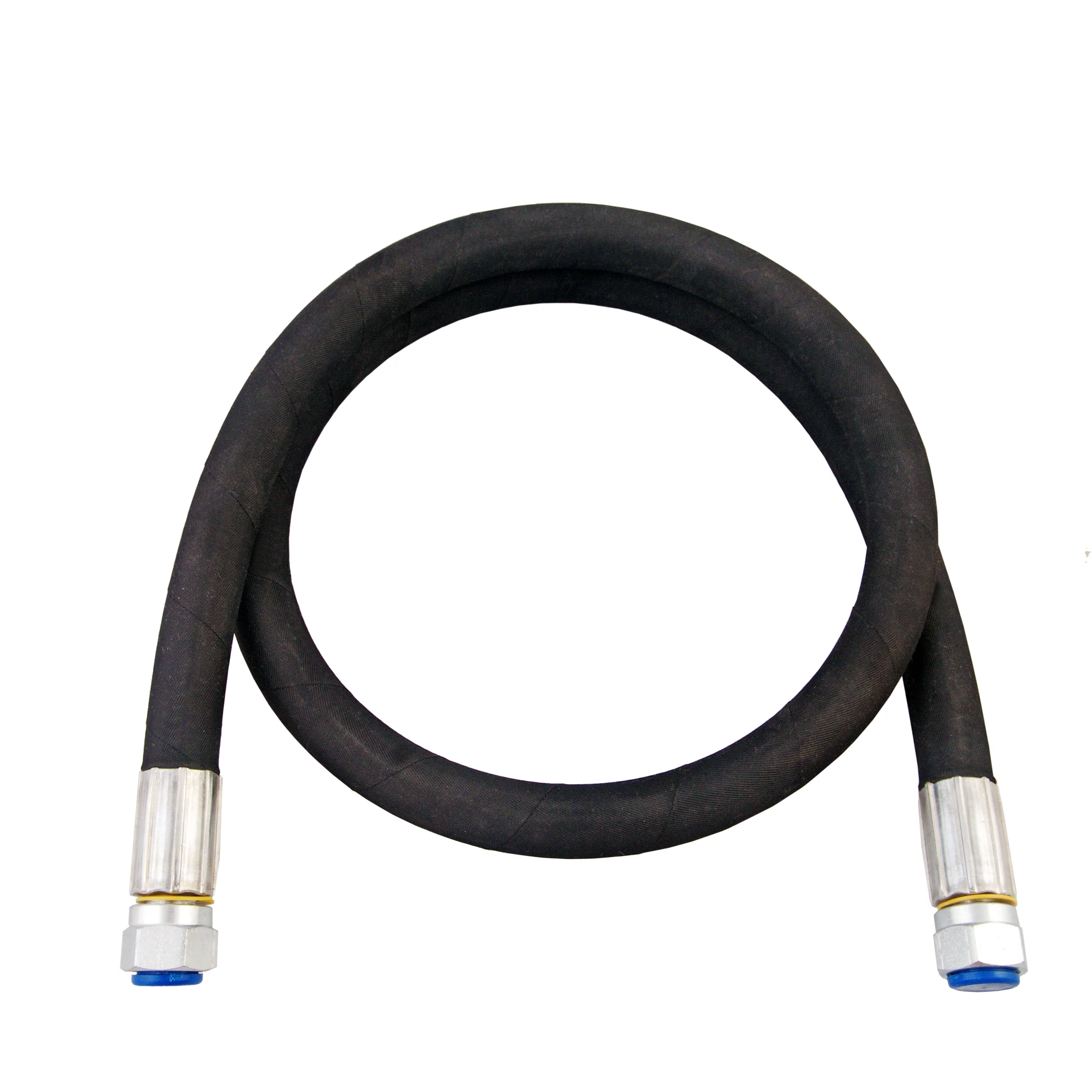

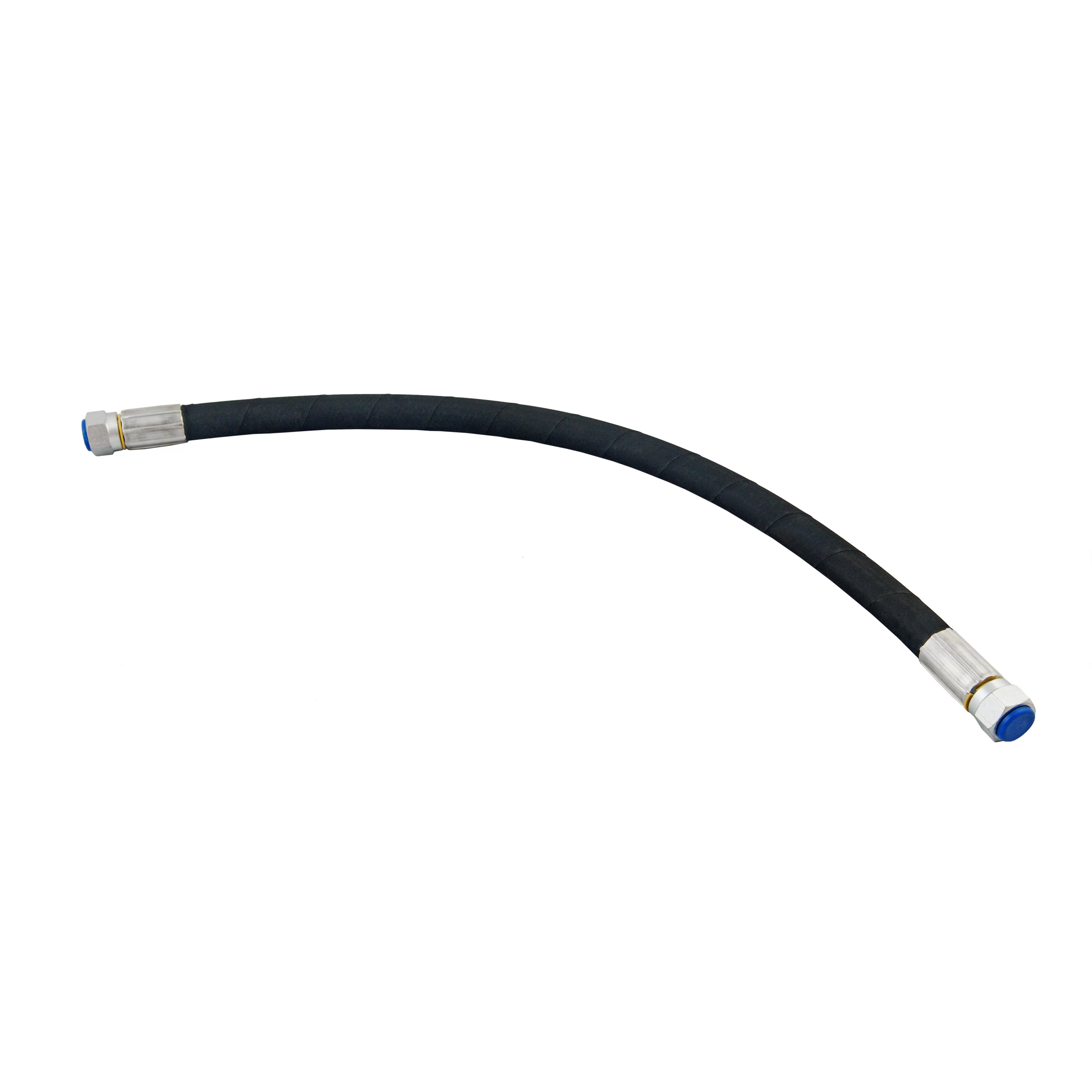

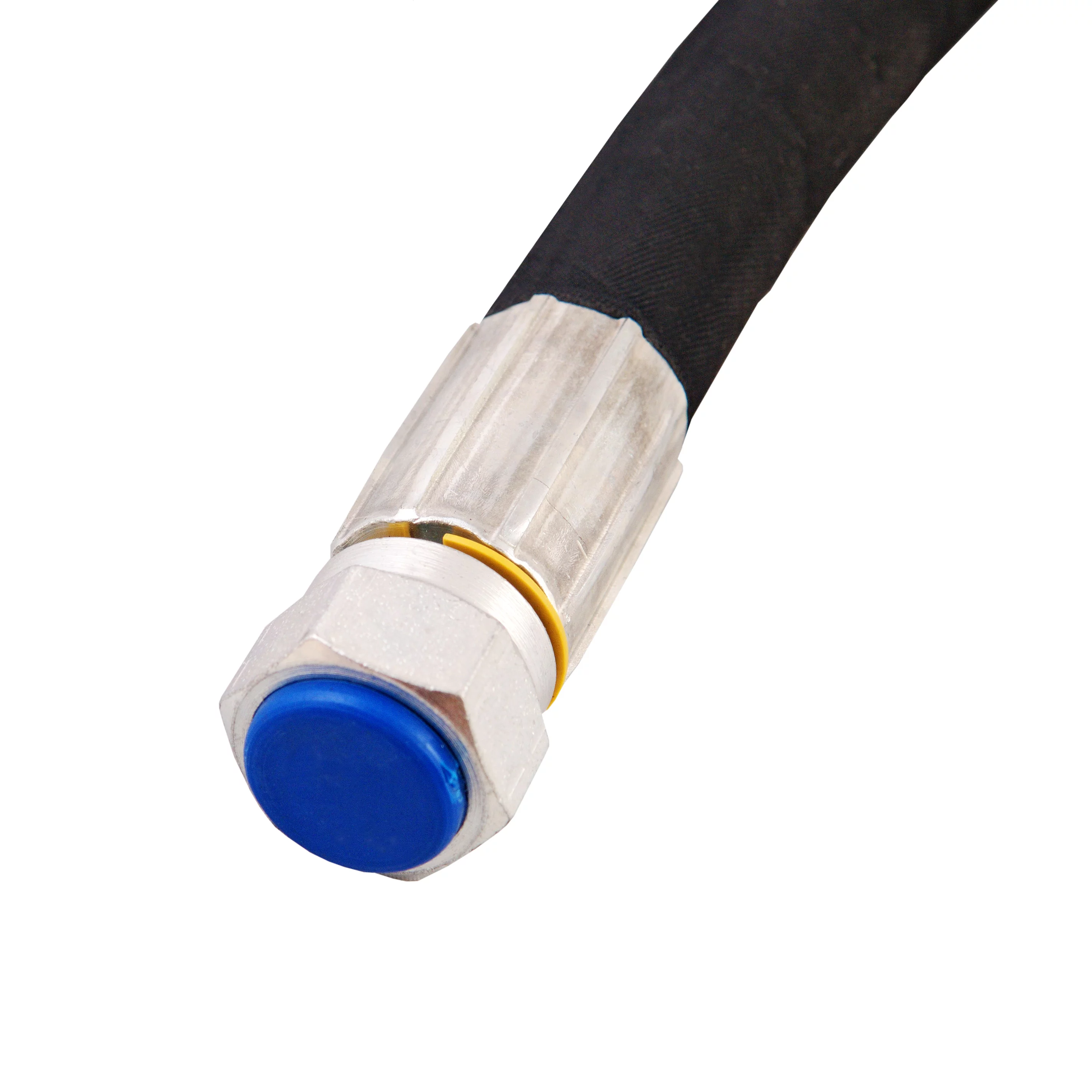

60 inch long x 1/4″ Two-Wire Steel Braid Hydraulic Hose Assembly with Female JIC Swivel fittings. This hydraulic hose assembly conveys hydraulic fluid to or between hydraulic components. Its’ design is flexible enough to bend around corners and fit in tight spaces. Able to withstand a wide temperature range; max working pressure 4800 PSI. Hydraulic Hose Assembly suitable for tracktors, front end loaders, hydraulic cylinders, hydraulic gear pumps, hydraulic power paks, hydraulic motors forklifts and any other application needing to convey fluid between hydraulic components.
DIN EN853 Manufacturing Standards
Made in Europe
Tariff-Free Product
1-Year Warranty
