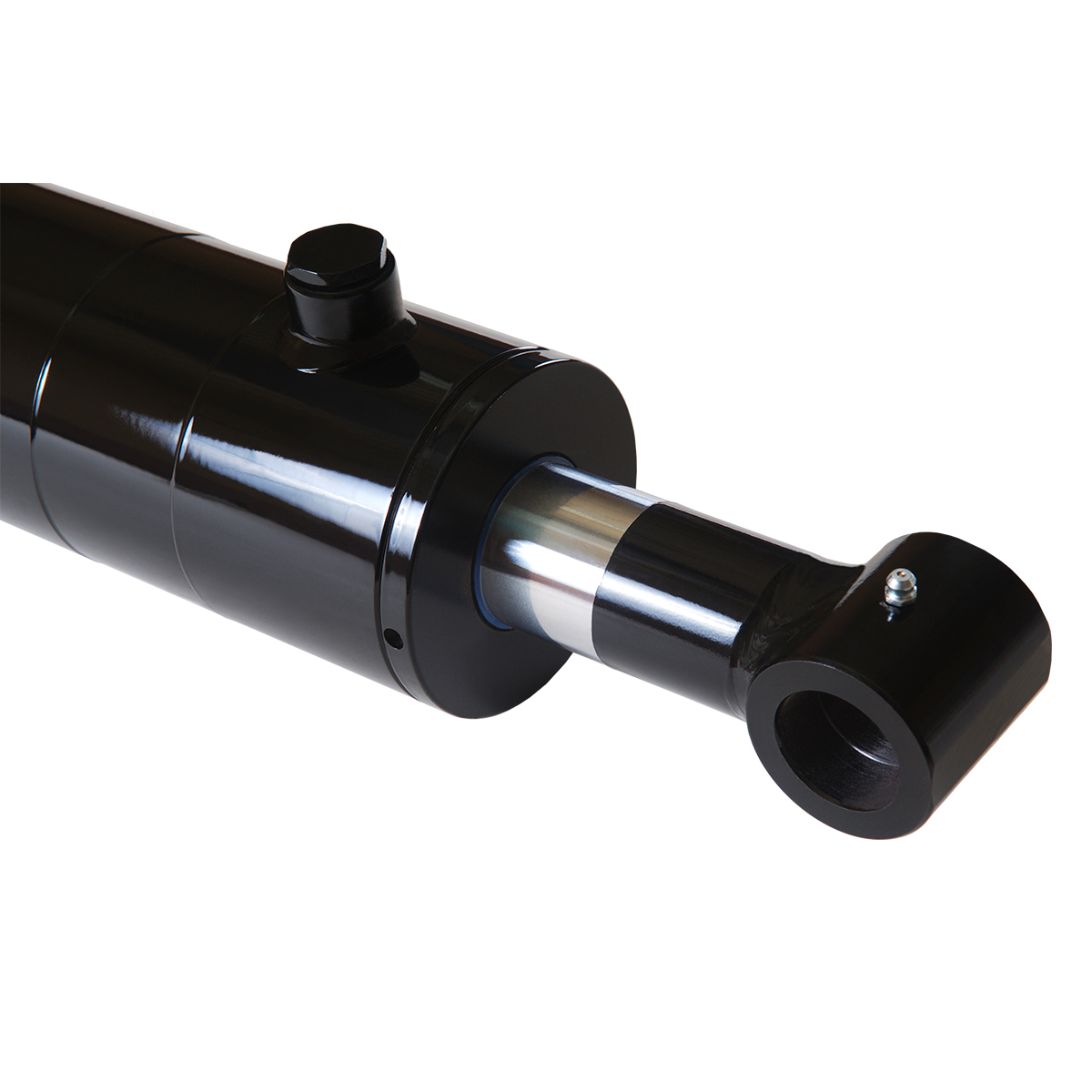

  • WCT-3.5-in-Bore-Rod-end.jpg

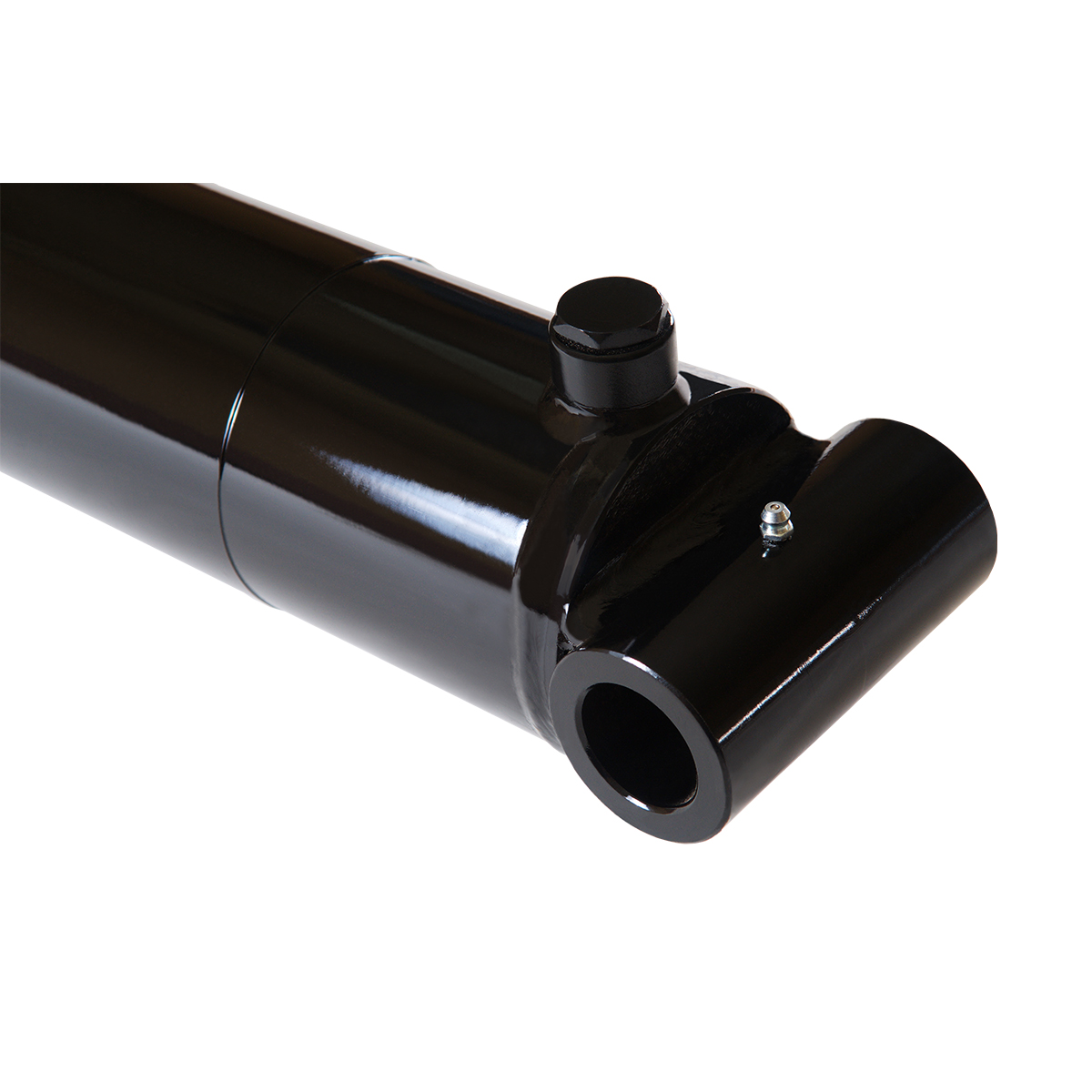

  • WCT-3.5-in-Bore-welded-end.jpg

3.5" bore x 4" stroke cross tube hydraulic cylinder

SKU: WCT 3.5x4

$267.00

In Stock
PayPalPay in 4 interest-free payments of $66.75

Volume Discounts

4+ PRICE EA -5%
$253.65
8+ PRICE EA -10%
$240.30

12 in stock

View cart
2-Year Warranty
Same Day
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 4 or more products.

Designed for maximum performance and durability, the heavy-duty welded Cross Tube Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, industrial, and construction applications. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3.5-inch bore and 4-inch stroke with cross tube ends with 3500 PSI. Due to their construction, these hydraulic rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The cross-tube cylinders serve as an excellent replacement part for front-end loaders, mainly for John Deere, Kubota, Massey Ferguson, Mahindra, and others.

Key Features:

  • Extreme load capacity: Welded cross tube ends, ⌀ 3.86″ honed cold-drawn tubing, ⌀ 1.75″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 4″ stroke.
  • Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder.
  • Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  • High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • 2-year warranty
  • Same Day Free Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  • Made in Europe.

Before purchase, please take the proper measurements:

  • The diameter of the bore (please specify inside or outside measurement).
  • The diameter of the rod and pin holes.
  • The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
  • The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder

View Full Specifications

Specifications

3.5" bore x 4" stroke cross tube hydraulic cylinder
SKU: WCT 3.5x4
Bore3.5 inOuter Dia. (⌀)3.86 in
Stroke4 inRod Dia. (⌀)1.75 in
Port SizeSAE 8Pin Dia. (⌀)1.25 in

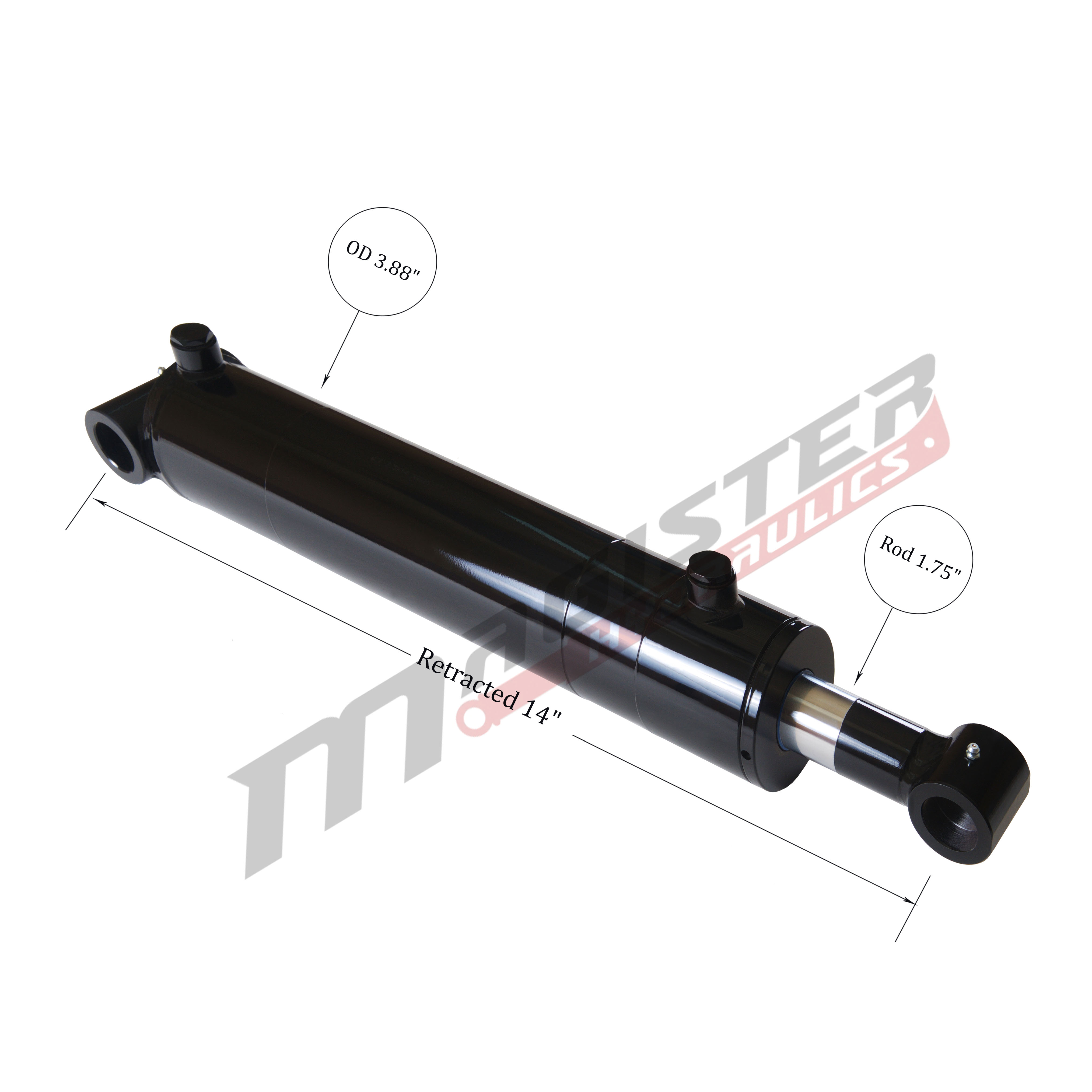

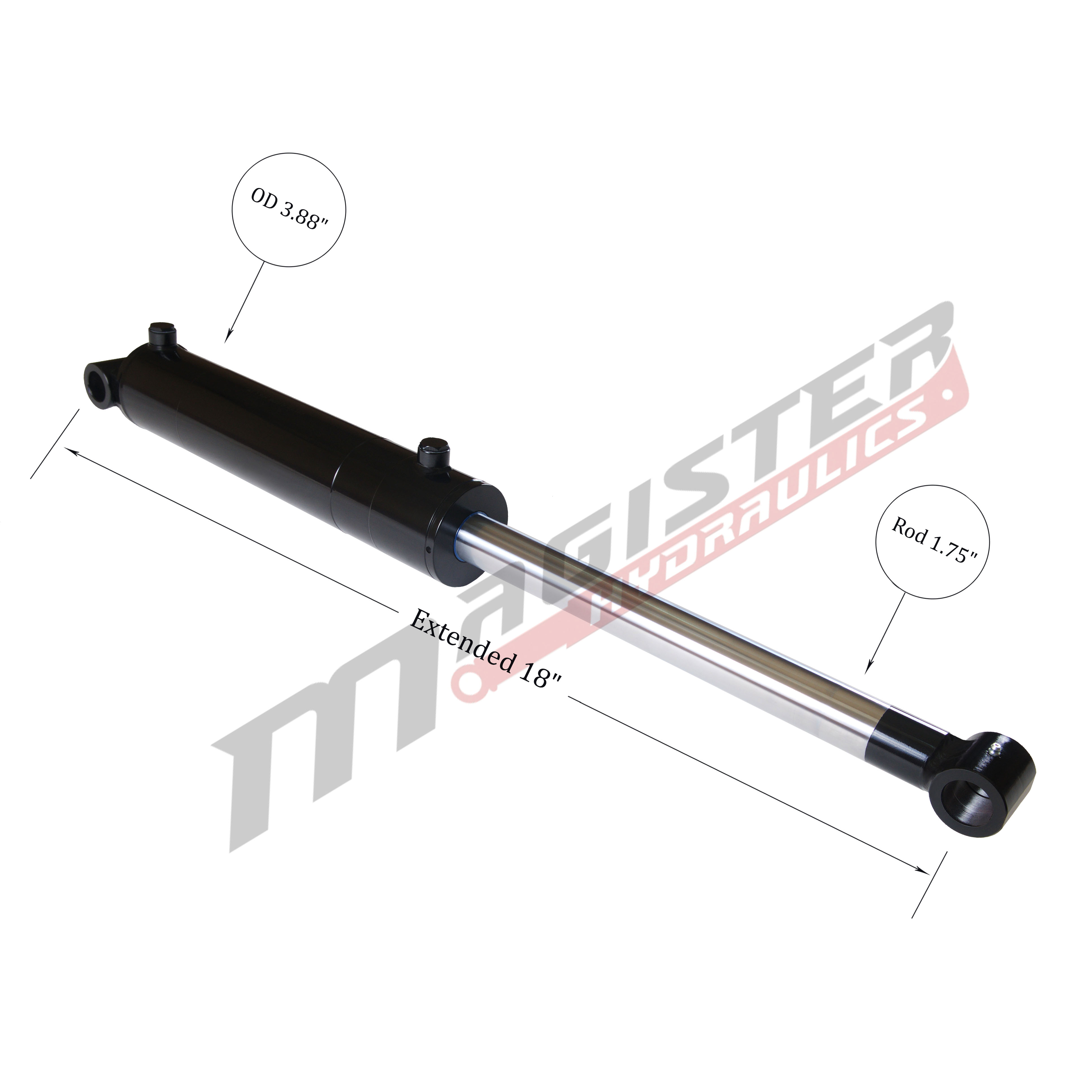

Extended18 inRetracted14 in
Overall length16 inPressure3500 PSI
Column Load28,800 LBsOil Volume0.67 QTs
BrandMagister HydraulicsDesignWelded
Rod TypeChrome PlatedRod EndCross Tube
ActionDouble ActingWeight26 LBs
GTIN857743006062
IMPORTANT NOTE: The chrome-plated rod is NOT induction hardened (temperature-treated). Improper use (due to incorrect measurements or application type) may result in rod bending. Such cases are NOT covered under our warranty!

Alternative part numbers

Manufacturer Product SKU
Maxim288348
Prince-WolverineWWXT3504-S
EagleHBU3504-ORB

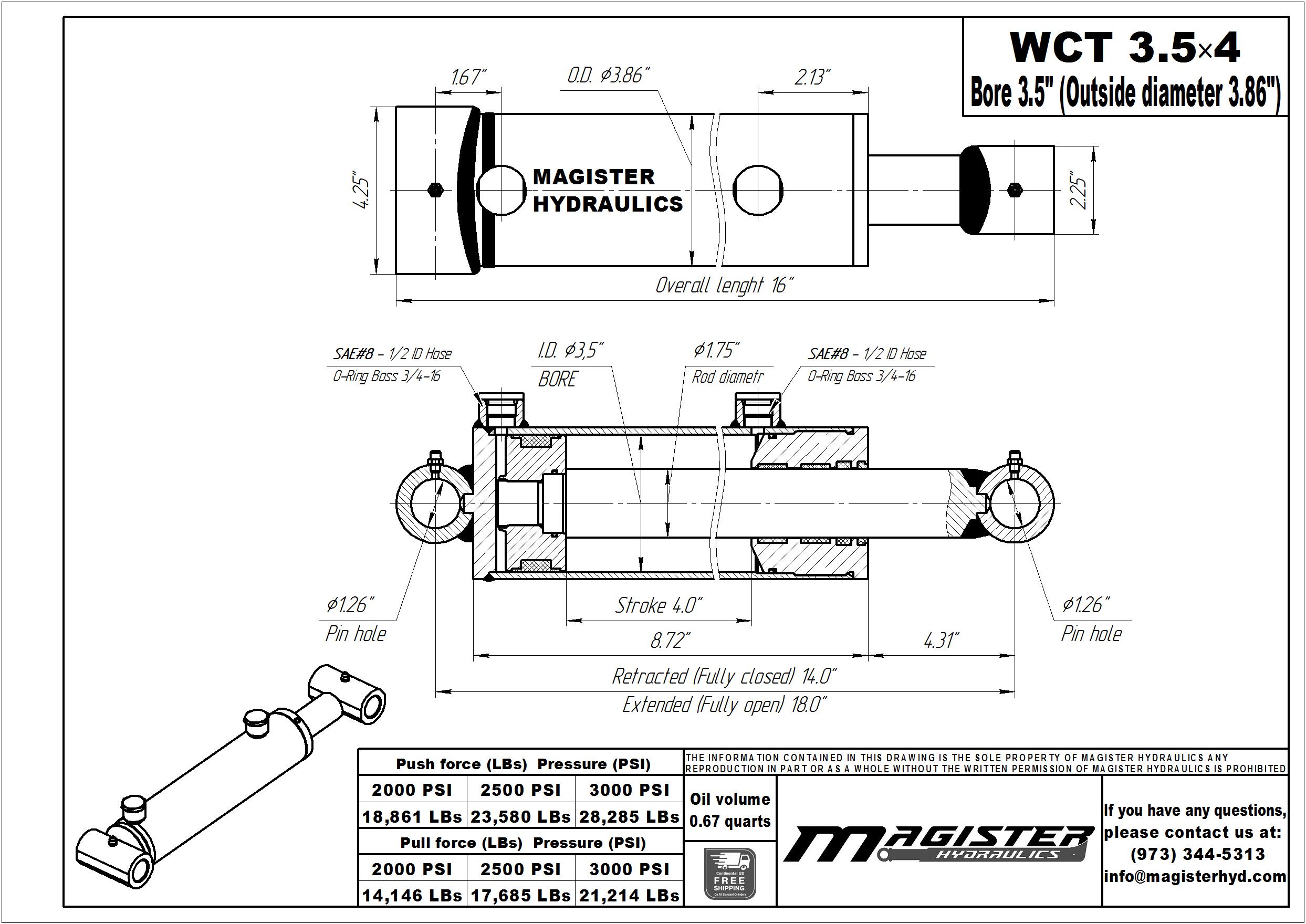

The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.
