3.5 bore x 32 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

3.5" bore x 32" stroke cross tube hydraulic cylinder

$389.00

Pay in 4 interest-free payments of $97.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 3.5x32
Bore : 3.5 in
Outer Dia. (⌀) : 3.86 in
Stroke : 32 in
Rod Dia. (⌀) : 1.75 in
Port Size : SAE 8
Pin Dia. (⌀) : 1.25 in

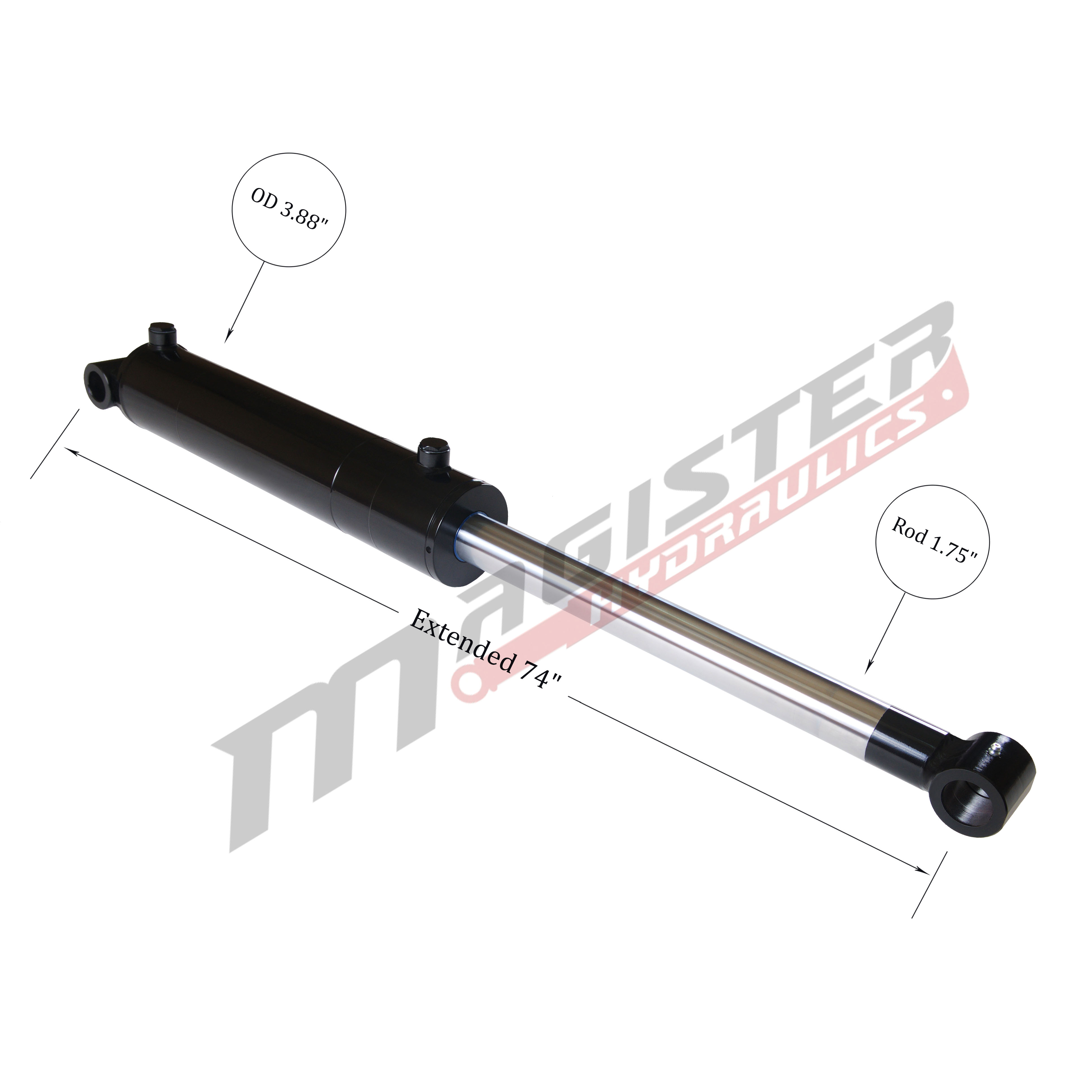

Extended : 74 in

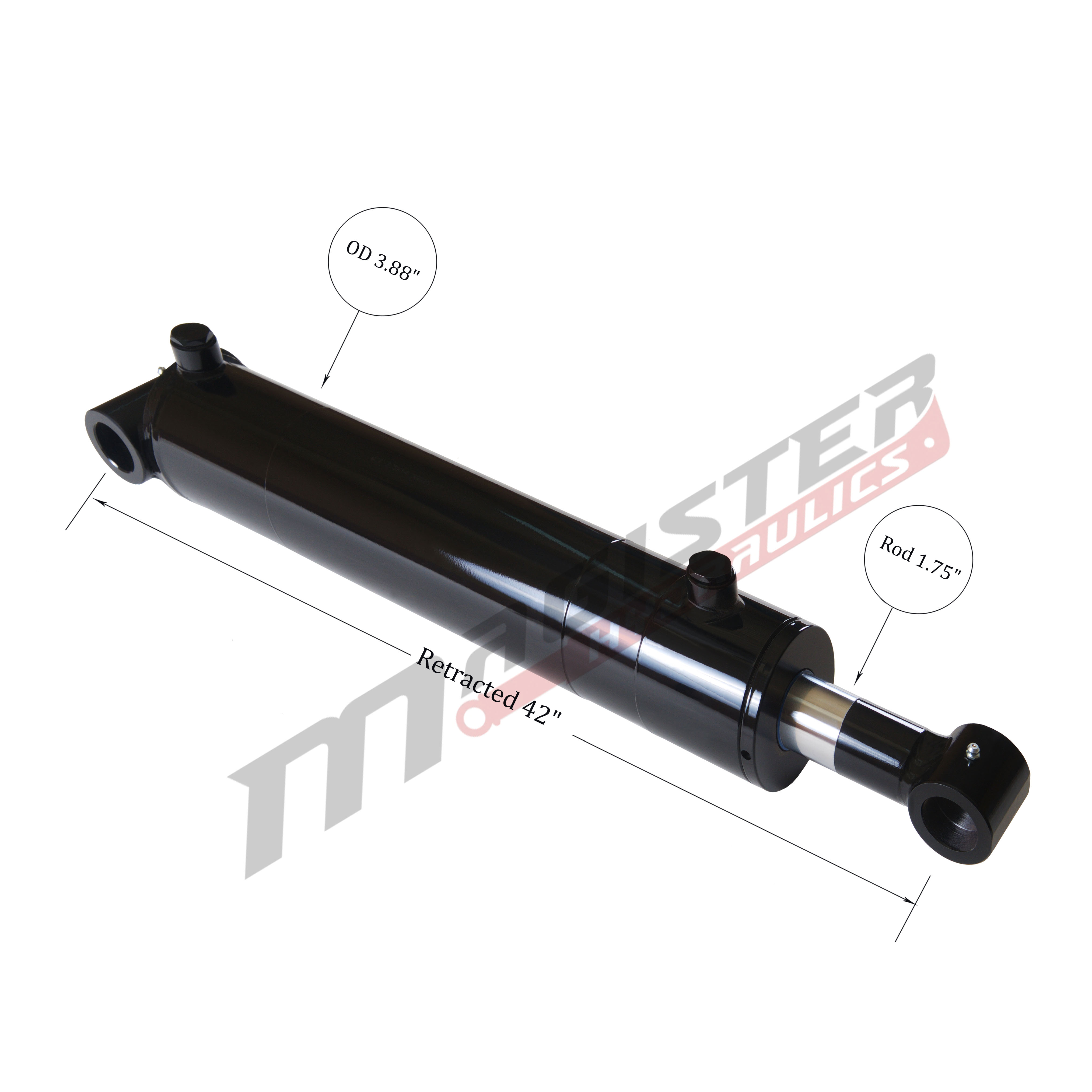

Retracted : 42 in
Overall length : 44 in
Pressure : 3500 PSI
Column Load : 19,000 LBs
Oil Volume : 5.33 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action : Double Acting
Weight : 63 LBs
GTIN : 854763008946

Volume discounts

1+ PRICE EA
$389.00
4+ PRICE EA -5%
$369.55
8+ PRICE EA -10%
$350.10
In stock

24 in stock

Description


  • 3.5″ bore x 32″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

Tariff-FREE cylinders.

Made in Europe.
