3.5" bore x 10" stroke cross tube hydraulic cylinder

$280.00

Pay in 4 interest-free payments of $70.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 3.5x10

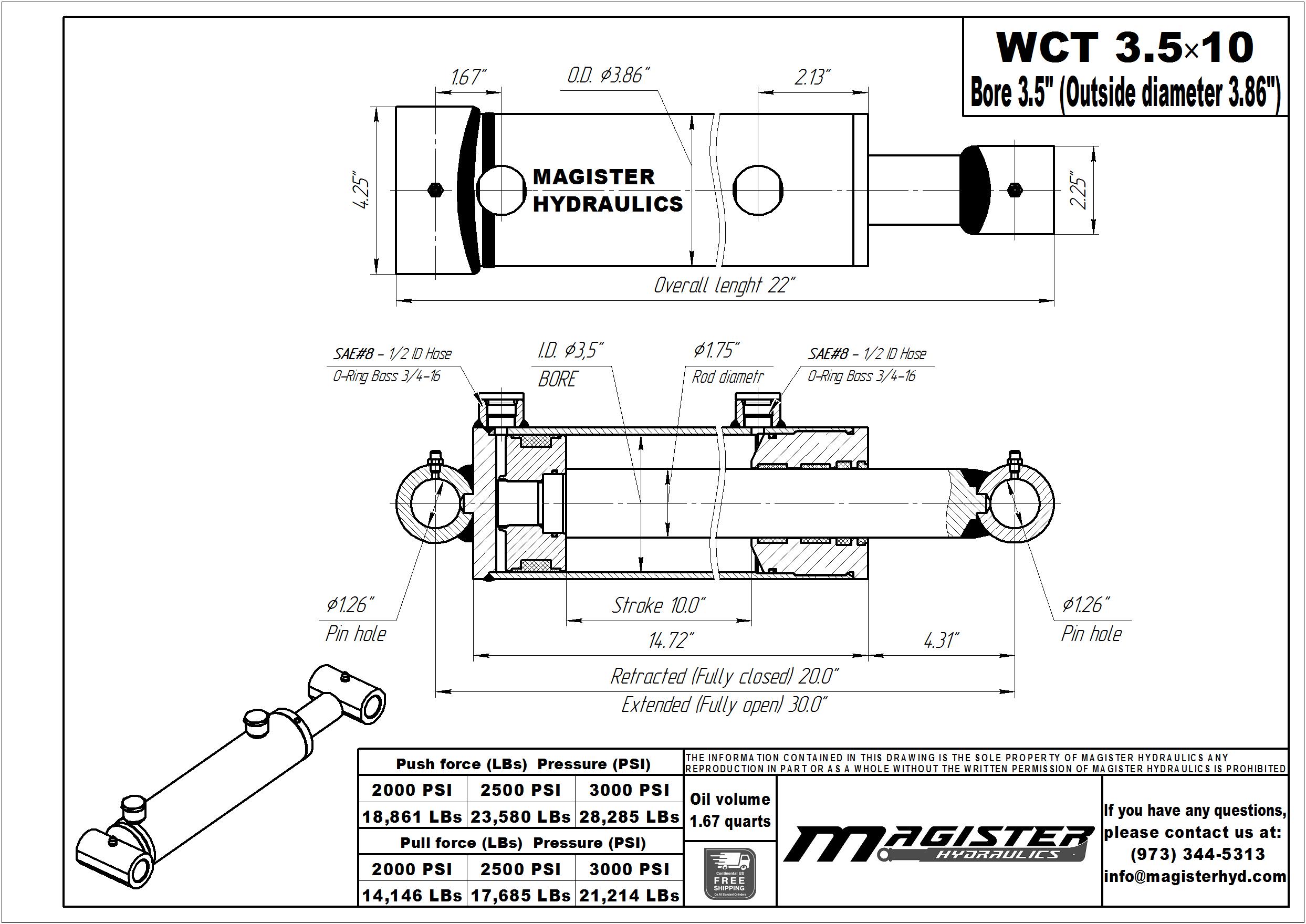

Bore : 3.5 in
Outer Dia. (⌀) : 3.86 in
Stroke : 10 in
Rod Dia. (⌀) : 1.75 in
Port Size : SAE 8
Pin Dia. (⌀) : 1.25 in

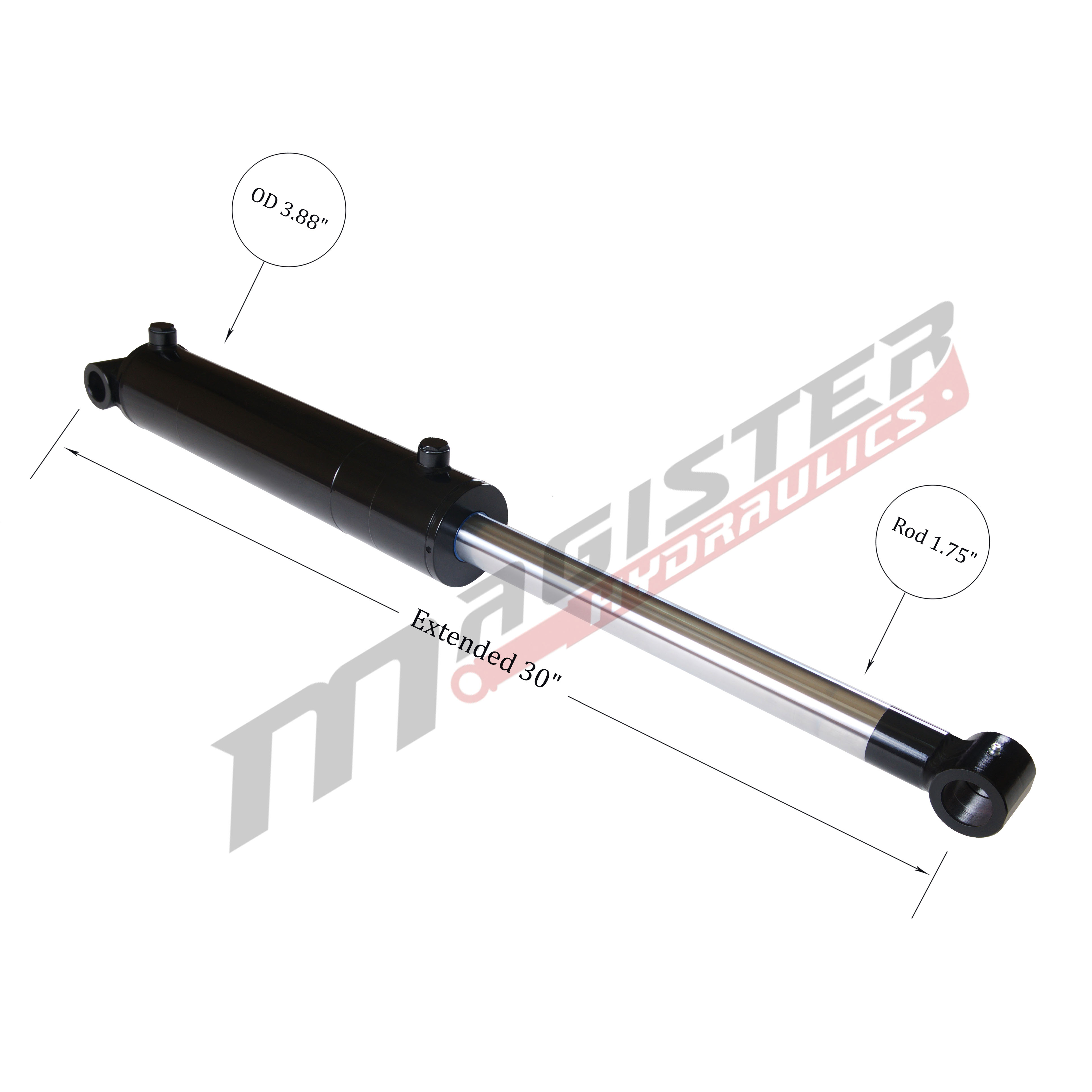

Extended : 30 in

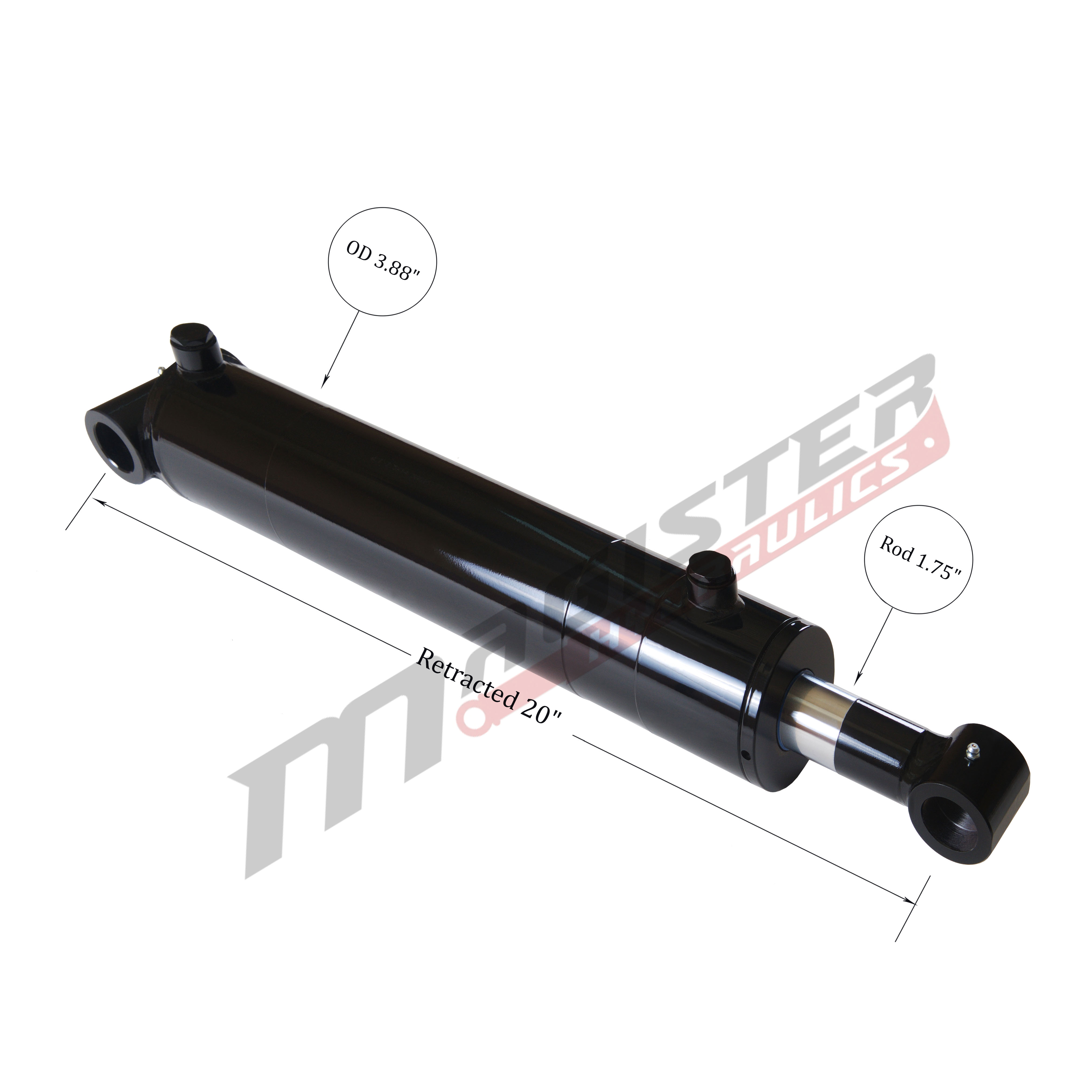

Retracted : 20 in
Overall length : 22 in
Pressure : 3500 PSI
Column Load : 28,800 LBs
Oil Volume : 1.67 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 34 LBs
    GTIN : 850597006219

    Volume discounts

    4+ PRICE EA -5%
    $266.00
    8+ PRICE EA -10%
    $252.00
    In stock

    17 in stock

    Description

    • 3.5″ bore x 10″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
