3.5" bore x 18" stroke cross tube hydraulic cylinder

$320.00

Pay in 4 interest-free payments of $80.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 3.5x18

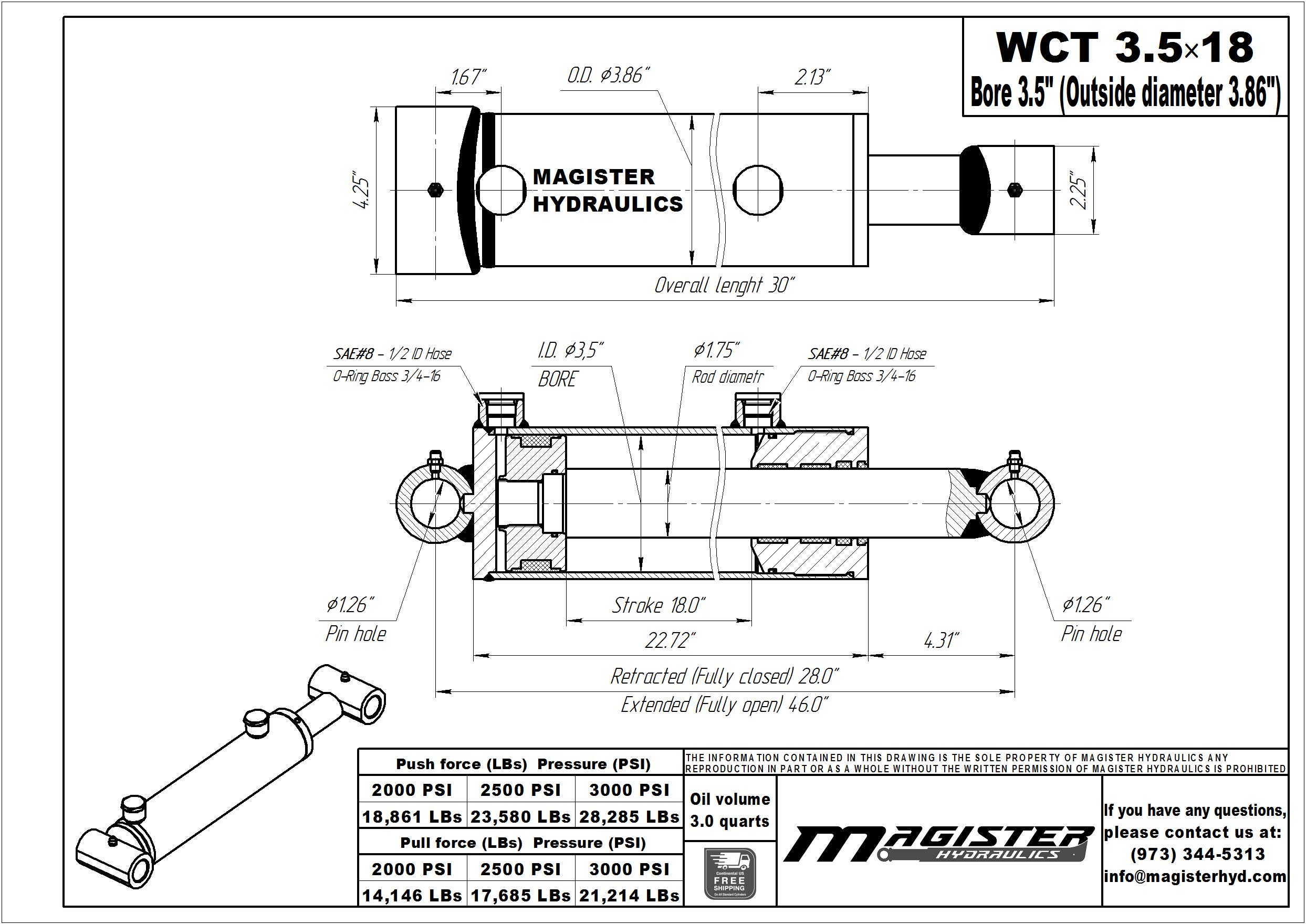

Bore : 3.5 in
Outer Dia. (⌀) : 3.86 in
Stroke : 18 in
Rod Dia. (⌀) : 1.75 in
Port Size : SAE 8
Pin Dia. (⌀) : 1.25 in

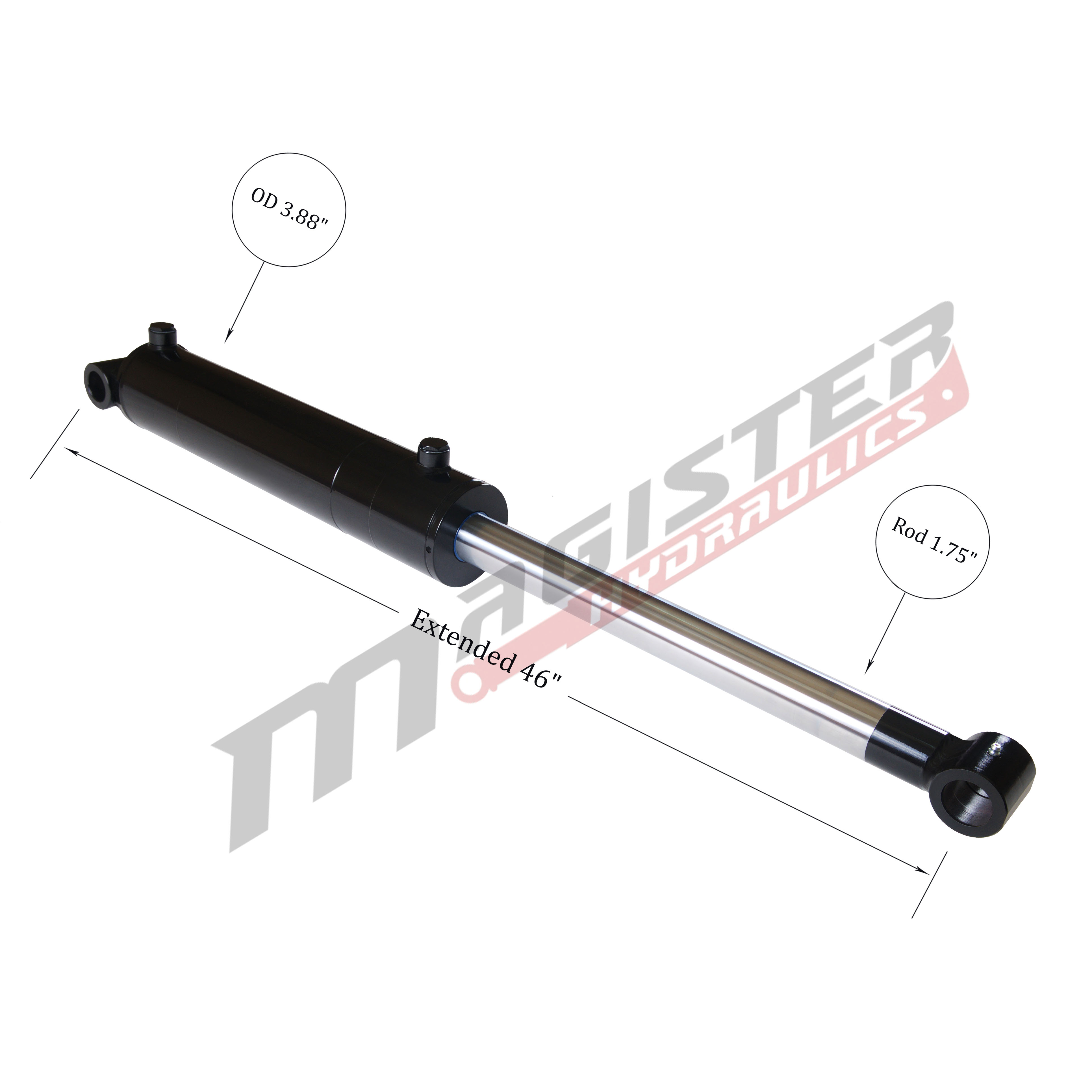

Extended : 46 in

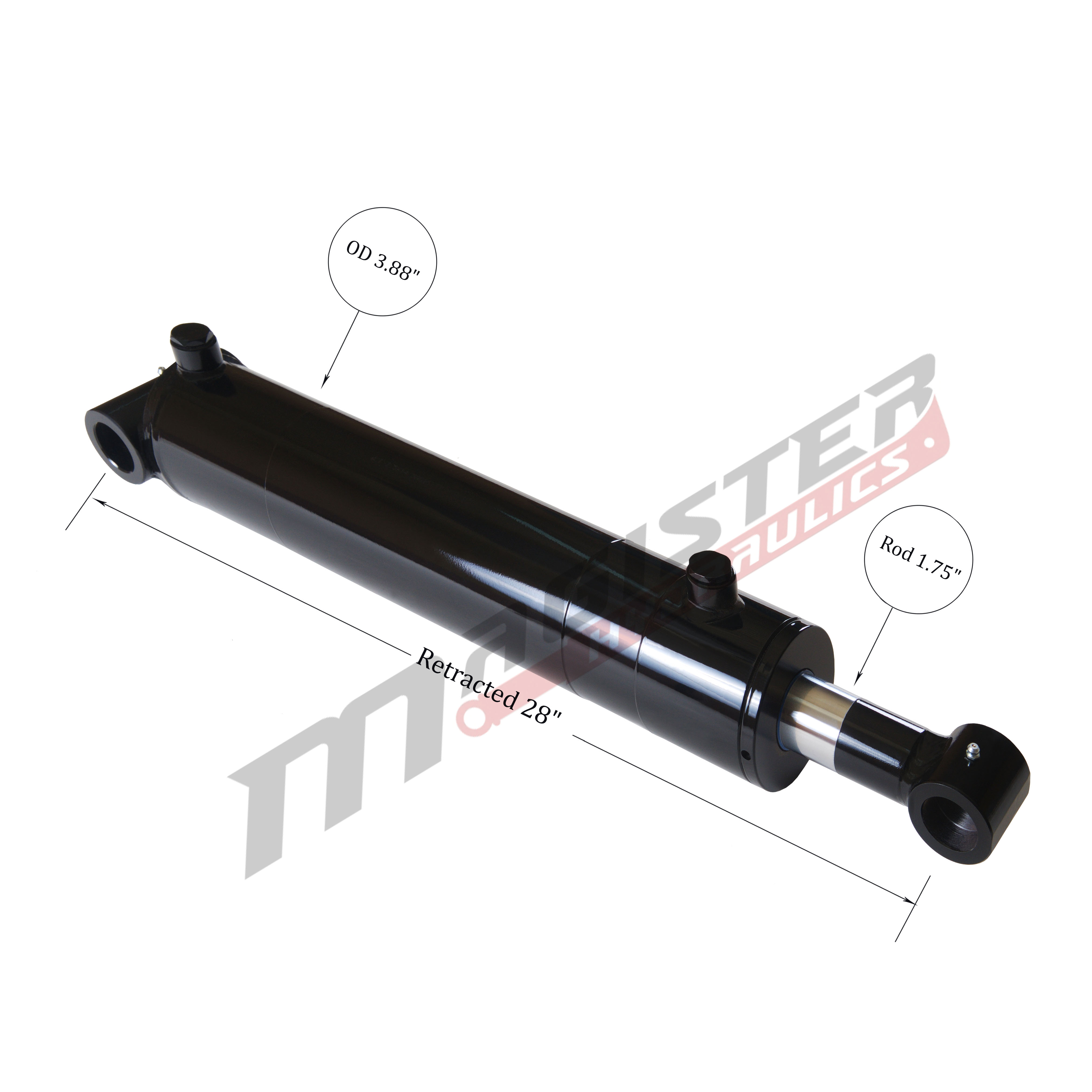

Retracted : 28 in
Overall length : 30 in
Pressure : 3500 PSI
Column Load : 28,800 LBs
Oil Volume : 3 QTs
Brand : Magister Hydraulics
Design : Welded

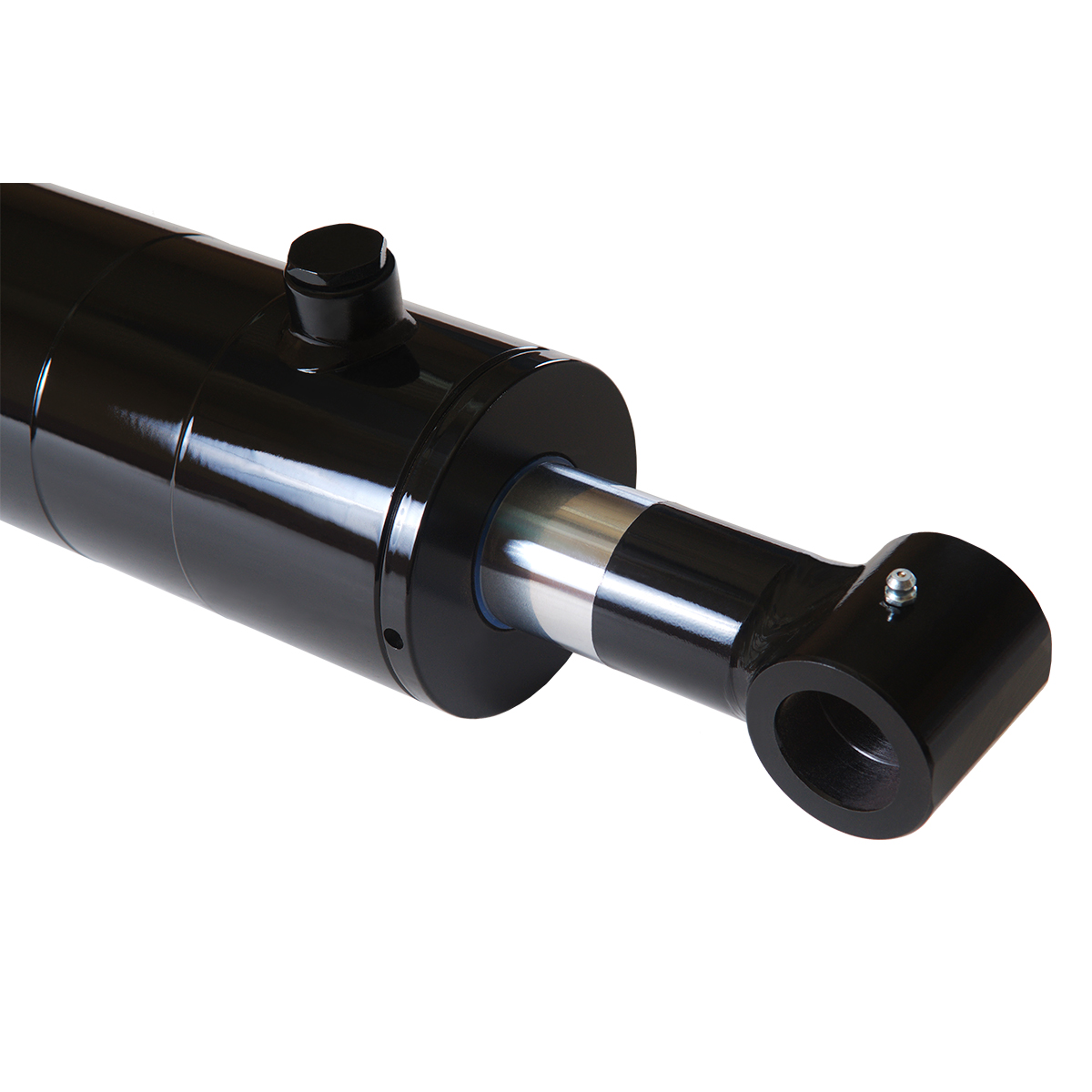

Rod Type : Chrome Plated

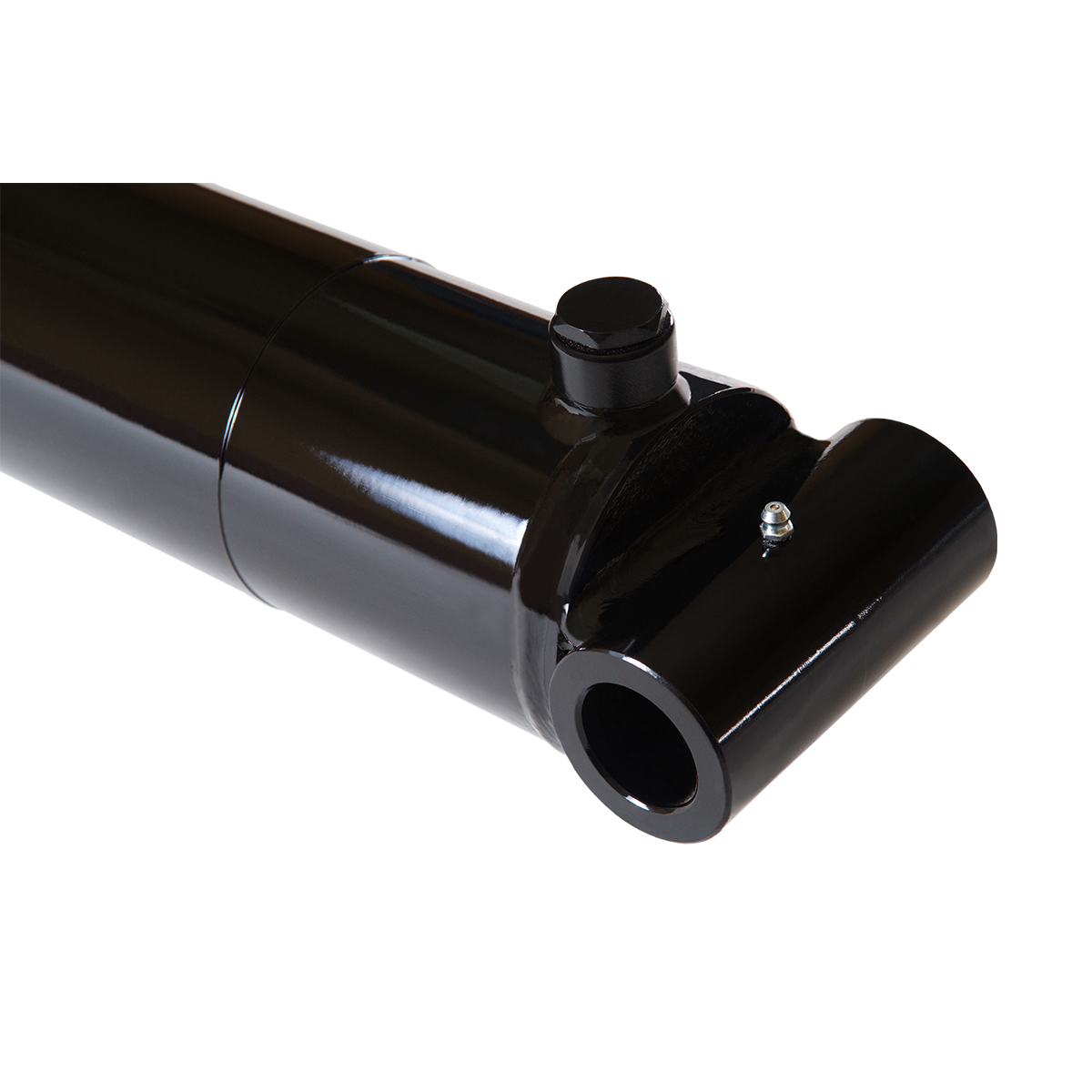

Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 44 LBs
    GTIN : 857743006086

    Volume discounts

    4+ PRICE EA -5%
    $304.00
    8+ PRICE EA -10%
    $288.00
    Out of stock

    Out of stock

    Free Shipping

    Description

    Designed for maximum performance and durability, the heavy-duty welded Cross Tube Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, industrial, and construction applications. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 3.5-inch bore and 18-inch stroke with cross tube ends with 3500 PSI. Due to their construction, these hydraulic rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The cross-tube cylinders serve as an excellent replacement part for front-end loaders, mainly for John Deere, Kubota, Massey Ferguson, Mahindra, and others.

    Key Features:

          • – Extreme load capacity: Welded cross tube ends, ⌀ 3.86″ honed cold-drawn tubing, ⌀ 1.75″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 18″ stroke.
          • – Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, excavators, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder.
          • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
          • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
          • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
          • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
          • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
          • – 2-year warranty
          • – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
          • – Made in Europe.

    Before purchase, please take the proper measurements:

      • – The diameter of the bore (please specify inside or outside measurement).
      • – The diameter of the rod and pin holes.
      • – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
      • – The width on each mounting end of the cylinder where the pins slide through.
