2 spool x 11 GPM hydraulic control valve


* Wholesale Discount is available for this product if you purchase 4 or more products.
HCV 2x11
Number of Spools :
Flow :
11 GPM
Pressure :
3600 PSI
Inlet Port :
SAE 10
Spool Type :
4-way 3 pos Open Center
Outlet Port :
SAE 10
Spool Action :
3-pos Spring center
Working Ports :
Brand :
4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

151 in stock

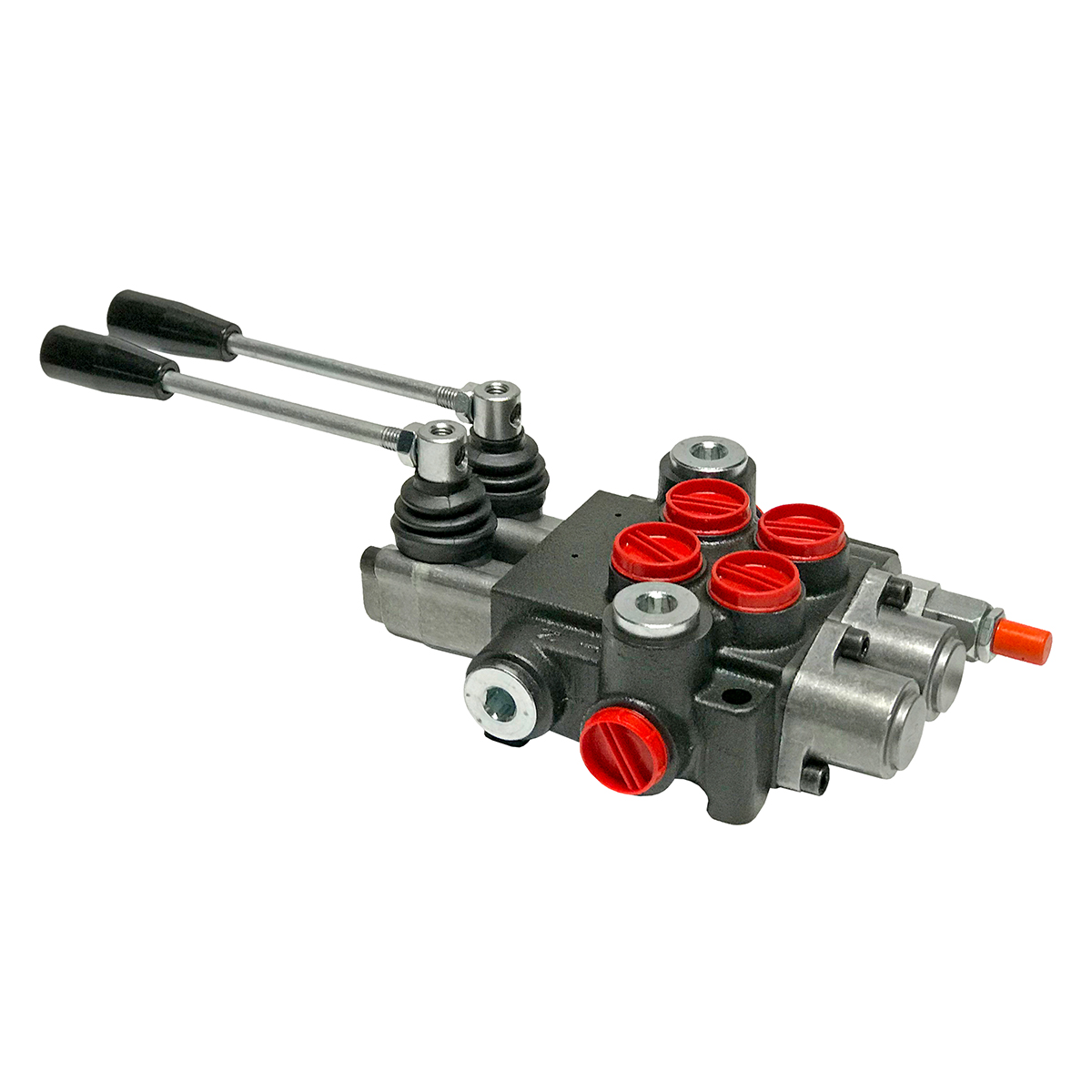

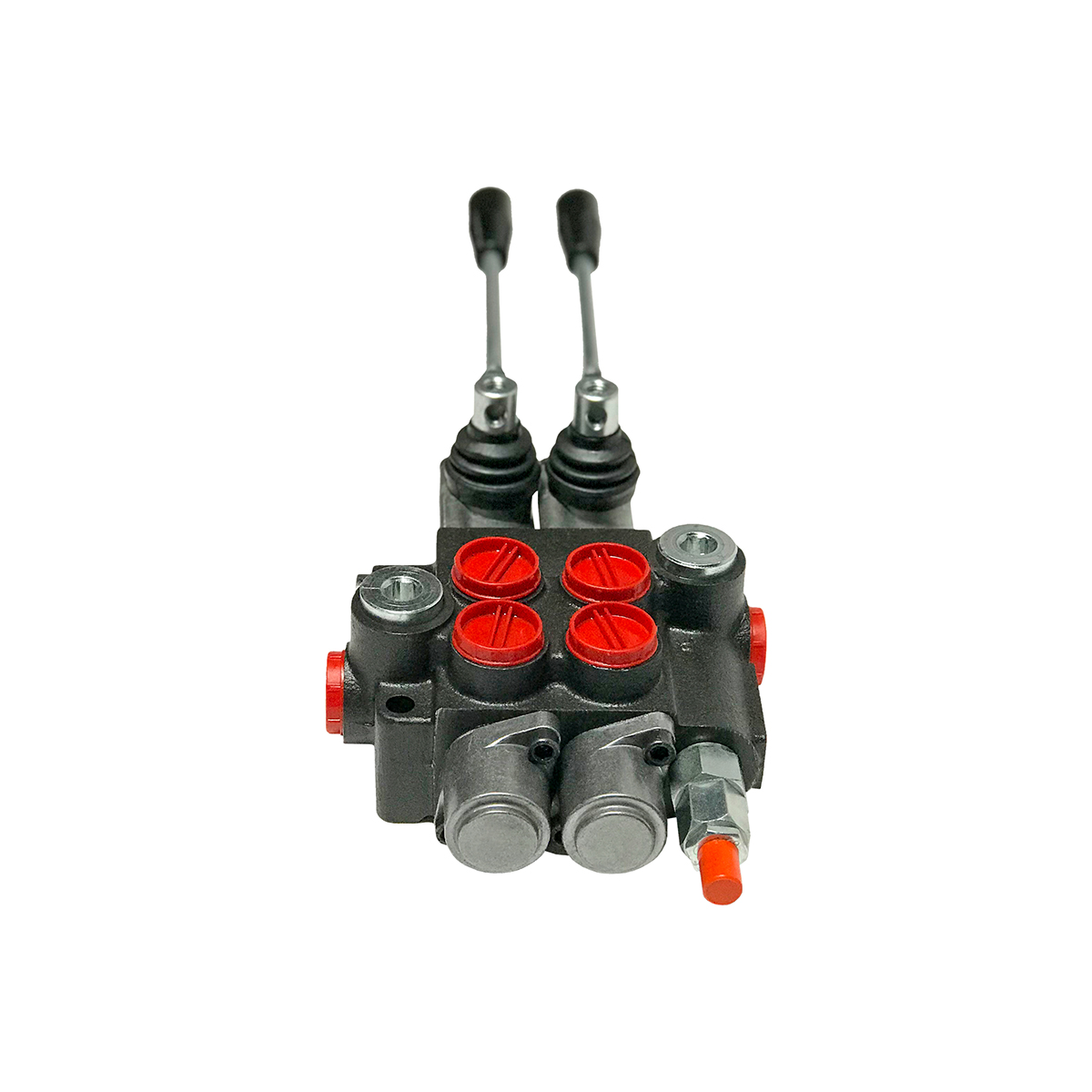

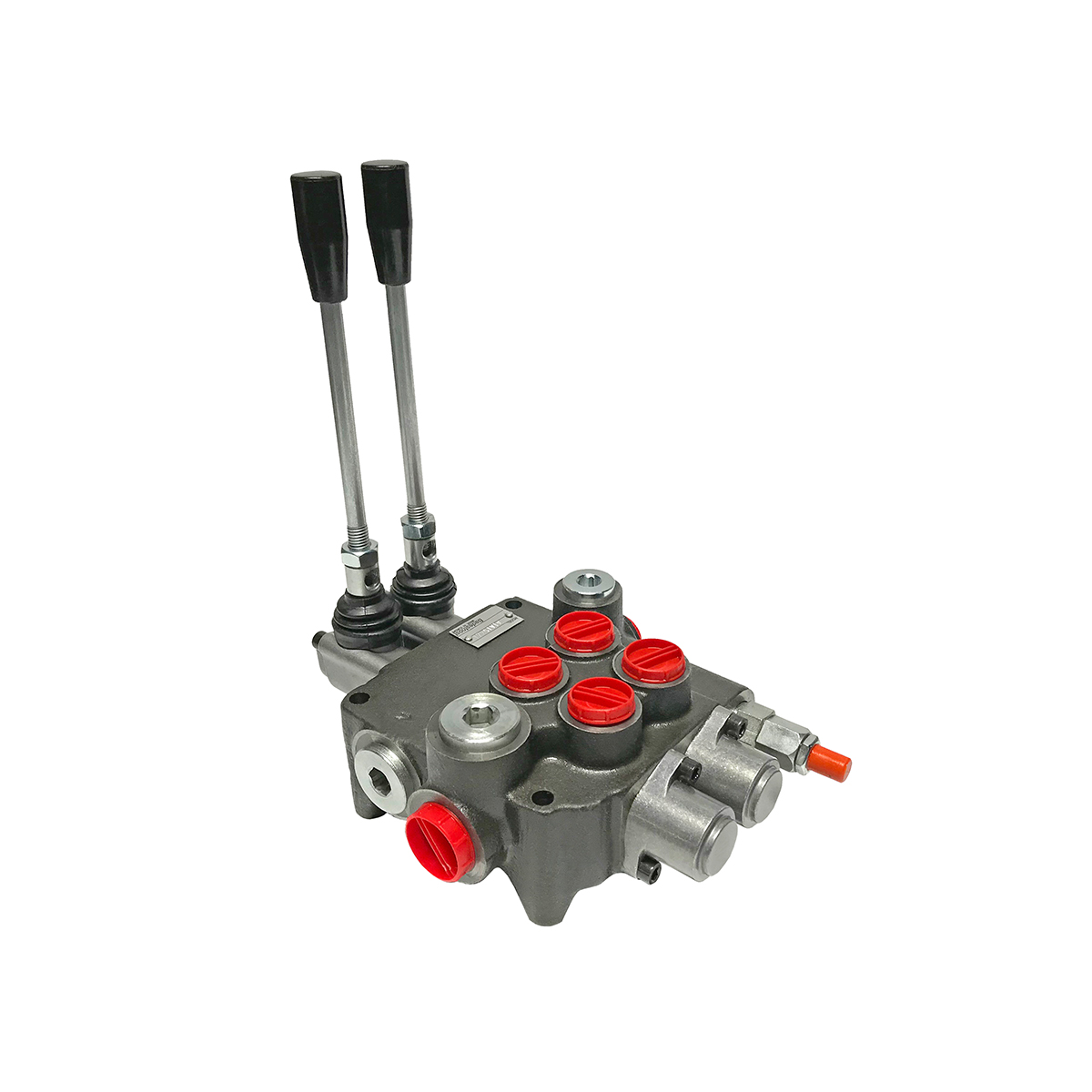

2 spool x 11 GPM hydraulic control valve with max pressure of 3600 PSI. Heavy-duty hydraulic valve, durable cast iron monoblock body, free ground shipping & 1-year warranty. This control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps, hydraulic cylinders, motors, tanks, etc. Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F. Tariff free control valve. Excellent replacement for small tractors, tractor loaders, log splitters, forklifts and tow trucks.
Mounting with 2 bolts M8 size. Handles can be installed vertically or horizontally, included with control valve.


We provide volume discounts for all our standard Hydraulic control valves. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE Hydraulic control valves.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

10 thoughts on “2 spool x 11 GPM hydraulic control valve

  1. I bought this to add a third hydraulic function on my John Deere 2305. I connected it to the rear remotes (where backhoe connects) to control either a hydraulic top link on the 3ph or a grapple on the loader.

  2. Replaced a leaking unit that was a much larger and much more expensive control valve. This unit performs better than the old unit ever did.
