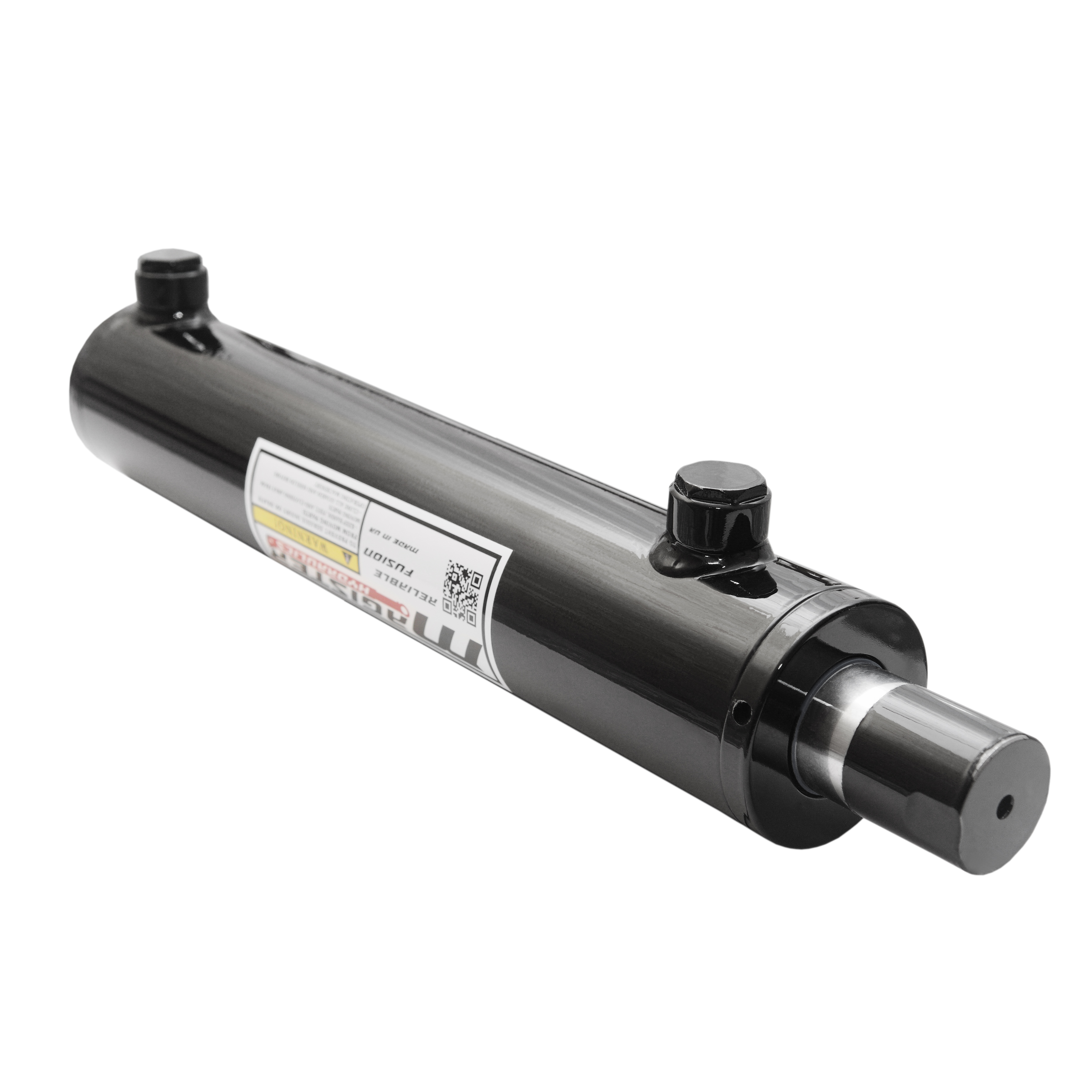

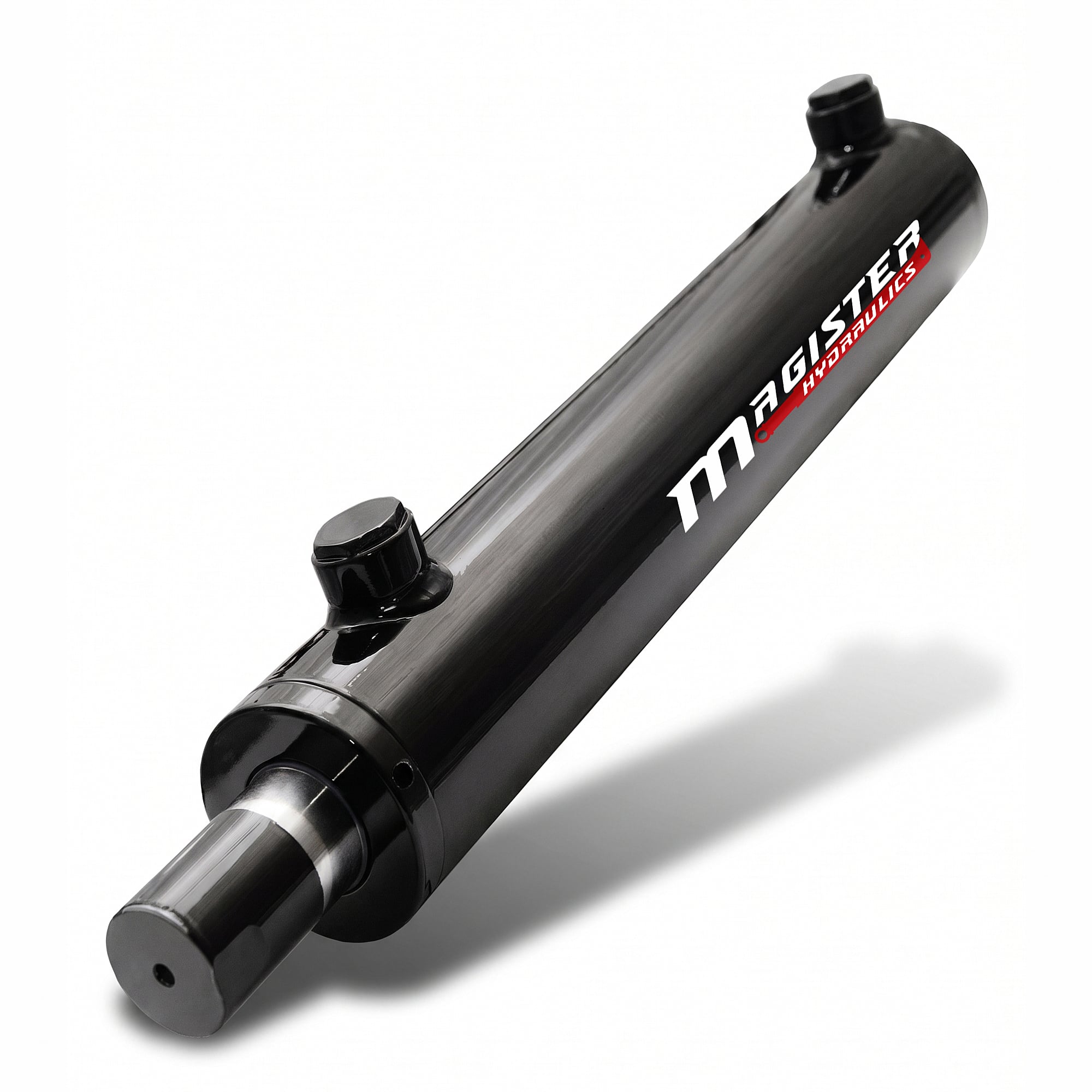

2" bore x 10" stroke universal hydraulic cylinder
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WUC 2x10

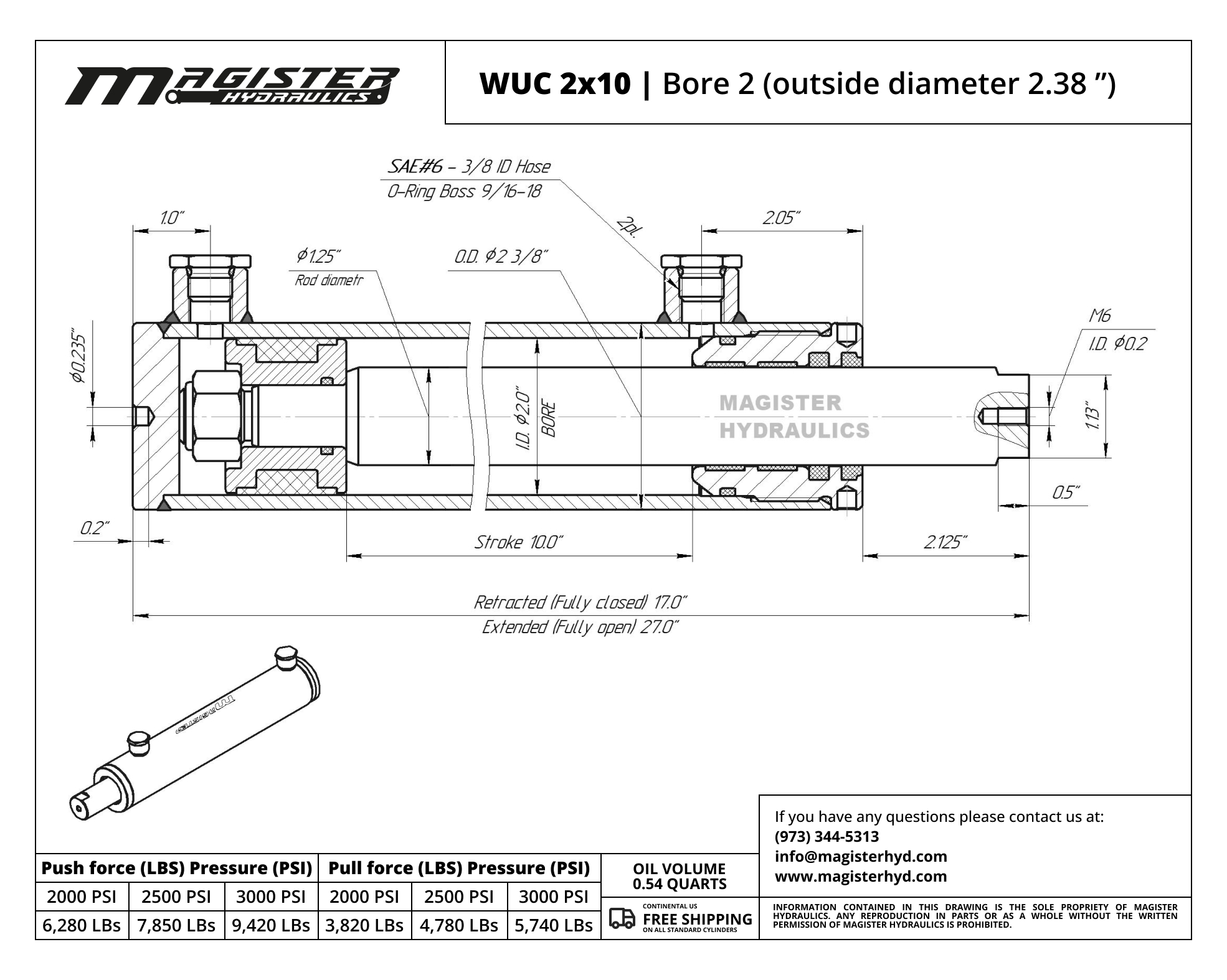

|Bore :||2 inch||OD :||2.38"||Stroke :||10” Stroke Hydraulic Cylinders||Rod :||1.25"||Port Size :||SAE 6||Pin :||n/a||Extended :||27"||Retracted :||17"||Overall length :||16"||Pressure :||3500 PSI||Column Load (LBs) :||9,400||Oil Volume (quarts) :||0.54||Brand :||Magister Hydraulics|
1+ PRICE EA
4+ PRICE EA -5%
10+ PRICE EA -10%
11 in stock
- 2″ bore x 10″ stroke universal hydraulic cylinder 3500 PSI.These universal cylinders are a perfect replacement for discontinued hydraulic cylinders and cylinders with rare or hard to find strokes. It’s flexible design allows to mount any mouting ends such as cross tubes, clevis, flange mounts, foot mounts, trunnion mounts, pin eye, tangs, Lug mounts, speherical rod eye/ swivel eye and other types of mounts on either the welded or rod end of the Hydraulic Cylinder. May be compatible with industrial leading brands like John Deere, Kubota, Massey Ferguson, Bonatti, New Holland and many more. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
- Color: Black.
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Made in Europe.
