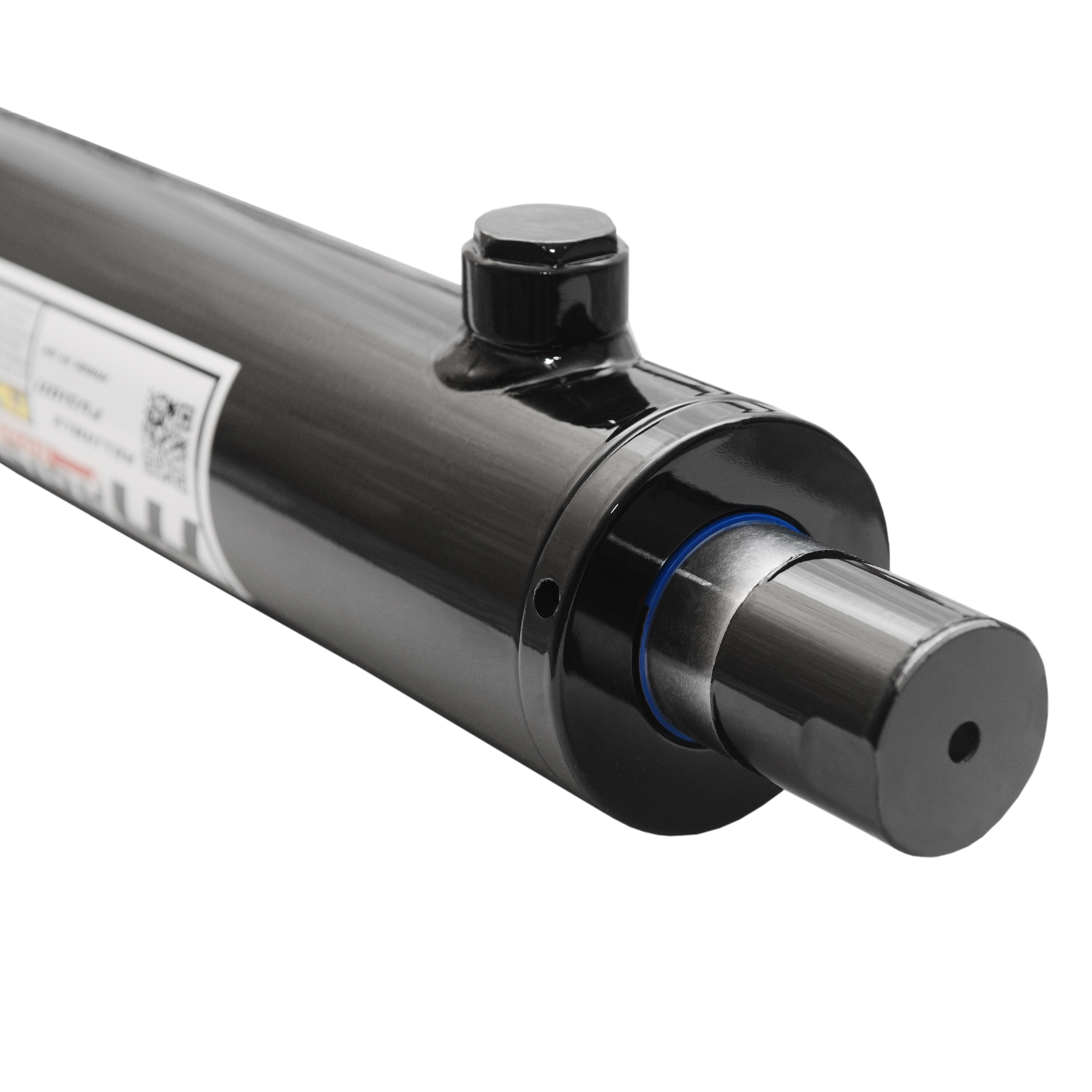

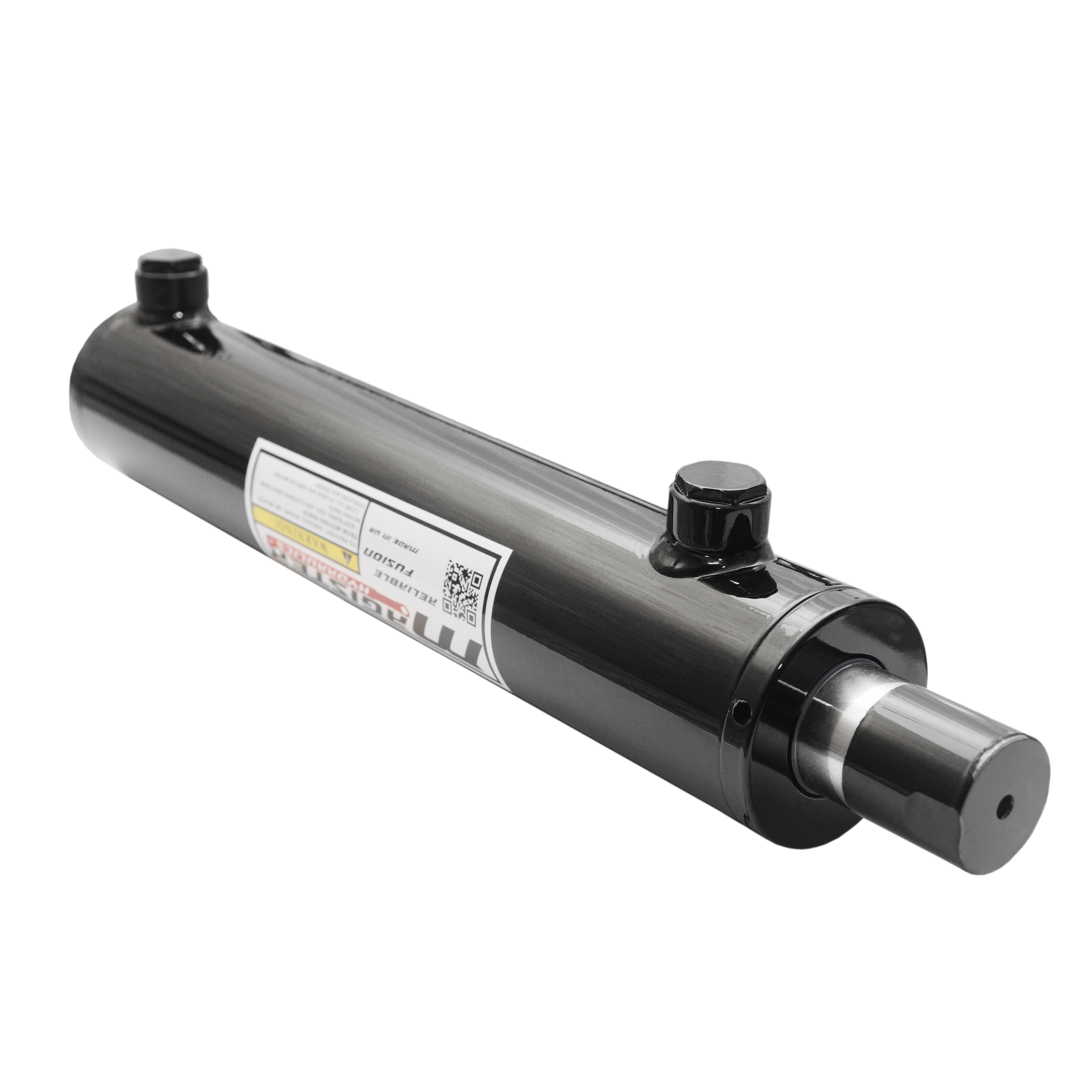

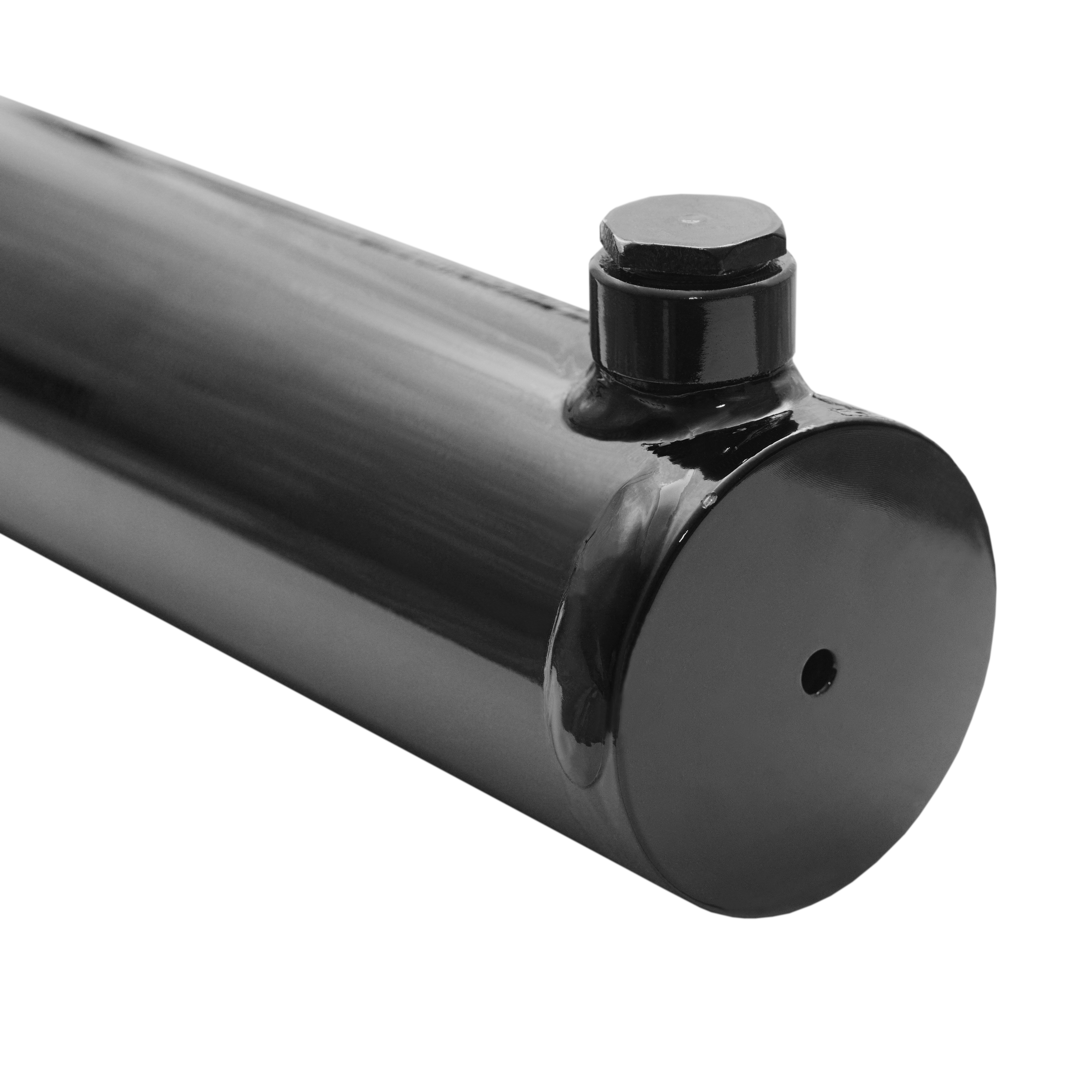

2" bore x 17" stroke universal hydraulic cylinder
$184.50
![](/wp-content/themes/magisterhyd/img/pay-pal-pay-later-img.png)
SKU: WUC 2x17

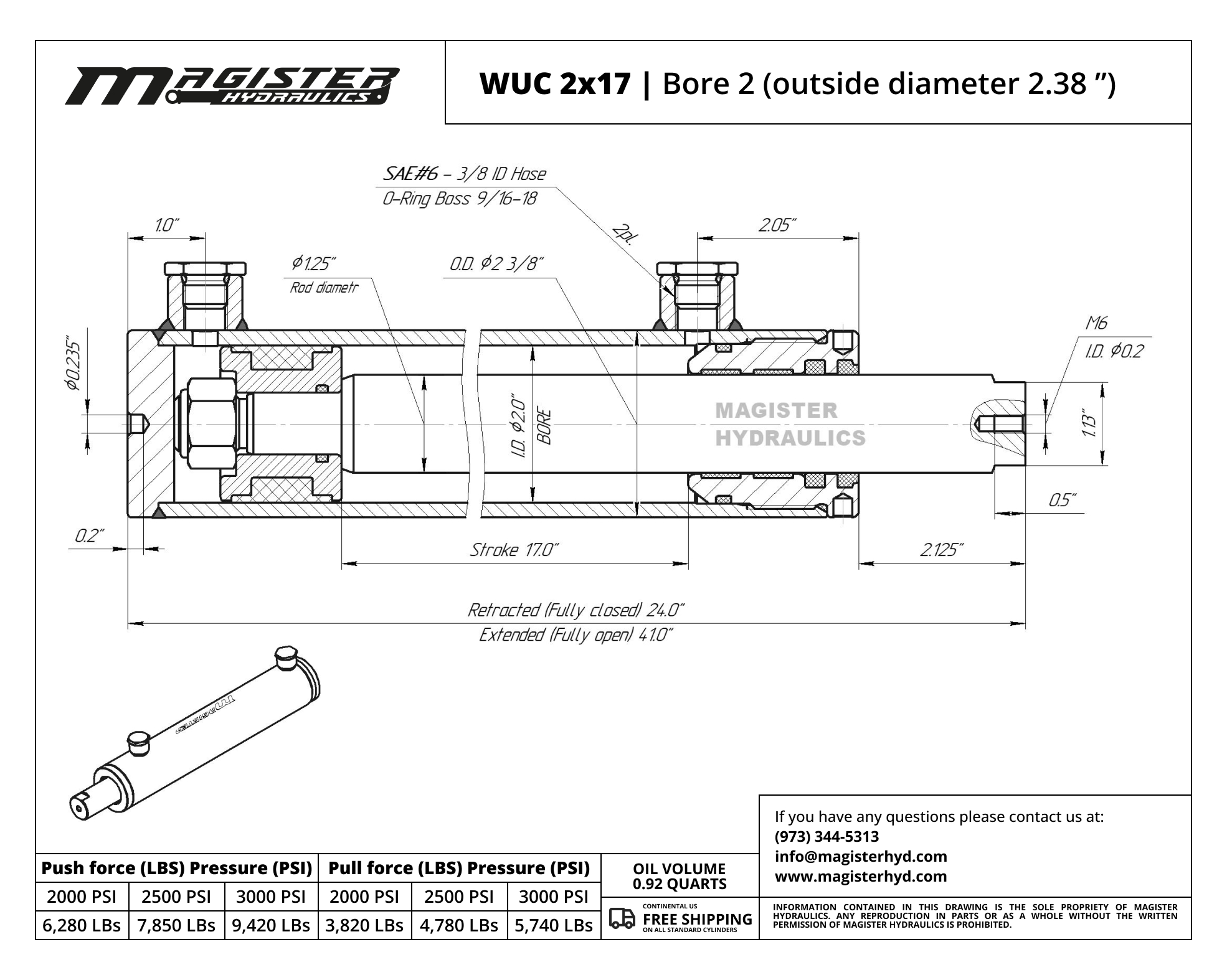

Bore : | 2 in | Outer Dia. (⌀) : | 2.38 in | Stroke : | 17 in | Rod Dia. (⌀) : | 1.25 in | Port Size : | SAE 6 | Pin Dia. (⌀) : | n/a | Extended : | 41 in | Retracted : | 24 in | Overall length : | 24 in | Pressure : | 3500 PSI | Column Load : | 9,400 LBs | Oil Volume : | 0.92 QTs | Brand : | Magister Hydraulics |
---|---|
GTIN : | 850033934052 |
Volume discounts
1+ PRICE EA
$184.50
4+ PRICE EA -5%
$175.28
8+ PRICE EA -10%
$166.05
In stock
18 in stock
Description
![](/wp-content/uploads/2019/11/shipping-2.jpg)
- 2″ bore x 17″ stroke universal hydraulic cylinder 3500 PSI.These universal cylinders are a perfect replacement for discontinued hydraulic cylinders and cylinders with rare or hard to find strokes. It’s flexible design allows to mount any mouting ends such as cross tubes, clevis, flange mounts, foot mounts, trunnion mounts, pin eye, tangs, Lug mounts, speherical rod eye/ swivel eye and other types of mounts on either the welded or rod end of the Hydraulic Cylinder. May be compatible with industrial leading brands like John Deere, Kubota, Massey Ferguson, Bonatti, New Holland and many more. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
