2 bore x 15 stroke hydraulic cylinder, welded universal double acting cylinder | Magister Hydraulics
On sale!
Zoom

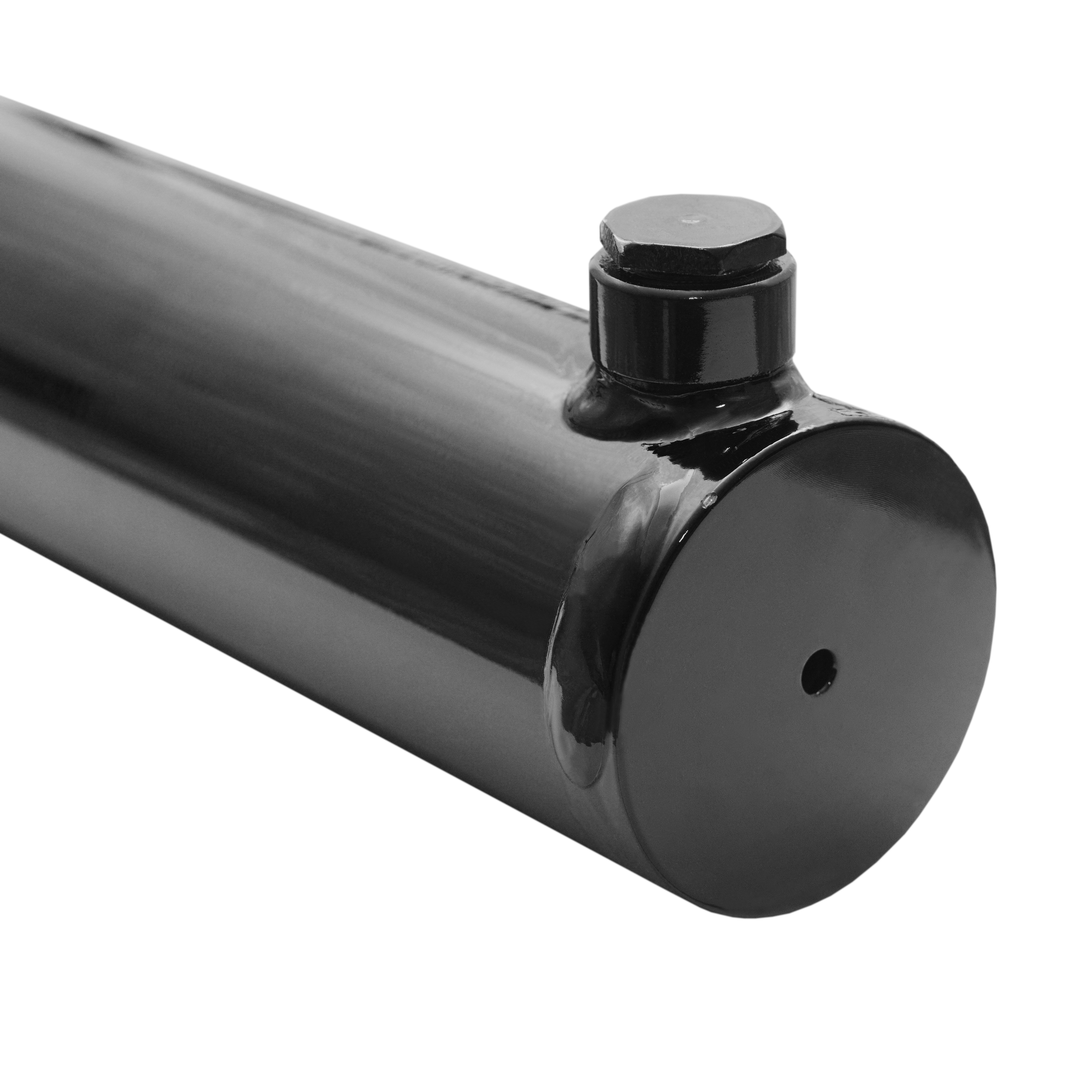

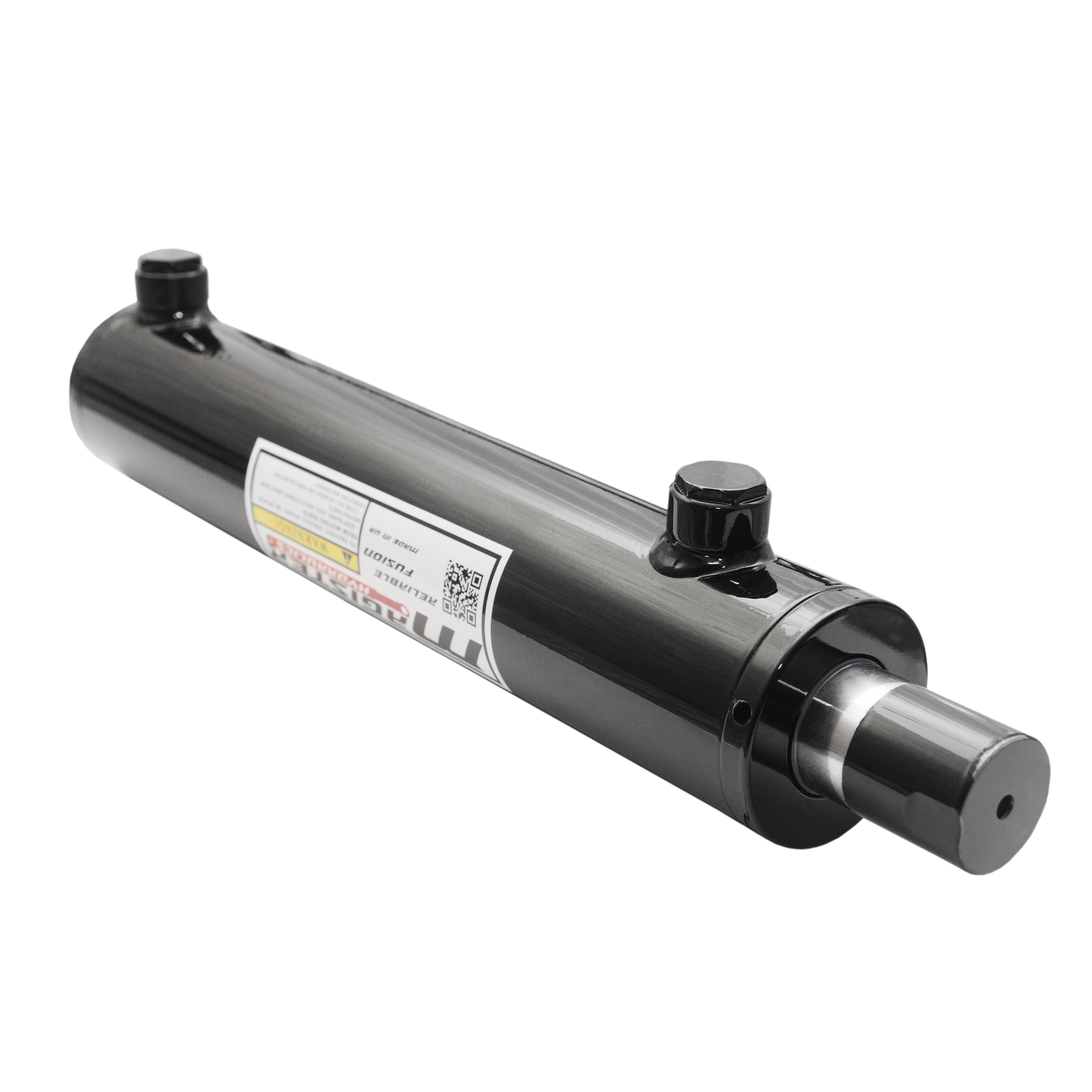

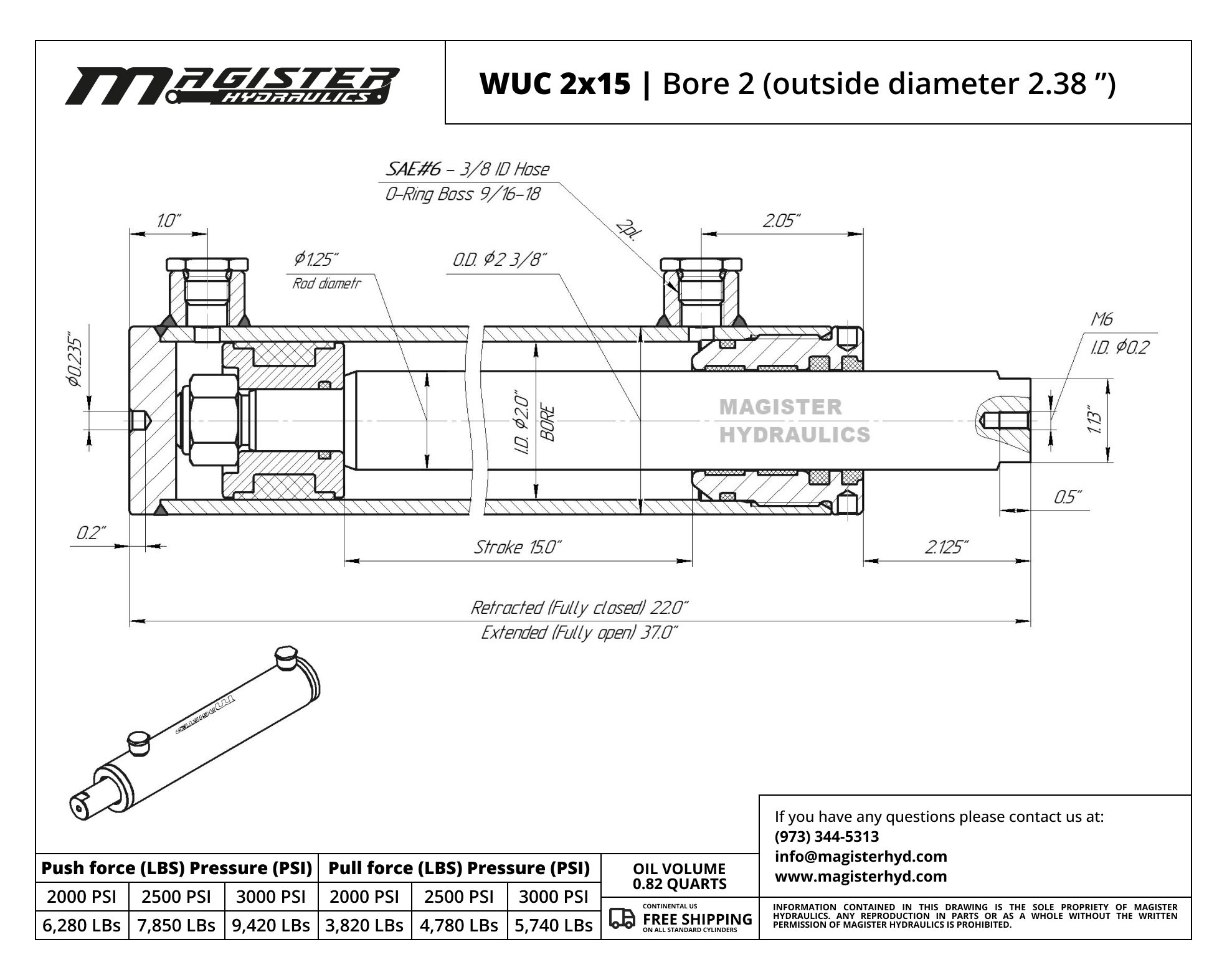

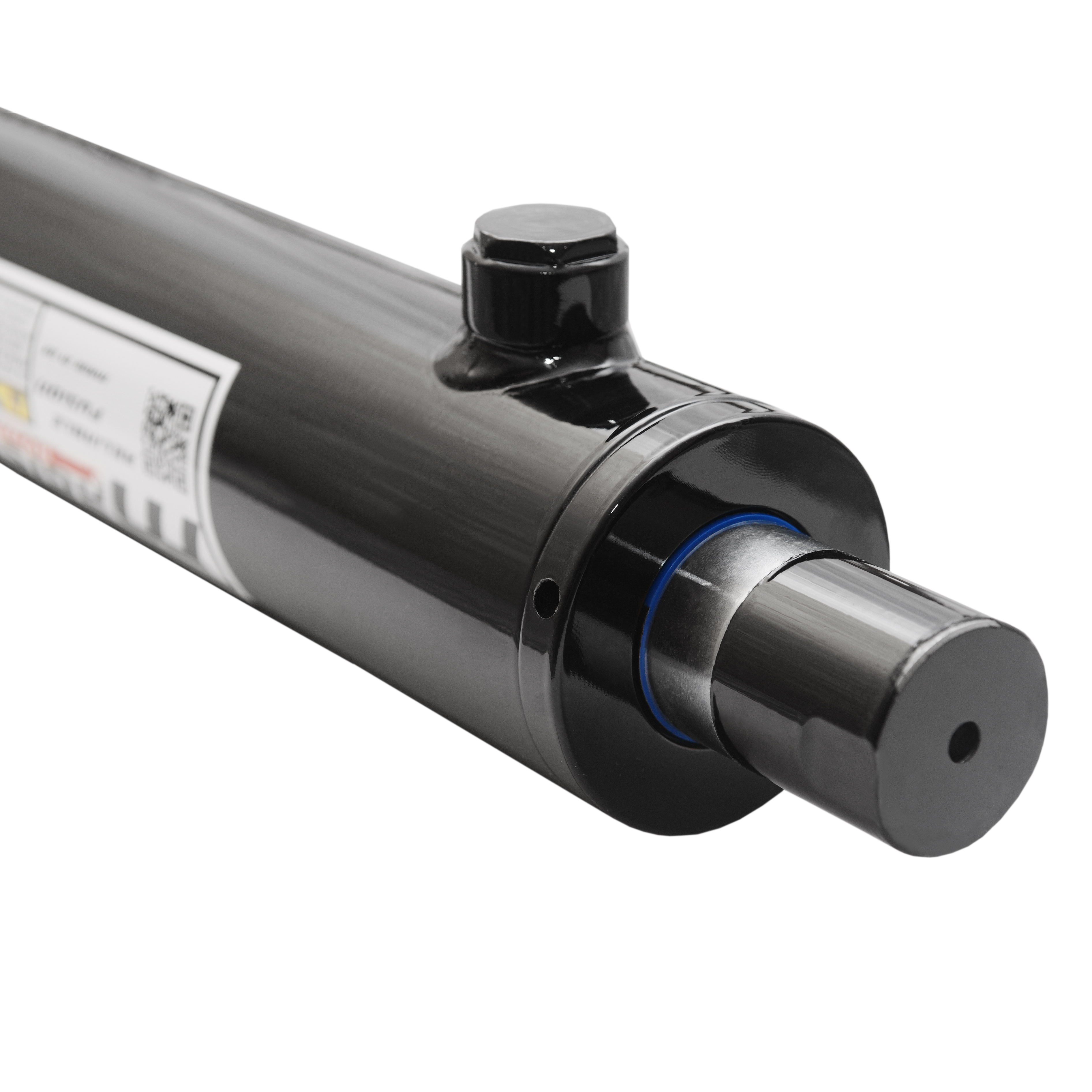

2" bore x 15" stroke universal hydraulic cylinder
2" bore x 15" stroke universal hydraulic cylinder
2" bore x 15" stroke universal hydraulic cylinder
2" bore x 15" stroke universal hydraulic cylinder

2" bore x 15" stroke universal hydraulic cylinder

$201.00

Pay in 4 interest-free payments of $50.25
SKU: WUC 2x15
Bore : 2 in
Outer Dia. (⌀) : 2.38 in
Stroke : 15 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : n/a
Extended : 37 in
Retracted : 22 in
Overall length : 22 in
Pressure : 3500 PSI
Column Load : 9,400 LBs
Oil Volume : 0.82 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Universal
Action :
  • Double Acting
  • Weight : 17 LBs
    GTIN : 850033934038
    In stock

    17 in stock

    Description

    • 2″ bore x 15″ stroke universal hydraulic cylinder 3500 PSI.These universal cylinders are a perfect replacement for discontinued hydraulic cylinders and cylinders with rare or hard to find strokes. It’s flexible design allows to mount any mouting ends such as cross tubes, clevis, flange mounts, foot mounts, trunnion mounts, pin eye, tangs, Lug mounts, speherical rod eye/ swivel eye and other types of mounts on either the welded or rod end of the Hydraulic Cylinder. May be compatible with industrial leading brands like John Deere, Kubota, Massey Ferguson, Bonatti, New Holland and many more. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
