5" bore x 30" stroke log splitter hydraulic cylinder


Pay in 4 interest-free payments of $124.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WLS 5x30
Bore :5” Bore Hydraulic Cylinders
OD :5.5"
Stroke :30"
Rod :2"
Port Size :1/2" NPT
Pin :1-1/8" (base) & 9/16" (rod)

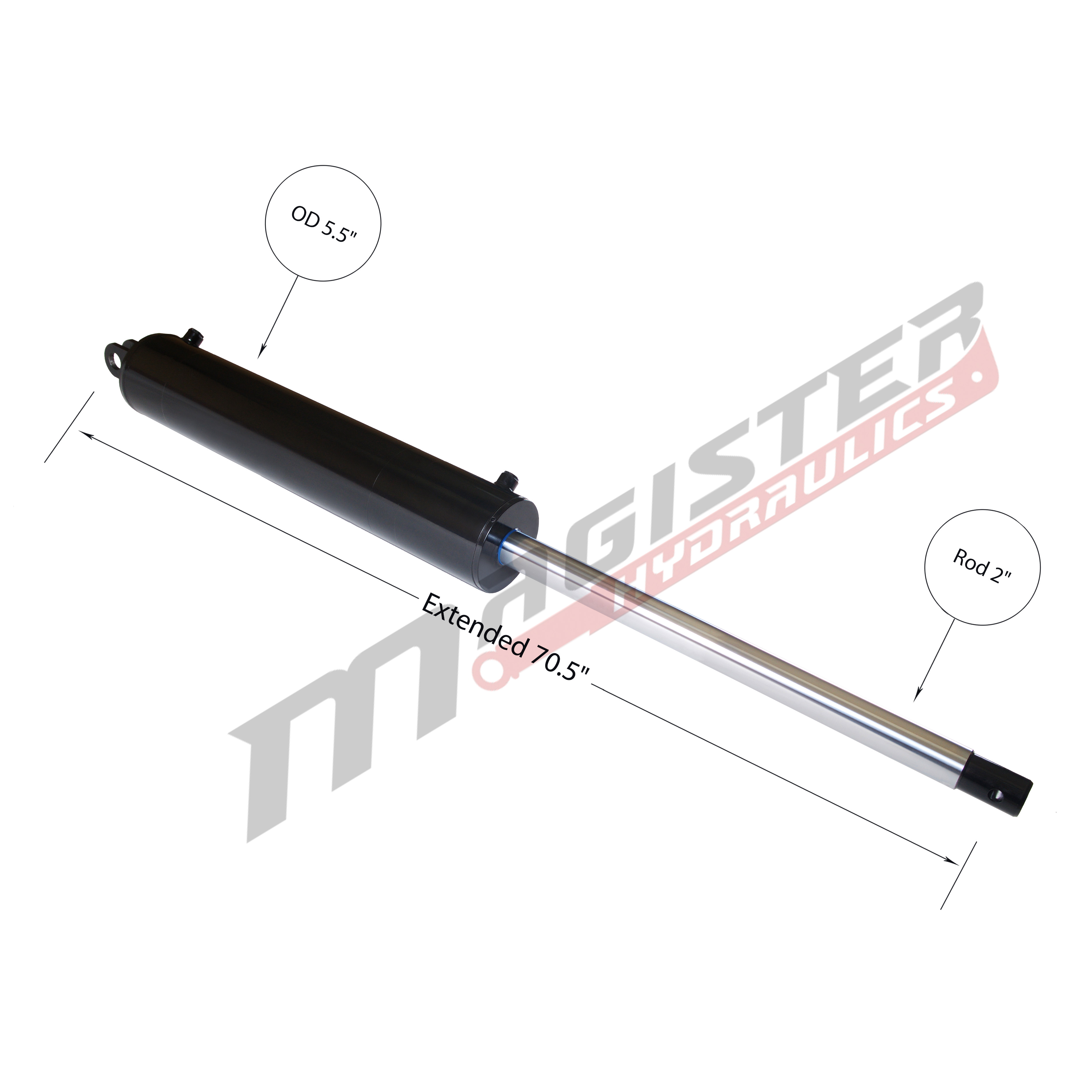

Extended :70.5"

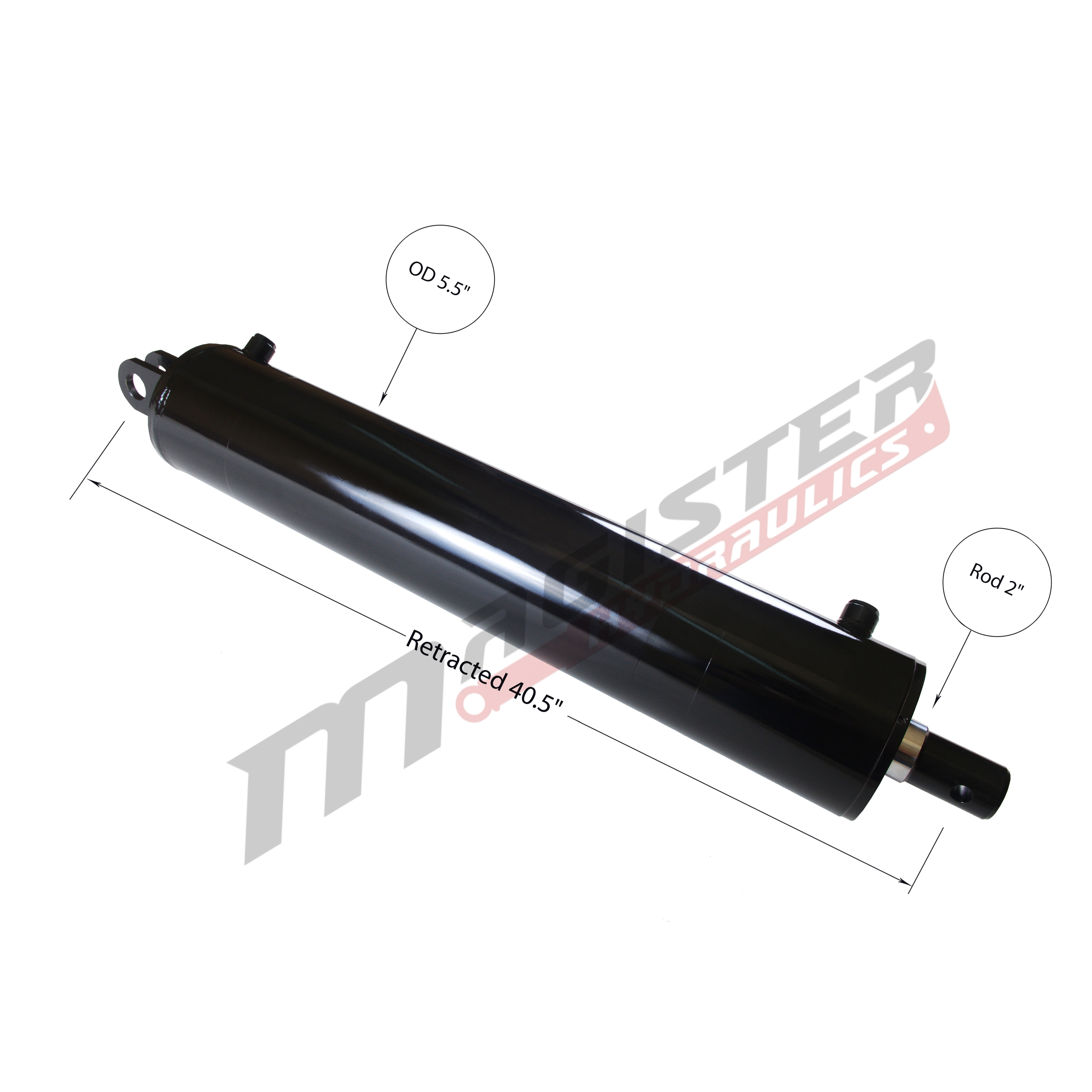

Retracted :40.5"
Overall length :42.7"
Pressure :3500 PSI
Column Load (LBs) :58,900
Oil Volume (quarts) :10.2
Brand :Magister Hydraulics
GTIN :850028143018
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

6 in stock

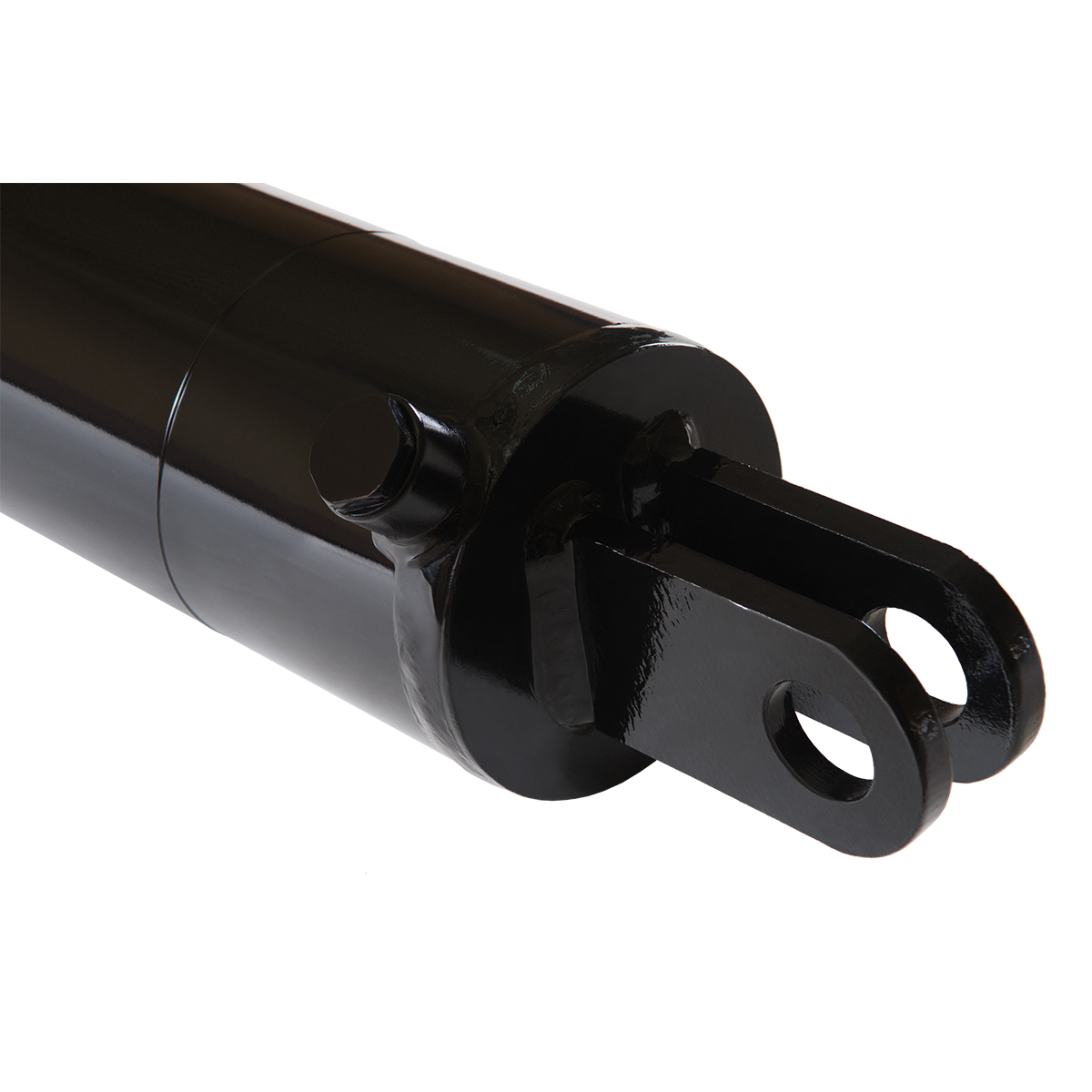

  • 5″ bore x 30″ stroke log splitter hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis end and pin through hole on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme winter conditions. Great replacement for use in different types of log splitting equipment such as gas log splitters, electric log splitters, 3 point tractor log splitters and skid steer log splitters.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
