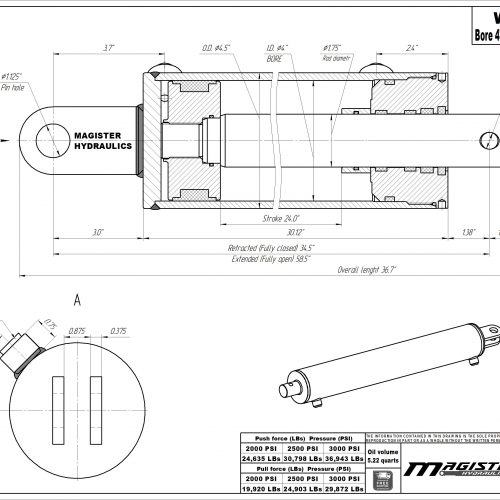

4" bore x 24" stroke log splitter hydraulic cylinder
$366.00

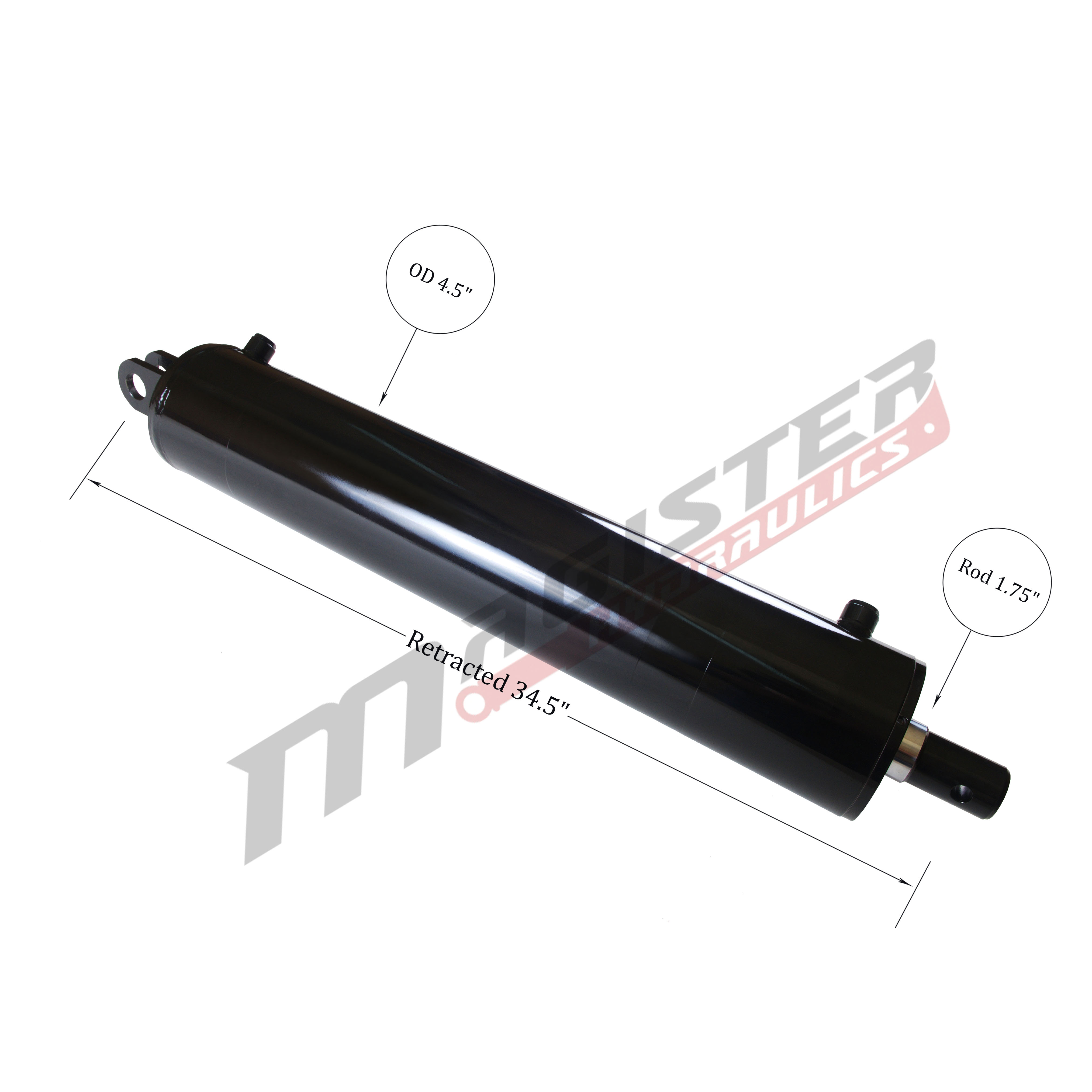

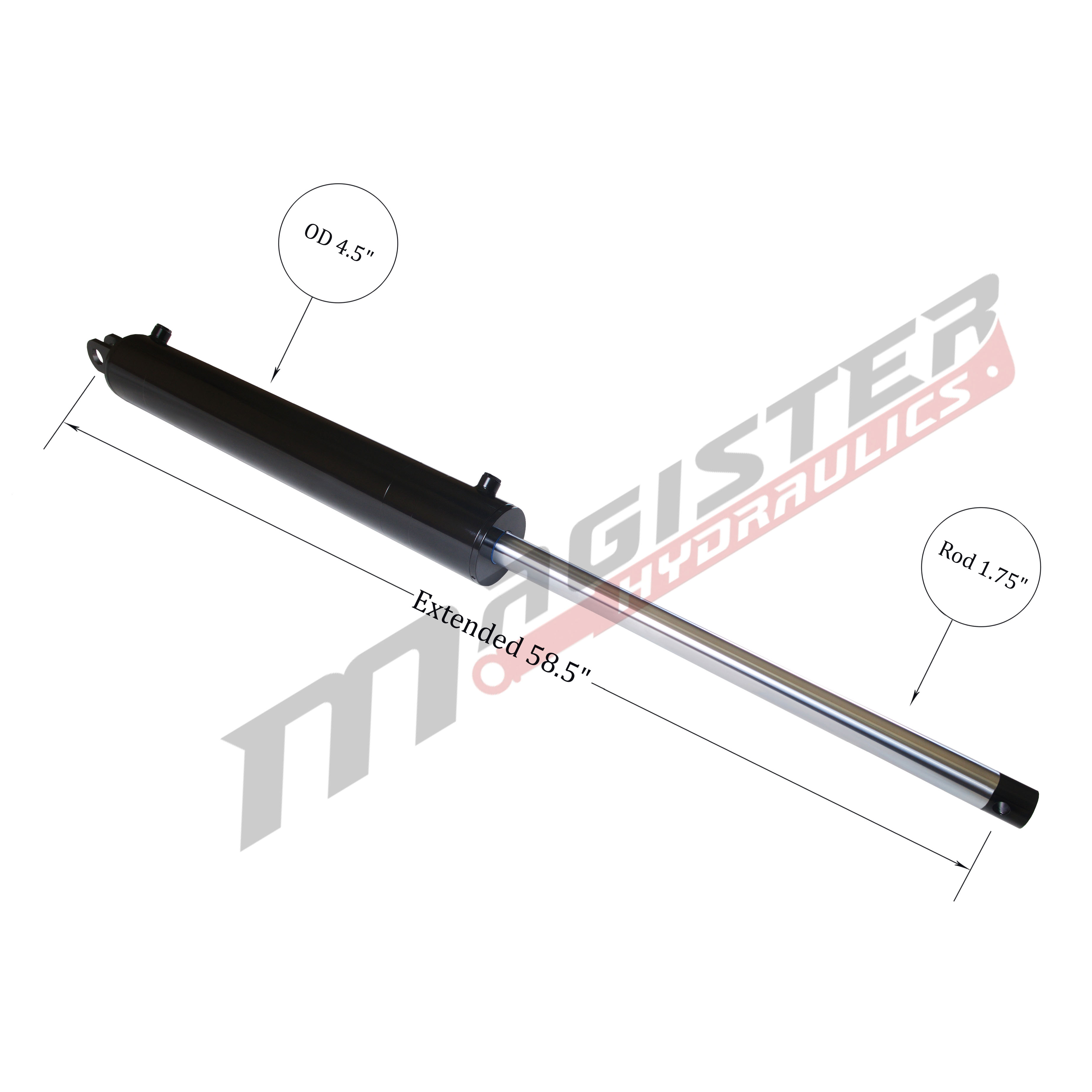

Pay in 4 interest-free payments of $91.50| Bore : | 4 in | Outer Dia. (⌀) : | 4.5 in | Stroke : | 24 in | Rod Dia. (⌀) : | 1.75 in | Port Size : | 1/2" NPT | Pin Dia. (⌀) : | 9/16 in | Extended : | 58.5 in | Retracted : | 34.5 in | Overall length : | 36.625 in | Pressure : | 3500 PSI | Column Load : | 36,000 LBs | Oil Volume : | 5.22 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Pin Hole | Action : | Weight : | 67 LBs |
|---|---|
| GTIN : | 854335007001 |
Volume discounts
103 in stock
Description
Built for strength and performance, the Magister Hydraulics Welded Log Splitter Cylinder features a 4-inch bore, 24-inch stroke, and is rated up to 3500 PSI. It comes equipped with a welded clevis base mount and a drilled pin-hole rod end for secure, stable installation. This universal replacement ram is compatible with a wide range of log splitter brands, including Champion, YARDMAX, CountyLine, Huskee, SuperHandy, BOSS, and others.
Key Features:
- Extreme Load Capacity: Welded clevis mount base end, ⌀ 4.5″ honed cold-drawn tubing, ⌀ 1.75″ chrome-plated rod (steel 1045) with drilled pin-hole rod end for easy mounting and top-quality piston seals make it capable of handling heavy loads with a 24″ stroke.
- Wide Range Hydraulic Applications: Ideal for wood processing tasks, this cylinder delivers high force for splitting logs efficiently and reliably. Commonly used in residential and commercial log splitters, it features a rod-end pin for secure attachment and easy integration into both horizontal and vertical splitter designs.
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
- Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
- 2-year warranty
- Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
- Made in Europe.
Before purchase, please take the proper measurements:
- The diameter of the bore (please specify inside or outside measurement).
- The diameter of the rod and pin holes.
- The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
- The width on each mounting end of the cylinder where the pins slide through.
