4" bore x 30" stroke log splitter hydraulic cylinder

$389.00

Pay in 4 interest-free payments of $97.25
* Wholesale Discount is available for this product if you purchase 4 or more products.

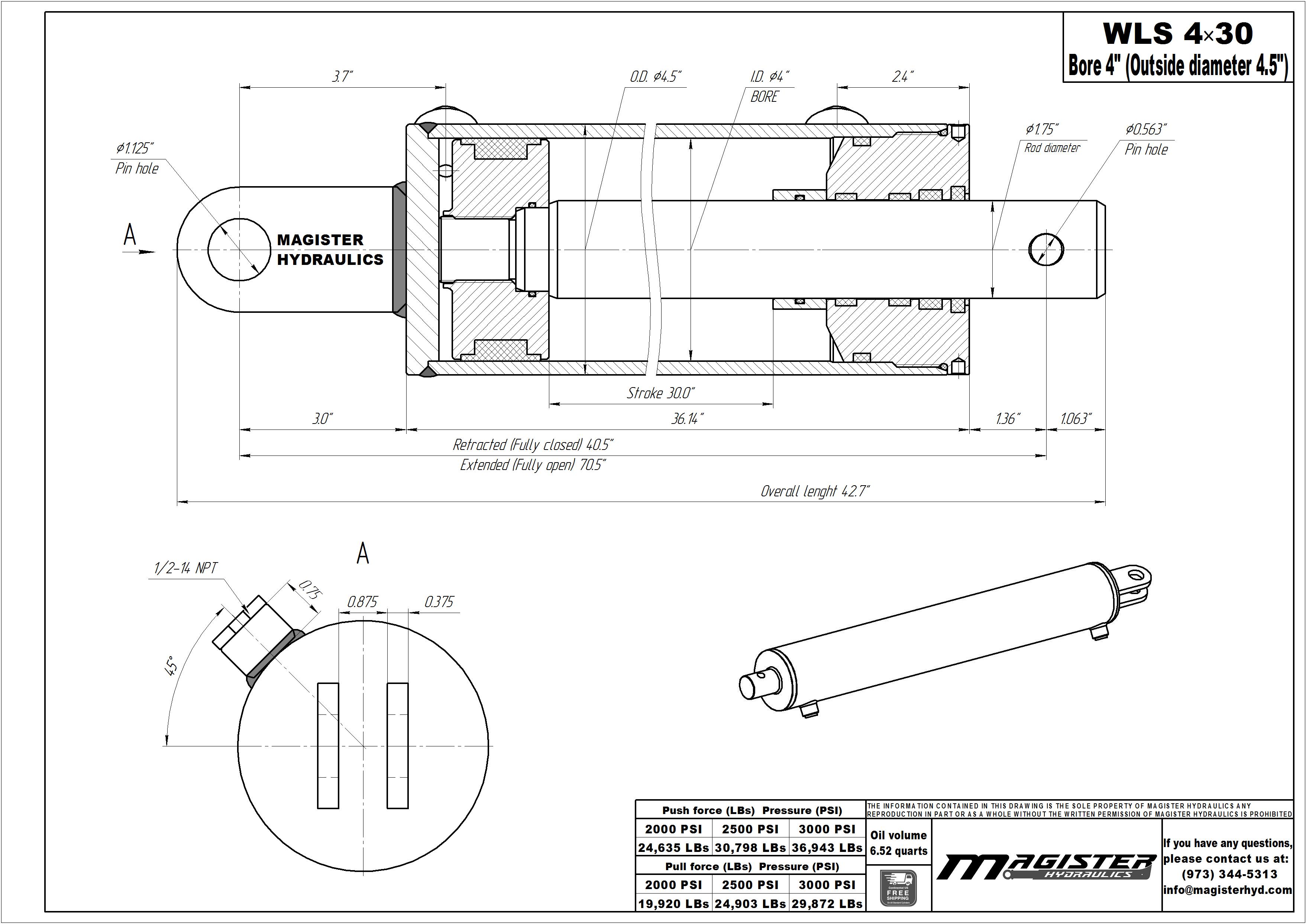

SKU: WLS 4x30
Bore : 4 in
Outer Dia. (⌀) : 4.5 in
Stroke : 30 in
Rod Dia. (⌀) : 1.75 in
Port Size : 1/2" NPT
Pin Dia. (⌀) : 9/16 in
Extended : 70.5 in

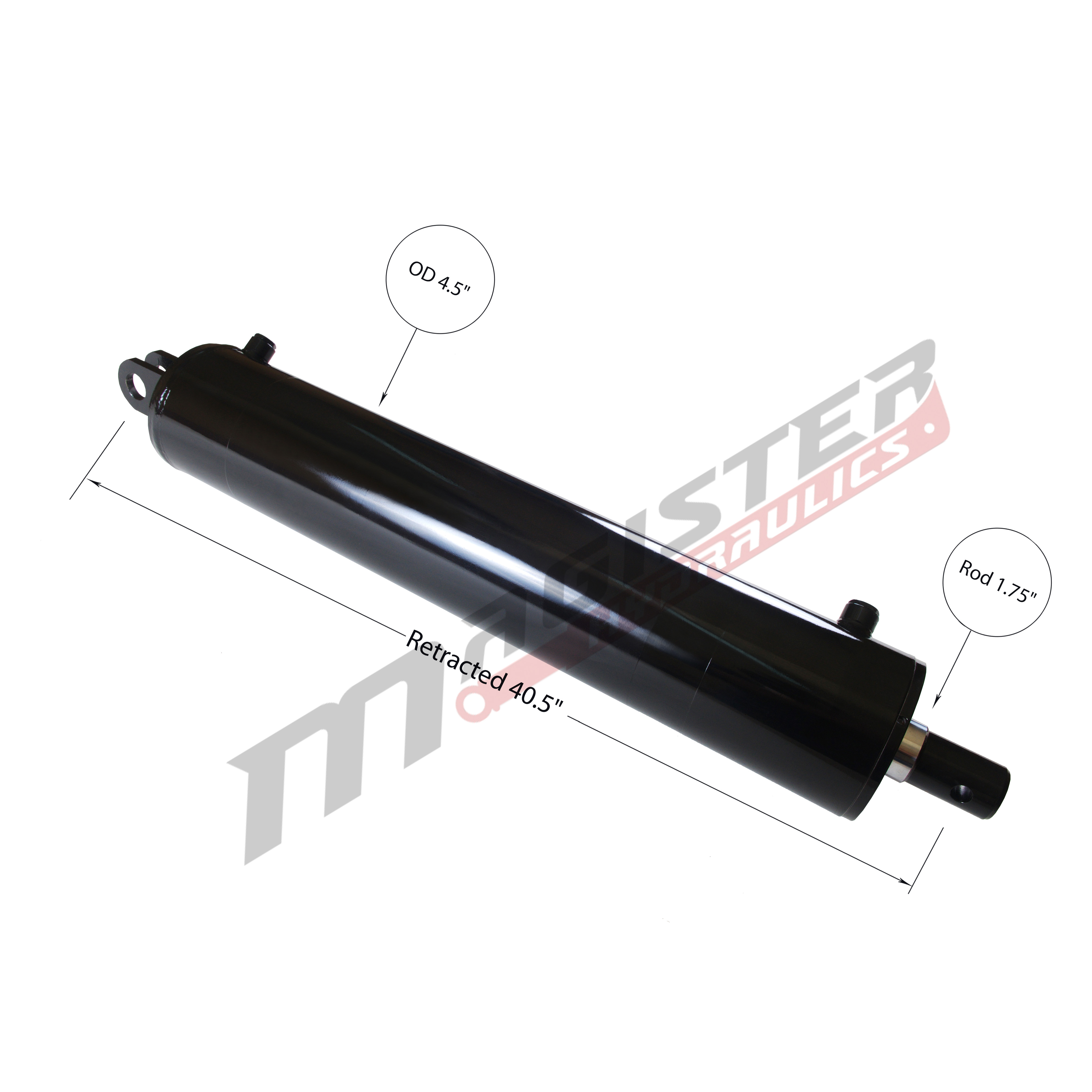

Retracted : 40.5 in
Overall length : 42.7 in
Pressure : 3500 PSI
Column Load : 36,000 LBs
Oil Volume : 6.52 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated

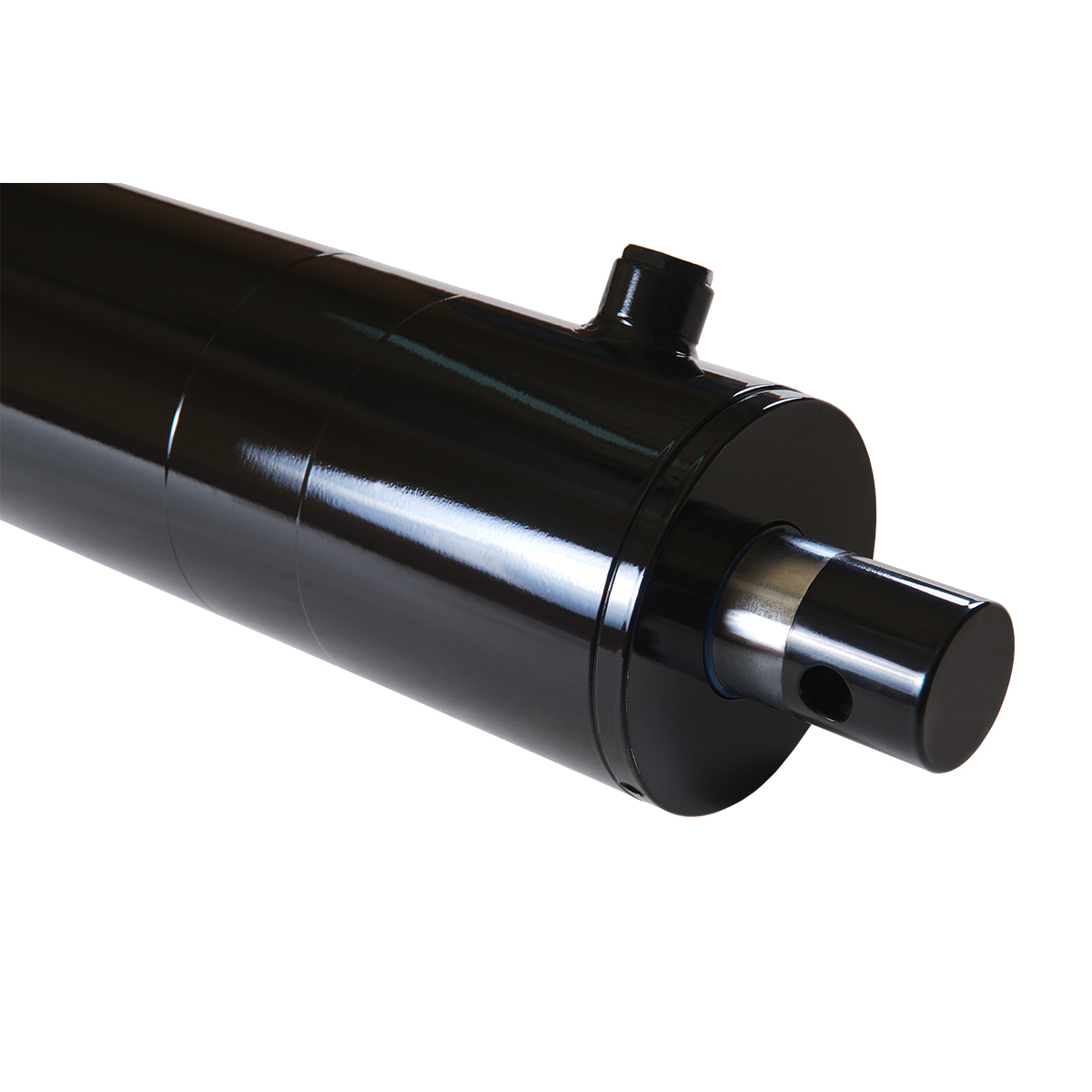

Rod End : Pin Hole
Action :
  • Double Acting
  • Weight : 75 LBs
    GTIN : 850028143001

    Volume discounts

    1+ PRICE EA
    $389.00
    4+ PRICE EA -5%
    $369.55
    8+ PRICE EA -10%
    $350.10
    In stock

    40 in stock

    Description

    • 4″ bore x 30″ stroke log splitter hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis end and pin through hole on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme winter conditions. Great replacement for use in different types of log splitting equipment such as gas log splitters, electric log splitters, 3 point tractor log splitters and skid steer log splitters.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
