2" bore x 8" stroke pin eye hydraulic cylinder
$171.00
* Wholesale Discount is available for this product if you purchase 4 or more products.SKU: WPE 2x8
Bore :
2 inch
OD :
2.37"
Stroke :
8 inch
Rod :
1.25"
Port Size :
SAE 8
Pin :
0.75"

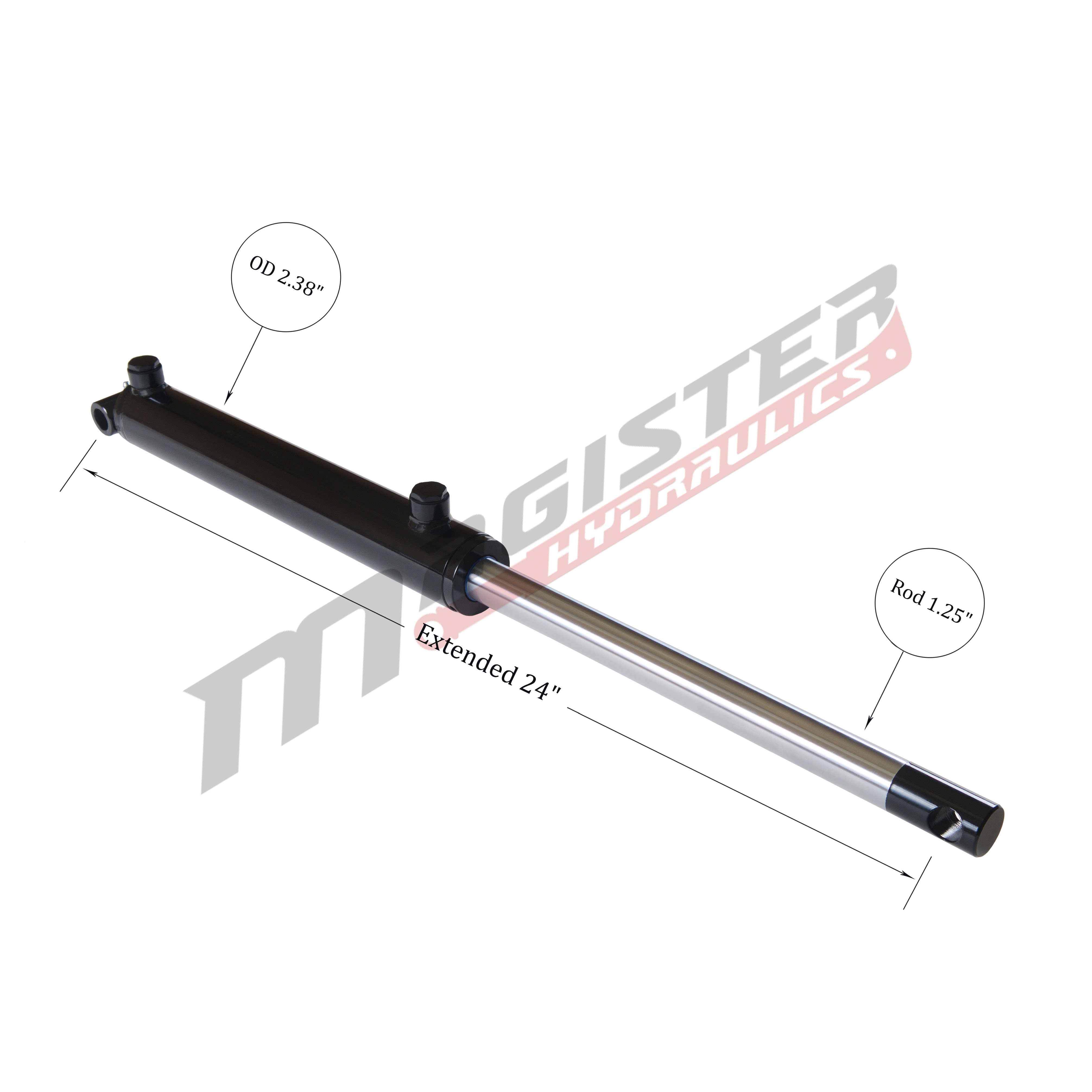

Extended :
24"

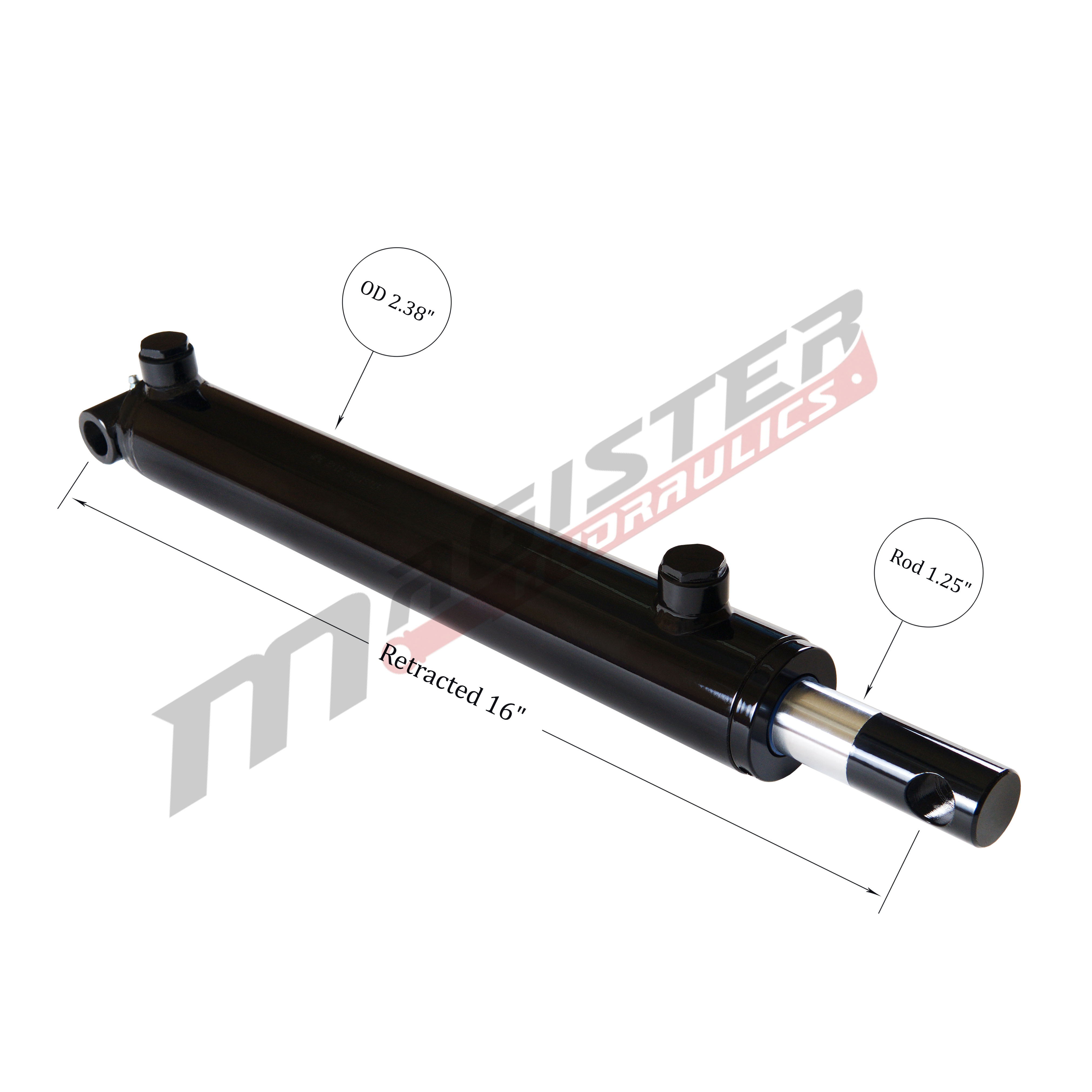

Retracted :
16"
Overall length :
17.37"
Pressure :
3500 PSI
Column Load (LBs) :
9,400
Oil Volume (quarts) :
0.43
Brand :
Magister Hydraulics
GTIN :
857743006376
1+
PRICE EA
$171.00
4+
PRICE EA -5%
$162.45
10+
PRICE EA -10%
$153.90
In stock
26 in stock
DESCRIPTION
- 2″ bore x 8″ stroke pin eye hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded across steel tube, honed cold-drawn tubing, hard chrome plated rod with pin through hole, and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for construction, material handling and farming equipment.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
FREE SHIPPING
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Tariff-FREE cylinders.
Made in Europe.
