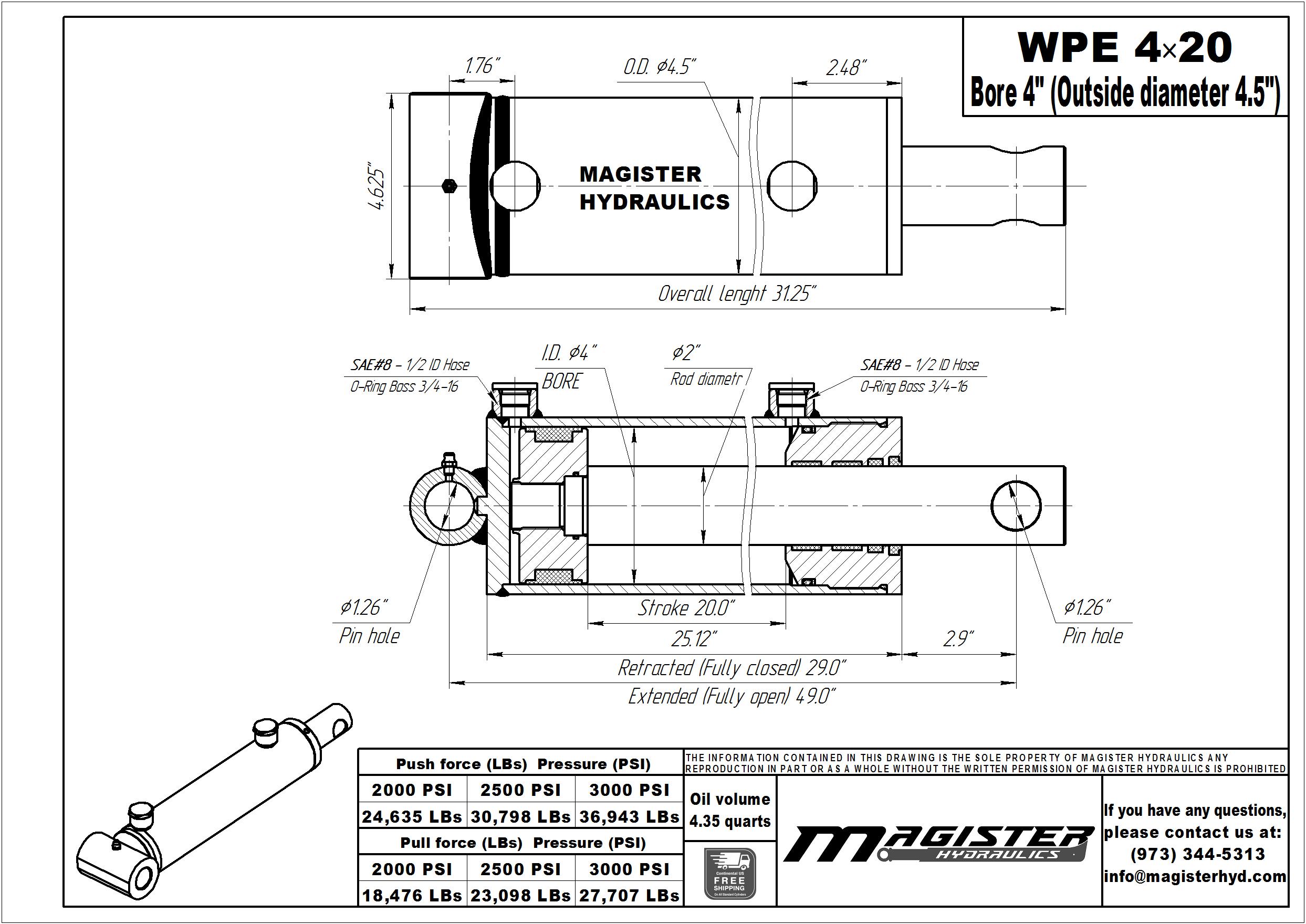

4" bore x 20" stroke pin eye hydraulic cylinder

$389.00

Pay in 4 interest-free payments of $97.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WPE 4x20
Bore : 4 in
Outer Dia. (⌀) : 4.5 in
Stroke : 20 in
Rod Dia. (⌀) : 2 in
Port Size : SAE 8
Pin Dia. (⌀) : 1.25 in

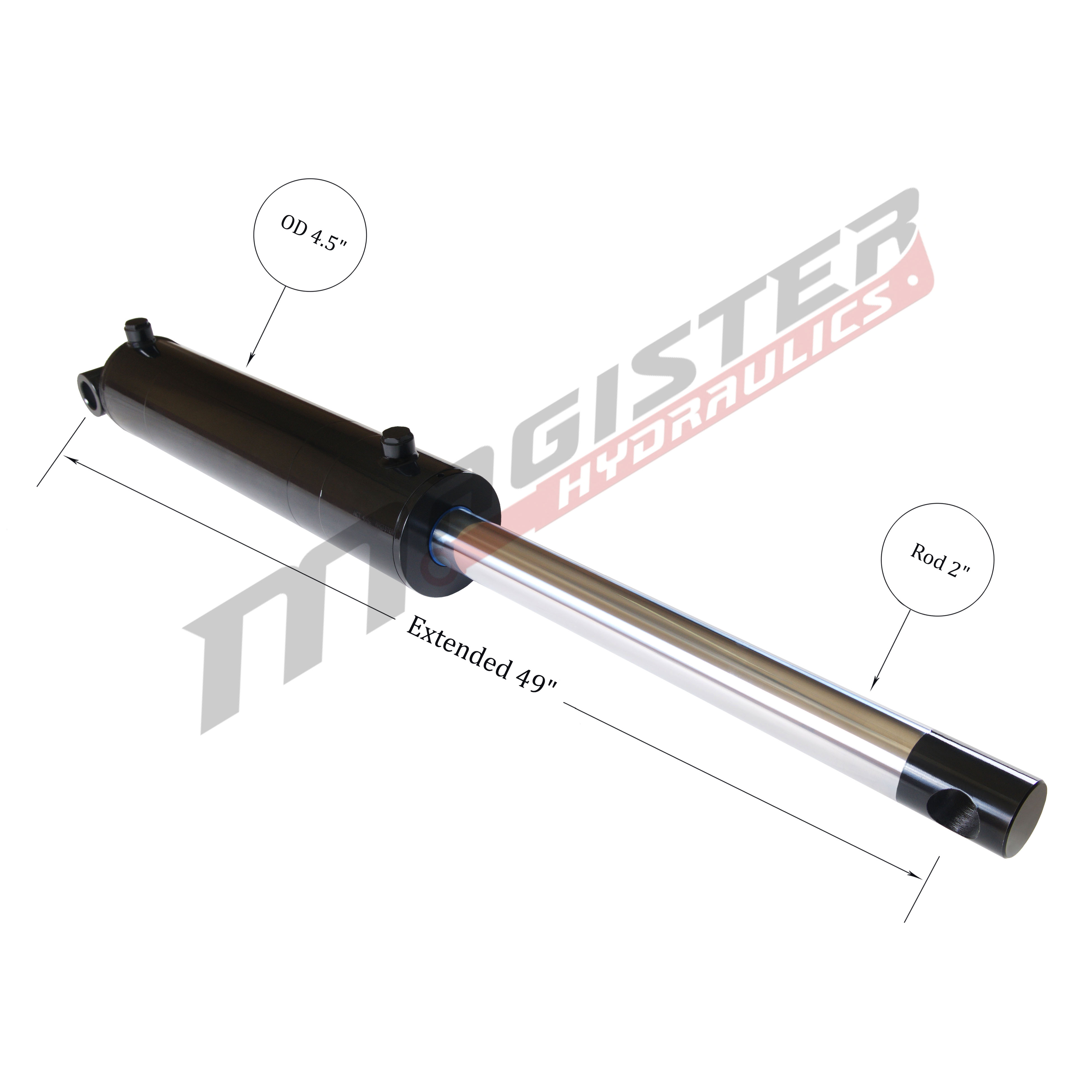

Extended : 49 in

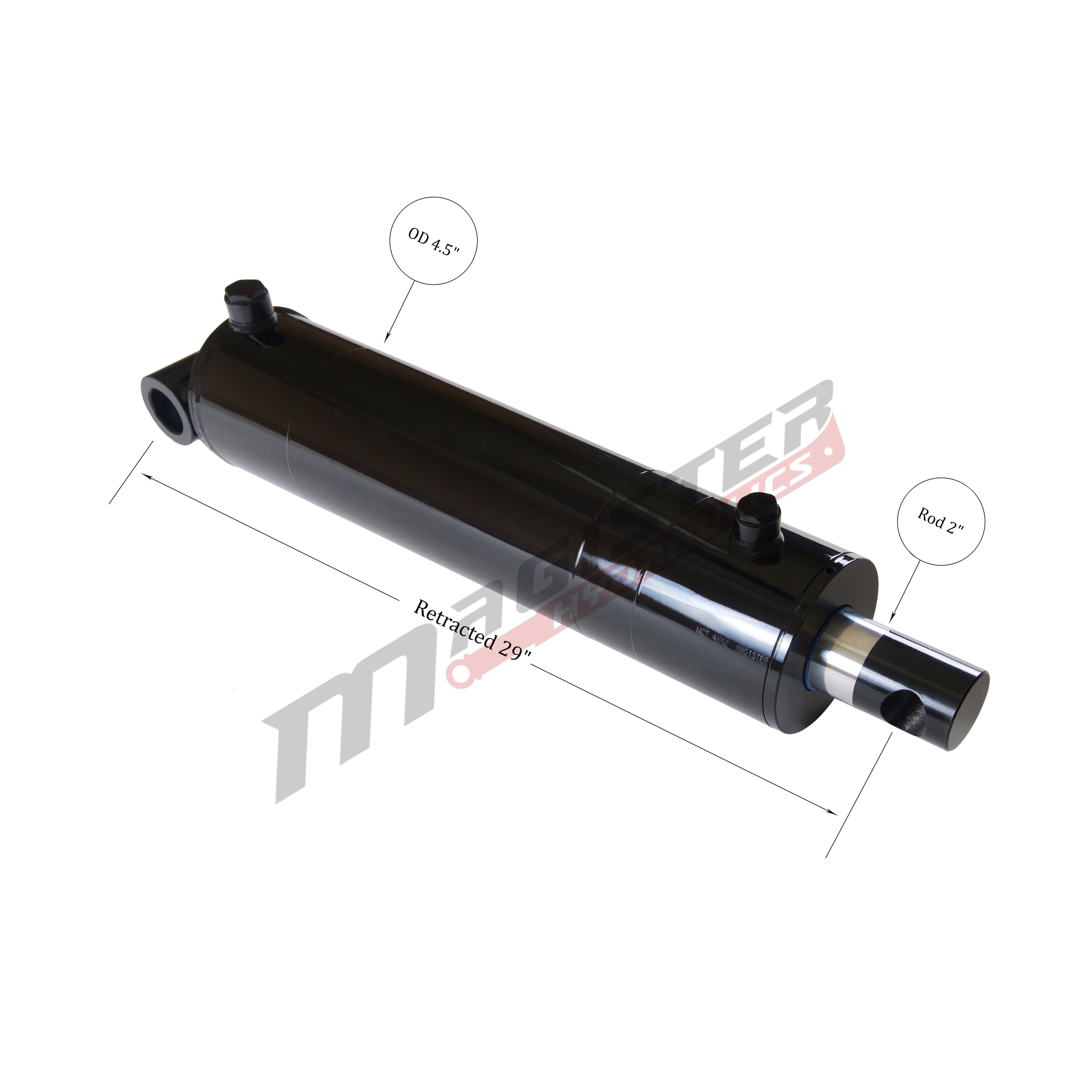

Retracted : 29 in
Overall length : 31.25 in
Pressure : 3500 PSI
Column Load : 37,700 LBs
Oil Volume : 4.35 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Pin Hole
Action :
  • Double Acting
  • Weight : 64 LBs
    GTIN : 857743006734
    SKU: WPE 4x20 Categories: ,

    Volume discounts

    4+ PRICE EA -5%
    $369.55
    8+ PRICE EA -10%
    $350.10
    In stock

    16 in stock

    Description

    • 4″ bore x 20″ stroke pin eye hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded across steel tube, honed cold-drawn tubing, hard chrome plated rod with pin through hole, and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for construction, material handling and farming equipment.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
