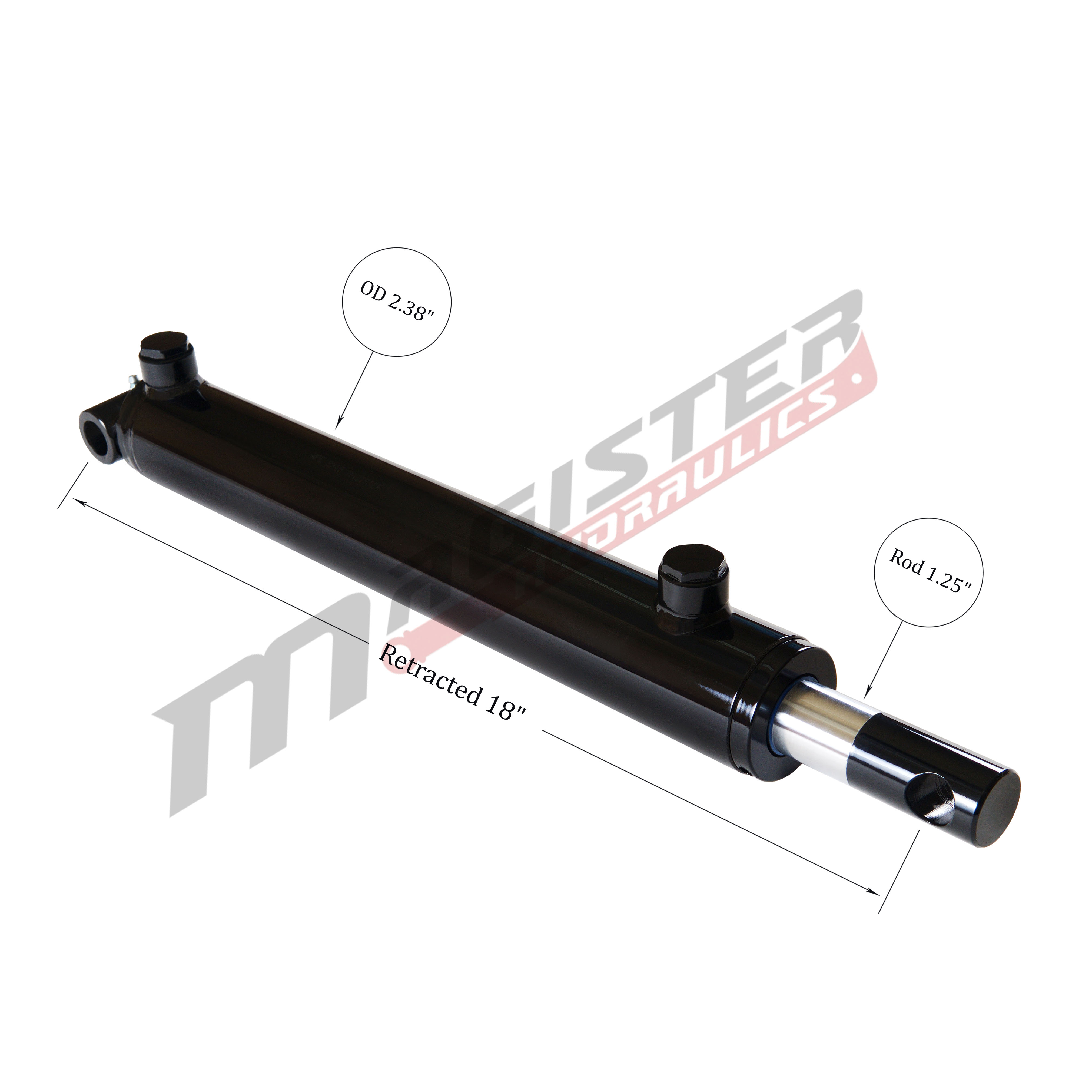

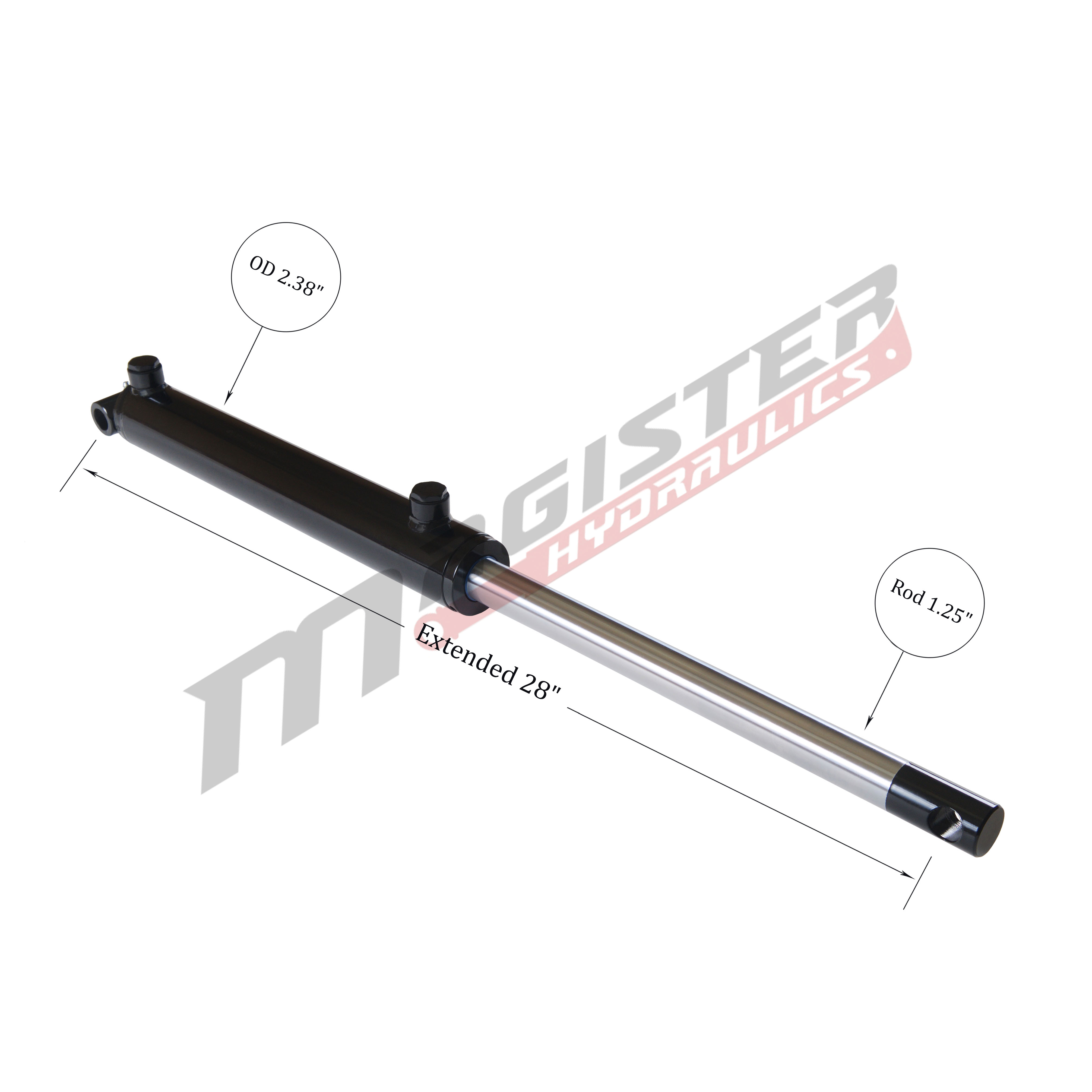

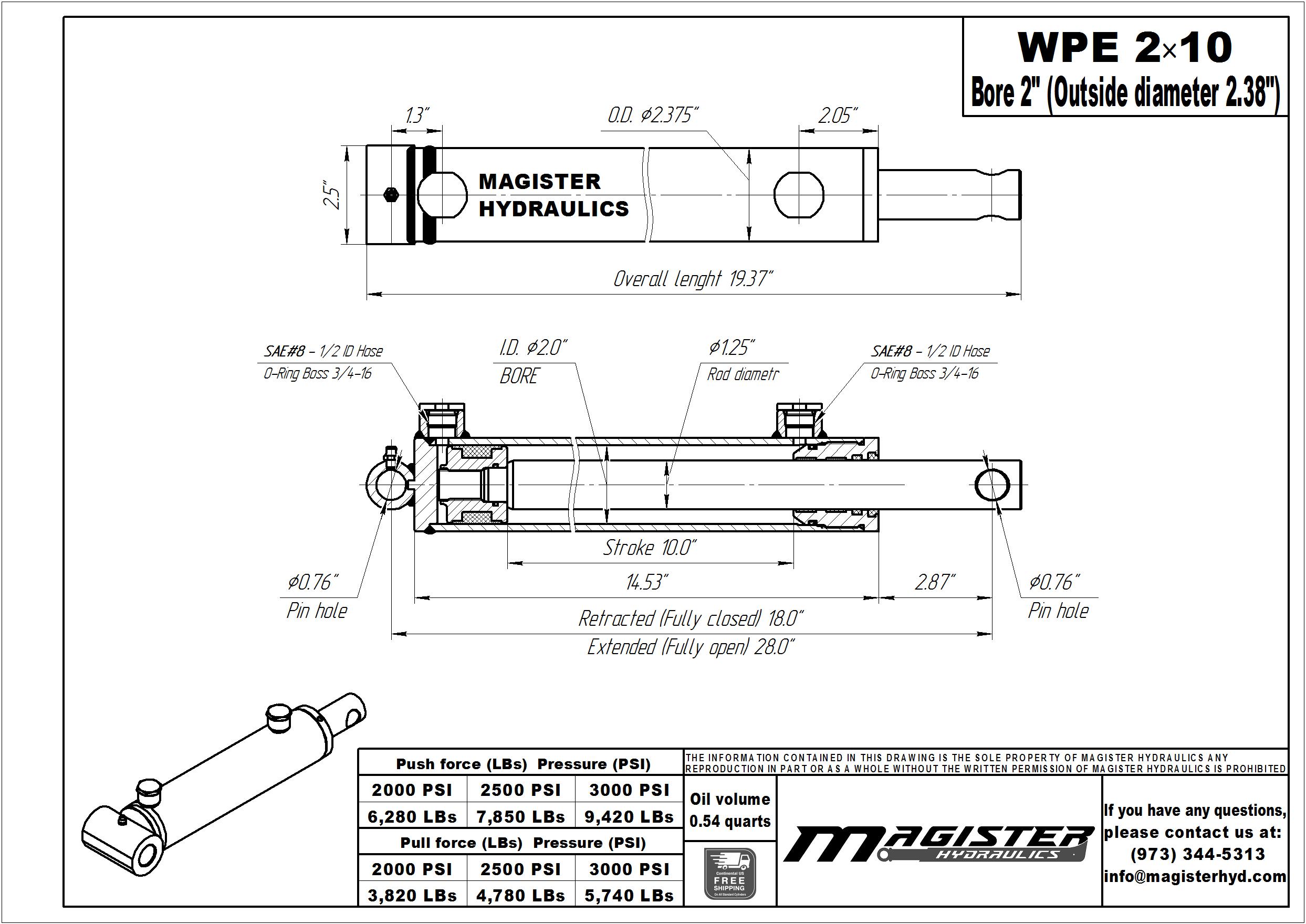

2" bore x 10" stroke pin eye hydraulic cylinder

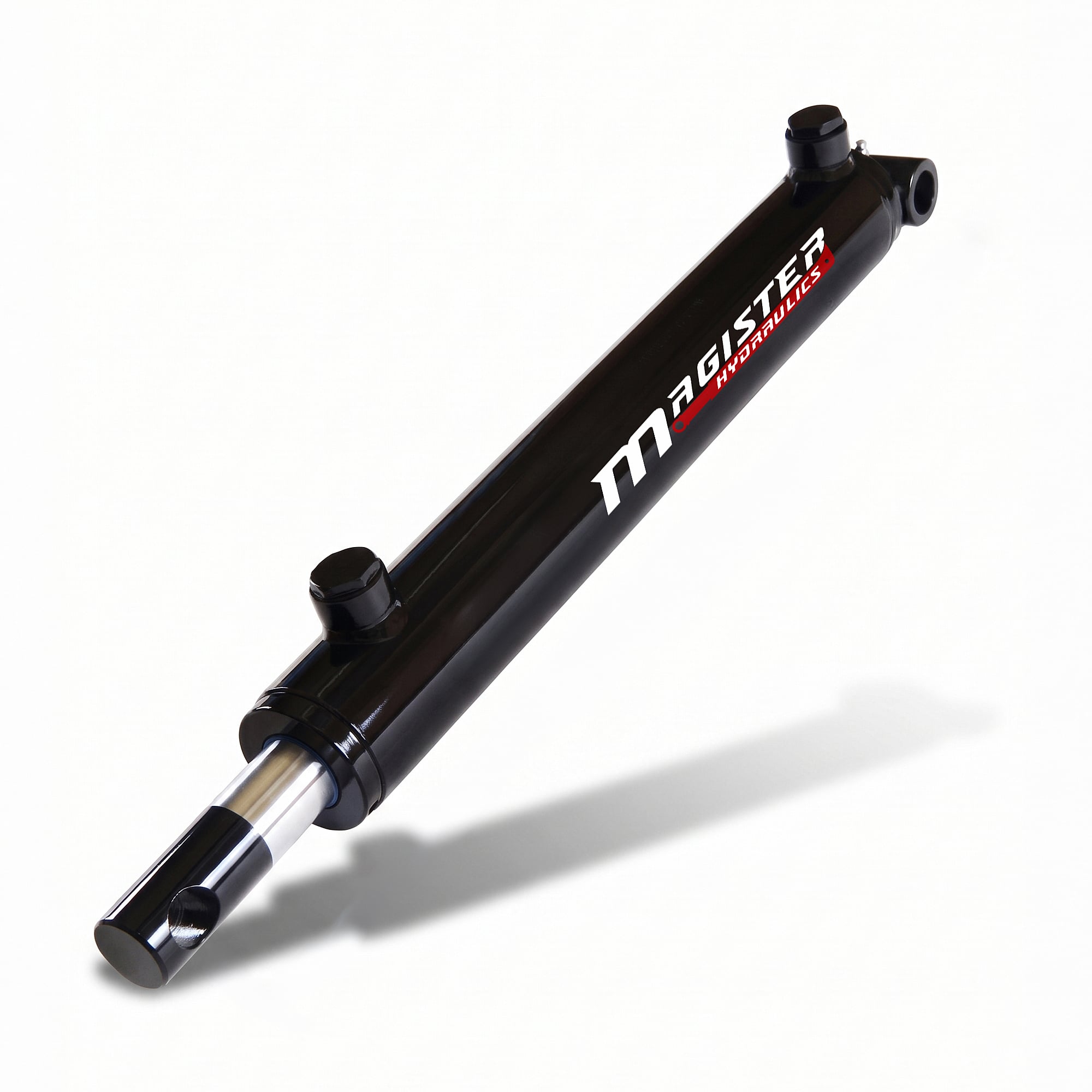

Engineered for durability and high performance, the Magister Hydraulics Welded Pin Eye Hydraulic Cylinder has a 2-inch bore, a 10-inch stroke, and is rated to 3500 PSI. It includes a welded cross tube base end and a through-hole rod end for easy pin eye mounting, ensuring stable attachment in demanding environments. This ram is ideal for use in agriculture, construction, material handling, and lifting and pushing applications — offering a reliable, cost-effective alternative to OEM cylinders and built to withstand tough working conditions.

Key Features:

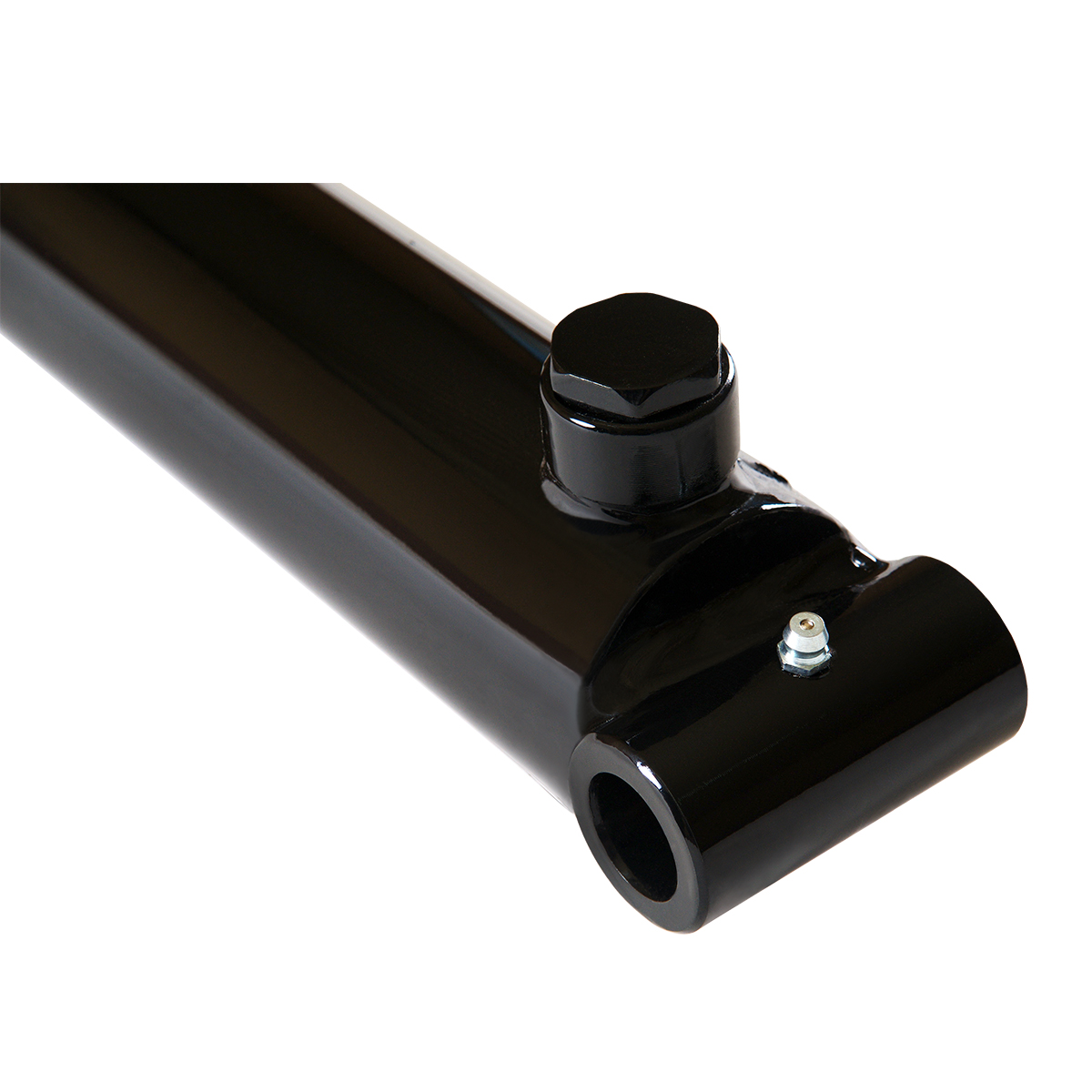

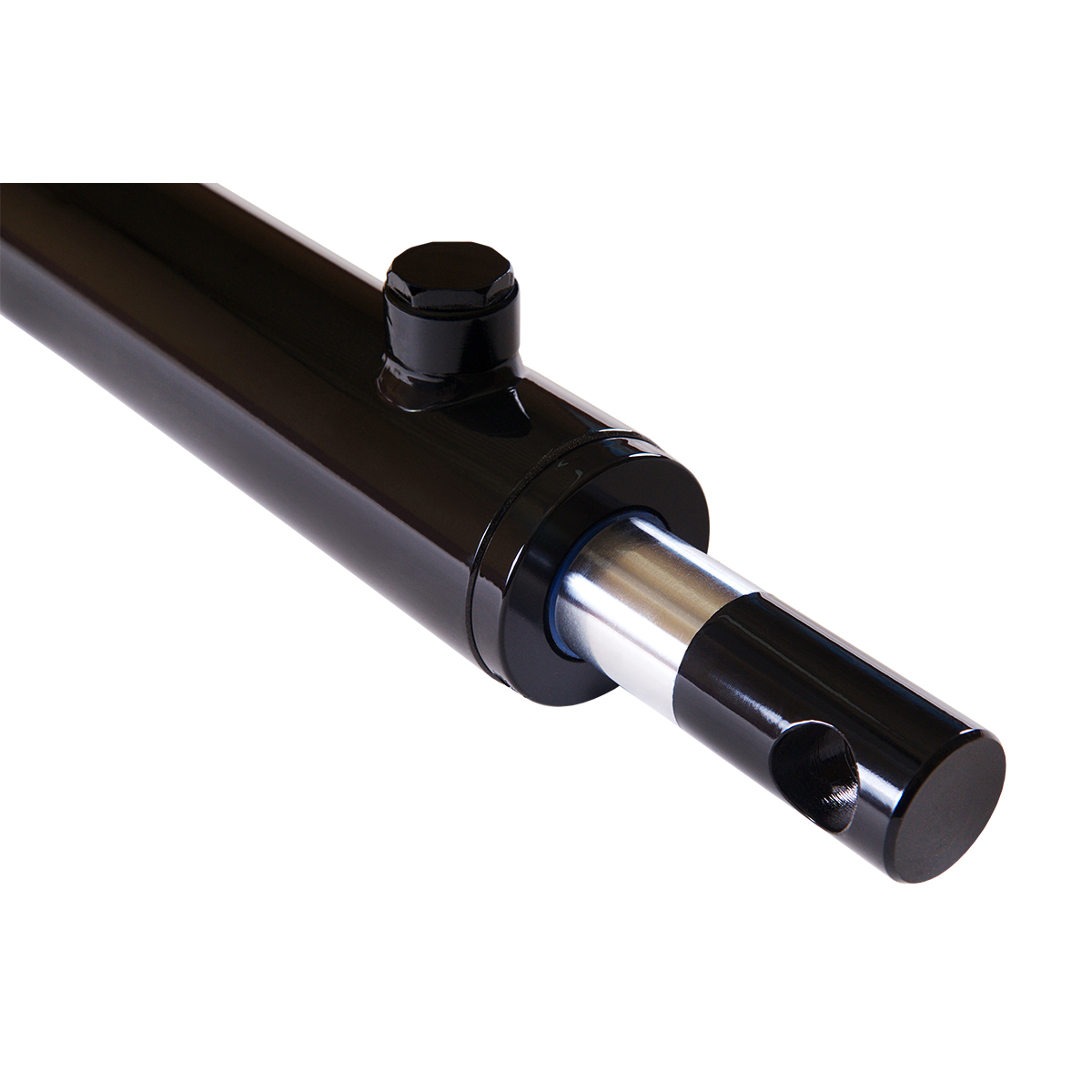

• Extreme Load Capacity: Welded cross-tube base end, ⌀ 2.37″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045) with through-hole rod end for easy pin eye mounting and top-quality piston seals make it capable of handling heavy loads with a 10″ stroke.
• Wide Range Hydraulic Applications: Suitable for use in construction, oil & gas, agriculture, forestry, waste and material handling, as well as lifting and pushing tasks. The rod-end pin hole offers added flexibility for custom mounting solutions.
• Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
• High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
• Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
• Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
• Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
• 2-year warranty
• Same Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
• Made in Europe.

Before purchase, please take the proper measurements:

• The diameter of the bore (please specify inside or outside measurement).
• The diameter of the rod and pin holes.
• The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
• The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder
