$216.00

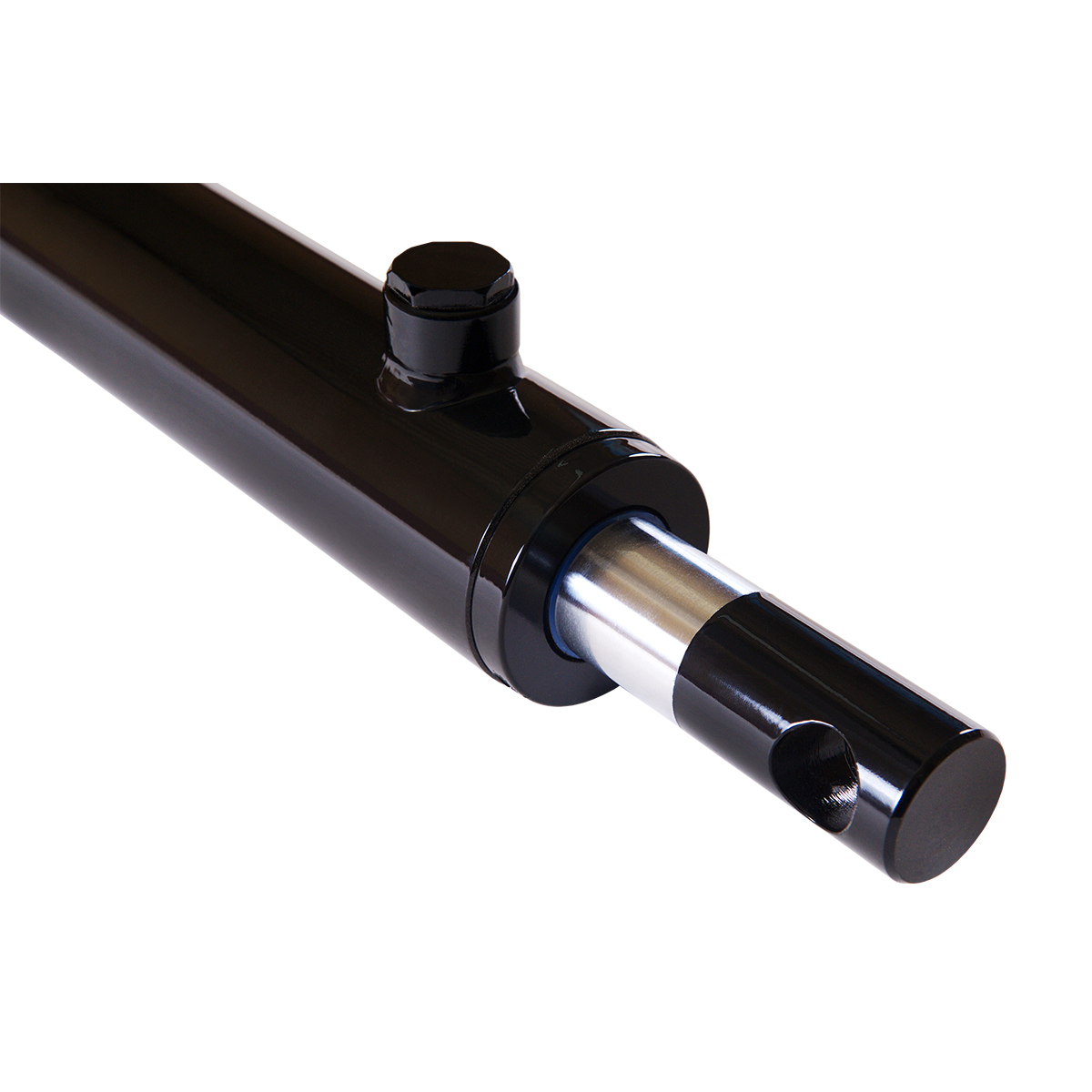

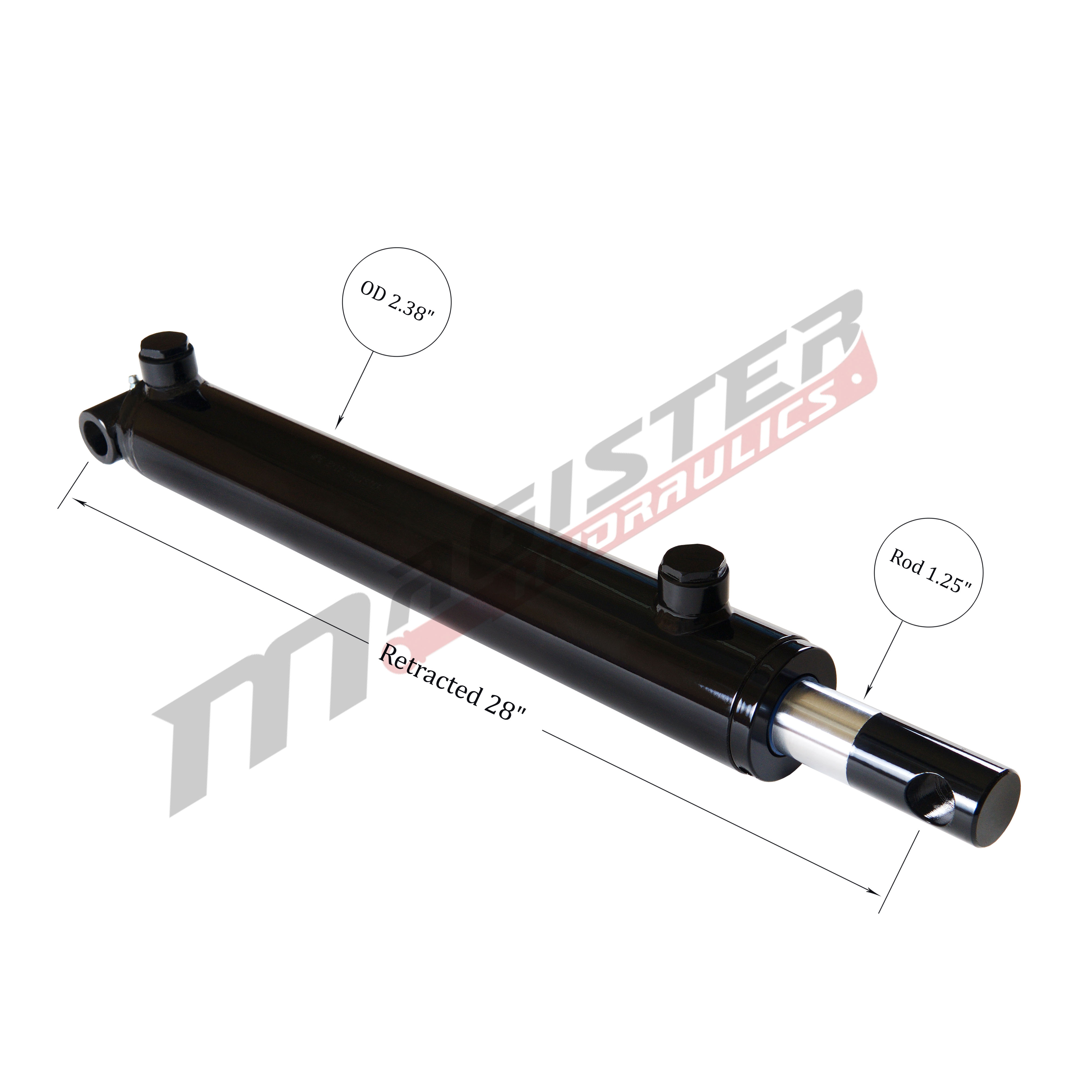

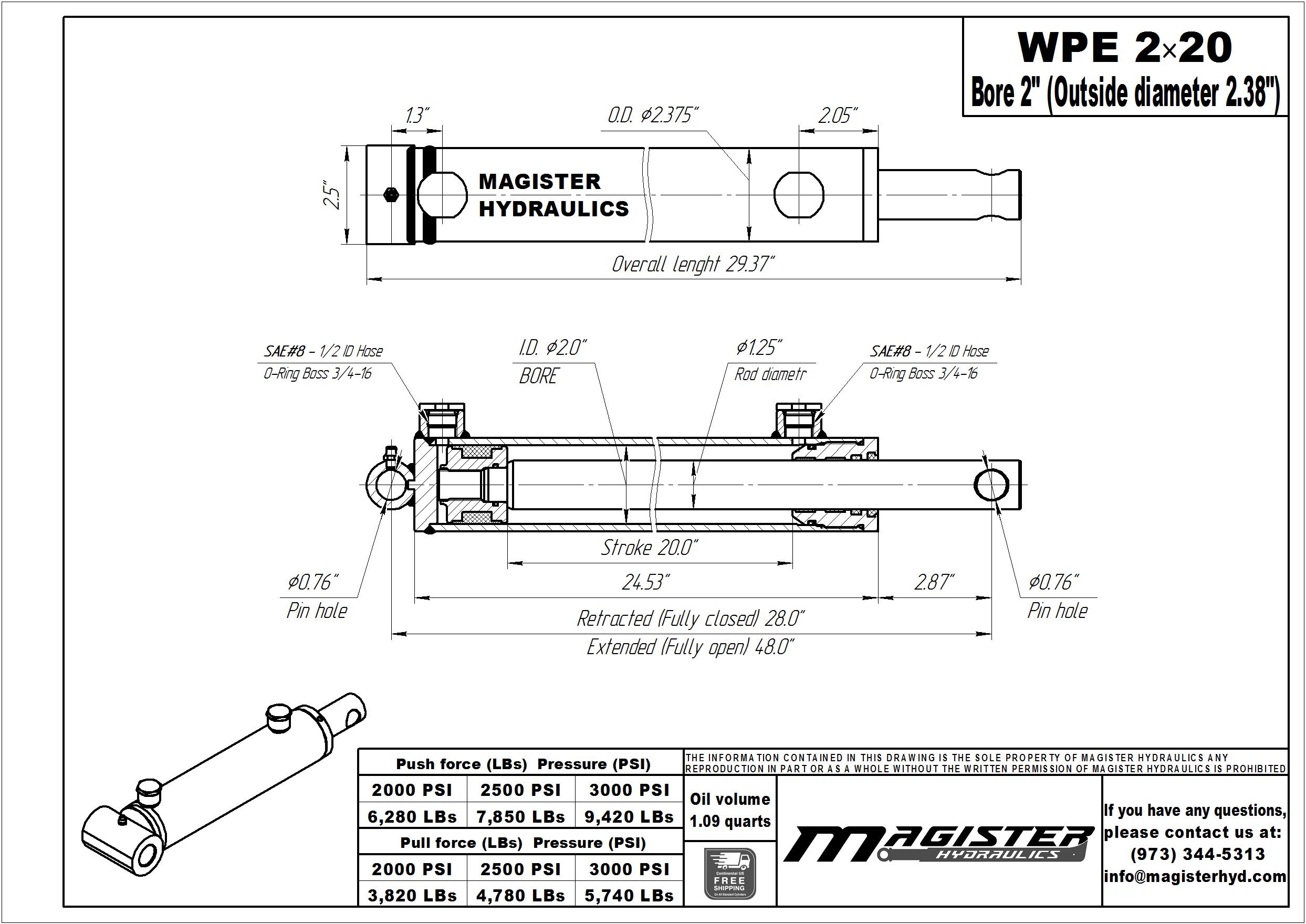

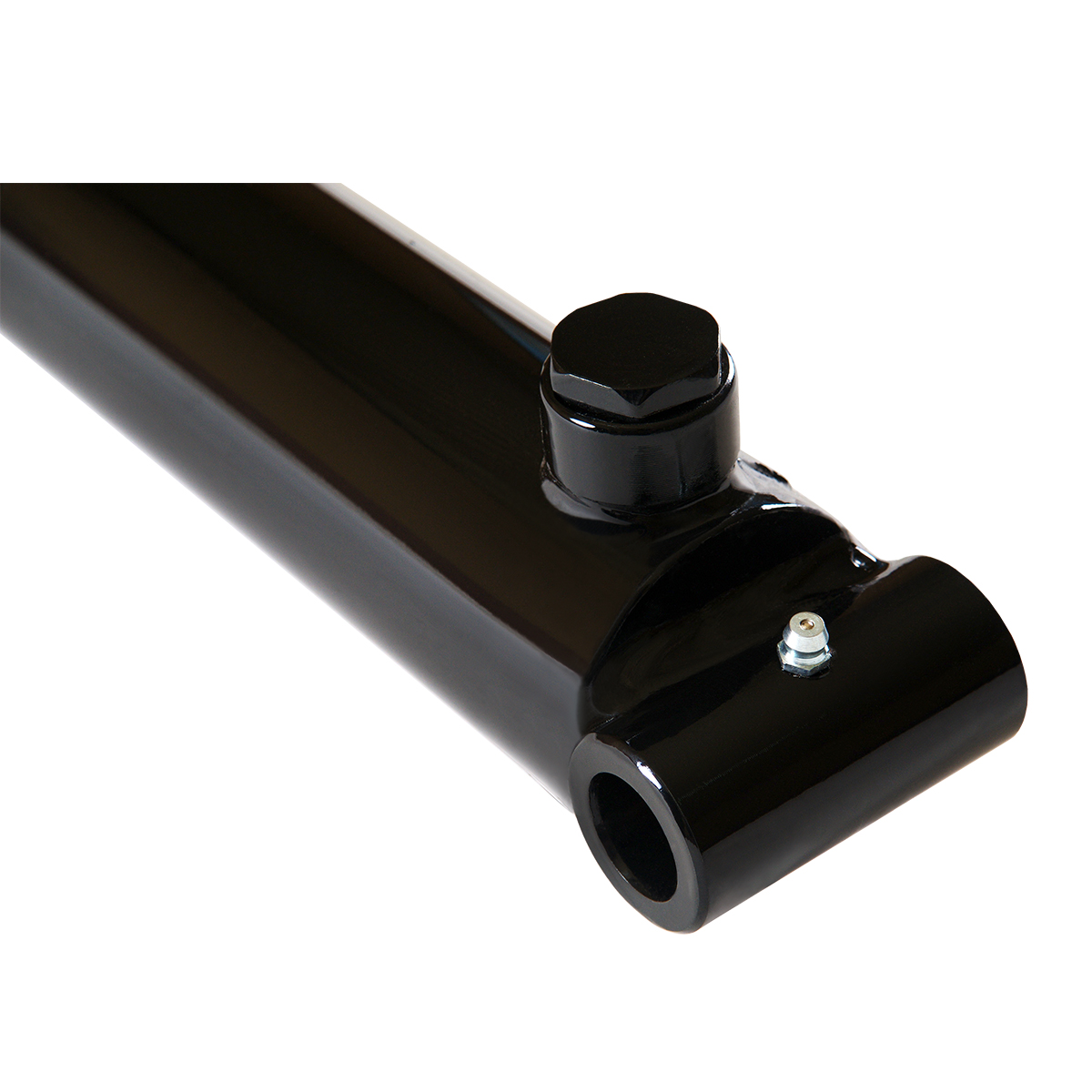

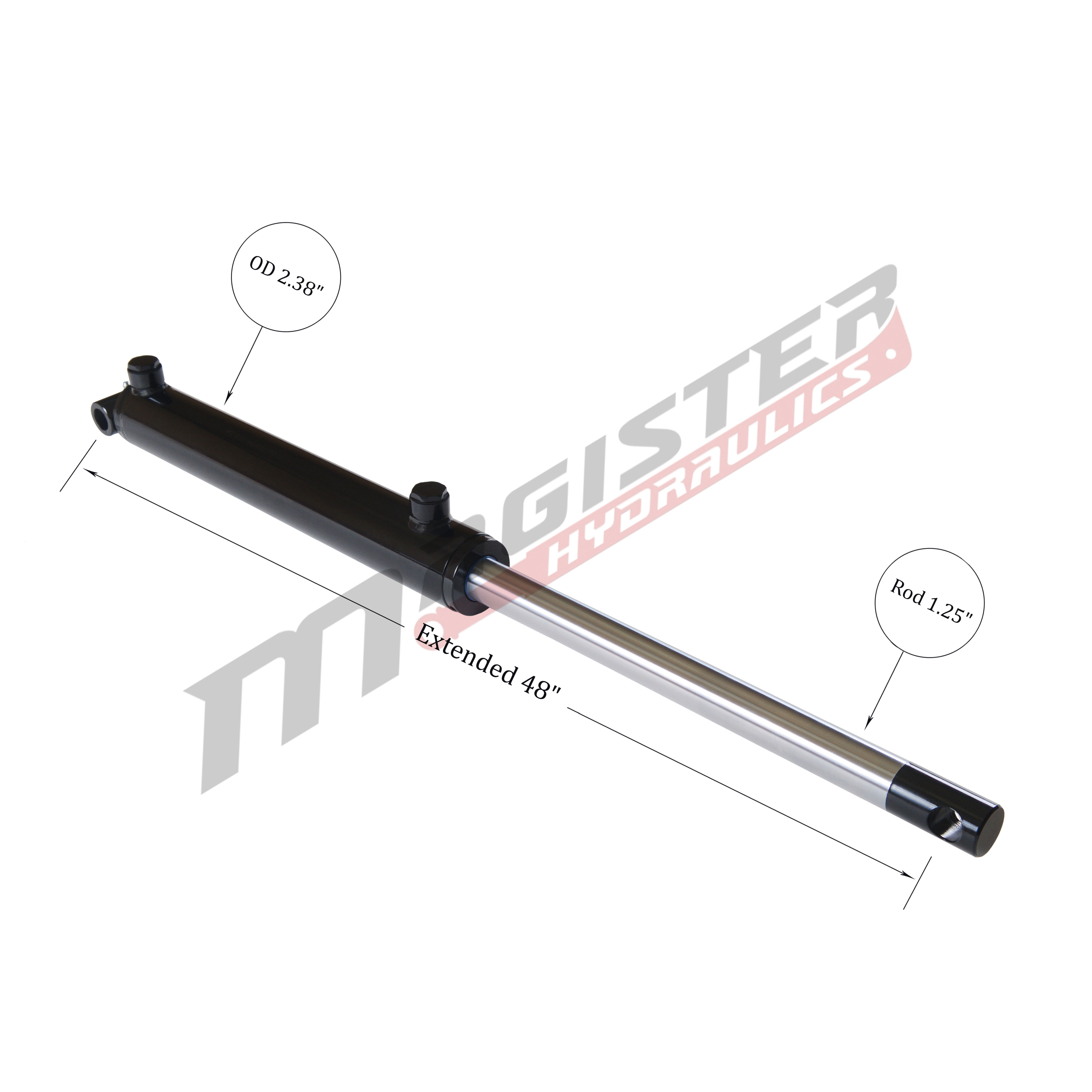

Bore : | 2 in | Outer Dia. (⌀) : | 2.37 in | Stroke : | 20 in | Rod Dia. (⌀) : | 1.25 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 0.75 in | Extended : | 48 in | Retracted : | 28 in | Overall length : | 29.37 in | Pressure : | 3500 PSI | Column Load : | 9,400 LBs | Oil Volume : | 1.09 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Pin Hole | Action : | Weight : | 22 LBs |
---|---|
GTIN : | 857743006413 |
Volume discounts
22 in stock
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
