1 Spool 21 GPM Log Splitter Control Valve High Speed, 3600 PSI, 4-Way 4-Position Tandem Center
1 spool x 21 GPM hydraulic log splitter high speed control valve, monoblock cast iron valve | Magister Hydraulics
  • 1 spool x 21 GPM hydraulic log splitter high speed control valve, monoblock cast iron valve | Magister Hydraulics
  • HCV-LSH-1×21-06.webp
  • 1 spool x 21 GPM hydraulic log splitter high speed control valve, monoblock cast iron valve | Magister Hydraulics
  • 1 spool x 21 GPM hydraulic log splitter high speed control valve, monoblock cast iron valve | Magister Hydraulics
  • 1 spool x 21 GPM hydraulic log splitter high speed control valve, monoblock cast iron valve | Magister Hydraulics
  • 1 spool x 21 GPM hydraulic log splitter high speed control valve, monoblock cast iron valve | Magister Hydraulics
  • HCV-LSH-1×21-drawing.webp

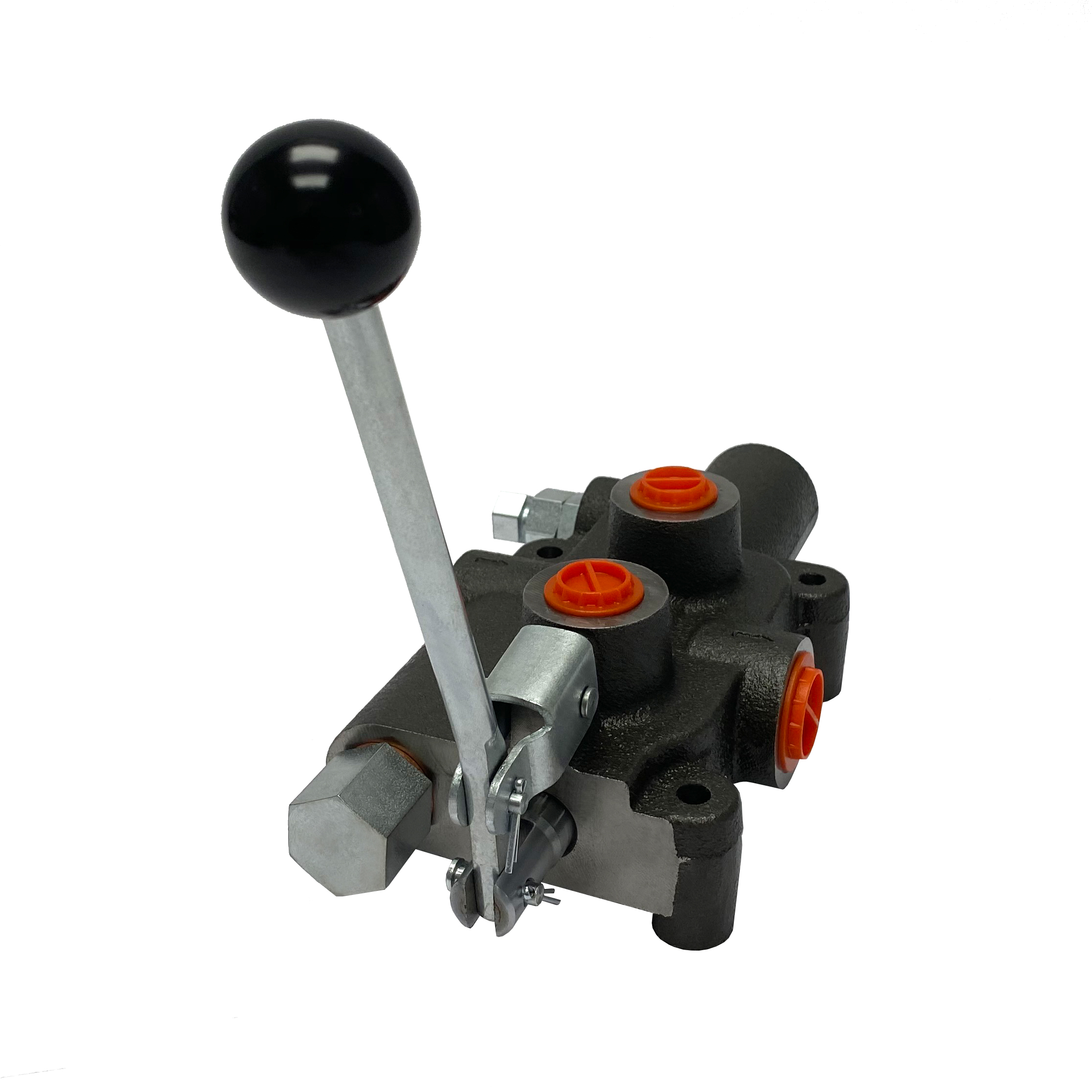

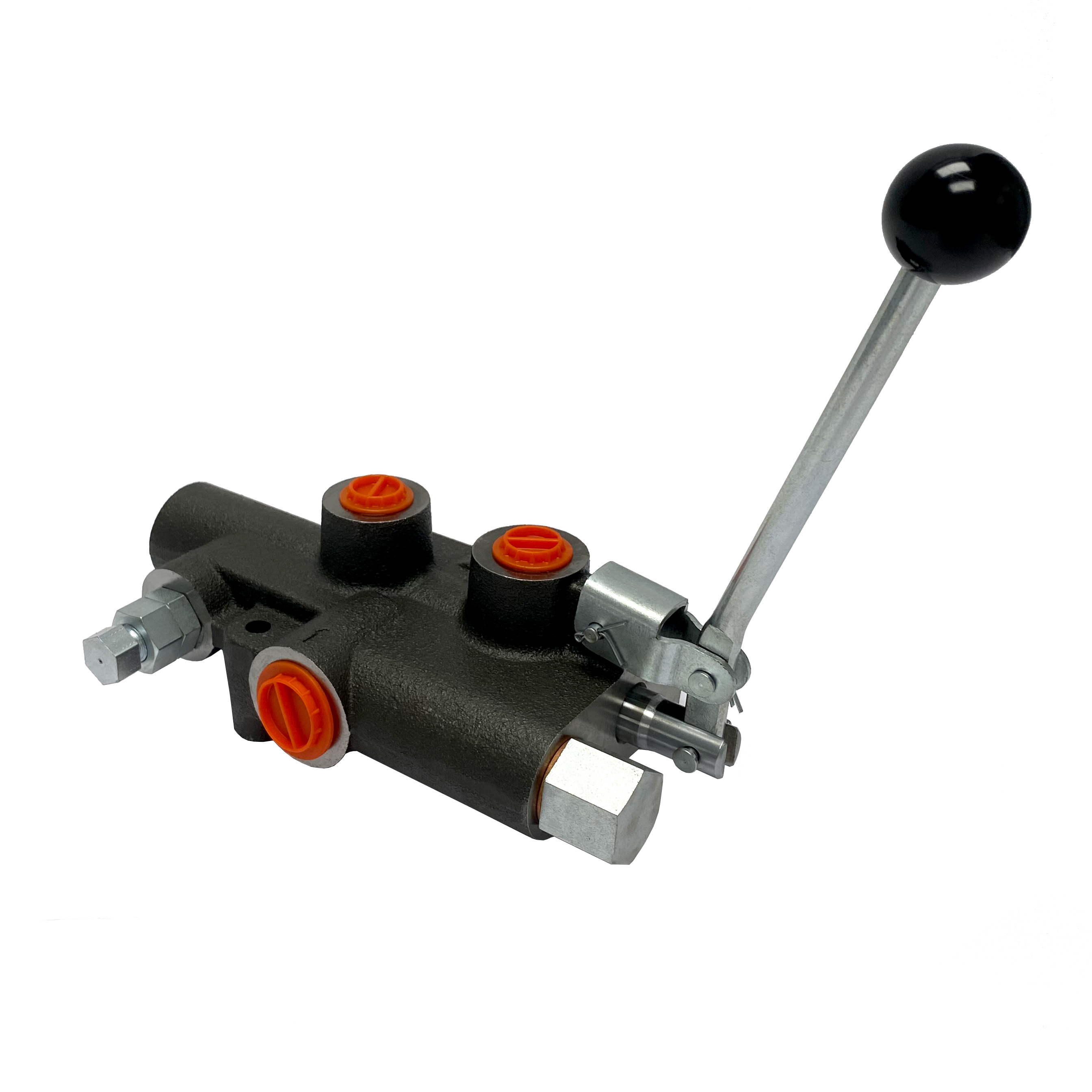

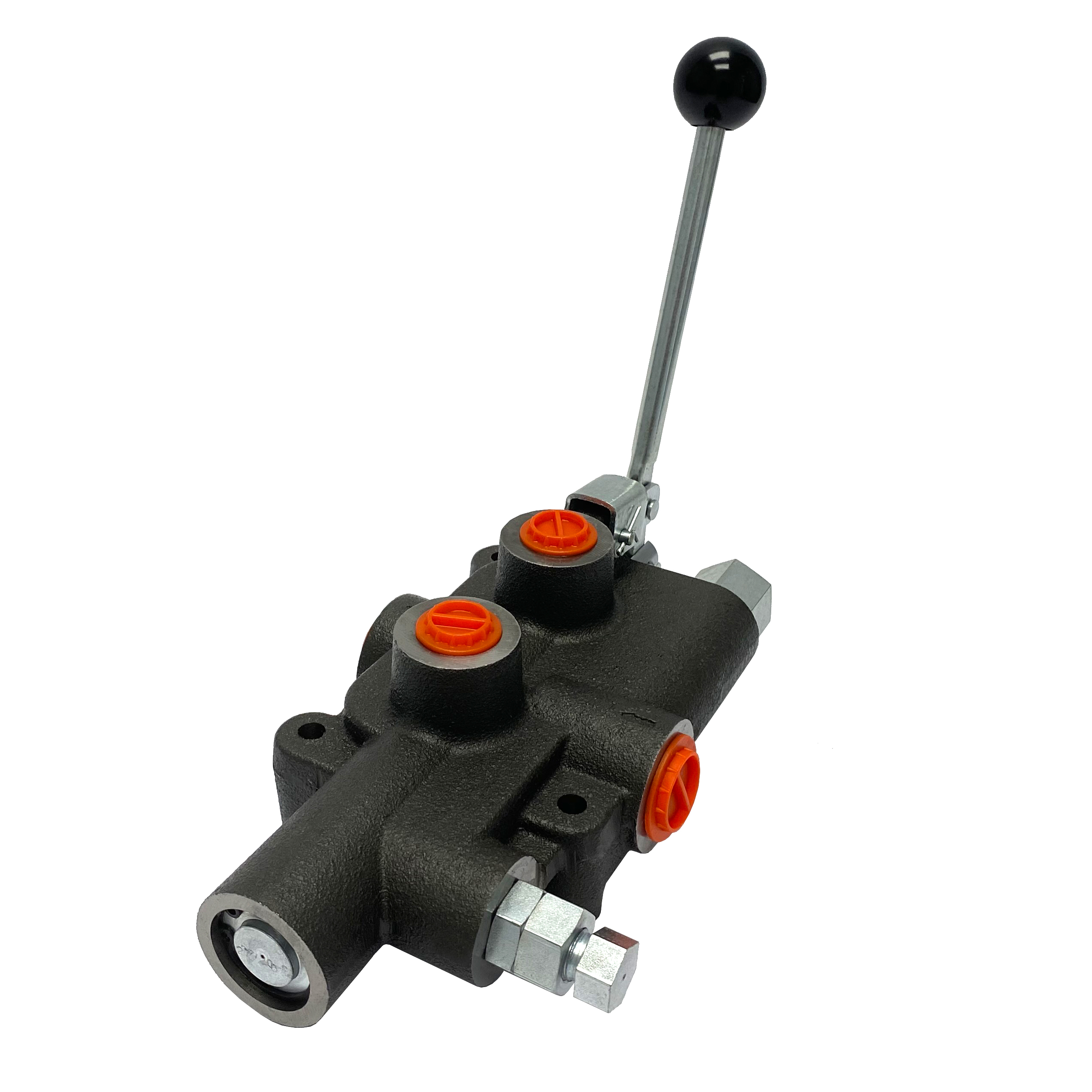

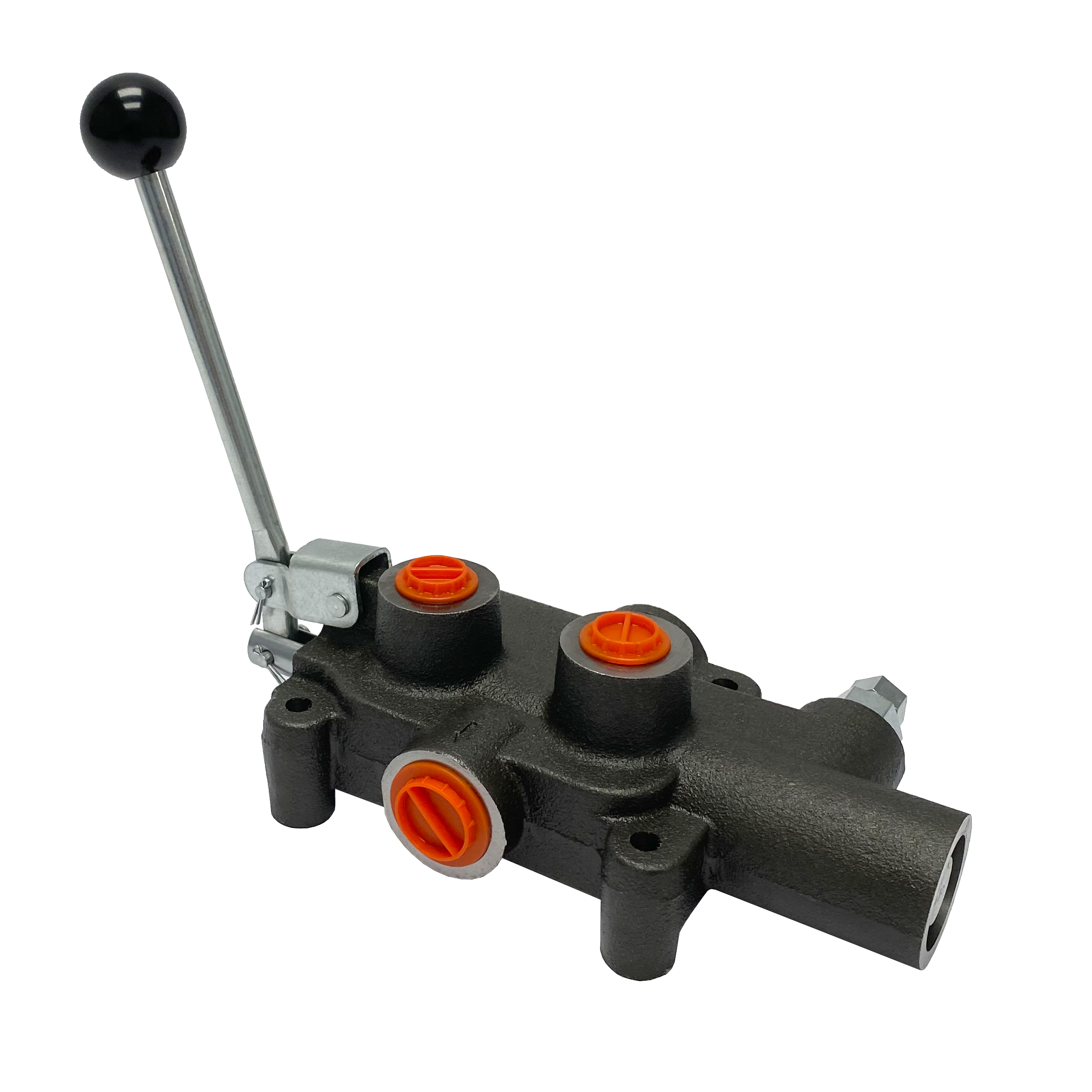

1 spool x 21 GPM hydraulic log splitter high speed control valve

SKU: HCV-LSH 1x21

$170.00

In Stock

Volume Discounts

5+ PRICE EA -5%
$161.50
10+ PRICE EA -10%
$153.00
Log Splitter Control Valves
HCV-LSH 1x21
HCV-LSS 1x21

36 in stock

View cart
Made in Europe
Pay in 4 interest-free payments of $42.50
* Wholesale Discount is available for this product if you purchase 5 or more products.

Take control of your wood-splitting tasks with this heavy-duty 1-Spool, 21 GPM Hydraulic Control Valve High Speed with extremely “fast extend” high speed mode. Engineered specifically for high-performance log splitters, it delivers reliable operation at 3600 PSI (maximum 4600 PSI) thanks to its rugged cast iron monoblock body.

This valve efficiently manages and directs hydraulic oil flow between pumps, cylinders, and motors, ensuring smooth, dependable performance in demanding applications.

Key Features & Benefits

  • Automatic Safety Feature:Press Release Detent spool action automatically returns the valve to neutral once the cylinder completes its stroke, improving operator safety andextending system life.
  • Adjustable Relief Protection:Adjustable relief setting from 1000–2000 PSI provides automatic system switch-off for added protection.
  • Easy Installation:Supplied with a handle and designed for simple mounting using 2 × M8 bolts.

Technical Specifications

  • Spool Type: 4 Way, 4 Position (Spring to Neutral / Spring to Center)
  • Spool Action: 4 Way, 4 Position Tandem Center with Spring to Neutral and Press Release Detent
  • Ports: SAE ports for standard hydraulic connections

Free Ground Shipping within the Continental United States.

OPEN MANUAL

Made in Europe. 1 Year Warranty.

If you need assistance selecting the proper hydraulic valve, please contact us:

📞 973-344-5313

View Full Specifications
Categories: , Brand:

Frequently bought together

Hydraulic Control Valves Hydraulic Control Valves log splitter control valves | Magister Hydraulics Log Splitter Control Valves

Specifications

1 spool x 21 GPM hydraulic log splitter high speed control valve
SKU: HCV-LSH 1x21
Spools 1 Flow 21 GPM
Max Pressure 4600 PSI Inlet Port SAE 12
Operating Pressure 3600 PSI Spool Type 4way 4pos Tandem Cntr
Outlet Port SAE 12 Spool Action 4-pos with detent HiSp
Working Ports SAE 10 Brand Badestnost
Operation Manual Weight 10 LBs
IMPORTANT NOTE: The chrome-plated rod is NOT induction hardened (temperature-treated). Improper use (due to incorrect measurements or application type) may result in rod bending. Such cases are NOT covered under our warranty!
