4 bore x 24 stroke hydraulic cylinder, log splitter double acting cylinder | Magister Hydraulics

4.5" bore x 24" stroke log splitter hydraulic cylinder

Name: 4.5" bore x 24" stroke log splitter hydraulic cylinder
SKU: WLS 4.5x24
Availability: InStock
Rating: 4.75 (5 reviews)

$429.00

Pay in 4 interest-free payments of $107.25

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WLS 4.5x24

Bore :	4.5 in
Outer Dia. (⌀) :	5.12 in
Stroke :	24 in
Rod Dia. (⌀) :	1.75 in
Port Size :	1/2" NPT
Base Pin Dia (⌀) :	1.125 in

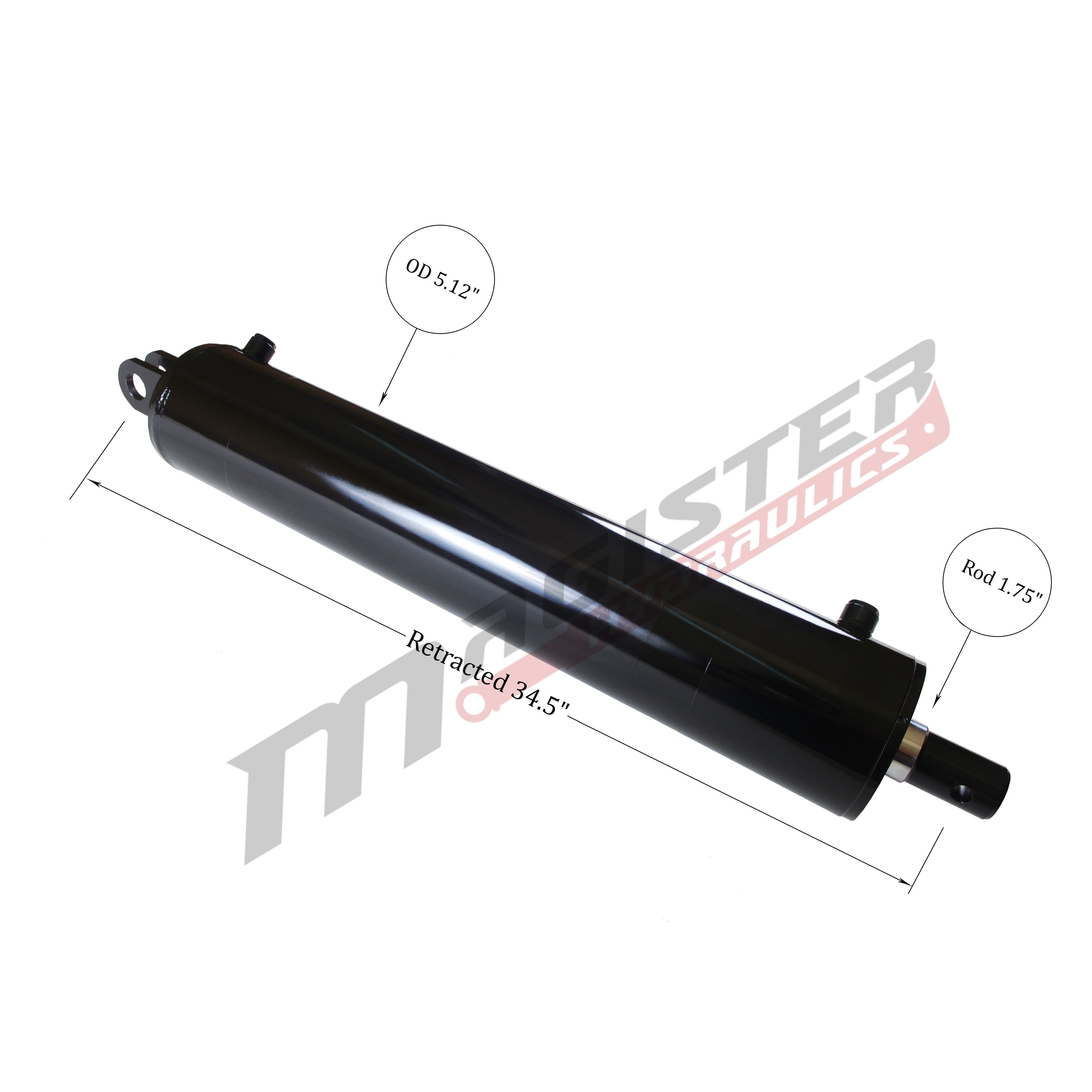

Retracted :	34.5 in
Rod Pin Dia (⌀) :	0.563 in

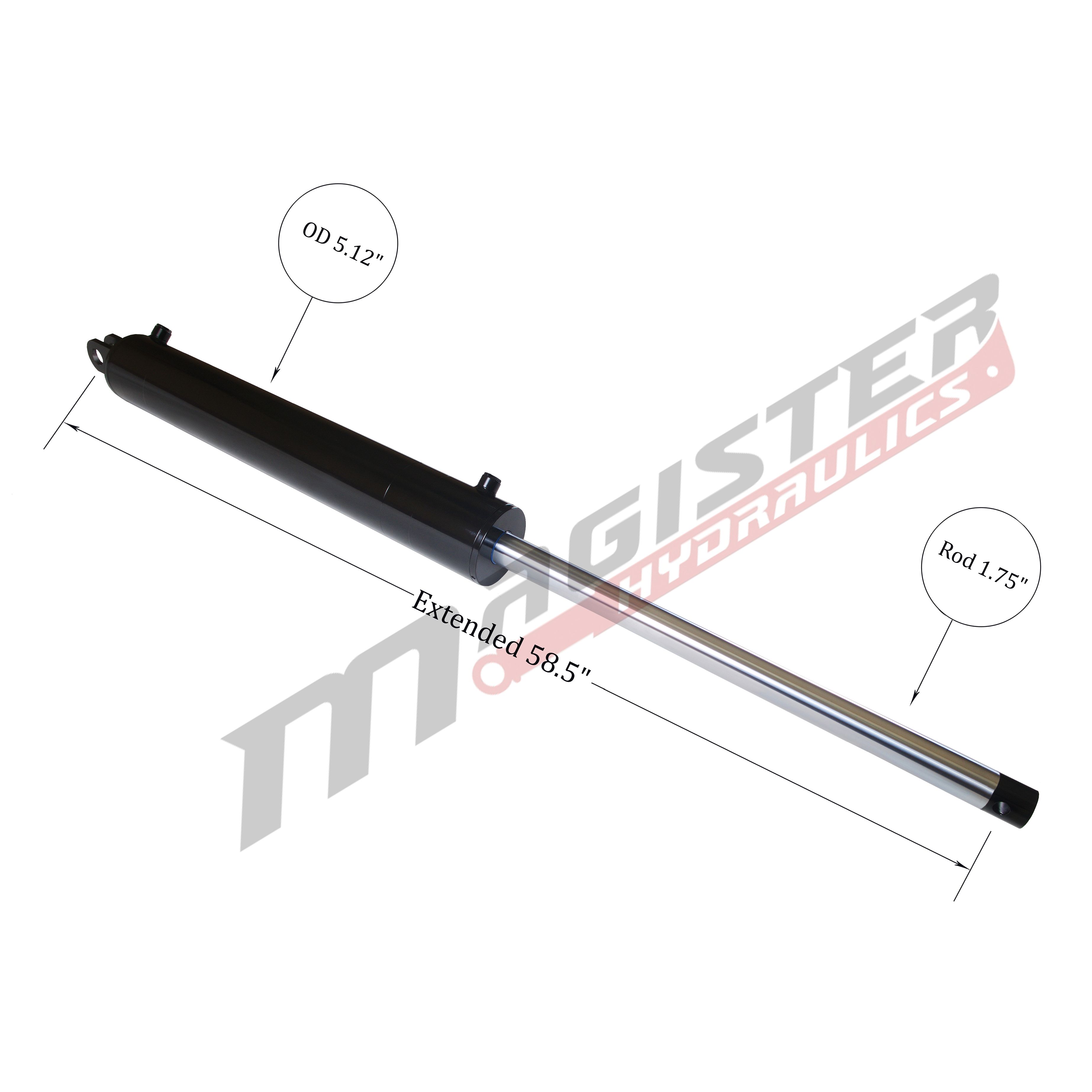

Extended :	58.5 in
Overall length :	36.7 in
Pressure :	3500 PSI
Column Load :	42,200 LBs
Oil Volume :	6.7 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Pin Hole
Action :	Double Acting
Weight :	80 LBs
GTIN :	850054386144

SKU: WLS 4.5x24 Categories: Hydraulic Cylinders, Log Splitter Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$407.55

8+ PRICE EA -10%

$386.10

In stock

82 in stock

Description

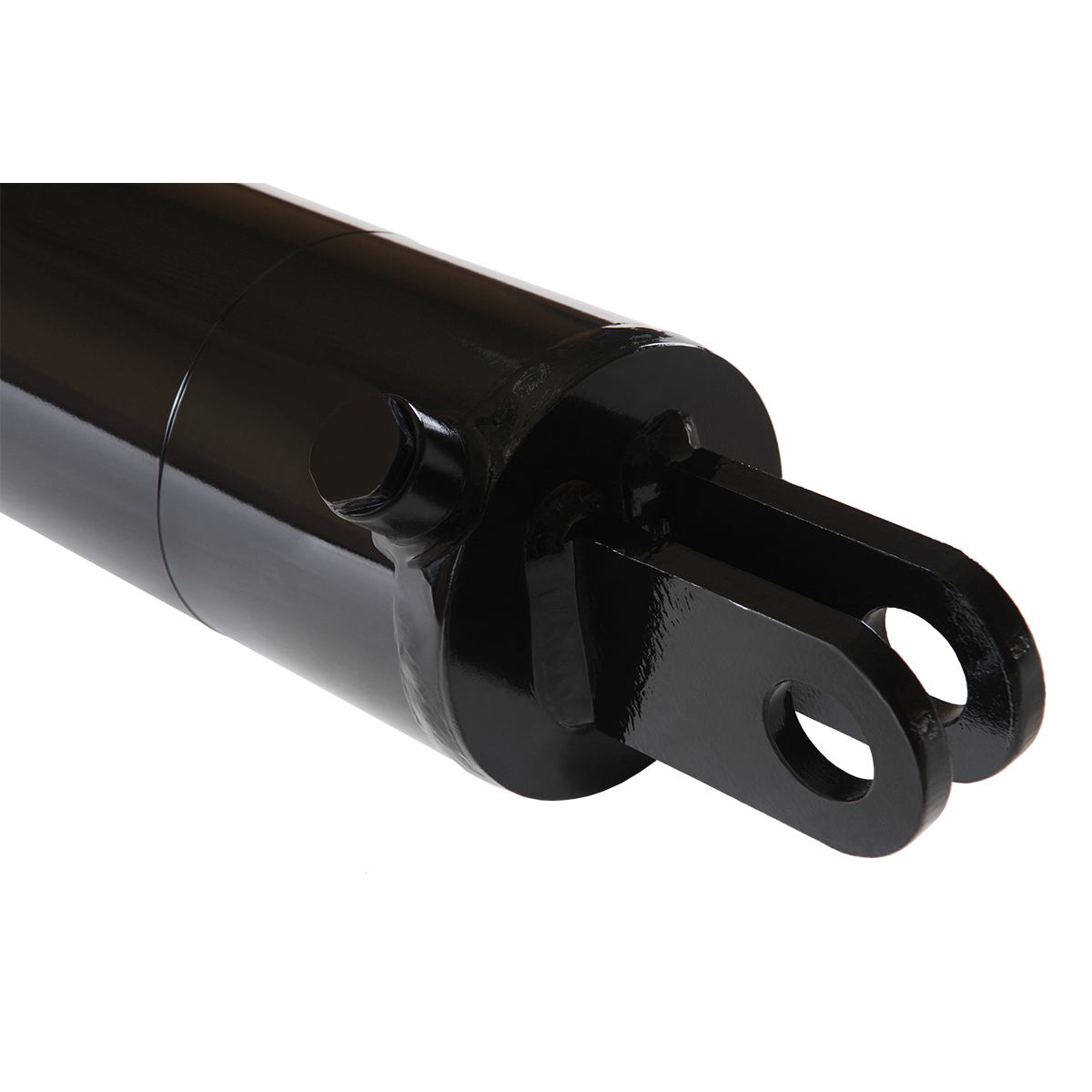

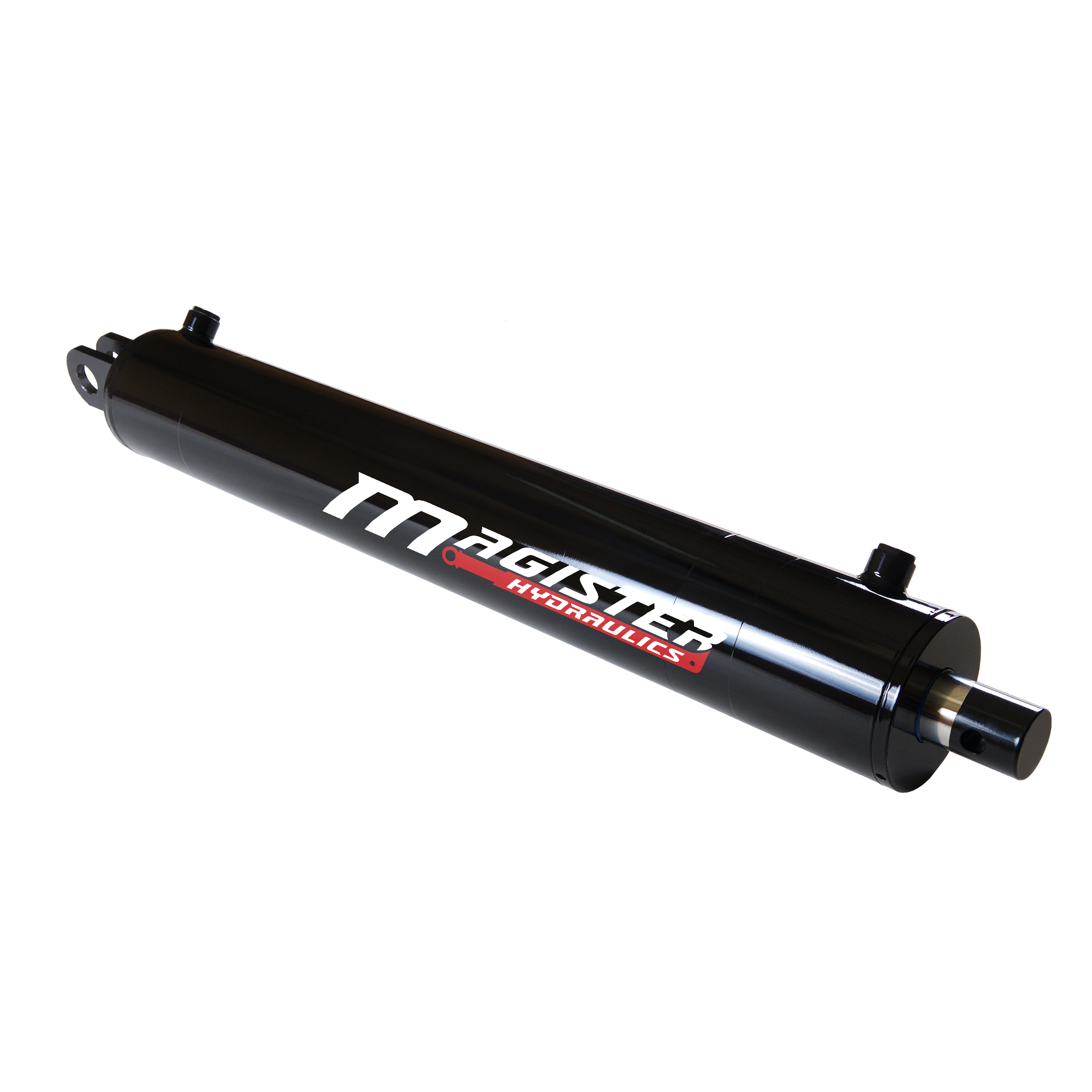

4.5″ bore x 24″ stroke log splitter hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis end and pin through hole on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme winter conditions. Great replacement for use in different types of log splitting equipment such as gas log splitters, electric log splitters, 3 point tractor log splitters and skid steer log splitters.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.
