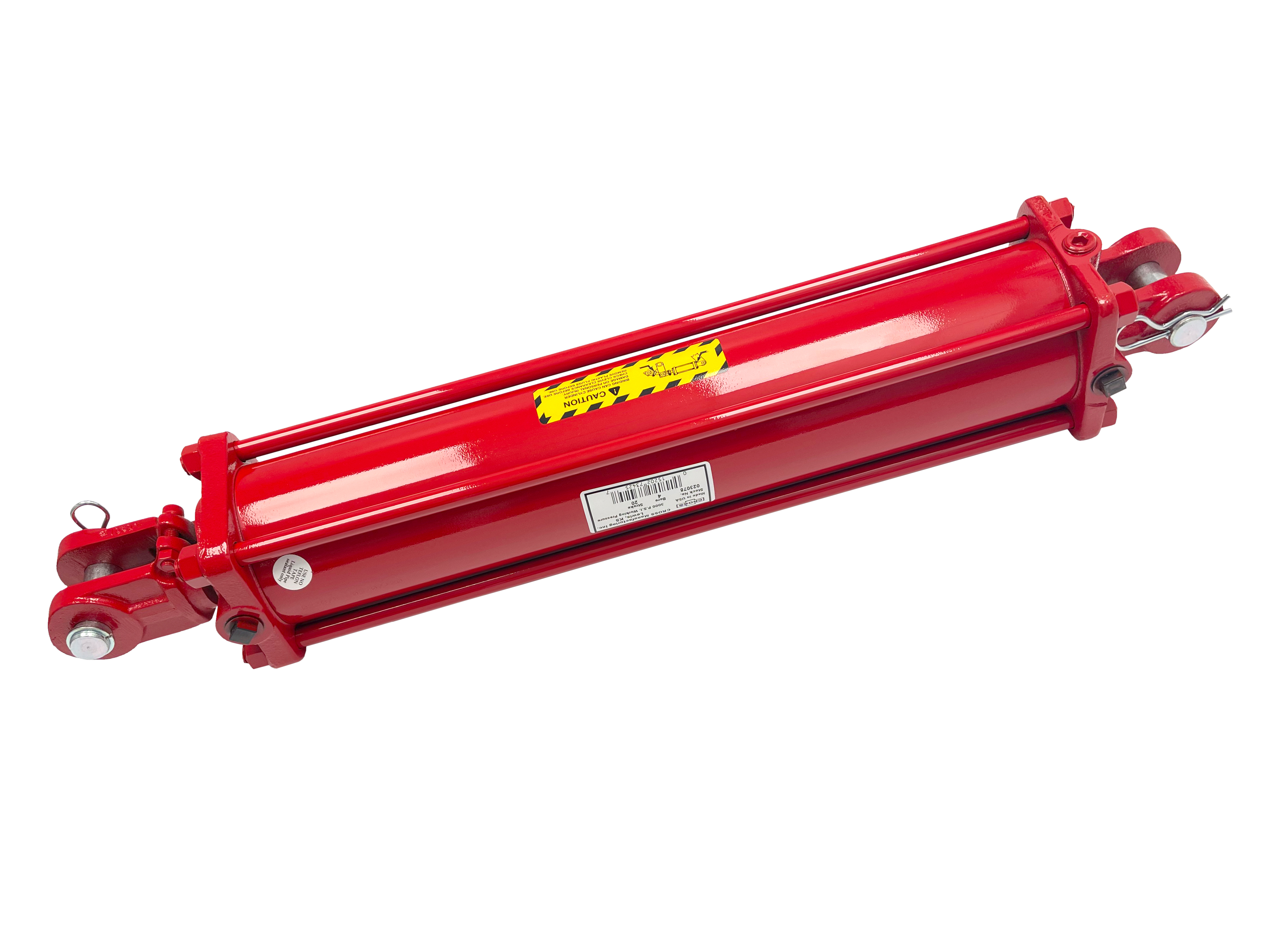

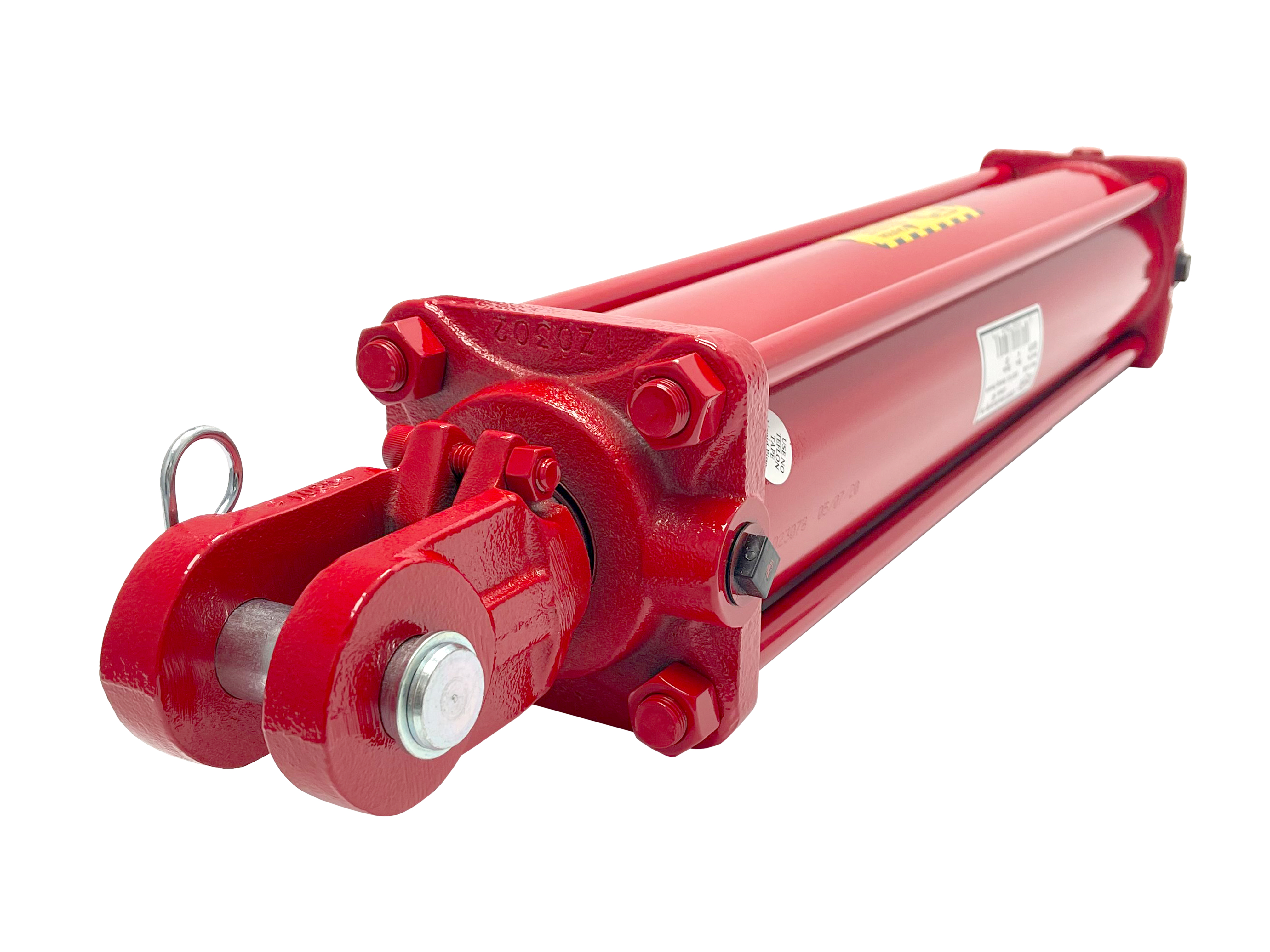

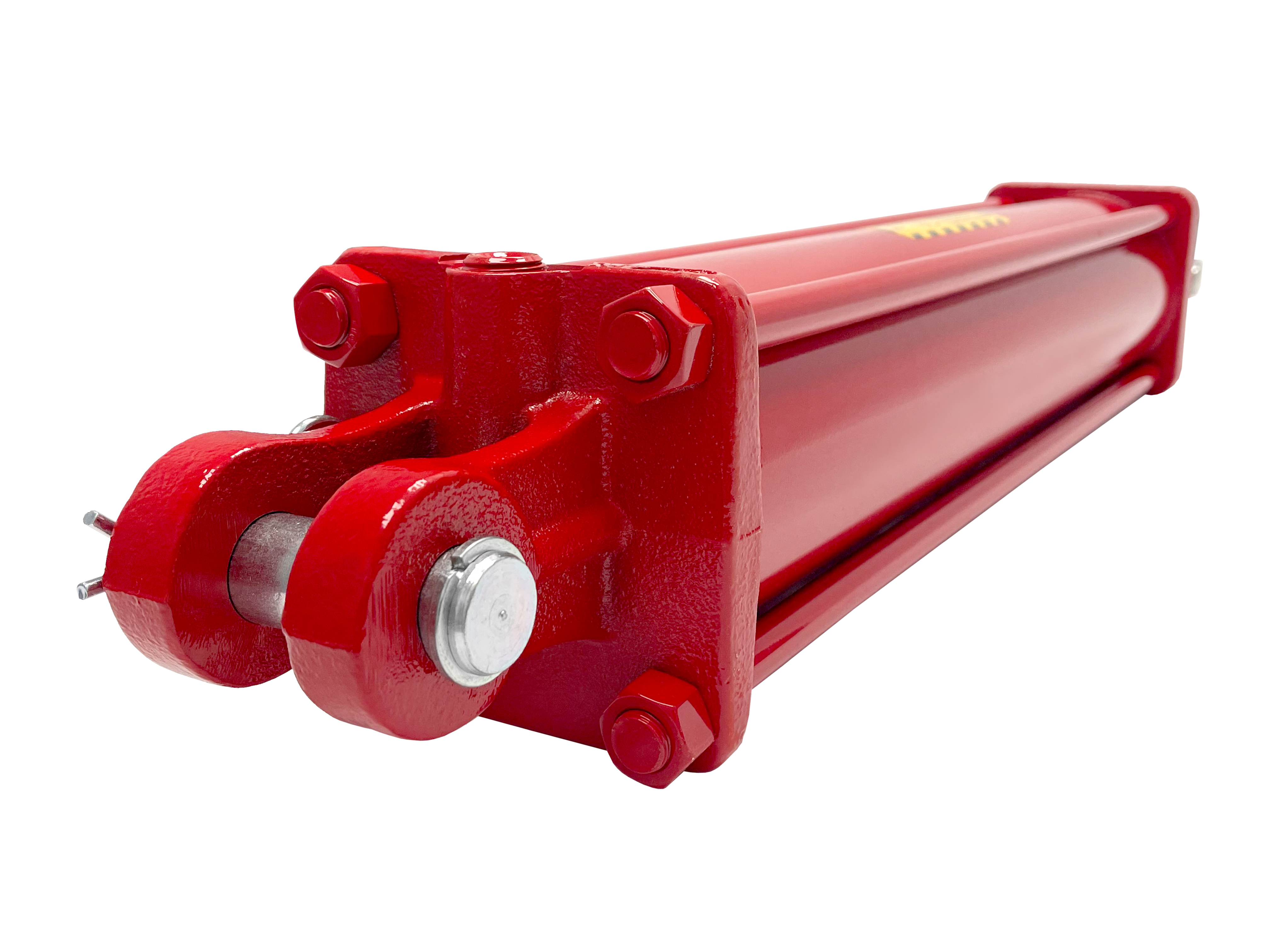

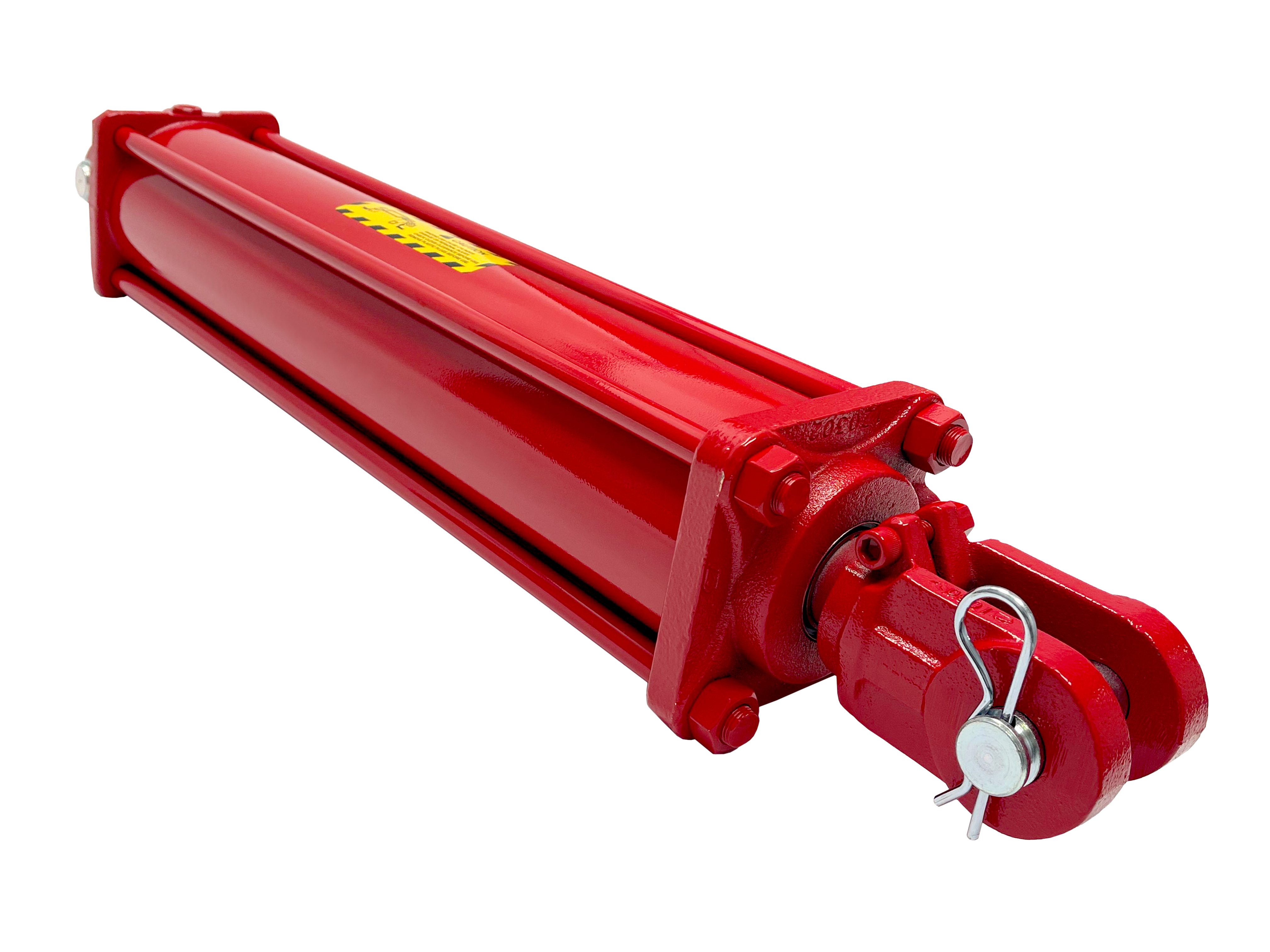

4" bore x 36" stroke CROSS tie rod hydraulic cylinder DB
$794.50
SKU: 436DB
| Bore : | 4” Bore Hydraulic Cylinders | OD : | 5" | Stroke : | 36” Stroke Hydraulic Cylinders | Rod : | 2" | Port Size : | 1/2" NPT | Pin : | 1" | Extended : | 82.62" | Retracted : | 46.62" | Overall length : | 48.62" | Pressure : | 2500 PSI | Oil Volume (quarts) : | 7.9 | Brand : | CROSS MANUFACTURING |
|---|---|
| GTIN : | 00015202733038 |
In stock
DESCRIPTION
- 4″ bore x 36″ stroke the CROSS series DB tie rod hydraulic cylinder 2500 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 stell alloy rods, quality seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by gray iron or aluminum alloy with 70 durometer Buna N piston o-rings with polyurethane back-ups, double lipped u-cup rod seals. NPTF ports in line with pins. Excellent replacement for farming equipment and others. Made in the USA.
FREE SHIPPING
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
