4" bore x 12" stroke CROSS tie rod hydraulic cylinder DH

Name: 4" bore x 12" stroke CROSS tie rod hydraulic cylinder DH
Brand: Magister Hydraulics
SKU: 412DH
Price: 545.87 USD
Availability: InStock
Rating: 5 (10 reviews)

$545.87

Pay in 4 interest-free payments of $136.47

SKU: 412DH

Bore :	4 in
Outer Dia. (⌀) :	5 in
Stroke :	12 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in
Extended :	34.62 in
Retracted :	22.62 in
Overall length :	24.62 in
Pressure :	3000 PSI
Oil Volume :	2.61 QTs
Brand :	CROSS MANUFACTURING
Design :	Tie Rod
Rod Type :	Hardened chrome plated
Rod End :	Clevis
Action :	Double Acting
Weight :	45 LBs
GTIN :	15202733038

SKU: 412DH Categories: Heavy Duty Tie-Rod cylinders, Hydraulic Cylinders

In stock

Description

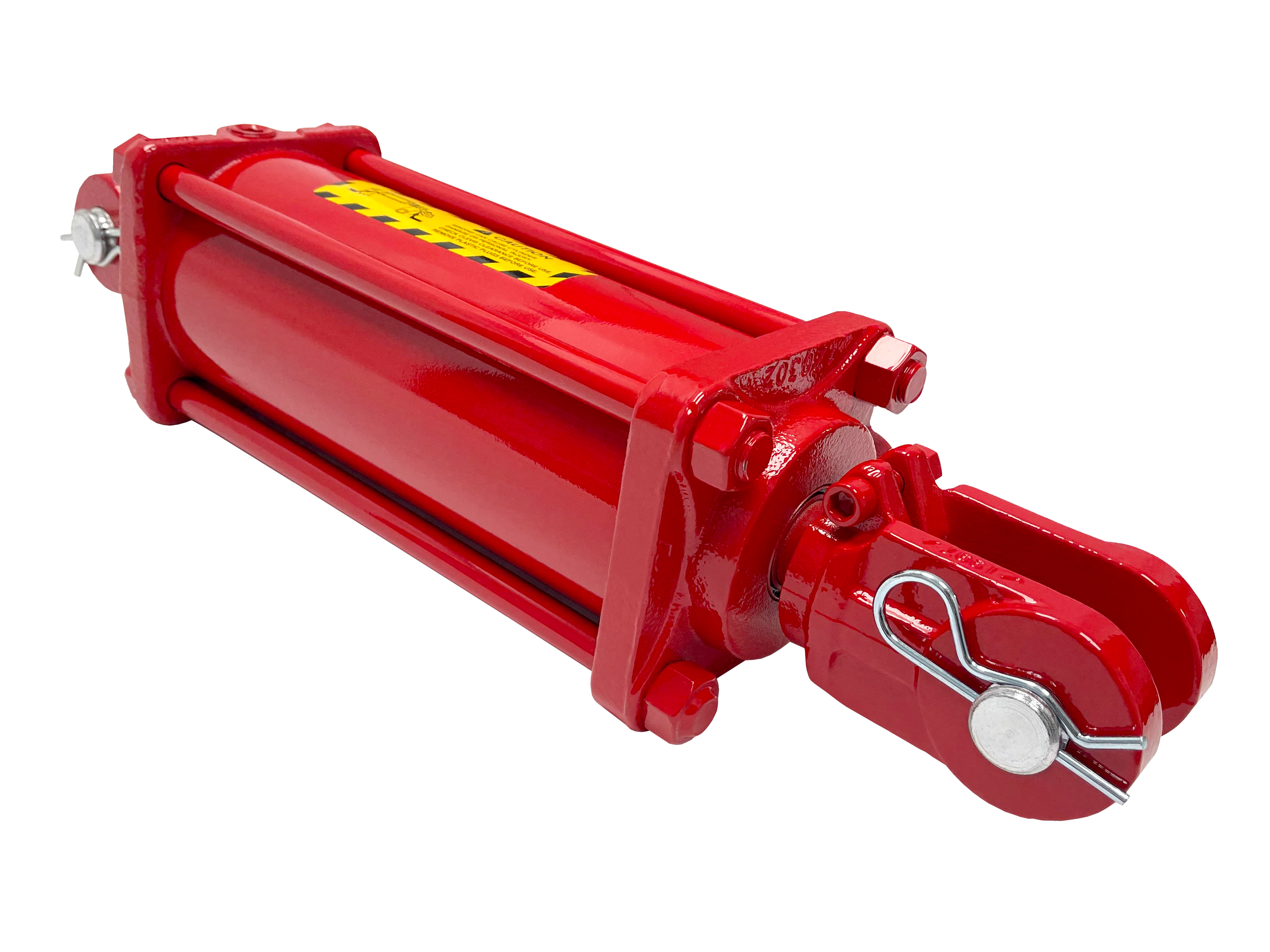

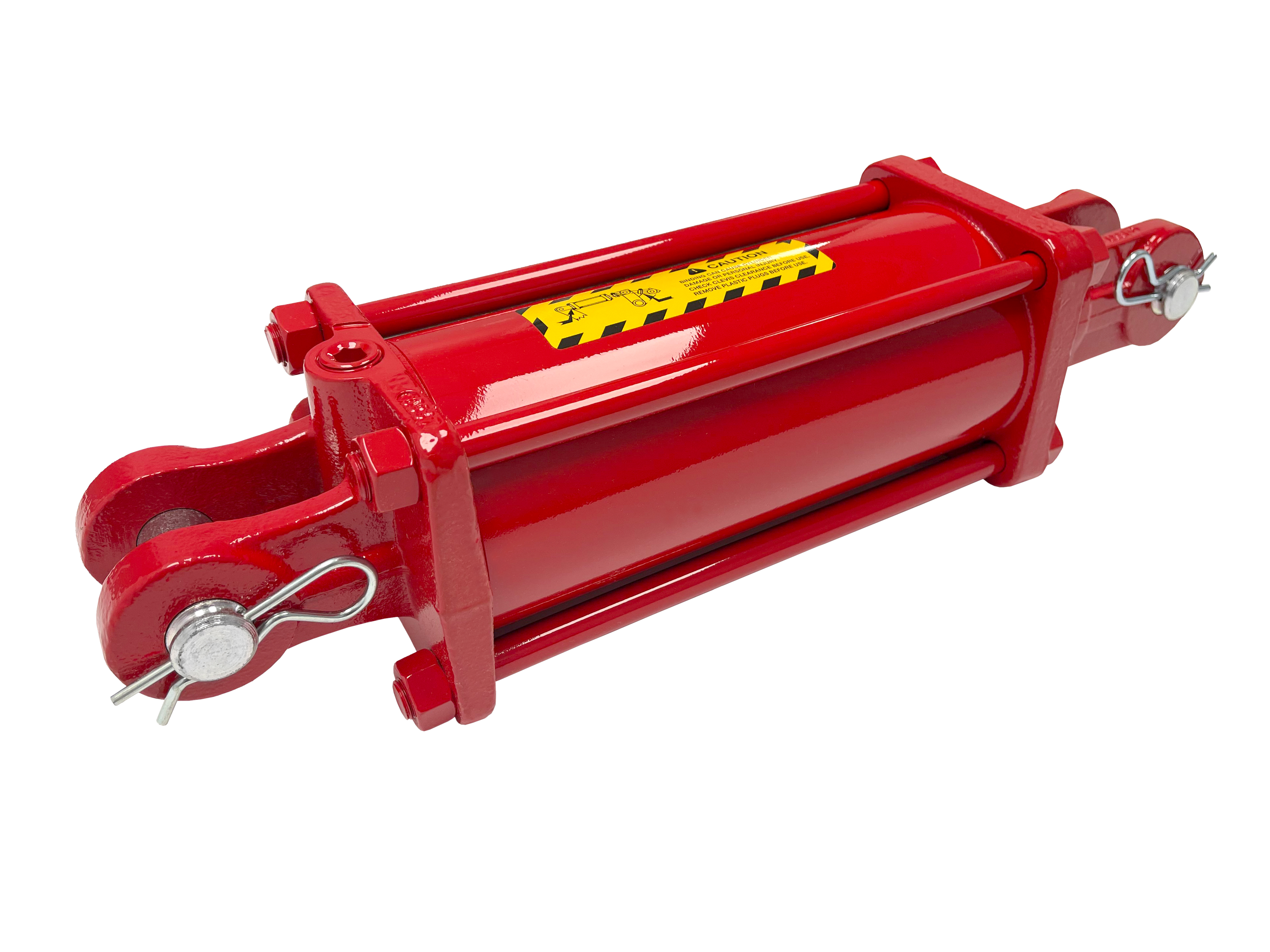

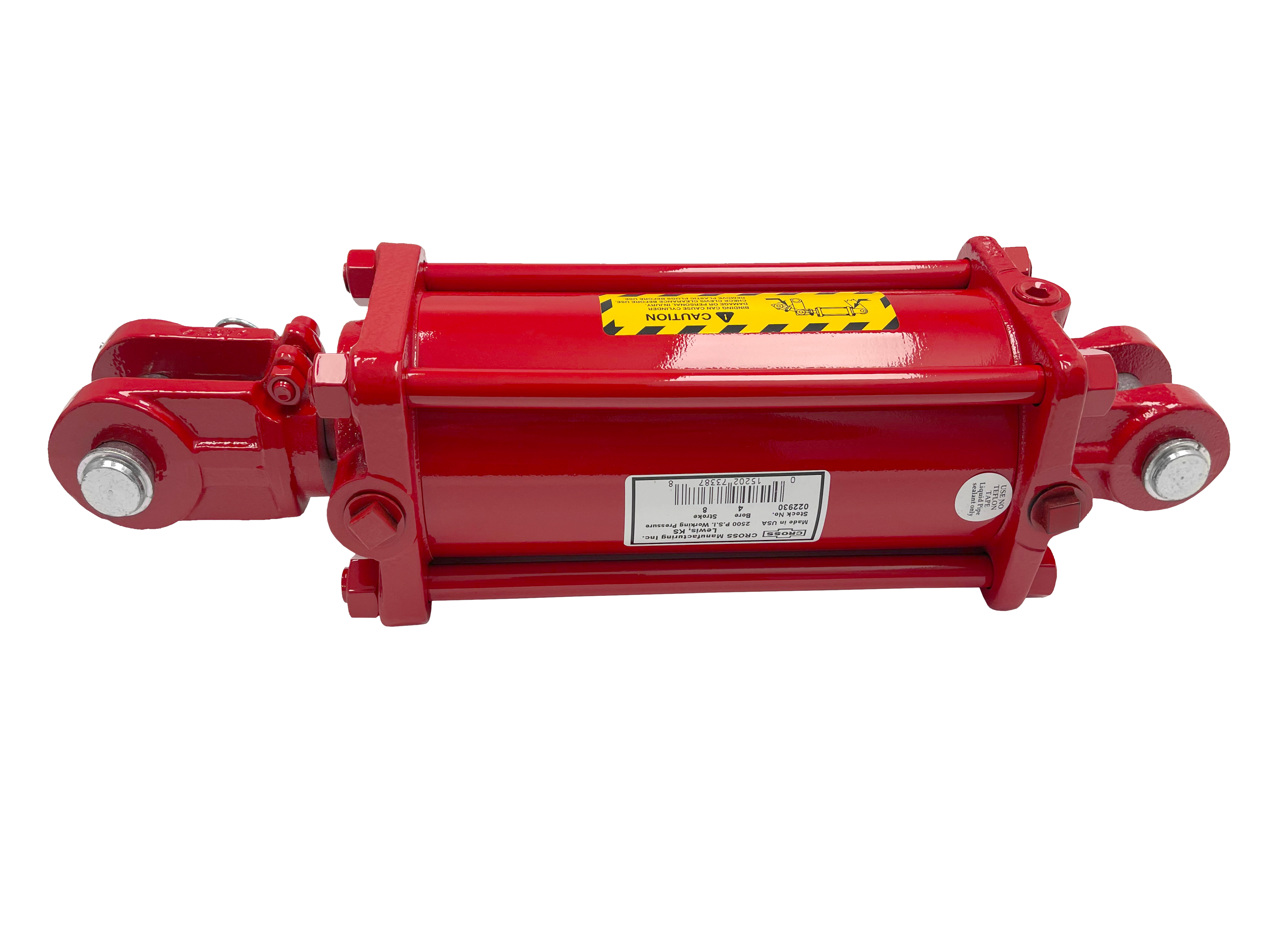

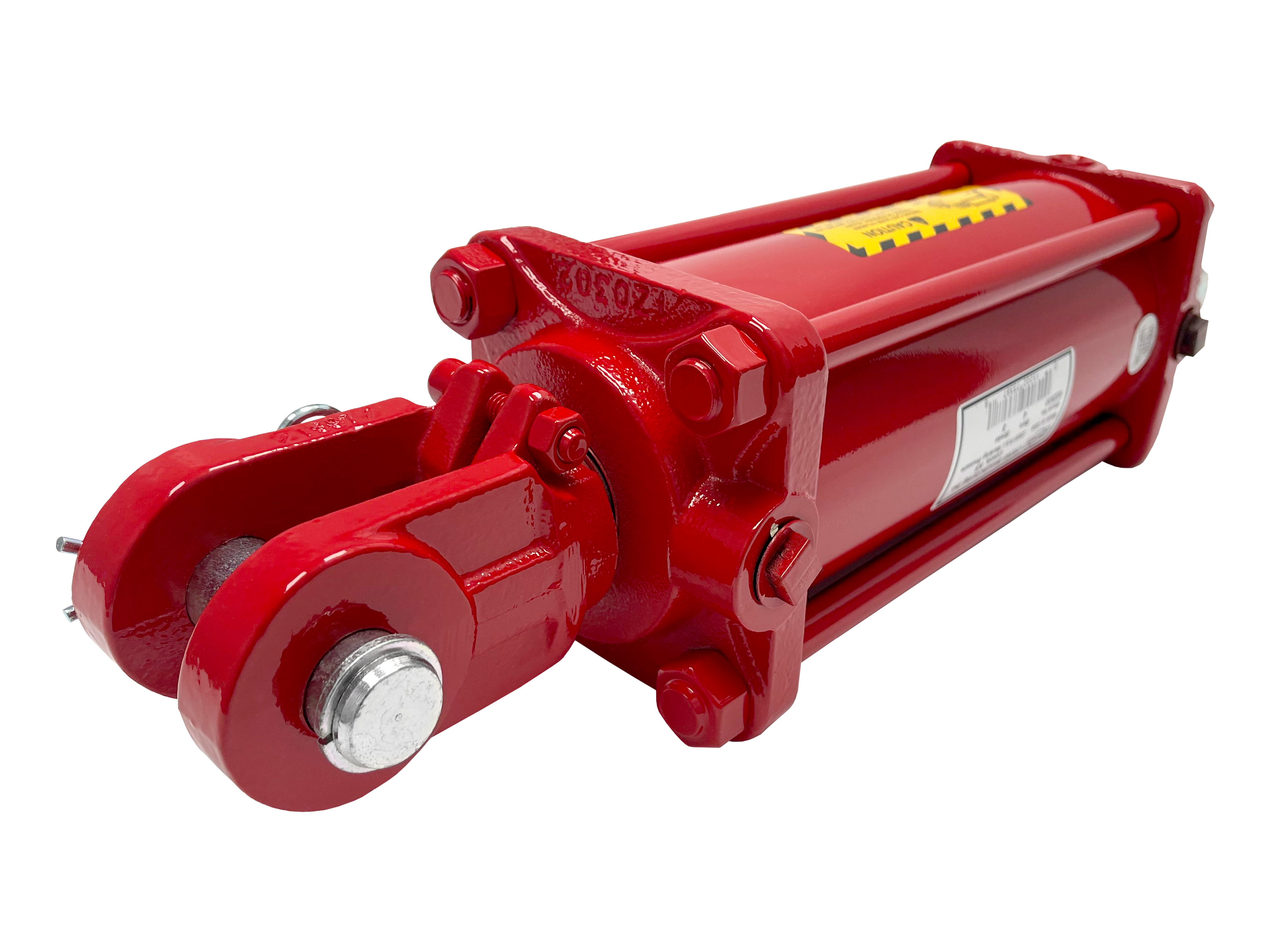

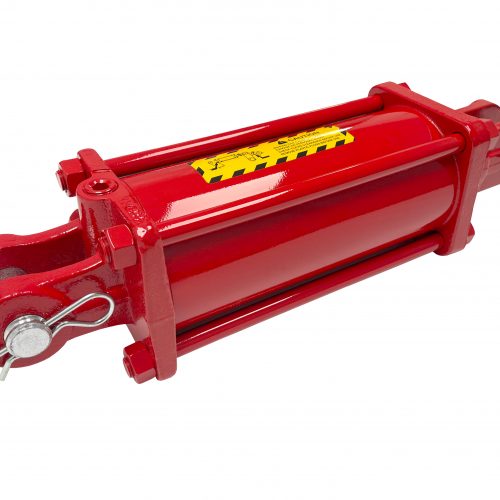

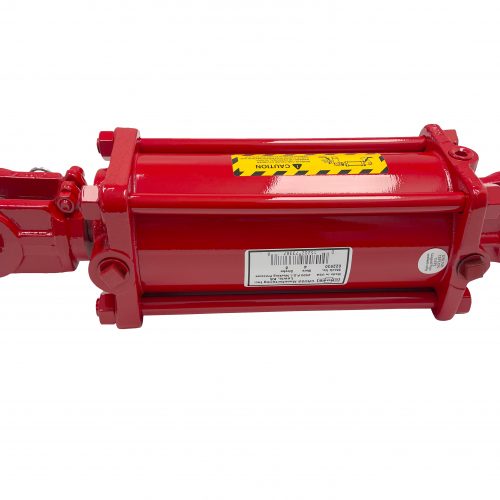

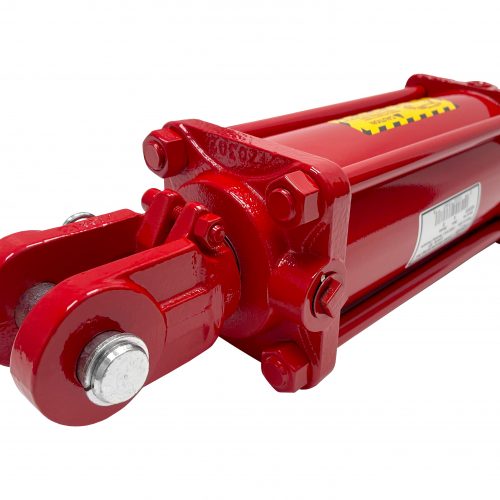

4″ bore x 12″ stroke the CROSS series DH tie rod hydraulic cylinder 3000 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 steel alloy rods, upgraded hevy-duty seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by aluminum alloy with crown seal. Double lipped u-cup rod seals. SAE 8 ports in line with pins. Designed for tough applications. Hardened steel pins. Excellent replacement for farming equipment and others. Made in the USA.

Free Ground Continental US Shipping

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
