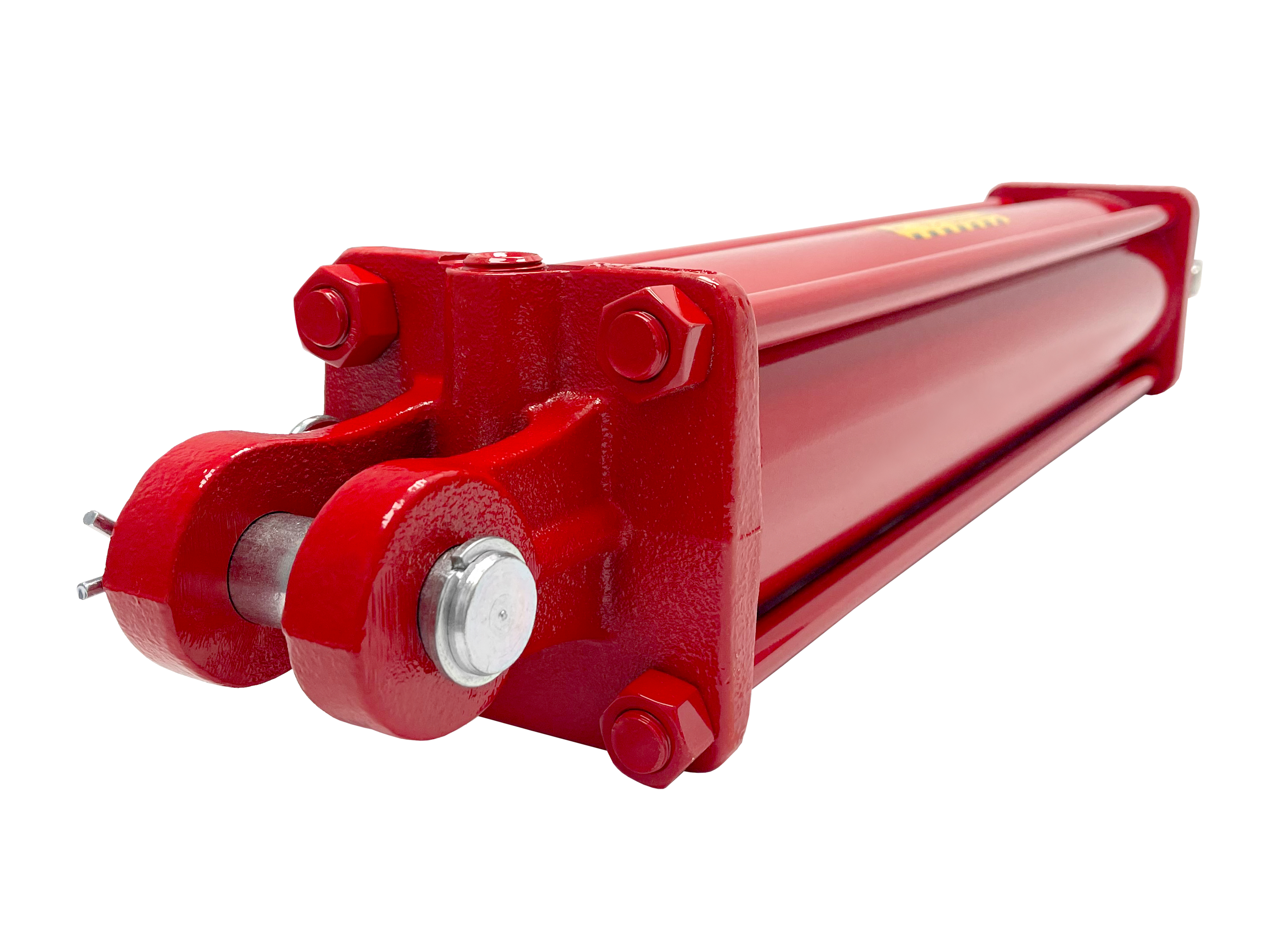

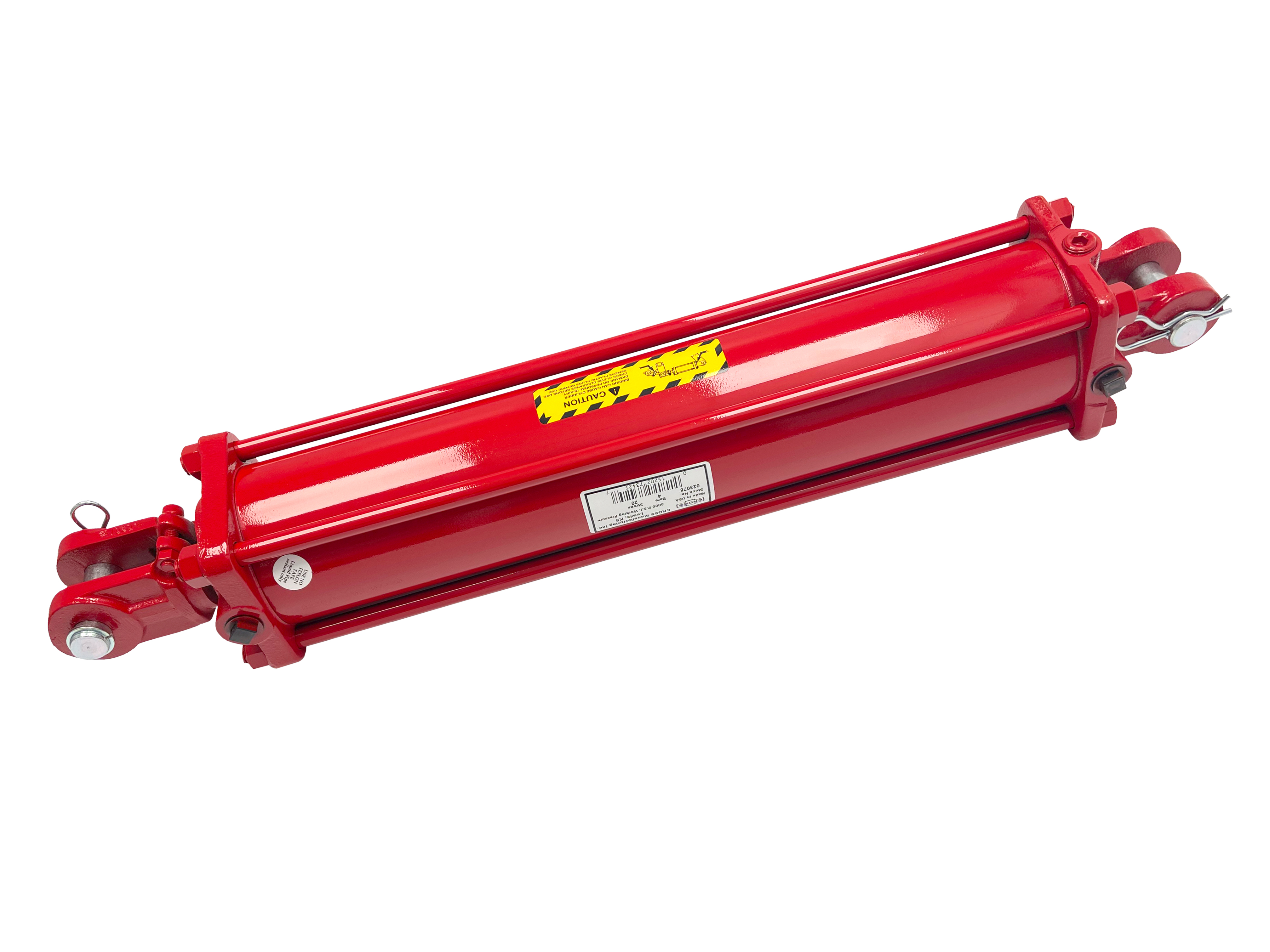

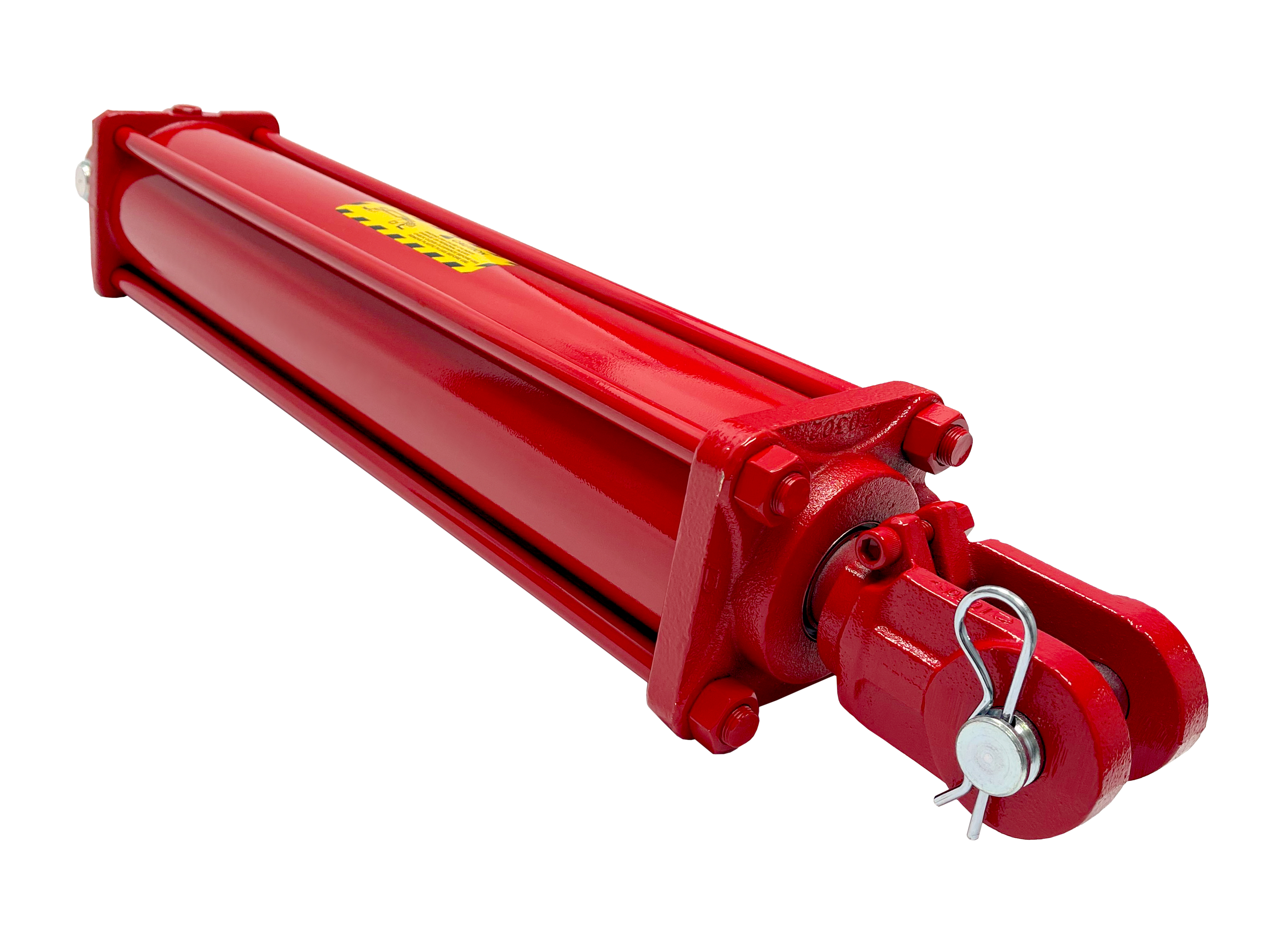

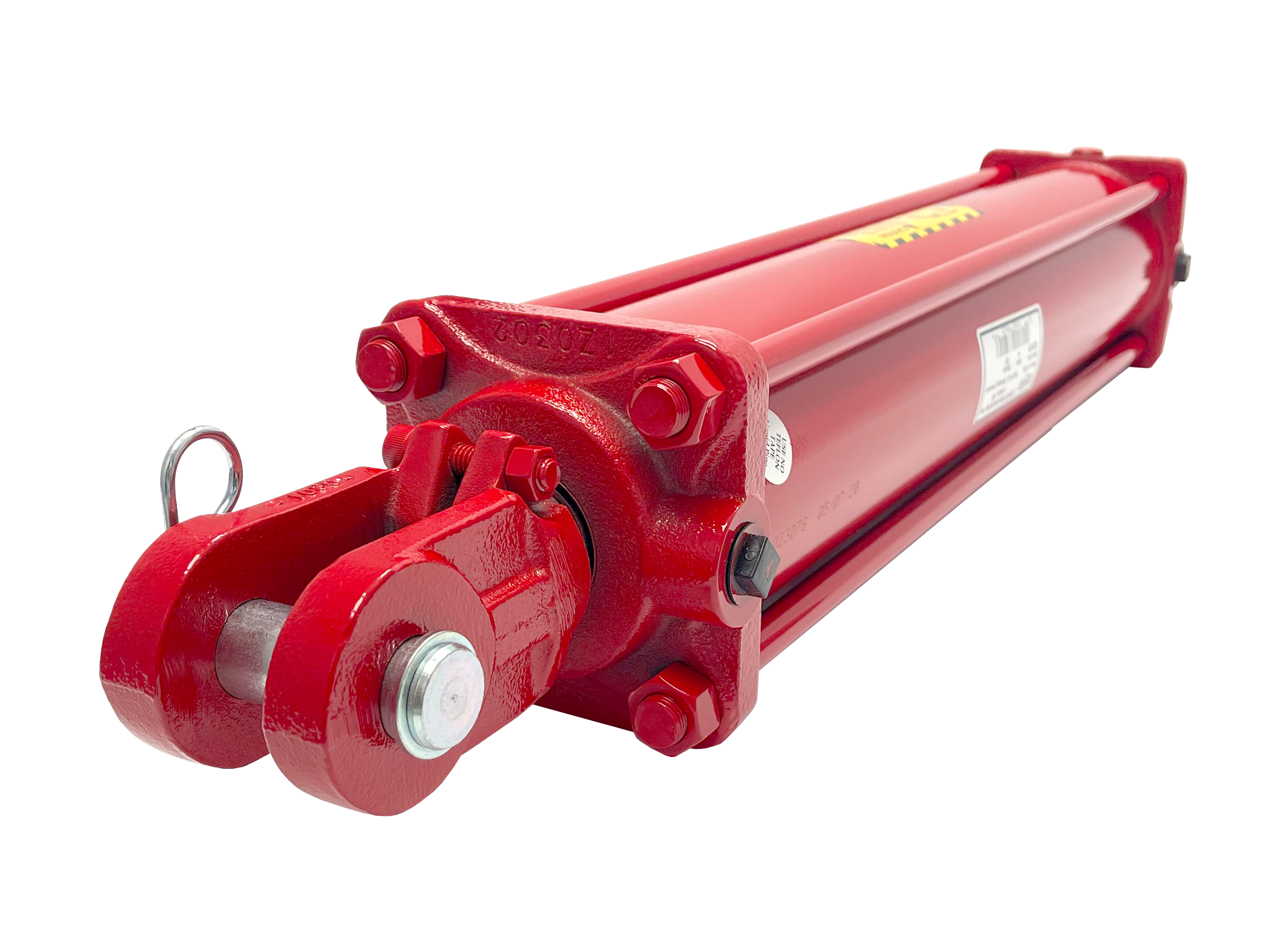

4" bore x 24" stroke CROSS tie rod hydraulic cylinder DH

Name: 4" bore x 24" stroke CROSS tie rod hydraulic cylinder DH
Brand: Magister Hydraulics
SKU: 424DH
Price: 685.11 USD
Availability: InStock
Rating: 5 (10 reviews)

$685.11

SKU: 424DH

Bore :	4” Bore Hydraulic Cylinders
OD :	5"
Stroke :	24” Stroke Hydraulic Cylinders
Rod :	2"
Port Size :	SAE 8
Pin :	1"
Extended :	58.62"
Retracted :	34.62"
Overall length :	36.62"
Pressure :	3000 PSI
Oil Volume (quarts) :	5.22
Brand :	CROSS MANUFACTURING
GTIN :	00015202733038

SKU: 424DH Categories: Heavy Duty Tie-Rod cylinders, Hydraulic Cylinders

In stock

DESCRIPTION

4″ bore x 24″ stroke the CROSS series DH tie rod hydraulic cylinder 3000 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 stell alloy rods, upgraded hevy-duty seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by aluminum alloy with crown seal. Double lipped u-cup rod seals. SAE 8 ports in line with pins. Designed for tough applications. Hardened steel pins. Excellent replacement for farming equipment and others. Made in the USA.
