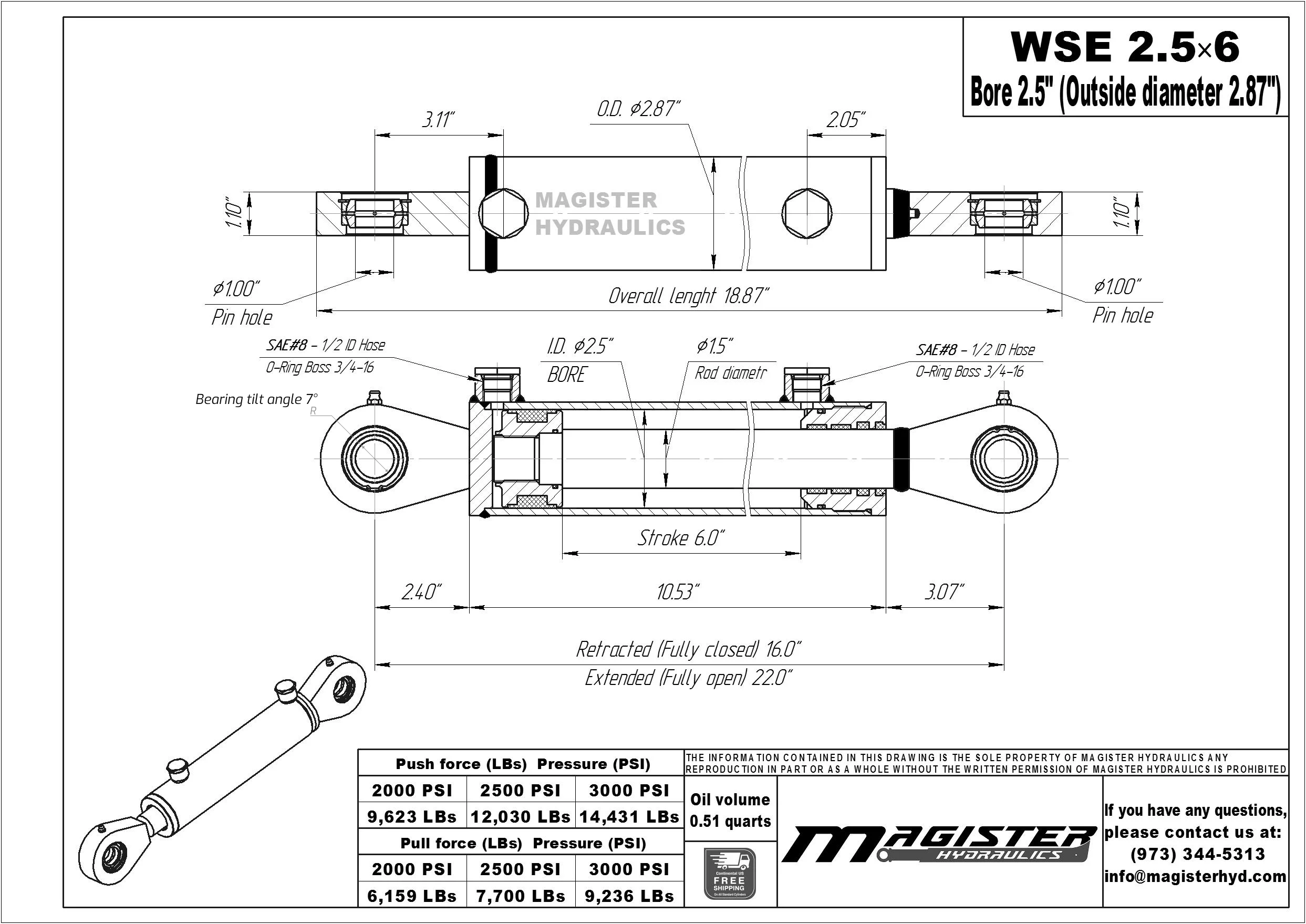

2.5" bore x 6" stroke swivel eye hydraulic cylinder

Original price was: $207.00.Current price is: $175.95.

Pay in 4 interest-free payments of $43.99
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WSE 2.5x6
Bore : 2.5 in
Outer Dia. (⌀) : 2.87 in
Stroke : 6 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

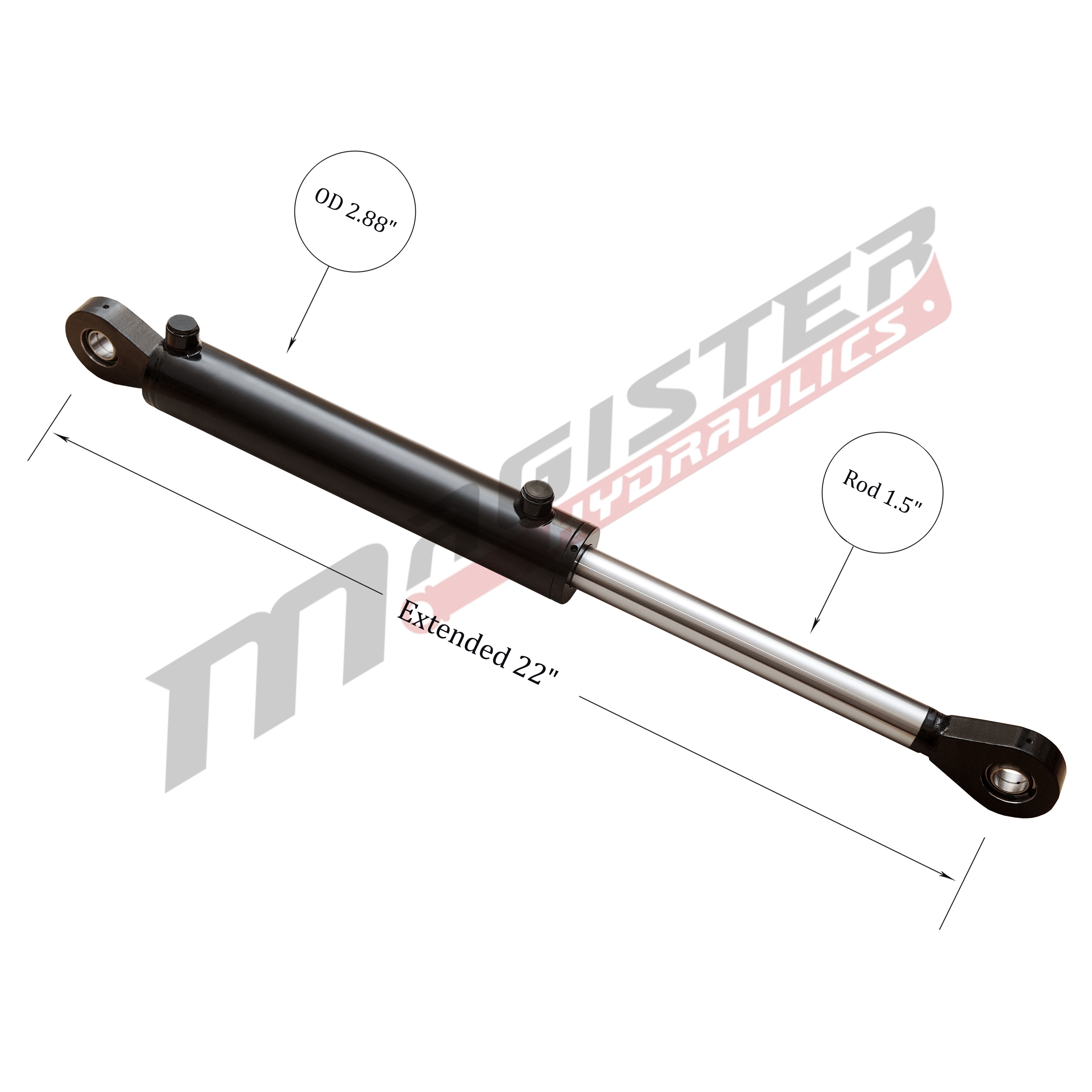

Extended : 22 in

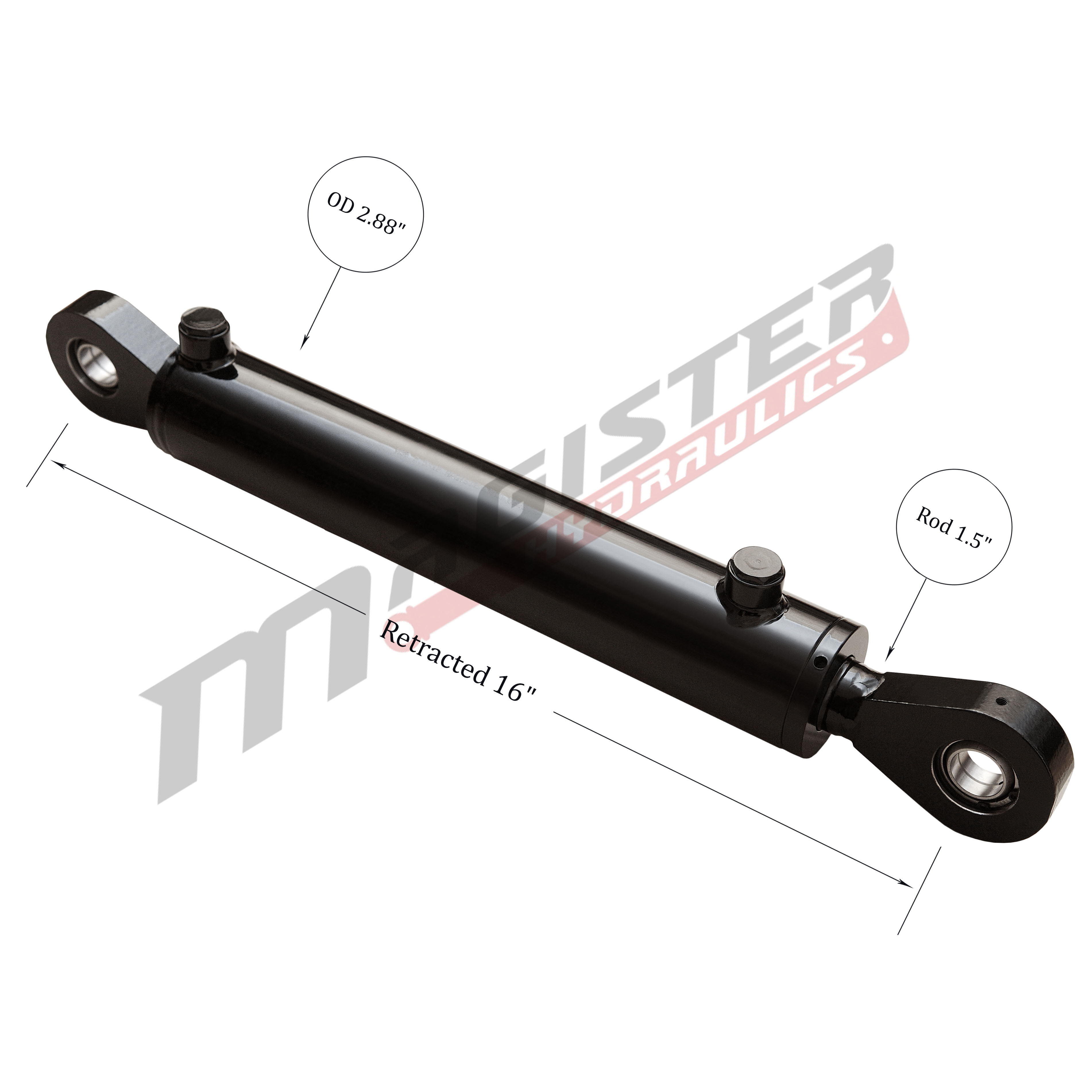

Retracted : 16 in
Overall length : 18.87 in
Pressure : 3500 PSI
Column Load : 14,700 LBs
Oil Volume : 0.51 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated

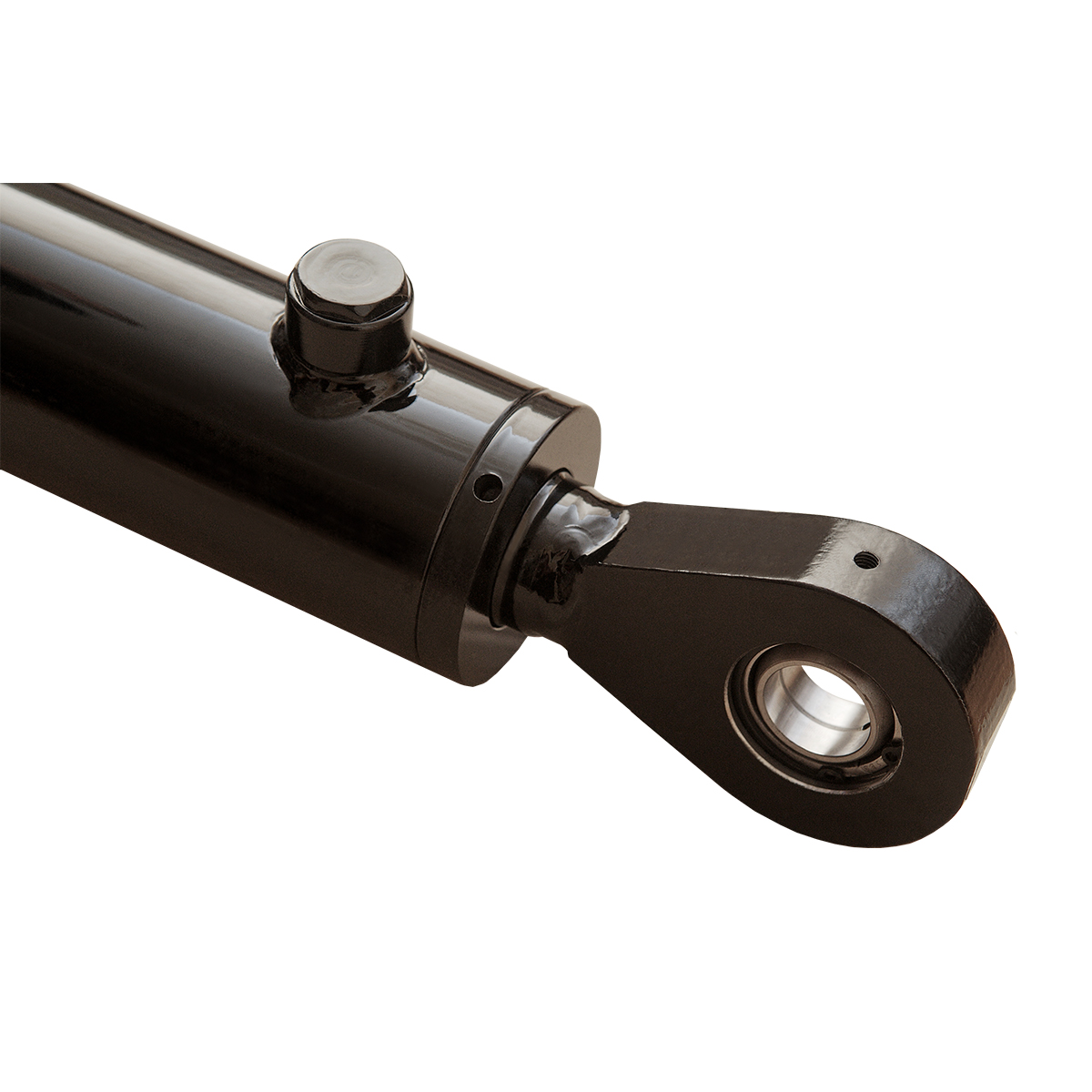

Rod End : Spherical Bearings
Action :
  • Double Acting
  • Weight : 19 LBs
    GTIN : 854335007834

    Volume discounts

    1+ PRICE EA
    $175.95
    4+ PRICE EA -5%
    $167.15
    8+ PRICE EA -10%
    $158.35
    In stock

    42 in stock

    Description

    • 2.5″ bore x 6″ stroke swivel eye hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister swivel eye cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded ends with spherical bearings on each side, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends and ability to revolve, this cylinder is a great fit for most of the mobile applications. Rotating feature of bearings helps with alingment.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
