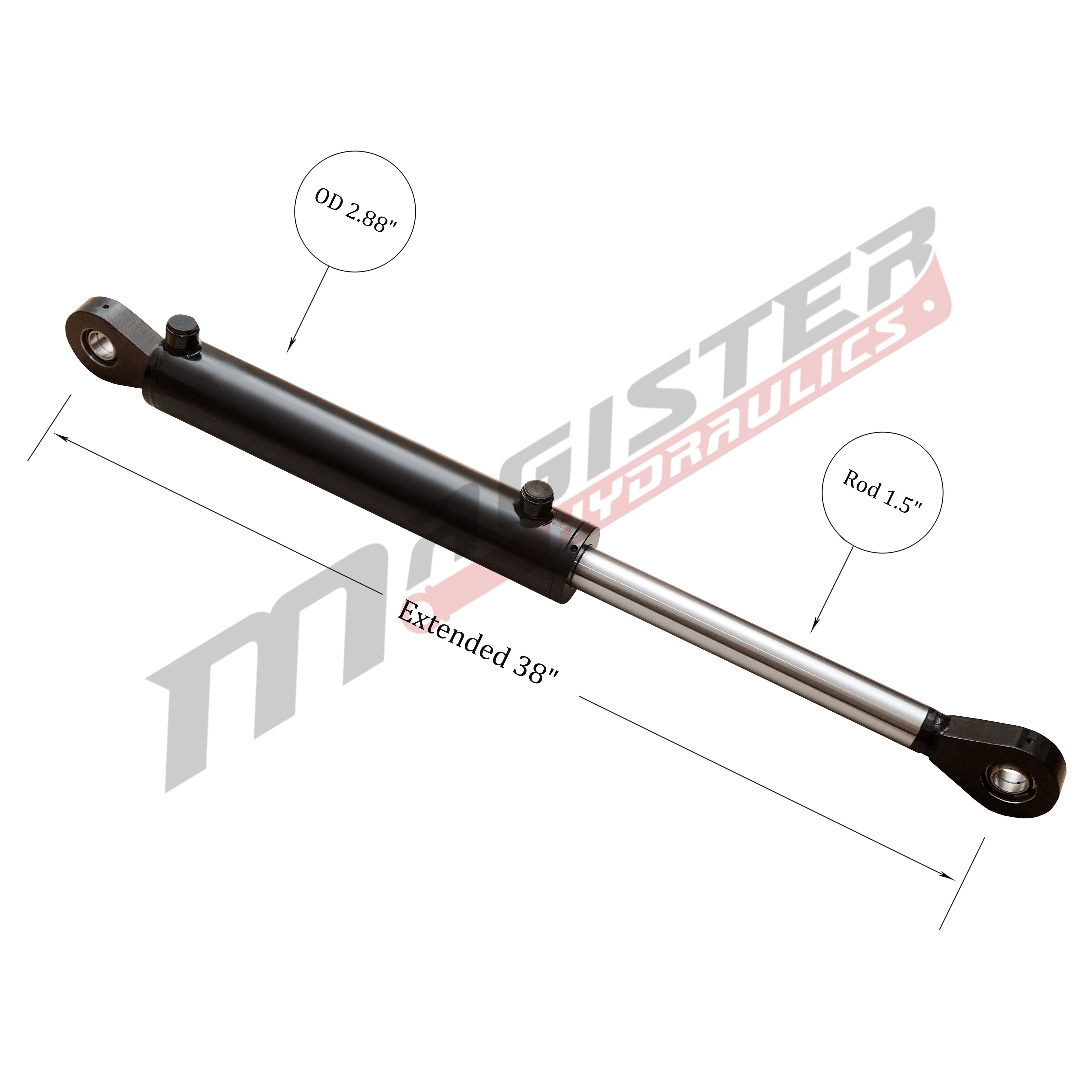

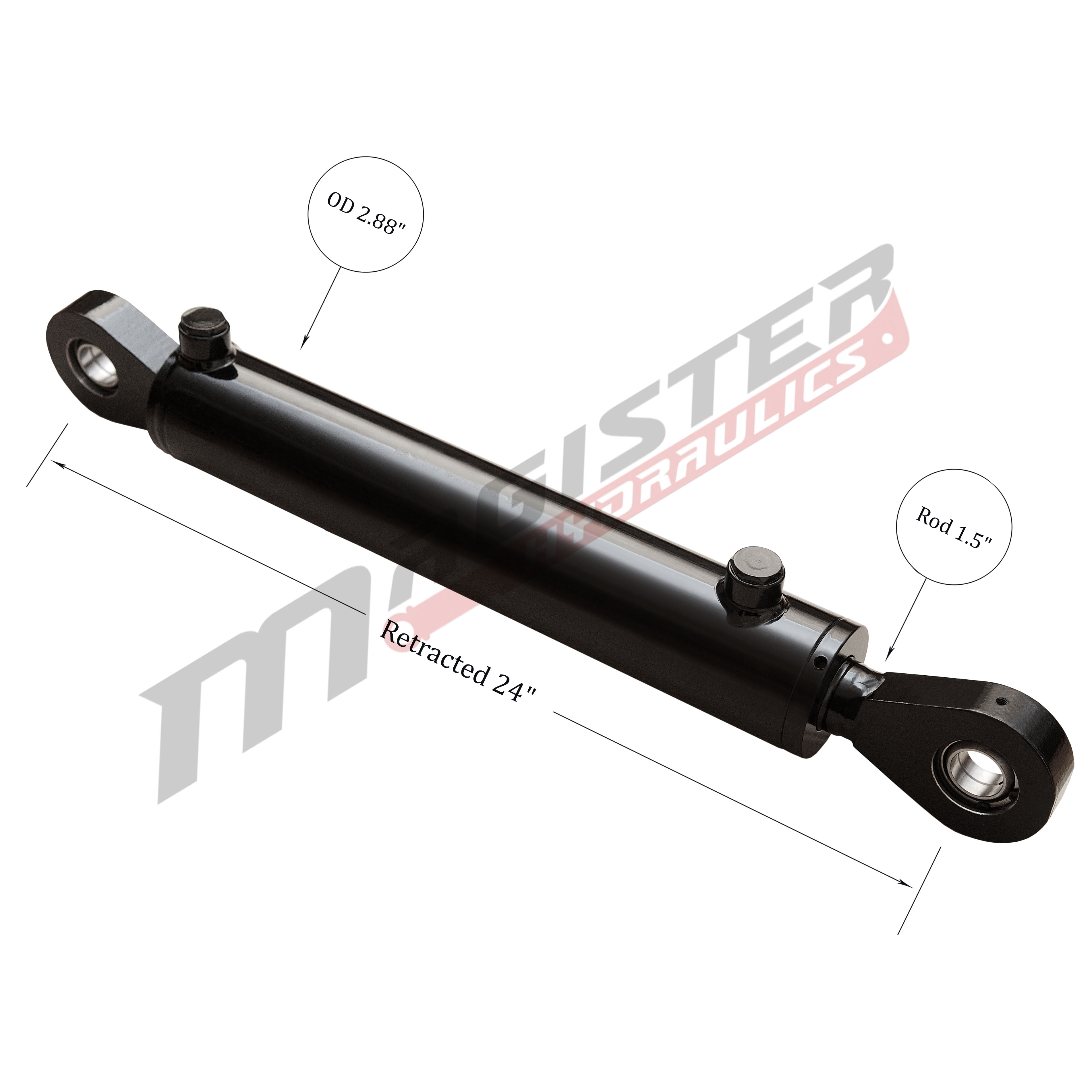

2.5" bore x 14" stroke swivel eye hydraulic cylinder
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WSE 2.5x14

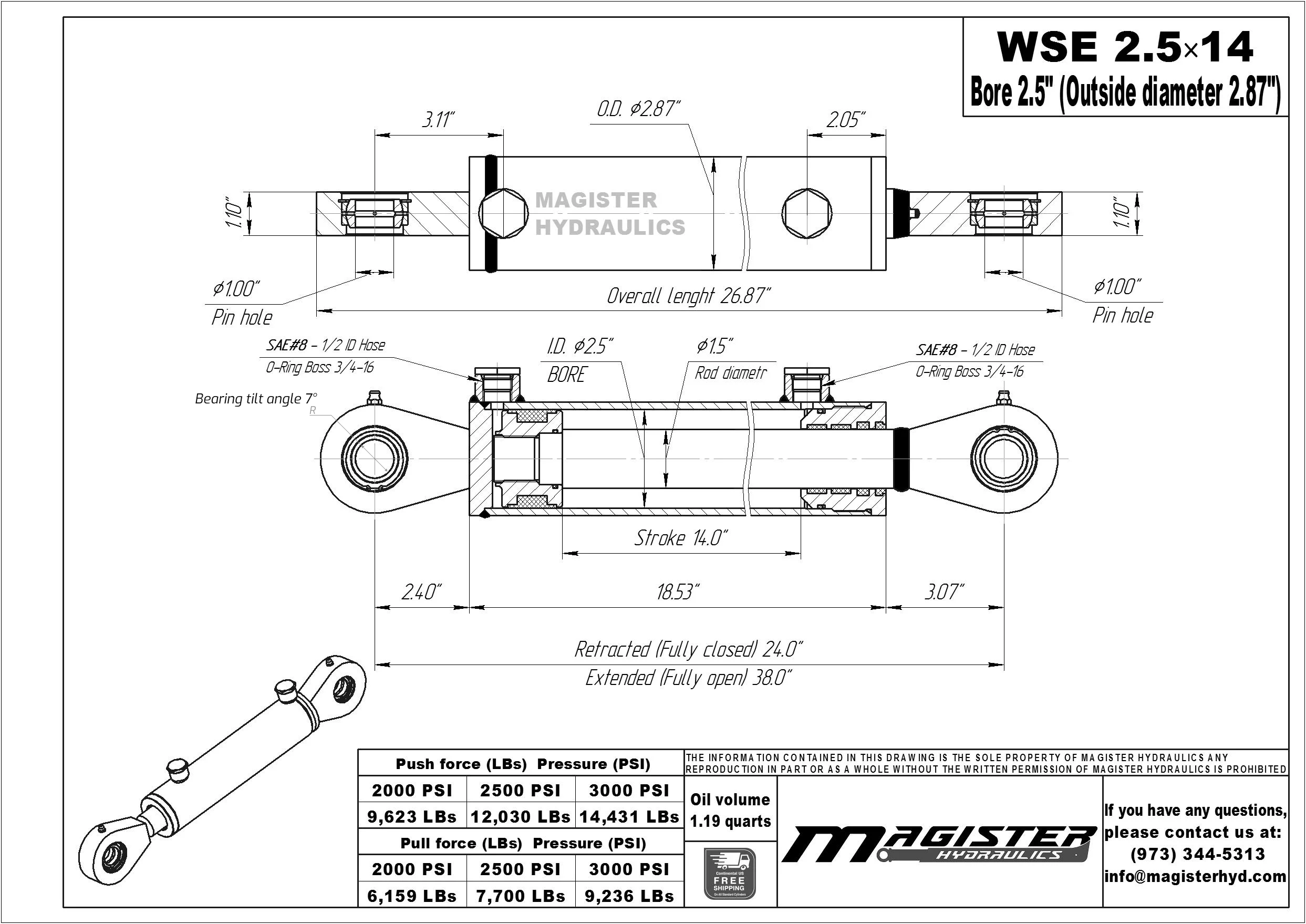

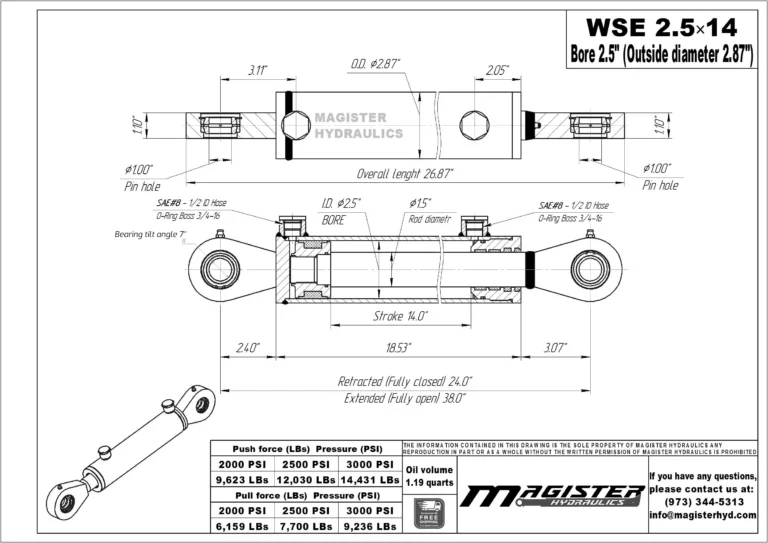

|Bore :||2.5” Bore Hydraulic Cylinders||OD :||2.87"||Stroke :||14” Stroke Hydraulic Cylinders||Rod :||1.5"||Port Size :||SAE 8||Pin :||1"||Extended :||38"||Retracted :||24"||Overall length :||26.87"||Pressure :||3500 PSI||Column Load (LBs) :||14,700||Oil Volume (quarts) :||1.19||Brand :||Magister Hydraulics|
1+ PRICE EA
4+ PRICE EA -5%
10+ PRICE EA -10%
23 in stock

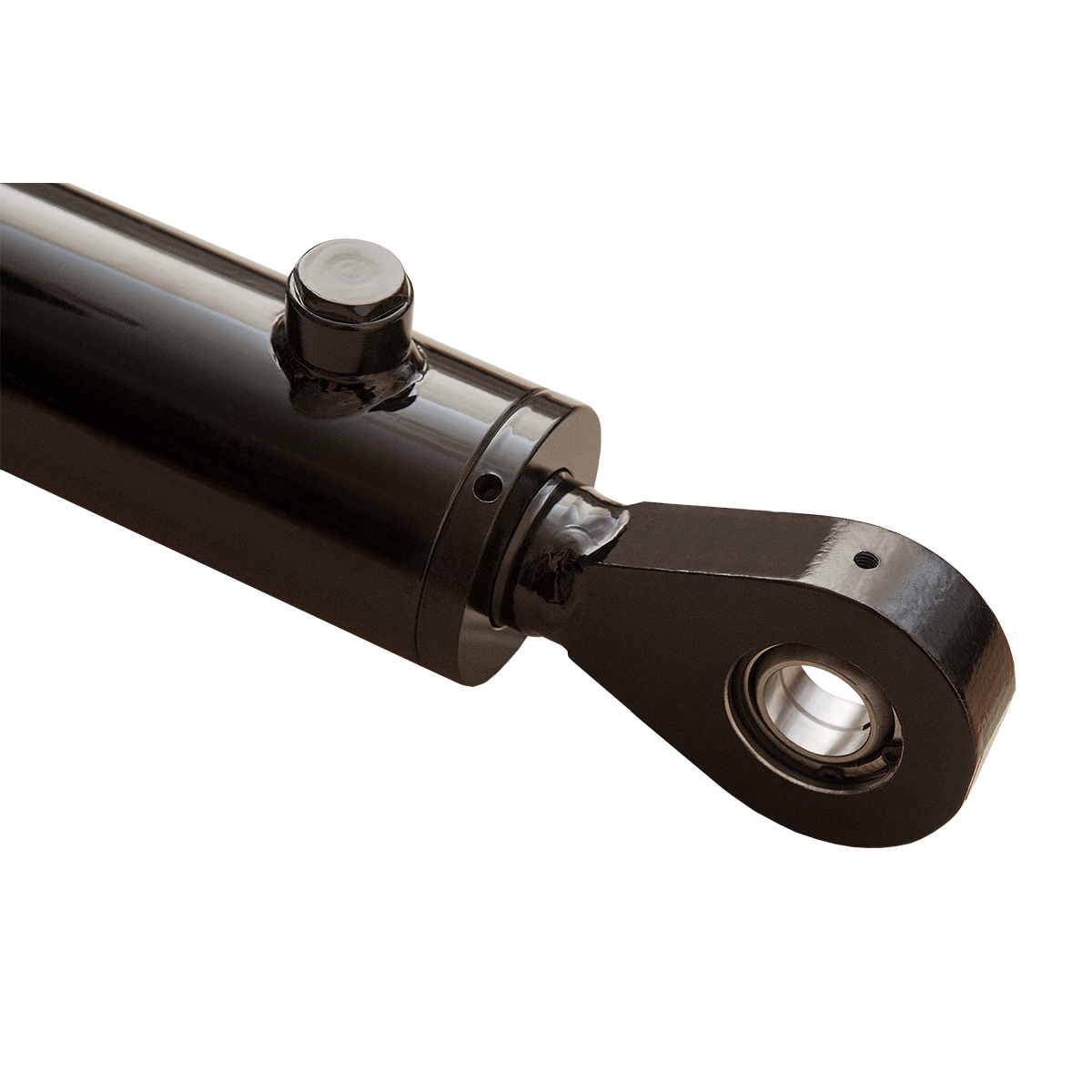

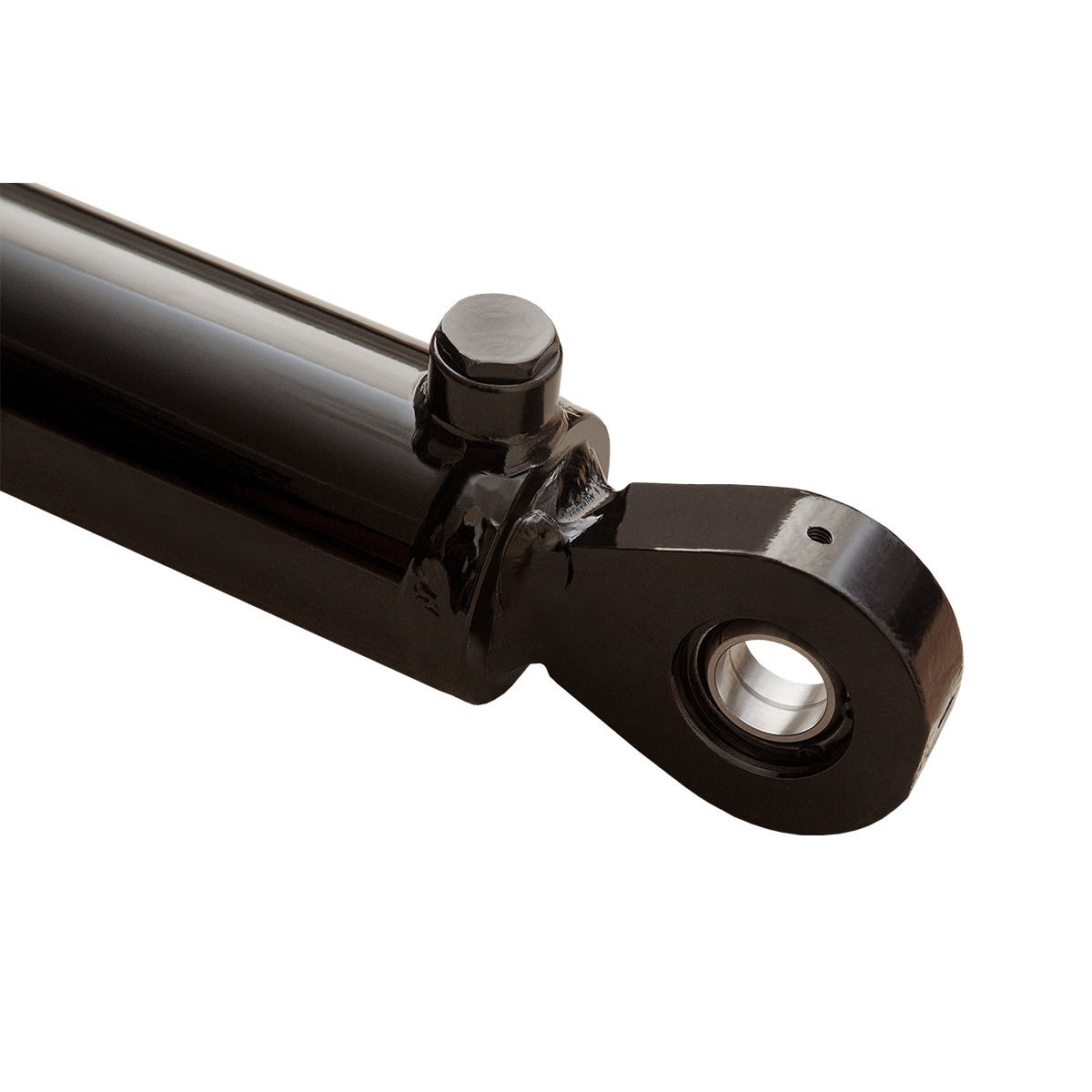

- 2.5″ bore x 14″ stroke swivel eye hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister swivel eye cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded ends with spherical bearings on each side, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends and ability to revolve, this cylinder is a great fit for most of the mobile applications. Rotating feature of bearings helps with alingment.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
