2.5" bore x 12" stroke swivel eye hydraulic cylinder
$209.00
Pay in 4 interest-free payments of $52.25SKU: WSE 2.5x12

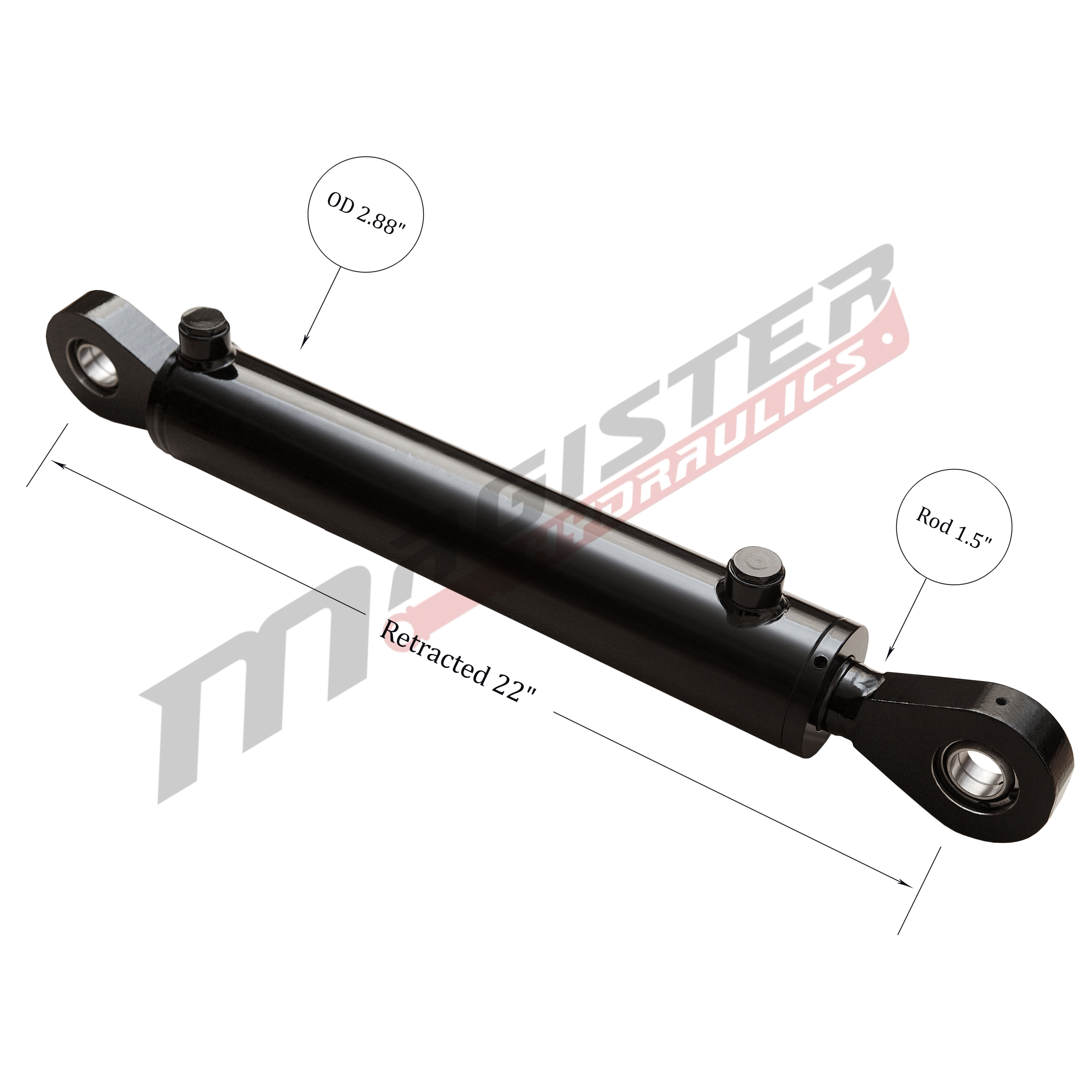

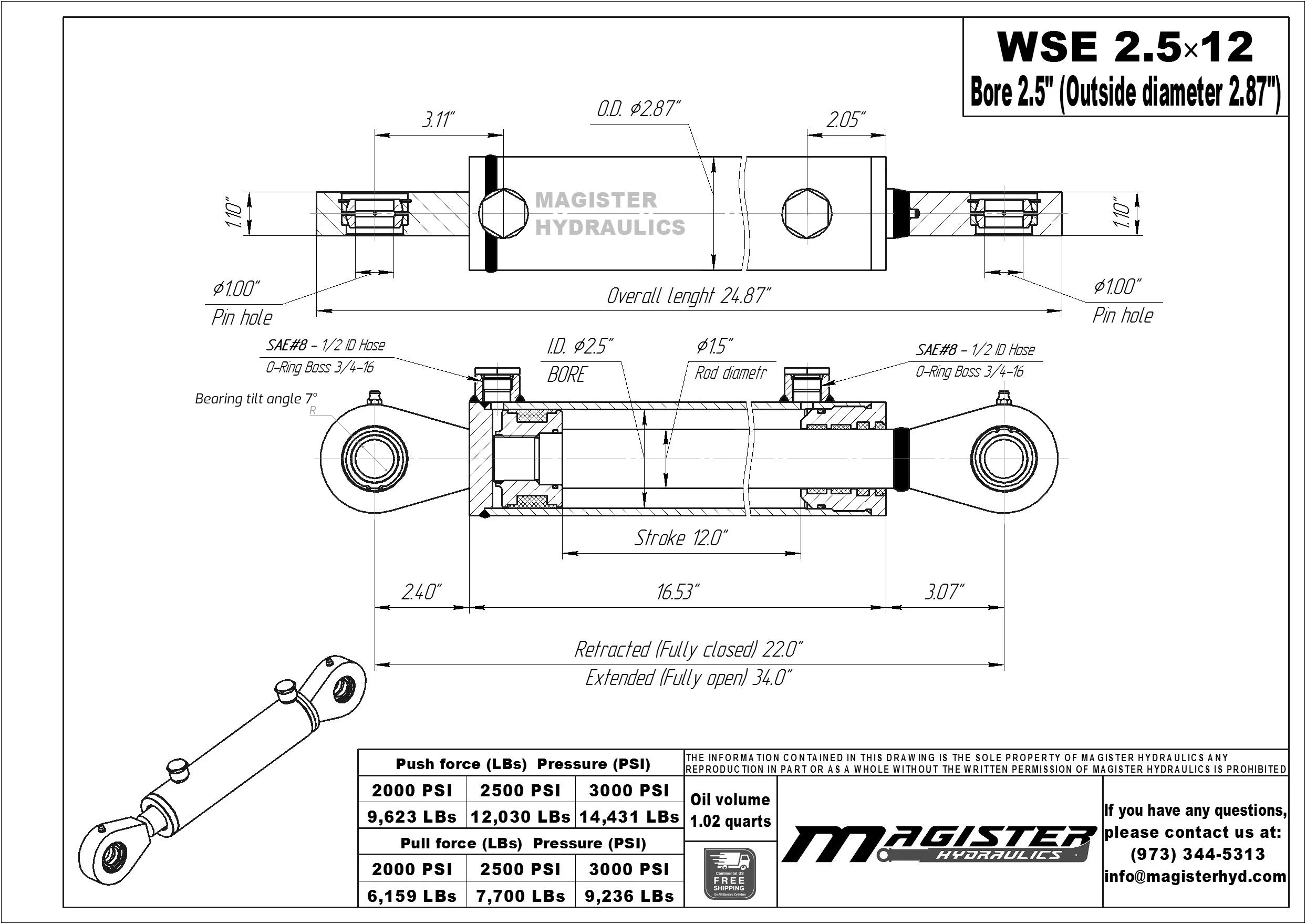

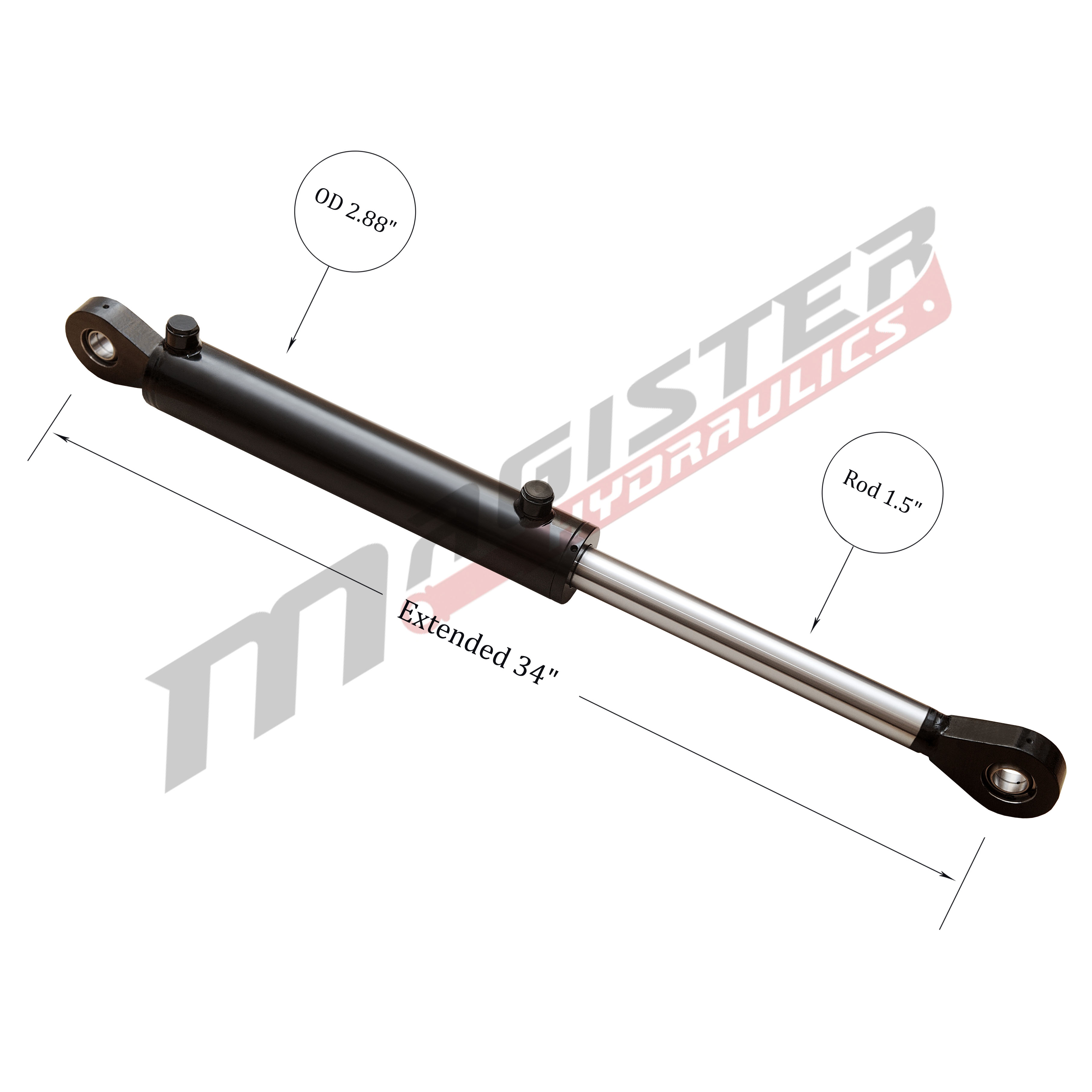

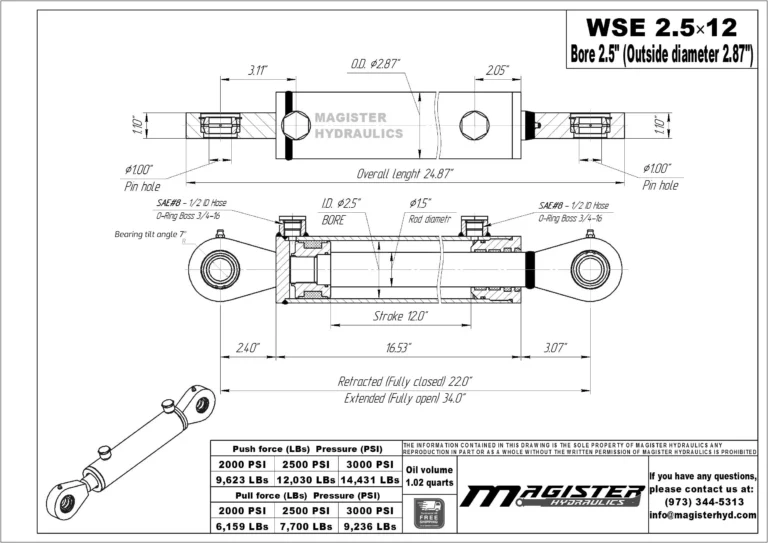

| Bore : | 2.5” Bore Hydraulic Cylinders | OD : | 2.87" | Stroke : | 12” Stroke Hydraulic Cylinders | Rod : | 1.5" | Port Size : | SAE 8 | Pin : | 1" | Extended : | 34" | Retracted : | 22" | Overall length : | 24.87" | Pressure : | Hydraulic Cylinders 3500 PSI | Column Load (LBs) : | 14,700 | Oil Volume (quarts) : | 1.02 | Brand : | Magister Hydraulics |
|---|---|
| GTIN : | 854335007865 |
1+ PRICE EA
$209.00
4+ PRICE EA -5%
$198.55
8+ PRICE EA -10%
$188.10
In stock
15 in stock
DESCRIPTION

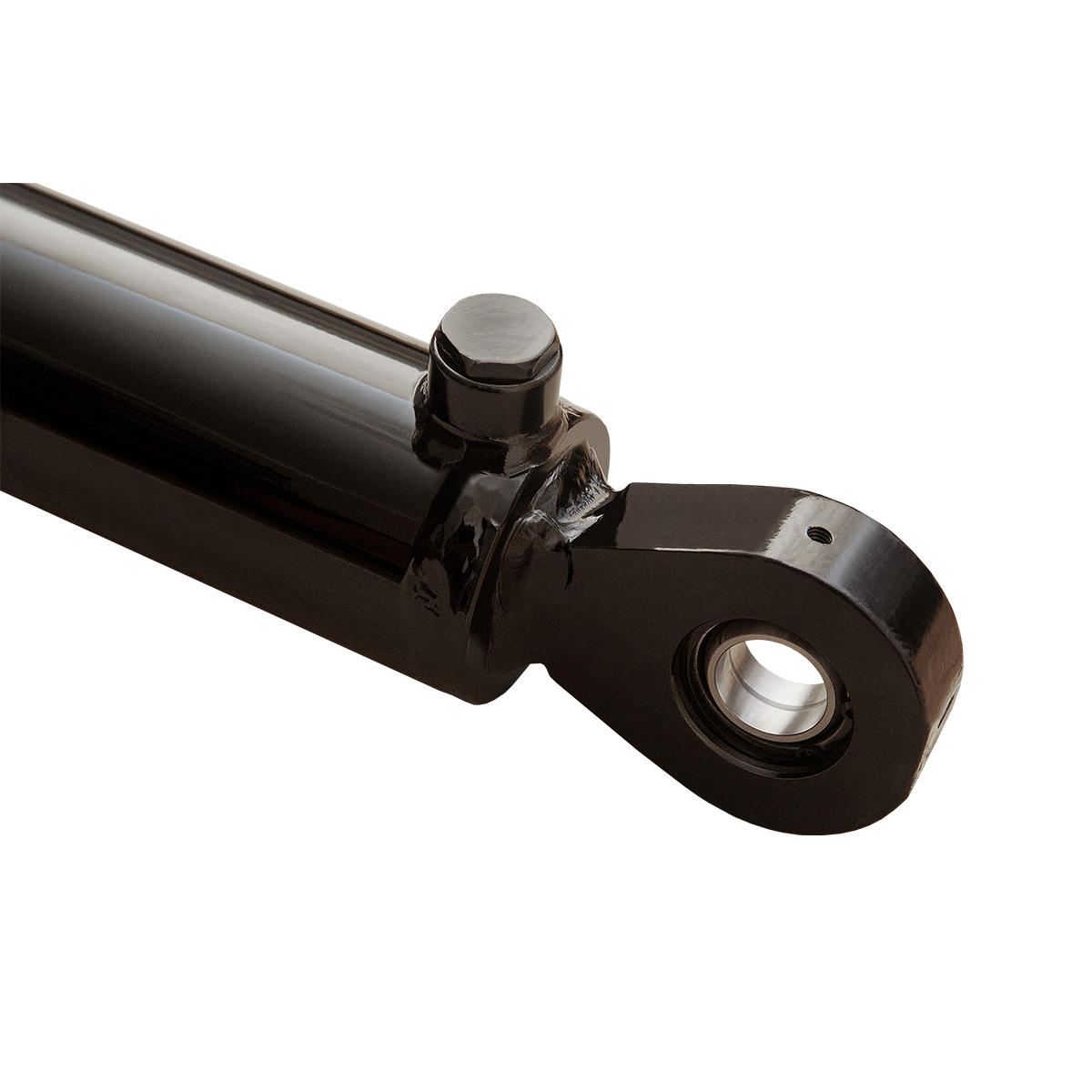

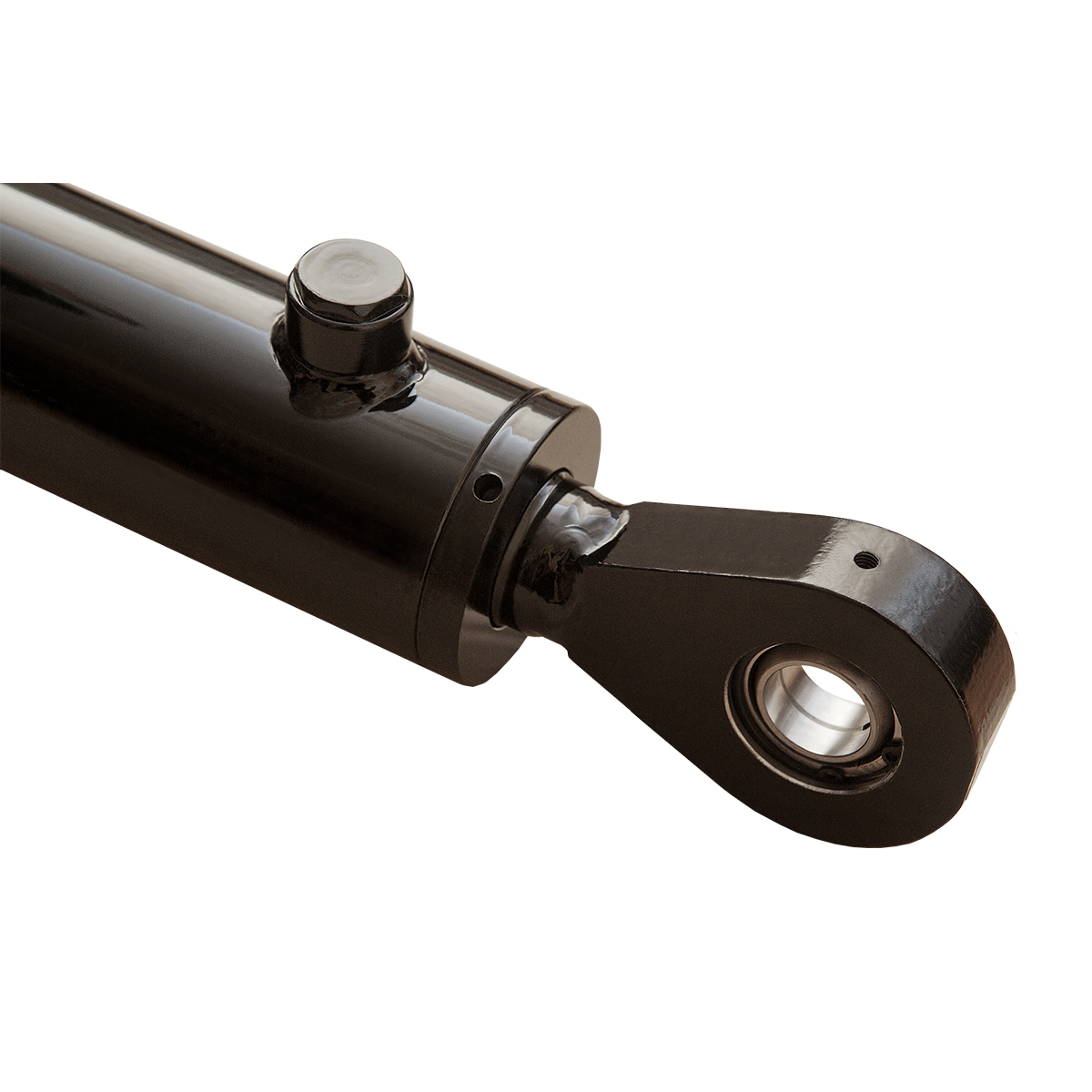

- 2.5″ bore x 12″ stroke swivel eye hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister swivel eye cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded ends with spherical bearings on each side, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends and ability to revolve, this cylinder is a great fit for most of the mobile applications. Rotating feature of bearings helps with alingment.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
FREE SHIPPING
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
